Ходовые запчасти

Каталог

Япония

Модель

MR2

VIN

Дата

1989/12

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Кузов

купе

Класс

GRAMS

Фрейм

SW20

КПП

автомат АКПП, 4 ступени

Опции

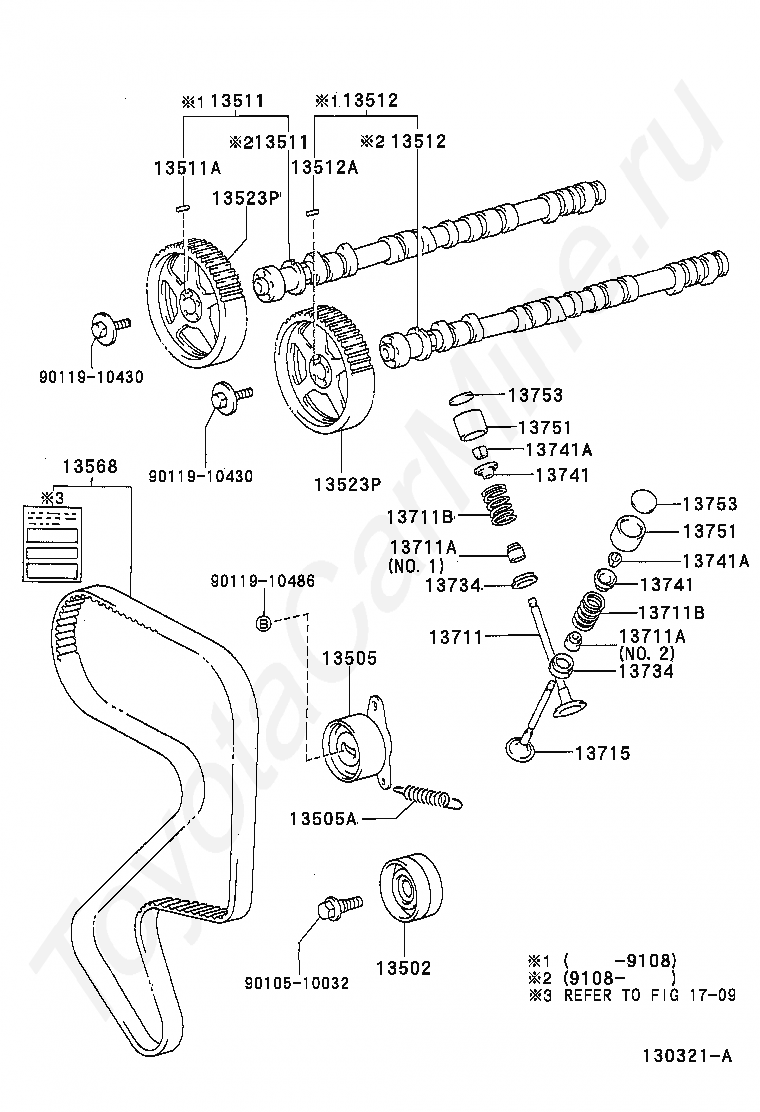

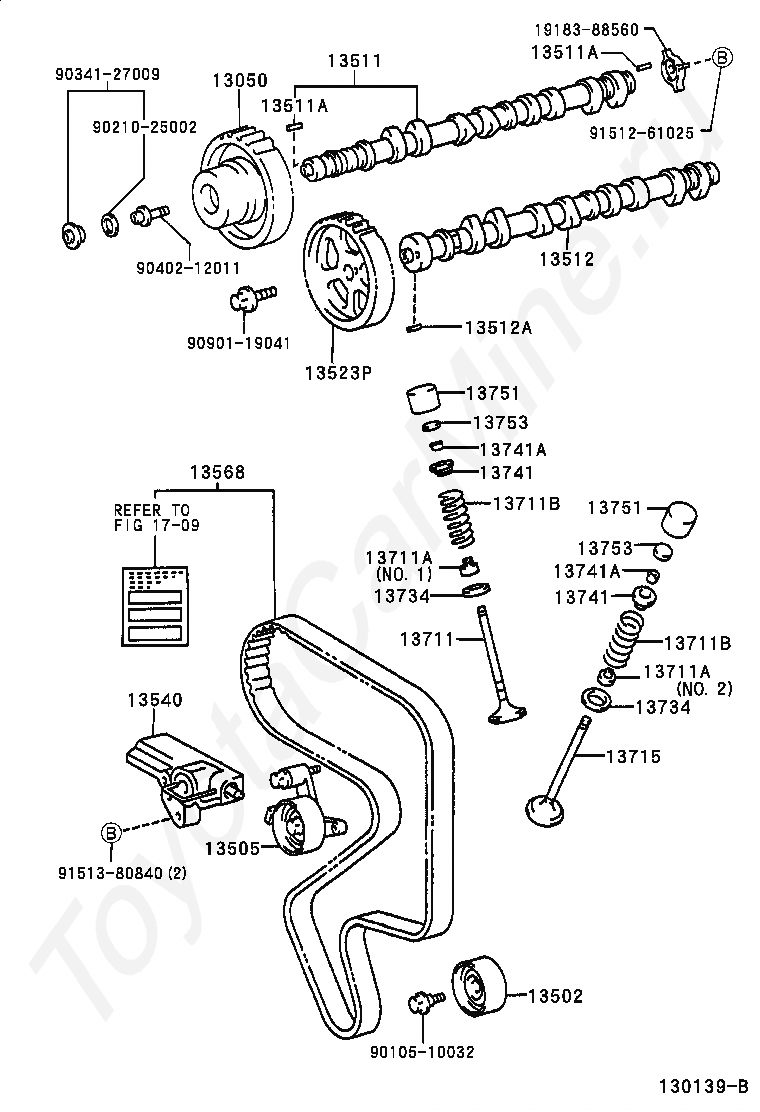

Распредвал, клапаны, ремень TOYOTA MR2

Код

Описание

13502

IDLER SUB-ASSY, TIMING BELT, NO.2

13505

IDLER SUB-ASSY, TIMING BELT, NO.1

13505A

SPRING, TENSION(FOR IDLER)

13511

CAMSHAFT

13511

CAMSHAFT

13511A

PIN, STRAIGHT(FOR CAMSHAFT KNOCK)

13512

CAMSHAFT, NO.2

13512

CAMSHAFT, NO.2

13512A

PIN, STRAIGHT NO.2(FOR CAMSHAFT KNOCK)

13523P

PULLEY, CAMSHAFT TIMING

13523P

PULLEY, CAMSHAFT TIMING

13568

BELT, TIMING

13711

VALVE, INTAKE

13711A

SEAL OR RING, O(FOR VALVE STEM OIL)

13711A

SEAL OR RING, O(FOR VALVE STEM OIL)

13711B

SPRING, COMPRESSION(FOR INNER)

13711B

SPRING, COMPRESSION(FOR INNER)

13715

VALVE, EXHAUST

13734

SEAT, VALVE SPRING

13734

SEAT, VALVE SPRING

13741

RETAINER, VALVE SPRING

13741

RETAINER, VALVE SPRING

13741A

LOCK, VALVE SPRING RETAINER

13741A

LOCK, VALVE SPRING RETAINER

13751

LIFTER, VALVE

13751

LIFTER, VALVE

13753

SHIM, VALVE ADJUSTING

13753

SHIM, VALVE ADJUSTING

1709

переход к группе запчастей

9010510032

Крепеж

9011910430

Крепеж

9011910430

Крепеж

9011910486

Крепеж

Код

Описание

13502

IDLER SUB-ASSY, TIMING BELT, NO.2

13505

IDLER SUB-ASSY, TIMING BELT, NO.1

13511

CAMSHAFT

13511A

PIN, STRAIGHT(FOR CAMSHAFT KNOCK)

13512

CAMSHAFT, NO.2

13512A

PIN, STRAIGHT NO.2(FOR CAMSHAFT KNOCK)

13523P

PULLEY, CAMSHAFT TIMING

13523P

PULLEY, CAMSHAFT TIMING

13540

TENSIONER ASSY, CHAIN, NO.1

13568

BELT, TIMING

13711

VALVE, INTAKE

13711A

SEAL OR RING, O(FOR VALVE STEM OIL)

13711A

SEAL OR RING, O(FOR VALVE STEM OIL)

13711B

SPRING, COMPRESSION(FOR INNER)

13711B

SPRING, COMPRESSION(FOR INNER)

13715

VALVE, EXHAUST

13734

SEAT, VALVE SPRING

13734

SEAT, VALVE SPRING

13741

RETAINER, VALVE SPRING

13741

RETAINER, VALVE SPRING

13741A

LOCK, VALVE SPRING RETAINER

13741A

LOCK, VALVE SPRING RETAINER

13751

LIFTER, VALVE

13751

LIFTER, VALVE

13753

SHIM, VALVE ADJUSTING

13753

SHIM, VALVE ADJUSTING

1709

переход к группе запчастей

9010510032

Крепеж

9090119041

Крепеж

9090119041

Крепеж

9151380835

Крепеж

9151380840

Крепеж

Код

Описание

13050

GEAR ASSY, CAMSHAFT TIMING

13502

IDLER SUB-ASSY, TIMING BELT, NO.2

13505

IDLER SUB-ASSY, TIMING BELT, NO.1

13511

CAMSHAFT

13511A

PIN, STRAIGHT(FOR CAMSHAFT KNOCK)

13511A

PIN, STRAIGHT(FOR CAMSHAFT KNOCK)

13512

CAMSHAFT, NO.2

13512A

PIN, STRAIGHT NO.2(FOR CAMSHAFT KNOCK)

13523P

PULLEY, CAMSHAFT TIMING

13540

TENSIONER ASSY, CHAIN, NO.1

13568

BELT, TIMING

13711

VALVE, INTAKE

13711A

SEAL OR RING, O(FOR VALVE STEM OIL)

13711A

SEAL OR RING, O(FOR VALVE STEM OIL)

13711B

SPRING, COMPRESSION(FOR INNER)

13711B

SPRING, COMPRESSION(FOR INNER)

13715

VALVE, EXHAUST

13734

SEAT, VALVE SPRING

13734

SEAT, VALVE SPRING

13741

RETAINER, VALVE SPRING

13741

RETAINER, VALVE SPRING

13741A

LOCK, VALVE SPRING RETAINER

13741A

LOCK, VALVE SPRING RETAINER

13751

LIFTER, VALVE

13751

LIFTER, VALVE

13753

SHIM, VALVE ADJUSTING

13753

SHIM, VALVE ADJUSTING

1709

переход к группе запчастей

1918388560

Крепеж

9010510032

Крепеж

9021025002

Крепеж

9034127009

Крепеж

9040212011

Крепеж

9090119041

Крепеж

9151261025

Крепеж

9151380840

Крепеж
