6105
переход к группе запчастей

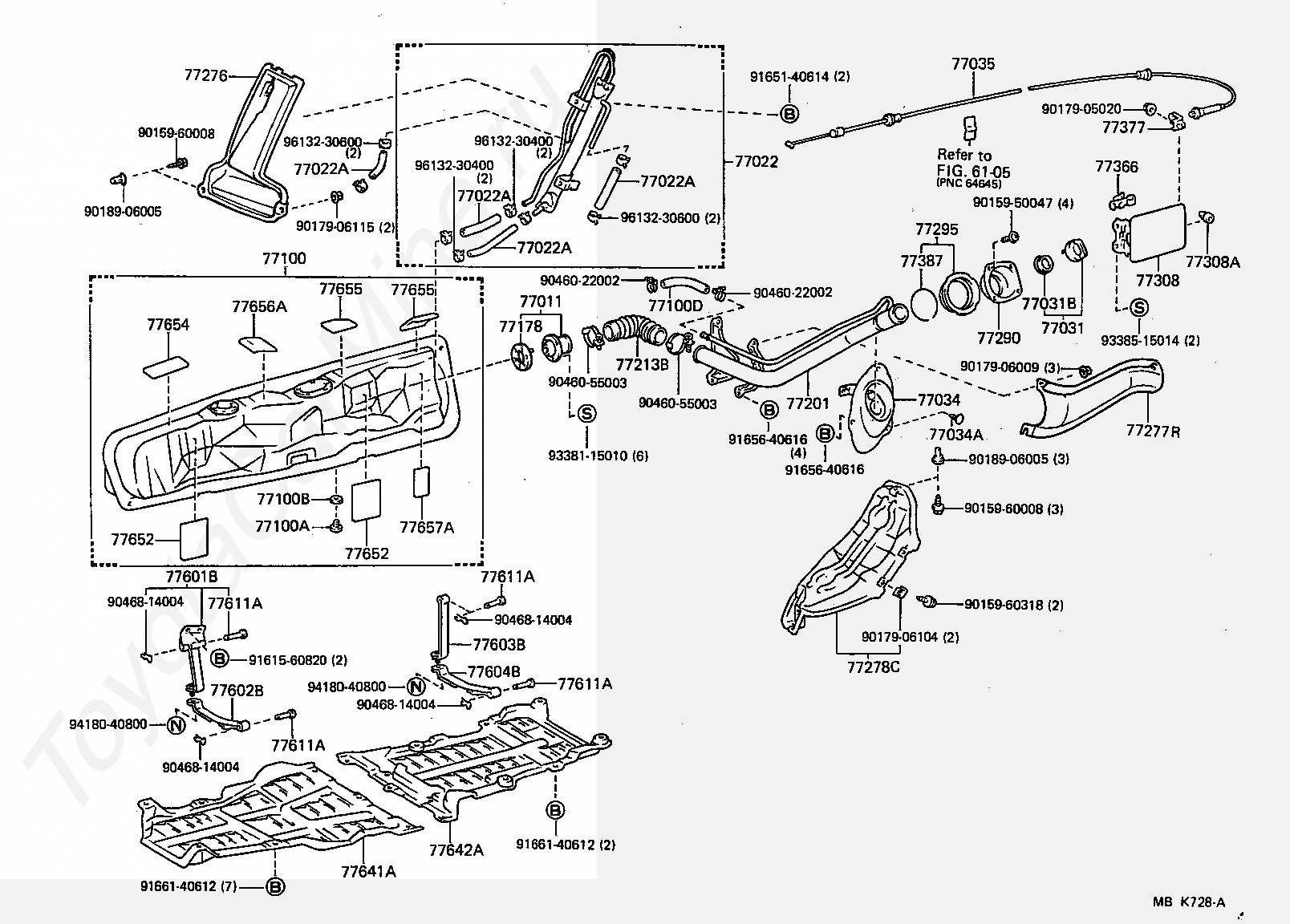

77011
PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77022
SEPARATOR SUB-ASSY, FUEL EVAPORATIVE
77022A
HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77022A
HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77022A
HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77022A
HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77031
CAP ASSY, FUEL TANK
77031B
GASKET (FOR FUEL TANK CAP)
77034
SHIELD SUB-ASSY, FUEL TANK FILLER PIPE
77034A
CRIP (FOR FUEL TANK FILLER PIPE)
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100A
PLUG(FOR FUEL TANK)
77100B
GASKET(FOR FUEL TANK)
77100D
HOSE, FUEL, NO.1(FOR FUEL TANK)
77178
GASKET, FUEL TANK FILLER PIPE, LOWER
77201
PIPE SUB-ASSY, FUEL TANK INLET
77213B
HOSE, FUEL TANK TO FILLER PIPE
77276
PROTECTOR, FUEL HOSE
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77278C
PROTECTOR, FUEL TANK FILLER PIPE, NO.2
77290
SHIELD ASSY, FUEL TANK FILLER PIPE
77295
SHIELD, FUEL FILLER PIPE
77308
COVER SUB-ASSY, FUEL INLET BOX
77308A
CUSHION(FOR FUEL INLET BOX COVER)
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77387
RING, FUEL INLET BOX
77601B
BAND SUB-ASSY, FUEL TANK, NO.1 RH
77602B
BAND SUB-ASSY, FUEL TANK, NO.1 LH
77603B
BAND SUB-ASSY, FUEL TANK, NO.2 RH
77604B
BAND SUB-ASSY, FUEL TANK, NO.2 LH
77611A
PIN (FOR FUEL TANK BAND)
77611A
PIN (FOR FUEL TANK BAND)
77611A
PIN (FOR FUEL TANK BAND)
77611A
PIN (FOR FUEL TANK BAND)
77641A
PROTECTOR, FUEL TANK, NO.1
77642A
PROTECTOR, FUEL TANK, NO.2
77652
CUSHION, FUEL TANK, NO.1
77652
CUSHION, FUEL TANK, NO.1
77654
CUSHION, FUEL TANK, NO.2
77655
CUSHION, FUEL TANK, NO.3
77655
CUSHION, FUEL TANK, NO.3
77656A
CUSHION, FUEL TANK, NO.4
77657A
CUSHION, FUEL TANK, NO.5
