Европа

Модель

MR2

VIN

Дата

1986/08

Двигатель

1,6 литра, DOHC, EFI

Кузов

T-BAR ROOF

Класс

GT TYPE

Фрейм

AW11

КПП

механика МКПП, 5 скоростей

Опции

США

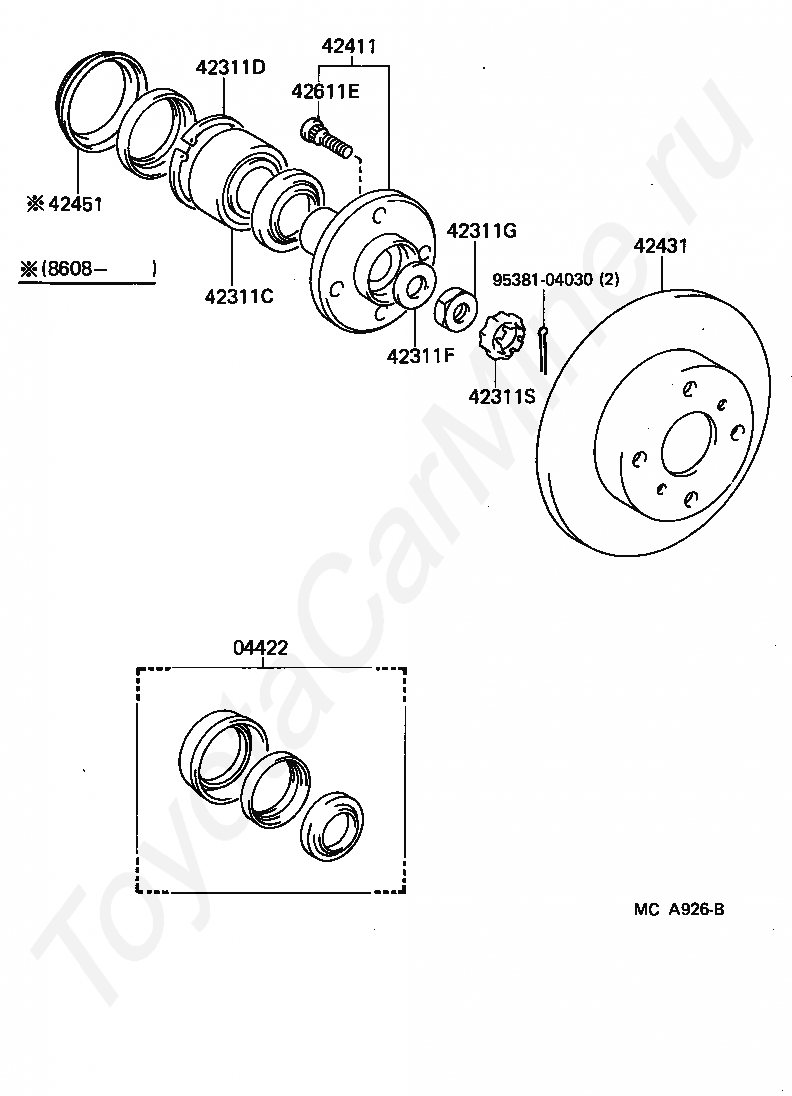

Задняя ступица и тормозной диск TOYOTA MR2

Код

Описание

04422

SEAL KIT, REAR AXLE OIL

42311C

BEARING (FOR REAR AXLE SHAFT)

42311D

RING, SNAP (FOR REAR AXLE SHAFT)

42311F

WASHER, PLATE (FOR REAR AXLE SHAFT)

42311G

NUT (FOR REAR AXLE SHAFT)

42311S

CAP, REAR WHEEL ADJUSTING LOCK

42411

HUB, REAR AXLE

42431

DISC, REAR

42451

DEFLECTOR, REAR WHEEL BEARING DUST, NO.1

42611E

BOLT, HUB (FOR REAR AXLE)

9538104030

Крепеж

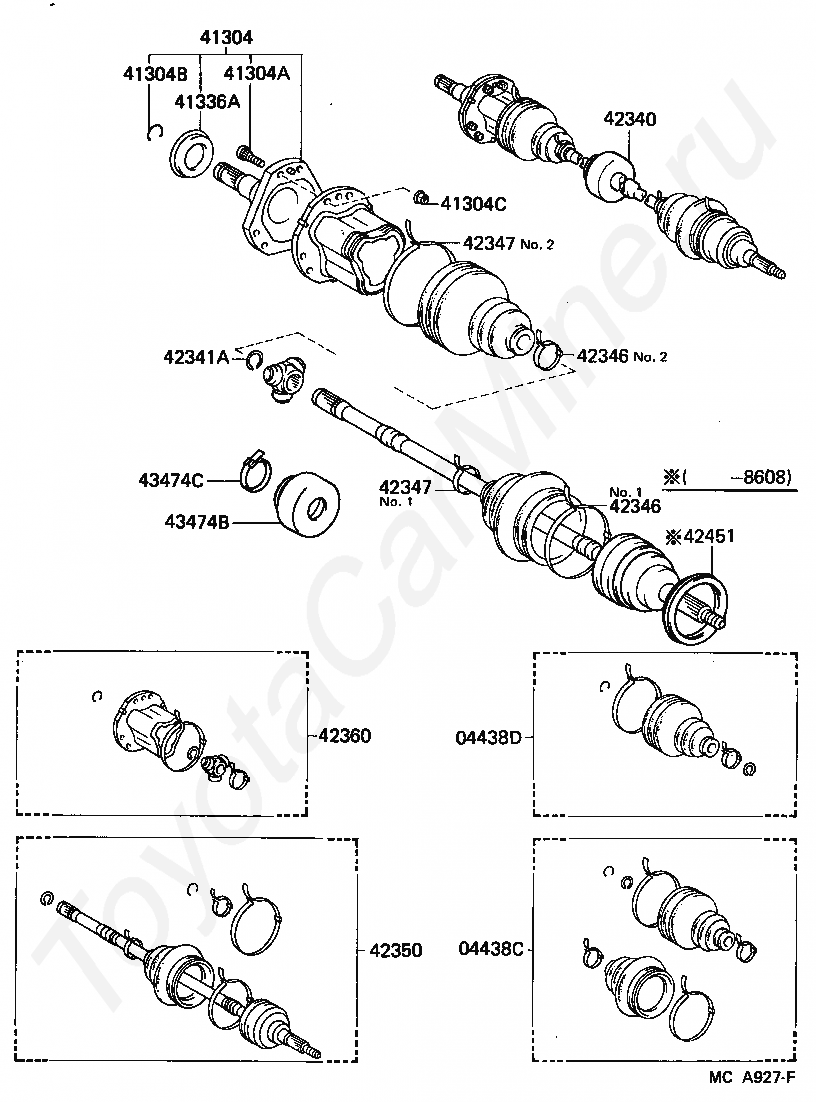

Код

Описание

04438C

BOOT KIT, REAR DRIVE SHAFT

04438D

BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

41304

SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR

41304A

BOLT, SERRATION (FOR DIFFERENTIAL SIDE GEAR SHAFT)

41304B

RING, HOLE SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

41304C

NUT (FOR DIFFERENTIAL SIDE GEAR SHAFT)

41336A

COVER, DUST(FOR DIFFERENTIAL SIDE GEAR SHAFT)

42340

SHAFT ASSY, REAR DRIVE

42341A

RING, SNAP (FOR REAR DRIVE SHAFT)

42346

CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

42346

CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

42347

CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

42347

CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

42350

JOINT ASSY, REAR DRIVE SHAFT OUTBOARD

42360

JOINT ASSY, REAR DRIVE SHAFT INBOARD

42451

DEFLECTOR, REAR WHEEL BEARING DUST, NO.1

43474B

DAMPER, REAR DRIVE SHAFT

43474C

CLAMP (FOR REAR DRIVE SHAFT DAMPER)

Код

Описание

04438C

BOOT KIT, REAR DRIVE SHAFT

04438D

BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

41304

SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR

41304A

BOLT, SERRATION (FOR DIFFERENTIAL SIDE GEAR SHAFT)

41304B

RING, HOLE SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

41304C

NUT (FOR DIFFERENTIAL SIDE GEAR SHAFT)

41336A

COVER, DUST(FOR DIFFERENTIAL SIDE GEAR SHAFT)

42340

SHAFT ASSY, REAR DRIVE

42341A

RING, SNAP (FOR REAR DRIVE SHAFT)

42346

CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

42346

CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

42347

CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

42347

CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

42350

JOINT ASSY, REAR DRIVE SHAFT OUTBOARD

42360

JOINT ASSY, REAR DRIVE SHAFT INBOARD

42451

DEFLECTOR, REAR WHEEL BEARING DUST, NO.1

43474B

DAMPER, REAR DRIVE SHAFT

43474C

CLAMP (FOR REAR DRIVE SHAFT DAMPER)
