Европа

Модель

MR2

VIN

Дата

1985/08

Двигатель

1,6 литра, DOHC, EFI

Кузов

купе

Класс

GT TYPE

Фрейм

AW11

КПП

автомат АКПП, 4 ступени

Опции

США

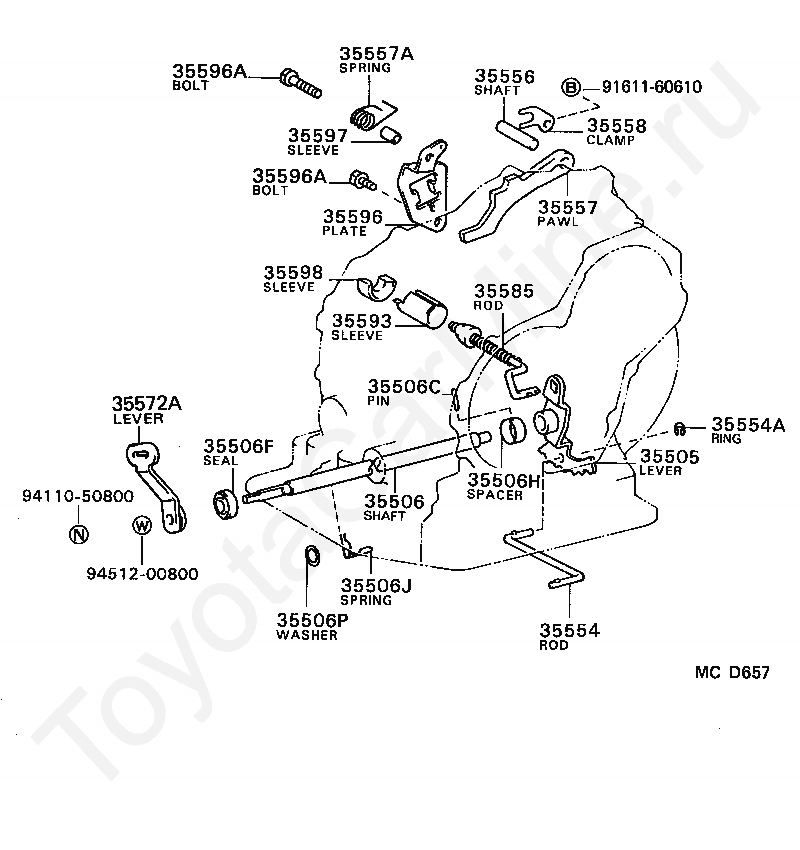

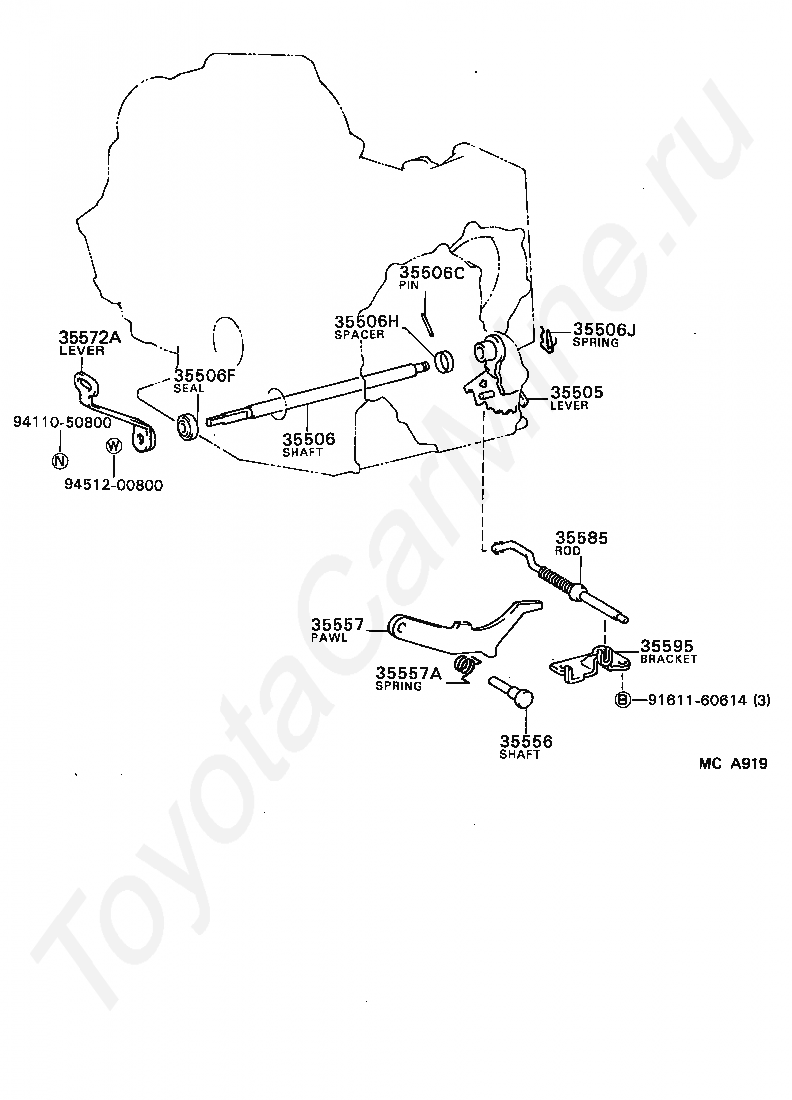

THROTTLE LINK & VALVE LEVER (ATM) TOYOTA MR2

Код

Описание

35505

LEVER SUB-ASSY, MANUAL VALVE

35506

SHAFT SUB-ASSY, MANUAL VALVE LEVER

35506C

PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

35506F

SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

35506H

SPACER (FOR MANUAL VALVE LEVER SHAFT)

35506J

SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

35556

SHAFT, PARKING LOCK PAWL

35557

PAWL, PARKING LOCK

35557A

SPRING, TORSION (FOR PARKING LOCK PAWL)

35572A

LEVER, TRANSMISSION CONTROL SHAFT

35585

ROD, PARKING LOCK

35595

BRACKET, PARKING LOCK PAWL

9161160614

Крепеж

9411050800

Крепеж

9451200800

Крепеж

Код

Описание

35505

LEVER SUB-ASSY, MANUAL VALVE

35506

SHAFT SUB-ASSY, MANUAL VALVE LEVER

35506C

PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

35506F

SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

35506H

SPACER (FOR MANUAL VALVE LEVER SHAFT)

35506J

SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

35506P

WASHER, PLATE (FOR MANUAL VALVE LEVER SHAFT)

35554

ROD, MANUAL VALVE CONNECTING

35554A

RING, E (FOR MANUAL VALVE CONNECTING ROD)

35556

SHAFT, PARKING LOCK PAWL

35557

PAWL, PARKING LOCK

35557A

SPRING, TORSION (FOR PARKING LOCK PAWL)

35558

CLAMP, PAWL SHAFT

35572A

LEVER, TRANSMISSION CONTROL SHAFT

35585

ROD, PARKING LOCK

35593

SLEEVE, CAM GUIDE

35596

PLATE, PAWL STOPPER

35596A

BOLT (FOR PAWL STOPPER PLATE)

35596A

BOLT (FOR PAWL STOPPER PLATE)

35597

SLEEVE, SPRING GUIDE

35598

SLEEVE, PARKING LOCK

9161160610

Крепеж

9411050800

Крепеж

9451200800

Крепеж

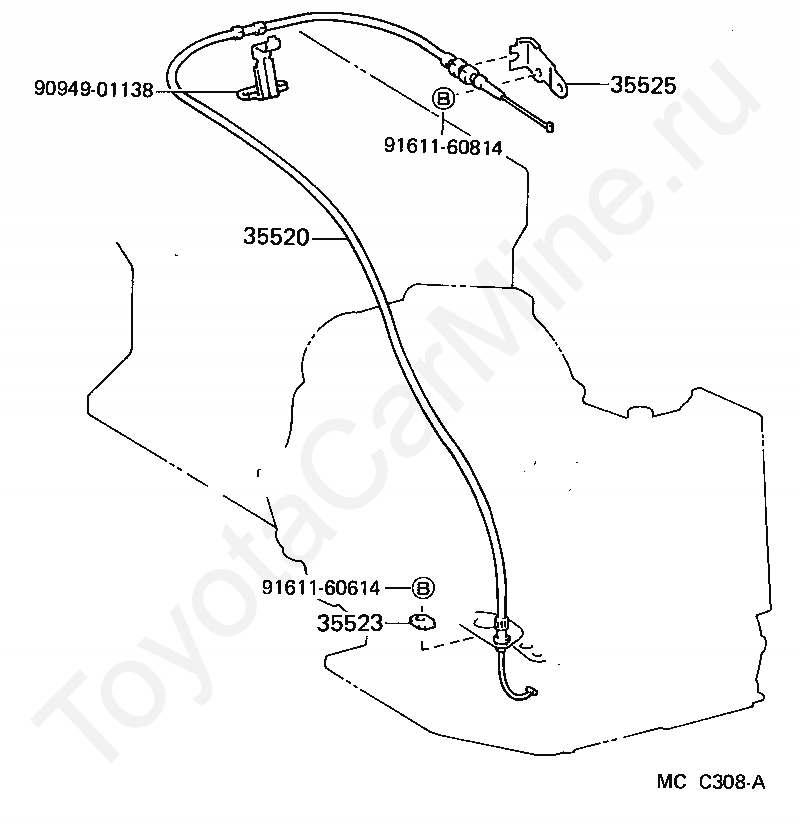

Код

Описание

35520

CABLE ASSY, THROTTLE

35523

CLAMP, THROTTLE CABLE

35525

BRACKET, THROTTLE CABLE

9094901138

Крепеж

9161160614

Крепеж

9161160814

Крепеж

THROTTLE LINK & VALVE LEVER (ATM) TOYOTA MR2
