Ходовые запчасти Каталог Масла

Каталог

Европа

Модель

MR2

VIN

Дата

1985/08

Двигатель

1,6 литра, DOHC, EFI

Кузов

купе

Класс

GT TYPE

Фрейм

AW11

КПП

автомат АКПП, 4 ступени

Опции

США

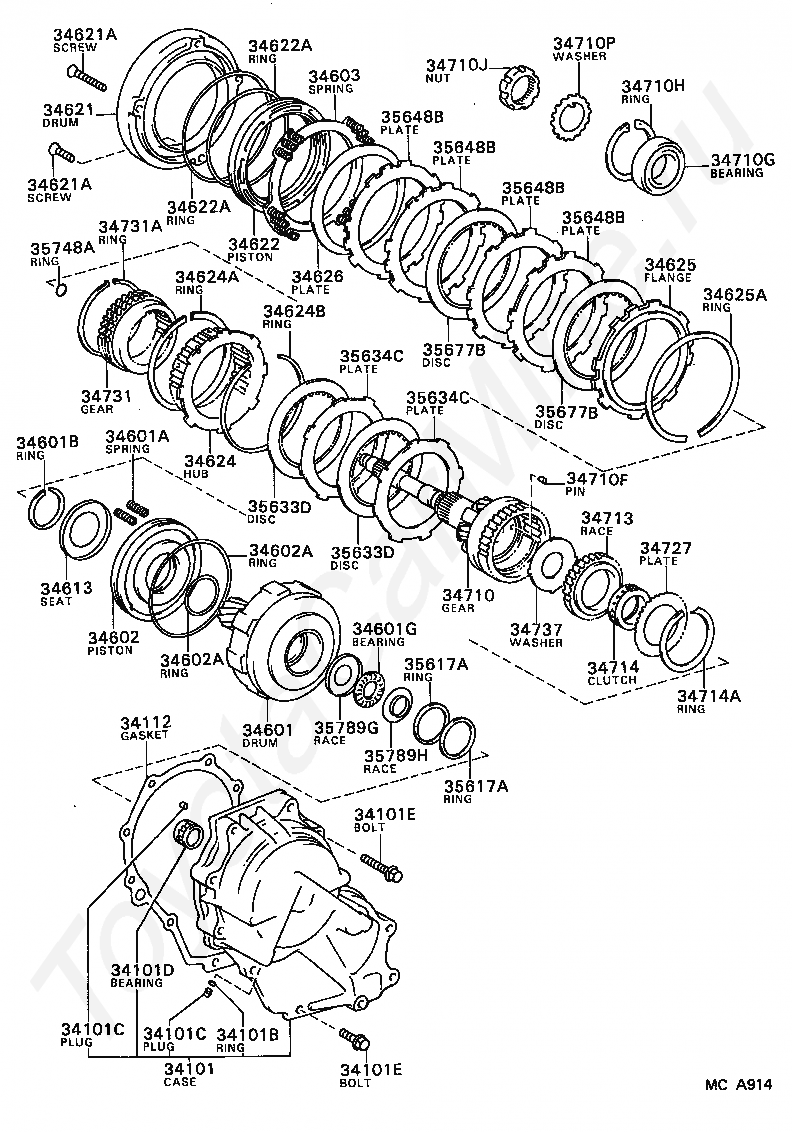

Повышенная передача АКП TOYOTA MR2







Код

Описание

34101

CASE SUB-ASSY, OVERDRIVE

34101B

RING, O (FOR OVERDRIVE CASE)

34101C

PLUG, STRAIGHT (FOR OVERDRIVE CASE)

34101C

PLUG, STRAIGHT (FOR OVERDRIVE CASE)

34101D

BEARING, NEEDLE ROLLER (FOR OVERDRIVE CASE)

34101E

BOLT (FOR OVERDRIVE CASE & TRANSAXLE CASE SETTING)

34101E

BOLT (FOR OVERDRIVE CASE & TRANSAXLE CASE SETTING)

34112

GASKET, OVERDRIVE CASE

34601

DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

34601A

SPRING, COMPRESSION (FOR OVERDRIVE DIRECT CLUTCH)

34601B

RING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH)

34601G

BEARING,THRUST NEEDLE ROLLER(FOR OVERDRIVE DIRECT CLUTCH)

34602

PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

34602A

RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

34602A

RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

34603

SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

34613

SEAT, OVERDRIVE DIRECT CLUTCH RETURN SPRING

34621

DRUM, OVERDRIVE BRAKE

34621A

SCREW (FOR OVERDRIVE BRAKE DRUM SETTING)

34621A

SCREW (FOR OVERDRIVE BRAKE DRUM SETTING)

34622

PISTON, OVERDRIVE BRAKE

34622A

RING, O (FOR OVERDRIVE BRAKE PISTON)

34622A

RING, O (FOR OVERDRIVE BRAKE PISTON)

34624

HUB, OVERDRIVE BRAKE

34624A

RING, HOLE SNAP, NO.1 (FOR OVERDRIVE BRAKE HUB)

34624B

RING, HOLE SNAP, NO.2 (FOR OVERDRIVE BRAKE HUB)

34625

FLANGE, OVERDRIVE BRAKE, NO.1

34625A

RING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)

34626

PLATE, OVERDRIVE BRAKE CUSHION

34710

GEAR ASSY, OVERDRIVE PLANETARY

34710F

PIN, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)

34710G

BEARING, RADIAL BALL(FOR OVERDRIVE PLANETARY GEAR)

34710H

RING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR BEARING)

34710J

NUT(FOR OVERDRIVE PLANETARY GEAR)

34710P

WASHER(FOR OVERDRIVE PLANETARY GEAR)

34713

RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

34714

CLUTCH, 1 WAY(FOR OVERDRIVE)

34714A

RING, HOLE SNAP(FOR 1 WAY CLUTCH)

34727

PLATE, RETAINING (FOR OVERDRIVE)

34731

GEAR, OVERDRIVE PLANETARY RING

34731A

RING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR)

34737

WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3

35617A

RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

35617A

RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

35633D

DISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

35633D

DISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

35634C

PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

35634C

PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

35648B

PLATE, CLUTCH (FOR OVERDRIVE BRAKE)

35648B

PLATE, CLUTCH (FOR OVERDRIVE BRAKE)

35648B

PLATE, CLUTCH (FOR OVERDRIVE BRAKE)

35648B

PLATE, CLUTCH (FOR OVERDRIVE BRAKE)

35677B

DISC, CLUTCH (FOR OVERDRIVE BRAKE)

35677B

DISC, CLUTCH (FOR OVERDRIVE BRAKE)

35748A

RING, INTERMEDIATE SHAFT OIL SEAL (FOR OVERDRIVE)

35789G

RACE, THRUST BEARING (FOR OVERDRIVE DIRECT CLUTCH DRUM)

35789H

RACE, THRUST BEARING (FOR OVERDRIVE CASE)

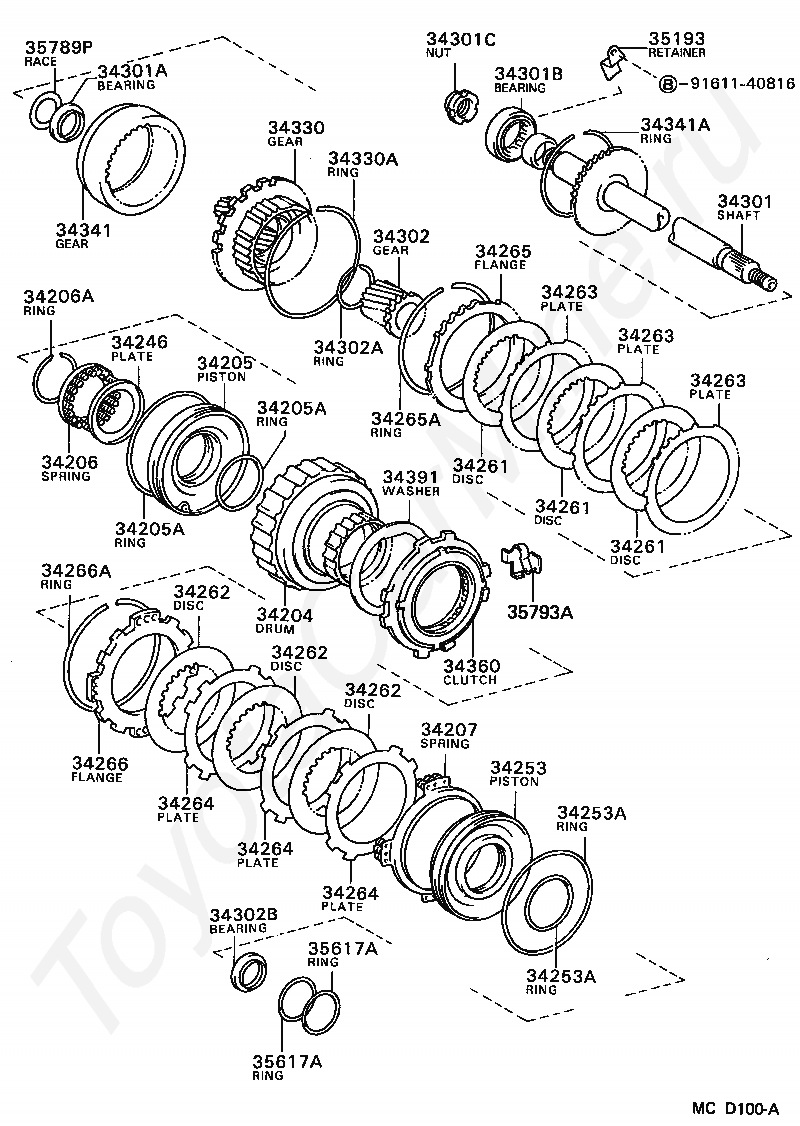

Код

Описание

34204

DRUM SUB-ASSY, UNDERDRIVE CLUTCH

34205

PISTON SUB-ASSY, UNDERDRIVE CLUTCH

34205A

RING, O (FOR UNDERDRIVE CLUTCH PISTON)

34205A

RING, O (FOR UNDERDRIVE CLUTCH PISTON)

34206

SPRING SUB-ASSY, UNDERDRIVE CLUTCH RETURN

34206A

RING, SHAFT SNAP (FOR UNDERDRIVE RETURN SPRING)

34207

SPRING SUB-ASSY, UNDERDRIVE BRAKE RETURN

34246

PLATE, UNDERDRIVE CLUTCH RETURN SPRING

34253

PISTON, UNDERDRIVE BRAKE

34253A

RING, O (FOR UNDERDRIVE BRAKE PISTON)

34253A

RING, O (FOR UNDERDRIVE BRAKE PISTON)

34261

DISC, UNDERDRIVE CLUTCH, NO.1

34261

DISC, UNDERDRIVE CLUTCH, NO.1

34261

DISC, UNDERDRIVE CLUTCH, NO.1

34262

DISC, UNDERDRIVE CLUTCH, NO.2

34262

DISC, UNDERDRIVE CLUTCH, NO.2

34262

DISC, UNDERDRIVE CLUTCH, NO.2

34263

PLATE, UNDERDRIVE CLUTCH, NO.1

34263

PLATE, UNDERDRIVE CLUTCH, NO.1

34263

PLATE, UNDERDRIVE CLUTCH, NO.1

34264

PLATE, UNDERDRIVE CLUTCH, NO.2

34264

PLATE, UNDERDRIVE CLUTCH, NO.2

34264

PLATE, UNDERDRIVE CLUTCH, NO.2

34265

FLANGE, UNDERDRIVE CLUTCH, NO.1

34265A

RING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.1)

34266

FLANGE, UNDERDRIVE CLUTCH, NO.2

34266A

RING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.2)

34301

SHAFT SUB-ASSY, UNDERDRIVE INPUT

34301A

BEARING, NEEDLE ROLLER (FOR UNDERDRIVE INPUT SHAFT)

34301B

BEARING, CYLINDRICAL ROLLER, NO.1 (FOR UNDERDRIVE)

34301C

NUT (FOR UNDERDRIVE INPUT SHAFT)

34302

GEAR SUB-ASSY, UNDERDRIVE PLANETARY SUN

34302A

RING, HOLE SNAP (FOR UNDERDRIVE PLANETARY SUN GEAR)

34302B

BEARING, NEEDLE ROLLER(FOR UNDERDRIVE PLANETARY SUN GEAR)

34330

GEAR ASSY, UNDERDRIVE PLANETARY

34330A

RING, HOLE SNAP (FOR UNDERDRIVE PLANETARY GEAR)

34341

GEAR, UNDERDRIVE PLANETARY RING

34341A

RING, HOLE SNAP (FOR UNDERDRIVE PLANETARY RING)

34360

CLUTCH ASSY, UNDERDRIVE 1 WAY

34391

WASHER, UNDERDRIVE CLUTCH DRUM THRUST

35193

RETAINER, ROLLER BEARING

35617A

RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

35617A

RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

35789P

RACE, THRUST BEARING (FOR UNDERDRIVE INPUT SHAFT)

35793A

RETAINER, UNDERDRIVE 1 WAY CLUTCH

9161140816

Крепеж
