Каталог

Европа

Модель

MODEL-F

VIN

Дата

1988/08

Двигатель

2,2 литра, EFI

Класс

DELUX SPECIFICATION

Фрейм

YR31

КПП

механика МКПП, 5 скоростей

Опции

левый руль MIDDLE ROOF

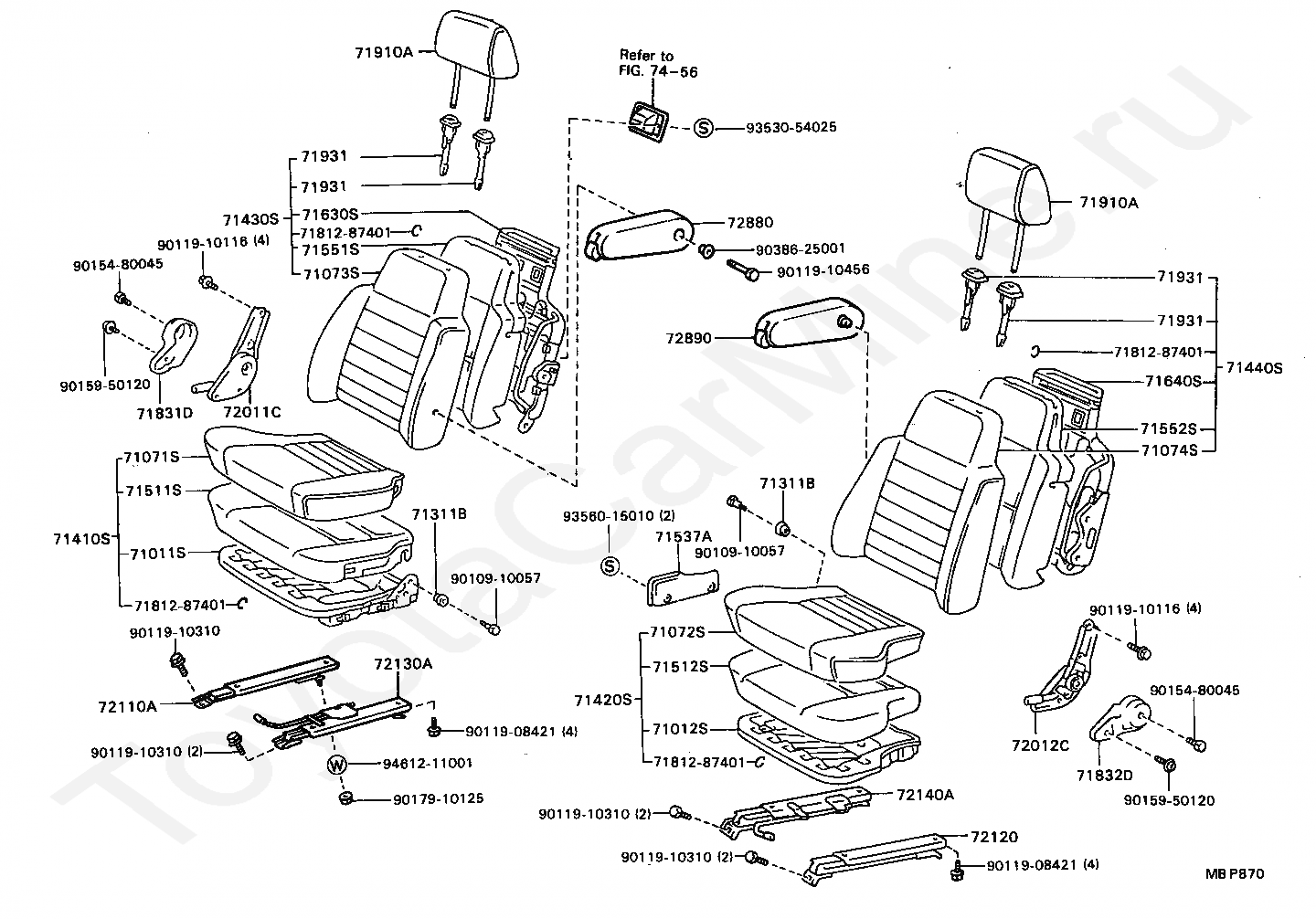

Кресла TOYOTA MODEL-F







Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537A

PROTECTOR, FRONT SEAT CUSHION

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

7181287401

Крепеж

7181287401

Крепеж

7181287401

Крепеж

7181287401

Крепеж

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

71910A

HEADREST ASSY, FRONT SEAT

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72012C

ADJUSTER SUB-ASSY, FRONT SEAT, LH

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72880

ARMREST ASSY, SEAT, C RH

72890

ARMREST ASSY, SEAT, C LH

7456

переход к группе запчастей

9010910057

Крепеж

9010910057

Крепеж

9011908421

Крепеж

9011908421

Крепеж

9011910116

Крепеж

9011910116

Крепеж

9011910310

Крепеж

9011910310

Крепеж

9011910310

Крепеж

9011910310

Крепеж

9011910456

Крепеж

9015480045

Крепеж

9015480045

Крепеж

9015950120

Крепеж

9015950120

Крепеж

9017910125

Крепеж

9038625001

Крепеж

9353054025

Крепеж

9356015010

Крепеж

9461211001

Крепеж

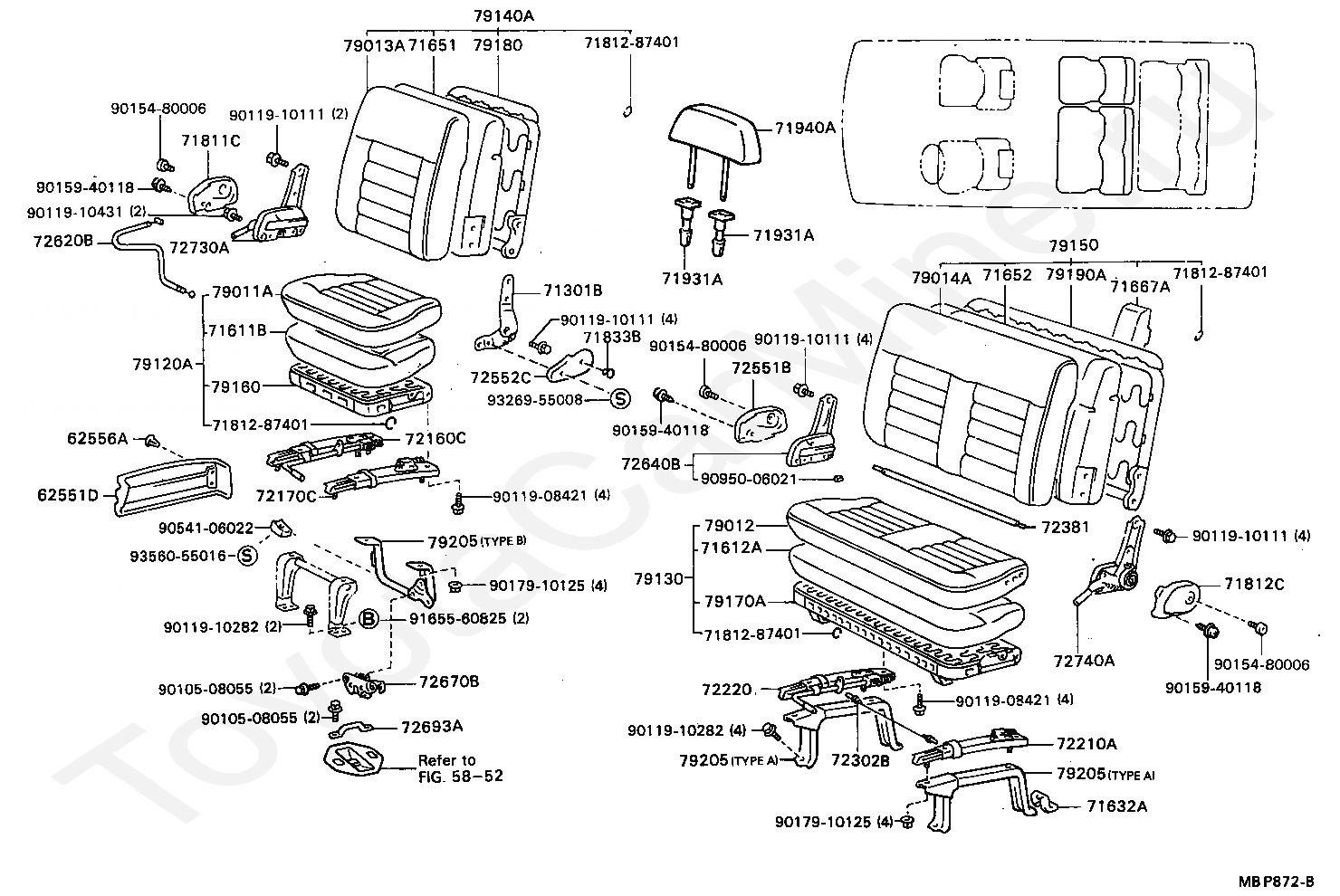

Код

Описание

5852

переход к группе запчастей

62551D

GARNISH, REAR SEAT SIDE, RH

62556A

CAP, REAR SEAT SIDE GARNISH

71301B

HINGE SUB-ASSY, REAR NO.1 SEAT, RH

71611B

PAD, REAR NO.1 SEAT CUSHION

71612A

PAD, REAR SEAT CUSHION, LH

71632A

COVER, REAR SEAT, OUTER

71651

PAD, REAR NO.1 SEAT BACK

71652

PAD, REAR NO.1 SEAT BACK

71667A

PAD, REAR SEAT BACK, CENTER A

71811C

COVER, RECLINING ADJUSTER, RH

7181287401

Крепеж

7181287401

Крепеж

7181287401

Крепеж

7181287401

Крепеж

71812C

COVER, RECLINING ADJUSTER, LH

71833B

CLIP (FOR REAR SEAT RECLINING COVER)

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72160C

TRACK ASSY, REAR NO.1 SEAT, OUTER RH

72170C

TRACK ASSY, REAR NO.1 SEAT, INNER RH

72210A

TRACK ASSY, REAR NO.1 SEAT, OUTER RH

72220

TRACK ASSY, REAR NO.1 SEAT, INNER LH

72302B

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING

72381

ROD, RECLINING ADJUSTER EQUALIZING, NO.1

72551B

COVER, RECLINING HINGE, RH

72552C

COVER, RECLINING HINGE, LH

72620B

CABLE ASSY, REAR NO.1 SEAT LOCK

72640B

ADJUSTER ASSY, REAR NO.1 SEAT, INNER LH

72670B

LOCK ASSY, REAR SEAT CUSHION, RH

72693A

STRIKER, REAR SEAT CUSHION LOCK, NO.3

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

79011A

COVER SUB-ASSY, NO.1 SEAT CUSHION

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79013A

COVER SUB-ASSY, NO.1 SEAT BACK

79014A

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79120A

CUSHION ASSY, NO.1 SEAT

79130

CUSHION ASSY, NO.1 SEAT, LH

79140A

BACK ASSY, NO.1 SEAT

79150

BACK ASSY, NO.1 SEAT, LH

79160

SPRING ASSY, NO.1 SEAT CUSHION

79170A

SPRING ASSY, NO.1 SEAT CUSUION, LH

79180

SPRING ASSY, NO.1 SEAT BACK

79190A

SPRING ASSY, NO.1 SEAT BACK, LH

79205

LEG SUB-ASSY, NO.2 SEAT

79205

LEG SUB-ASSY, NO.2 SEAT

79205

LEG SUB-ASSY, NO.2 SEAT

9010508055

Крепеж

9010508055

Крепеж

9011908421

Крепеж

9011908421

Крепеж

9011910111

Крепеж

9011910111

Крепеж

9011910111

Крепеж

9011910111

Крепеж

9011910282

Крепеж

9011910282

Крепеж

9011910431

Крепеж

9015480006

Крепеж

9015480006

Крепеж

9015480006

Крепеж

9015940118

Крепеж

9015940118

Крепеж

9015940118

Крепеж

9017910125

Крепеж

9017910125

Крепеж

9054106022

Крепеж

9095006021

Крепеж

9165560825

Крепеж

9326955008

Крепеж

9356055016

Крепеж

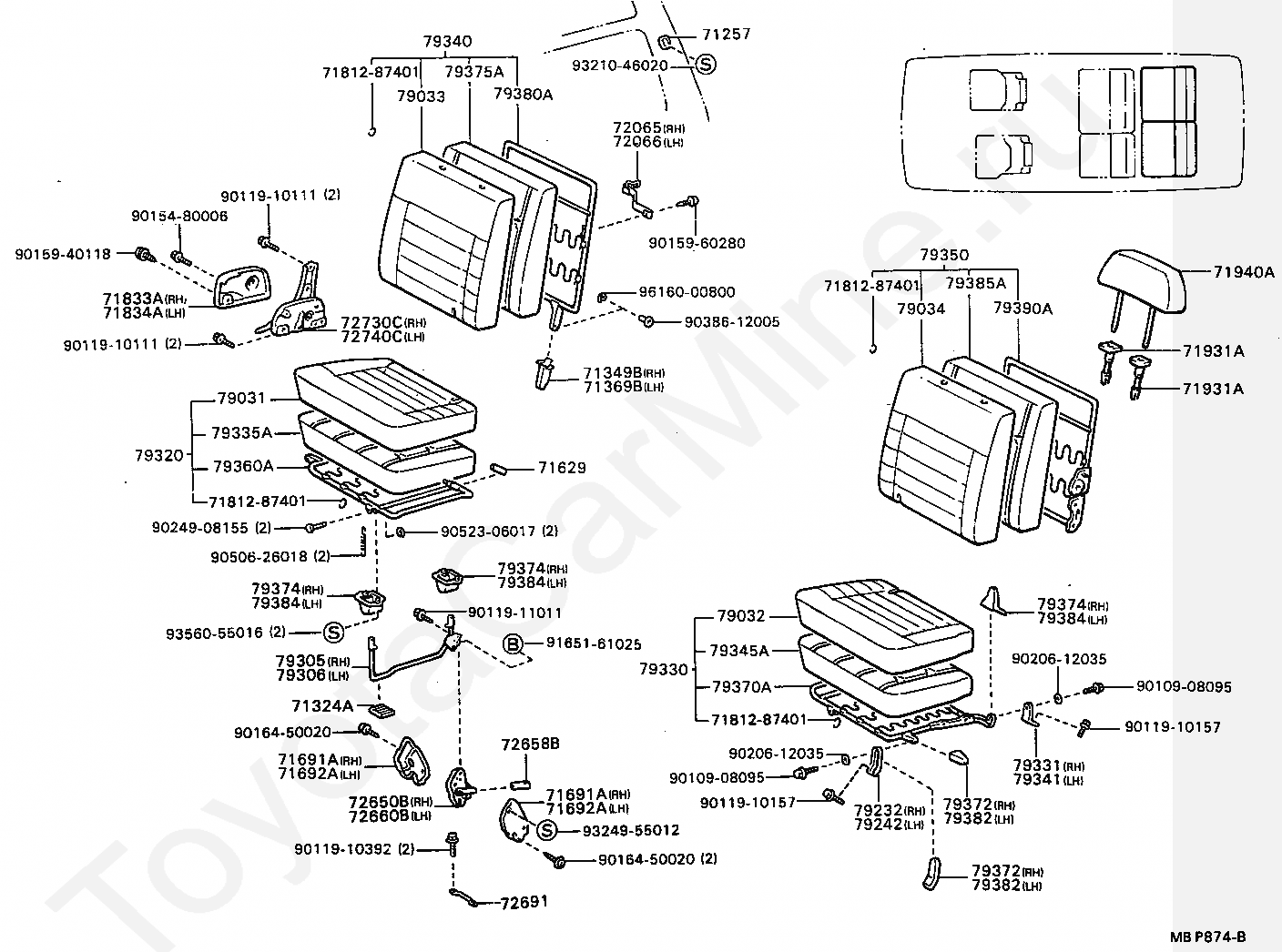

Код

Описание

71257

PLATE, REAR SEAT BACK ANCHOR

71324A

CUSHION, REAR SEAT

71349B

COVER, REAR SEAT BACK STAY, RH

71369B

COVER, REAR SEAT BACK STAY, LH

71629

COVER, REAR SEAT CUSHION HINGE

71691A

COVER, REAR NO.3 SEAT LOCK, RH

71691A

COVER, REAR NO.3 SEAT LOCK, RH

71692A

COVER, REAR NO.3 SEAT LOCK, LH

71692A

COVER, REAR NO.3 SEAT LOCK, LH

7181287401

Крепеж

7181287401

Крепеж

7181287401

Крепеж

7181287401

Крепеж

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72065

BELT SUB-ASSY, REAR SEAT HOOK, RH

72066

BELT SUB-ASSY, REAR SEAT HOOK, LH

72650B

LOCK ASSY, REAR NO.3 SEAT, RH

72658B

KNOB, REAR SEAT LOCK HANDLE

72660B

LOCK ASSY, REAR NO.3 SEAT, LH

72691

STRIKER, REAR NO.3 SEAT LOCK

72730C

ADJUSTER ASSY, NO.2 SEAT RECLINING, RH

72740C

ADJUSTER ASSY, NO.2 SEAT RECLINING, LH

79031

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79032

COVER SUB-ASSY, NO.3 SEAT CUSHION, LH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79034

COVER SUB-ASSY, NO.3 SEAT BACK, LH

79232

LEG, REAR NO.2 SEAT, RH

79242

LEG, REAR NO.2 SEAT, LH

79305

LEG SUB-ASSY, NO.3 SEAT

79306

LEG SUB ASSY, NO.3 SEAT, LH

79320

CUSHION ASSY, NO.3 SEAT, RH

79330

CUSHION ASSY, NO.3 SEAT, LH

79331

LEG, NO.3 SEAT, OUTER RH

79335A

PAD, NO.3 SEAT CUSHION, RH

79340

BACK ASSY, NO.3 SEAT, RH

79341

LEG, NO.3 SEAT, OUTER LH

79345A

PAD, NO.3 SEAT CUSHION, LH

79350

BACK ASSY, NO.3 SEAT, LH

79360A

SPRING ASSY, NO.3 SEAT CUSHION, RH

79370A

SPRING ASSY, NO.3 SEAT CUSHION, LH

79372

COVER, NO.3 SEAT FRONT BRACKET, RH

79372

COVER, NO.3 SEAT FRONT BRACKET, RH

79374

COVER, NO.3 SEAT LEG, REAR RH

79374

COVER, NO.3 SEAT LEG, REAR RH

79374

COVER, NO.3 SEAT LEG, REAR RH

79375A

PAD, NO.3 SEAT BACK, RH

79380A

SPRING ASSY, NO.3 SEAT BACK, RH

79382

COVER, NO.3 SEAT FRONT BRACKET, LH

79382

COVER, NO.3 SEAT FRONT BRACKET, LH

79384

COVER, NO.3 SEAT LEG, REAR LH

79384

COVER, NO.3 SEAT LEG, REAR LH

79384

COVER, NO.3 SEAT LEG, REAR LH

79385A

PAD, NO.3 SEAT BACK, LH

79390A

SPRING ASSY, NO.3 SEAT BACK, LH

9010908095

Крепеж

9010908095

Крепеж

9011910111

Крепеж

9011910111

Крепеж

9011910157

Крепеж

9011910157

Крепеж

9011910392

Крепеж

9011911011

Крепеж

9015480006

Крепеж

9015940118

Крепеж

9015960280

Крепеж

9016450020

Крепеж

9016450020

Крепеж

9020612035

Крепеж

9020612035

Крепеж

9024908155

Крепеж

9038612005

Крепеж

9050626018

Крепеж

9052306017

Крепеж

9165161025

Крепеж

9321046020

Крепеж

9324955012

Крепеж

9356055016

Крепеж

9616000800

Крепеж
