Каталог

Европа

Модель

MODEL-F

VIN

Дата

1988/08

Двигатель

2,2 литра, EFI

Класс

DELUX SPECIFICATION

Фрейм

YR31

КПП

механика МКПП, 5 скоростей

Опции

левый руль MIDDLE ROOF

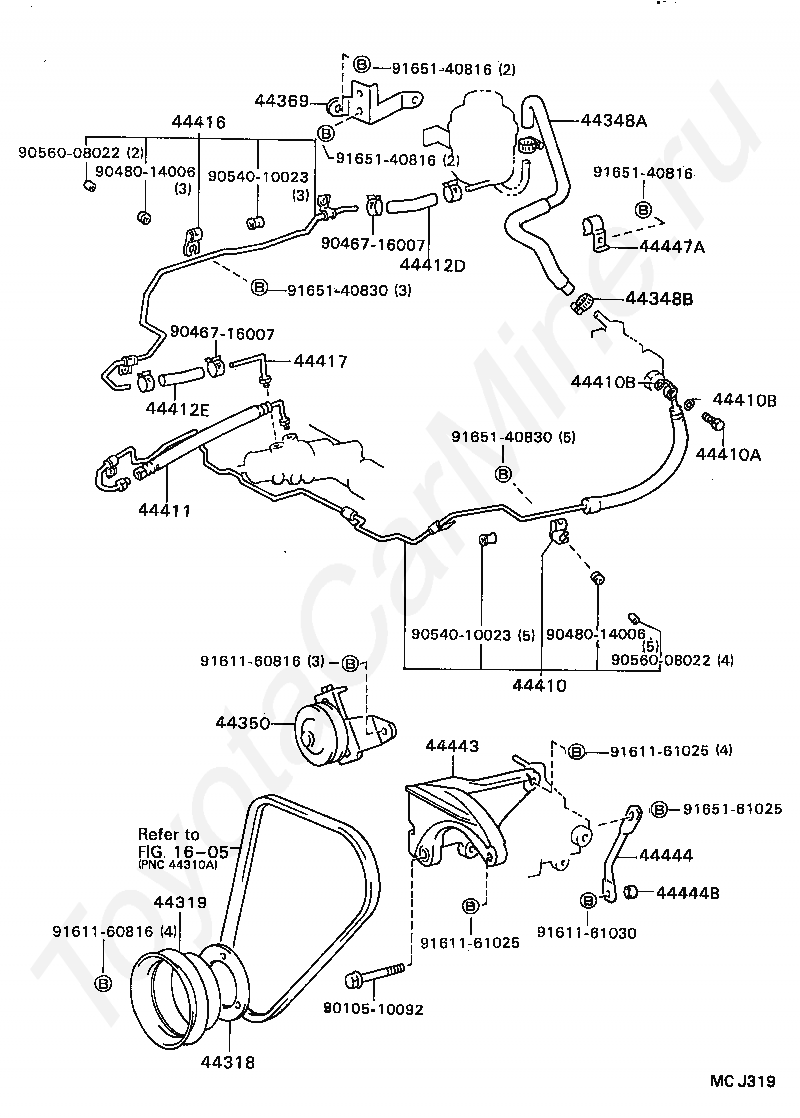

POWER STEERING TUBE TOYOTA MODEL-F

Код

Описание

1605

переход к группе запчастей

44318

SPACER, VANE PUMP DRIVE PULLEY

44319

PULLEY, VANE PUMP DRIVE

44348A

HOSE, OIL RESERVOIR TO PUMP, NO.1

44348B

CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

44350

PULLEY ASSY, POWER STEERING IDLE

44369

BRACKET, OIL RESERVOIR, NO.1

44410

TUBE ASSY, PRESSURE FEED

44410A

BOLT, UNION(FOR PRESSURE FEED TUBE)

44410B

GASKET(FOR PRESSURE FEED TUBE)

44410B

GASKET(FOR PRESSURE FEED TUBE)

44411

HOSE, PRESSURE FEED

44412D

HOSE, RETURN, NO.1

44412E

HOSE, RETURN, NO.2

44416

TUBE, RETURN(FOR STEERING GEAR OUTLET)

44417

TUBE, RETURN, NO.2

44443

BRACKET, PUMP

44444

STAY, PUMP, REAR

44444B

COLLAR (FOR PUMP REAR STAY)

44447A

BRACKET, HOSE SUPPORT, NO.1

9010510092

Крепеж

9046716007

Крепеж

9046716007

Крепеж

9048014006

Крепеж

9048014006

Крепеж

9054010023

Крепеж

9054010023

Крепеж

9056008022

Крепеж

9056008022

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161161025

Крепеж

9161161025

Крепеж

9161161030

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9165140830

Крепеж

9165140830

Крепеж

9165161025

Крепеж

Код

Описание

1605

переход к группе запчастей

44318

SPACER, VANE PUMP DRIVE PULLEY

44319

PULLEY, VANE PUMP DRIVE

44348A

HOSE, OIL RESERVOIR TO PUMP, NO.1

44348B

CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

44350

PULLEY ASSY, POWER STEERING IDLE

44369

BRACKET, OIL RESERVOIR, NO.1

44410

TUBE ASSY, PRESSURE FEED

44410A

BOLT, UNION(FOR PRESSURE FEED TUBE)

44410B

GASKET(FOR PRESSURE FEED TUBE)

44410B

GASKET(FOR PRESSURE FEED TUBE)

44411

HOSE, PRESSURE FEED

44412D

HOSE, RETURN, NO.1

44412E

HOSE, RETURN, NO.2

44416

TUBE, RETURN(FOR STEERING GEAR OUTLET)

44417

TUBE, RETURN, NO.2

44443

BRACKET, PUMP

44444

STAY, PUMP, REAR

44444B

COLLAR (FOR PUMP REAR STAY)

44447A

BRACKET, HOSE SUPPORT, NO.1

9010510092

Крепеж

9046716007

Крепеж

9046716007

Крепеж

9046716007

Крепеж

9048014006

Крепеж

9048014006

Крепеж

9056008022

Крепеж

9056008022

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161161020

Крепеж

9161161025

Крепеж

9161161030

Крепеж

9165160816

Крепеж

9165160816

Крепеж

9165160820

Крепеж

9165160830

Крепеж

9165161025

Крепеж
