Каталог

Европа

Модель

MODEL-F

VIN

Дата

1982/11

Двигатель

1,8 литра

Класс

GL SPECIFICATION

Фрейм

YR20

КПП

автомат АКПП, 4 ступени

Опции

правый руль MIDDLE ROOF Европа 8-местный

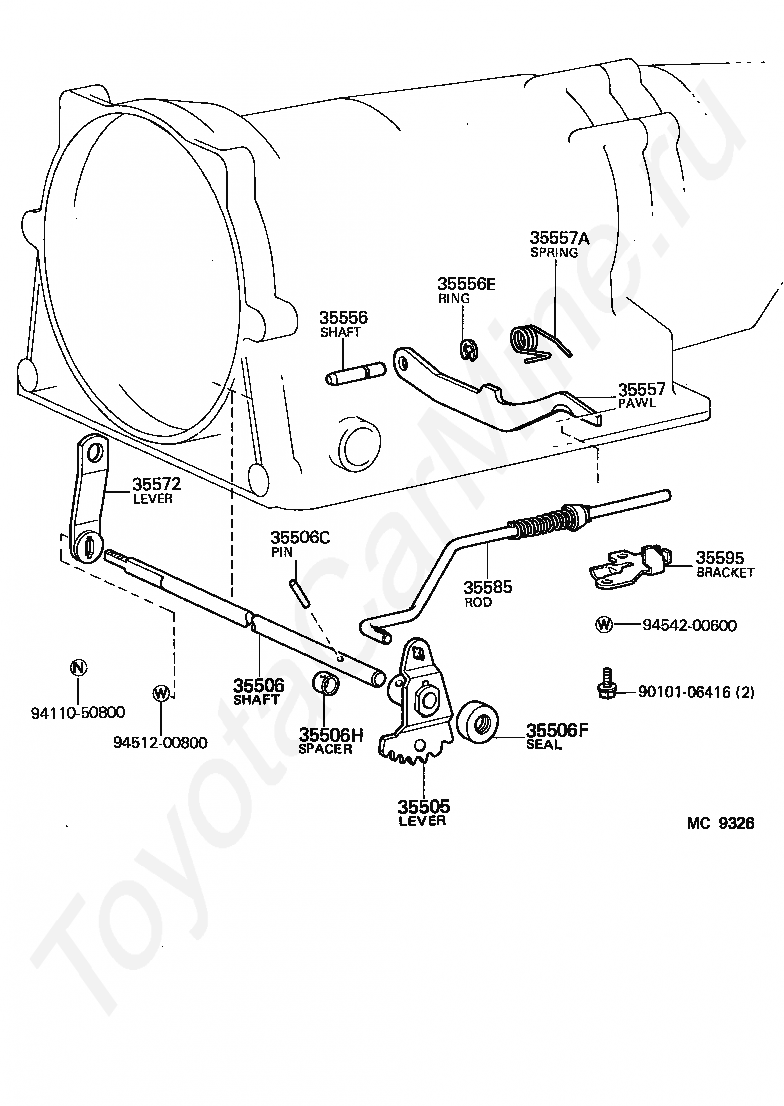

THROTTLE LINK & VALVE LEVER (ATM) TOYOTA MODEL-F

Код

Описание

35505

LEVER SUB-ASSY, MANUAL VALVE

35506

SHAFT SUB-ASSY, MANUAL VALVE LEVER

35506C

PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

35506F

SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

35506H

SPACER (FOR MANUAL VALVE LEVER SHAFT)

35556

SHAFT, PARKING LOCK PAWL

35556E

RING, E (FOR PARKING LOCK PAWL SHAFT)

35557

PAWL, PARKING LOCK

35557A

SPRING, TORSION (FOR PARKING LOCK PAWL)

35572

LEVER, TRANSMISSION CONTROL SHAFT, RH

35585

ROD, PARKING LOCK

35595

BRACKET, PARKING LOCK PAWL

9010106416

Крепеж

9411050800

Крепеж

9451200800

Крепеж

9454200600

Крепеж

Код

Описание

35520

CABLE ASSY, THROTTLE

35520

CABLE ASSY, THROTTLE

35520B

RING, O(FOR THROTTLE CABLE)

35520B

RING, O(FOR THROTTLE CABLE)

35523

CLAMP, THROTTLE CABLE

9046106966

Крепеж

9046106966

Крепеж

9046400065

Крепеж

9161160610

Крепеж

9161160610

Крепеж

THROTTLE LINK & VALVE LEVER (ATM) TOYOTA MODEL-F
