Каталог

Европа

Модель

MODEL-F

VIN

Дата

1982/11

Двигатель

1,8 литра

Класс

DELUX SPECIFICATION

Фрейм

YR20

КПП

механика МКПП, 5 скоростей

Опции

левый руль MIDDLE ROOF GENERAL COUNTRIES 8-местный

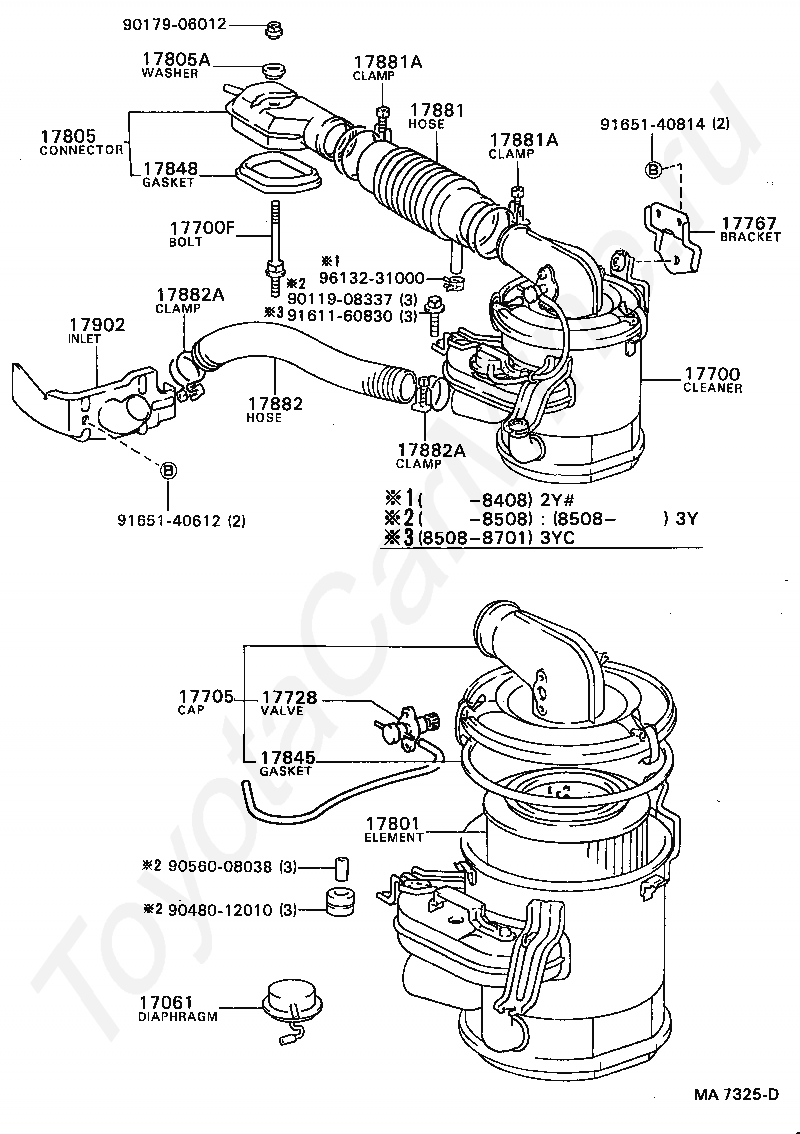

Воздушный фильтр TOYOTA MODEL-F

Код

Описание

17061

DIAPHRAGM SUB-ASSY

17700

CLEANER ASSY, AIR

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17705

CAP SUB-ASSY, AIR CLEANER

17728

VALVE, THERMOSTATIC

17767

BRACKET, AIR CLEANER

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17805

CONNECTOR SUB-ASSY, INTAKE AIR

17805A

GASKET & WASHER, SEAL

17845

GASKET, AIR CLEANER CAP

17848

GASKET, AIR CLEANER TO CARBURETOR

17881

HOSE, AIR CLEANER, NO.1

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17882

HOSE, AIR CLEANER, NO.2

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

17902

INLET SUB-ASSY, HOT AIR INTAKE, NO.1

9011908337

Крепеж

9017906012

Крепеж

9048012010

Крепеж

9056008038

Крепеж

9161160830

Крепеж

9165140612

Крепеж

9165140814

Крепеж

9613231000

Крепеж

Код

Описание

17911

DUCT, COOL AIR INTAKE, NO.1

17911

DUCT, COOL AIR INTAKE, NO.1

17911A

HOSE, COOL AIR INTAKE, NO.1

17911C

CLAMP, COOL AIR INTAKE DUCT, NO.1

17911E

CLAMP, COOL AIR INTAKE HOSE, NO.1

17911E

CLAMP, COOL AIR INTAKE HOSE, NO.1

17912

DUCT, COOL AIR INTAKE, NO.2

17912B

BRACKET, COOL AIR INTAKE DUCT, NO.2

17912B

BRACKET, COOL AIR INTAKE DUCT, NO.2

17912C

CLAMP, COOL AIR INTAKE DUCT, NO.2

17913

DUCT, COOL AIR INTAKE, NO.3

17913F

FLANGE, COOL AIR INTAKE DUCT, NO.3

9011908337

Крепеж

9011908556

Крепеж

9161140814

Крепеж

9161160814

Крепеж

9162140820

Крепеж

9163140814

Крепеж

9165140816

Крепеж
