8714
переход к группе запчастей
8714
переход к группе запчастей
8714
переход к группе запчастей
8719
переход к группе запчастей

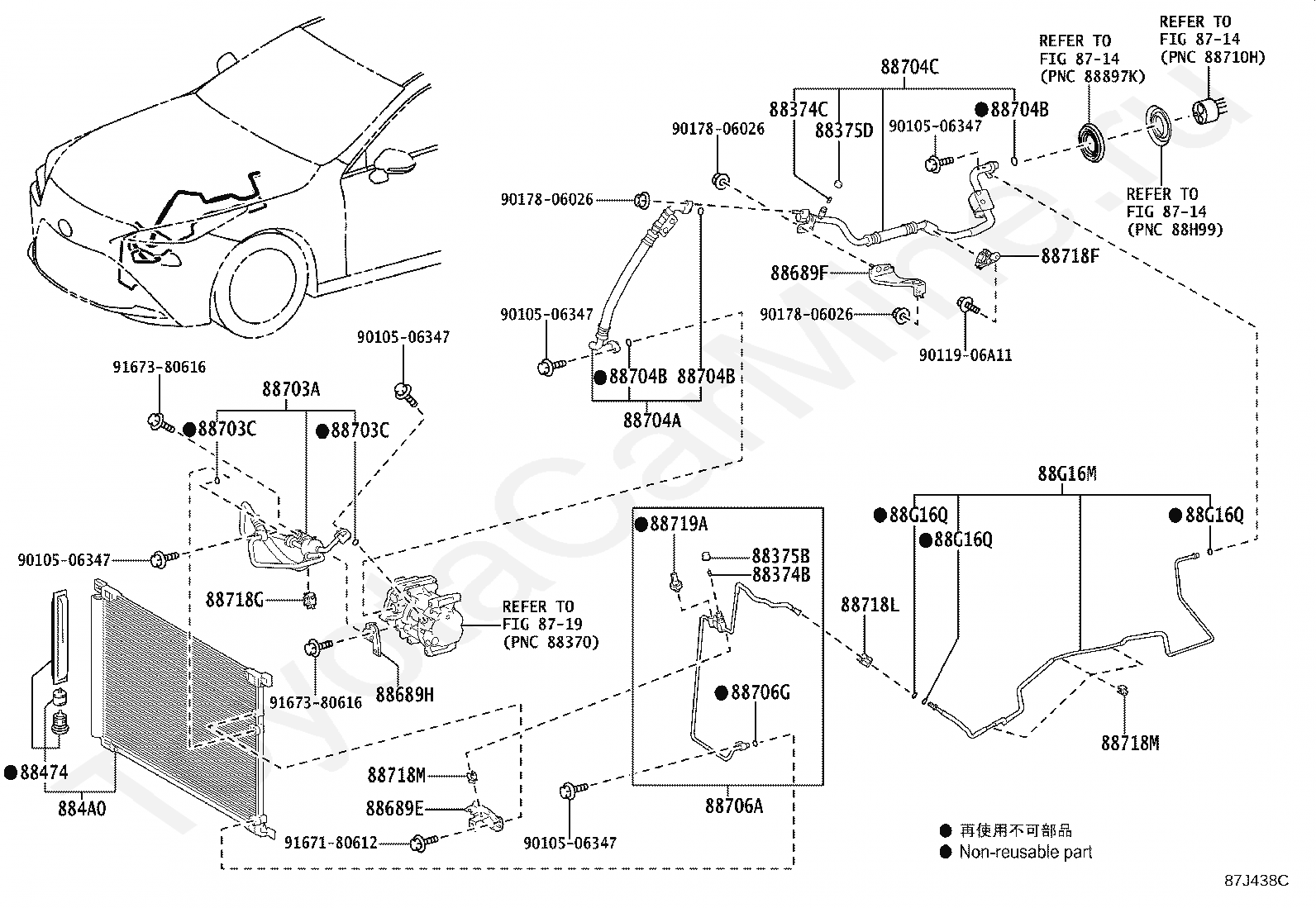

88374B
VALVE, SERVICE, NO.1
88374C
VALVE, SERVICE, NO.2
88375B
CAP, SERVICE VALVE, NO.1
88375D
CAP, SERVICE VALVE, NO.2
884A0
CONDENSER ASSY, COOLER
88689E
BRACKET, COOLER, NO.1
88689F
BRACKET, COOLER, NO.2
88689H
BRACKET, COOLER, NO.4
88703A
HOSE SUB-ASSY, DISCHARGE, NO.1
88703C
RING, O(FOR DISCHARGE HOSE)
88703C
RING, O(FOR DISCHARGE HOSE)
88704A
HOSE SUB-ASSY, SUCTION, A
88704B
RING, O(FOR SUCTION HOSE)
88704B
RING, O(FOR SUCTION HOSE)
88704B
RING, O(FOR SUCTION HOSE)
88704C
HOSE SUB-ASSY, SUCTION, B
88706A
TUBE SUB-ASSY, LIQUID, A
88706G
RING, O(FOR LIQUID TUBE)
88718F
CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE)
88718G
CLAMP, NO.2(FOR COOLER REFRIGERANT HOSE)
88719A
SENSOR, AIR CONDITIONER PRESSURE
88G16M
TUBE, LIQUID, NO.1
88G16Q
RING, O, NO.1(FOR LIQUID TUBE)
88G16Q
RING, O, NO.1(FOR LIQUID TUBE)
88G16Q
RING, O, NO.1(FOR LIQUID TUBE)
