Япония

Модель

MIRAI

VIN

Дата

2020/11

Двигатель

электромотор

Кузов

седан

Класс

Z TYPE

Фрейм

JPD20

Опции

4 двери 766W

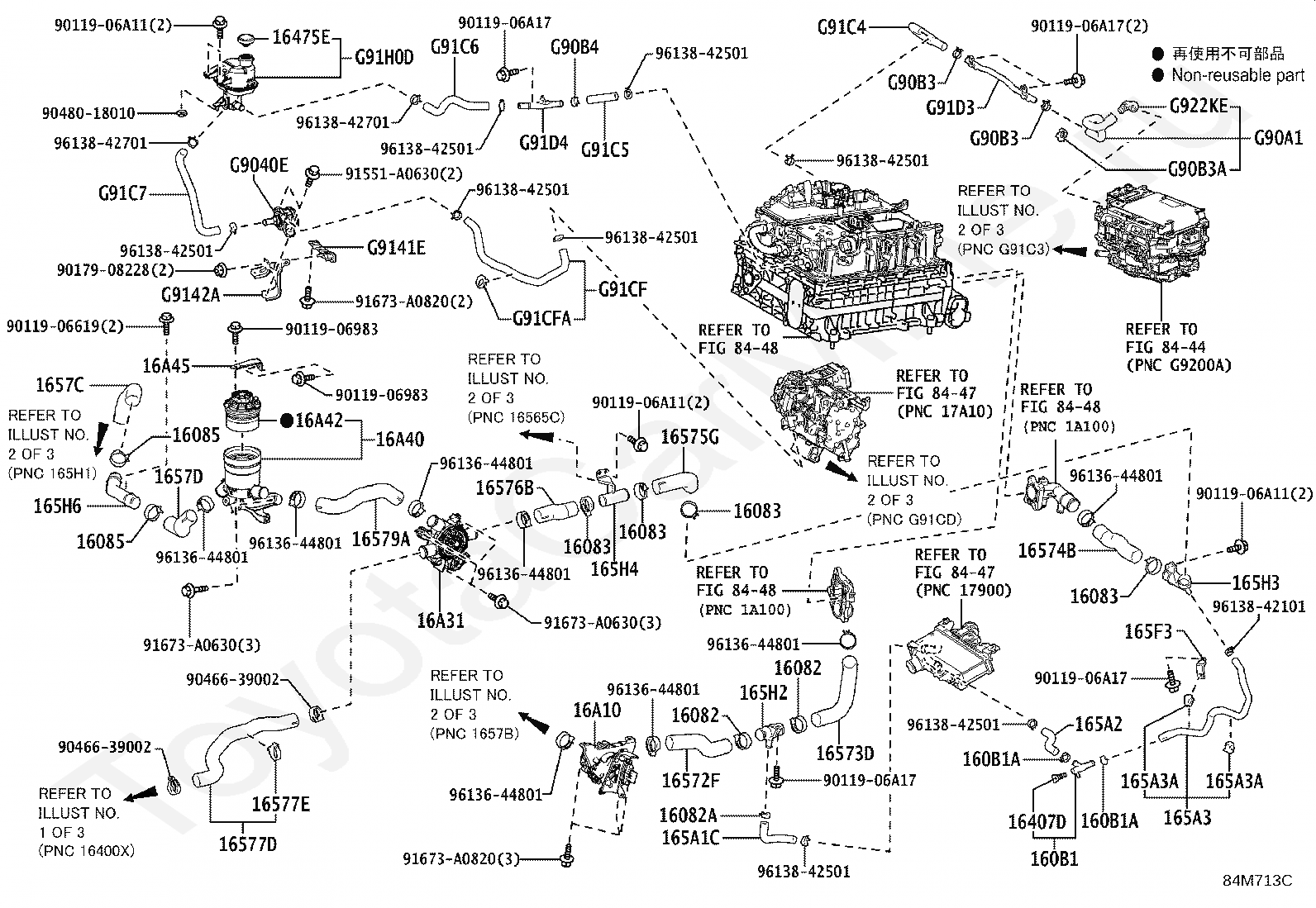

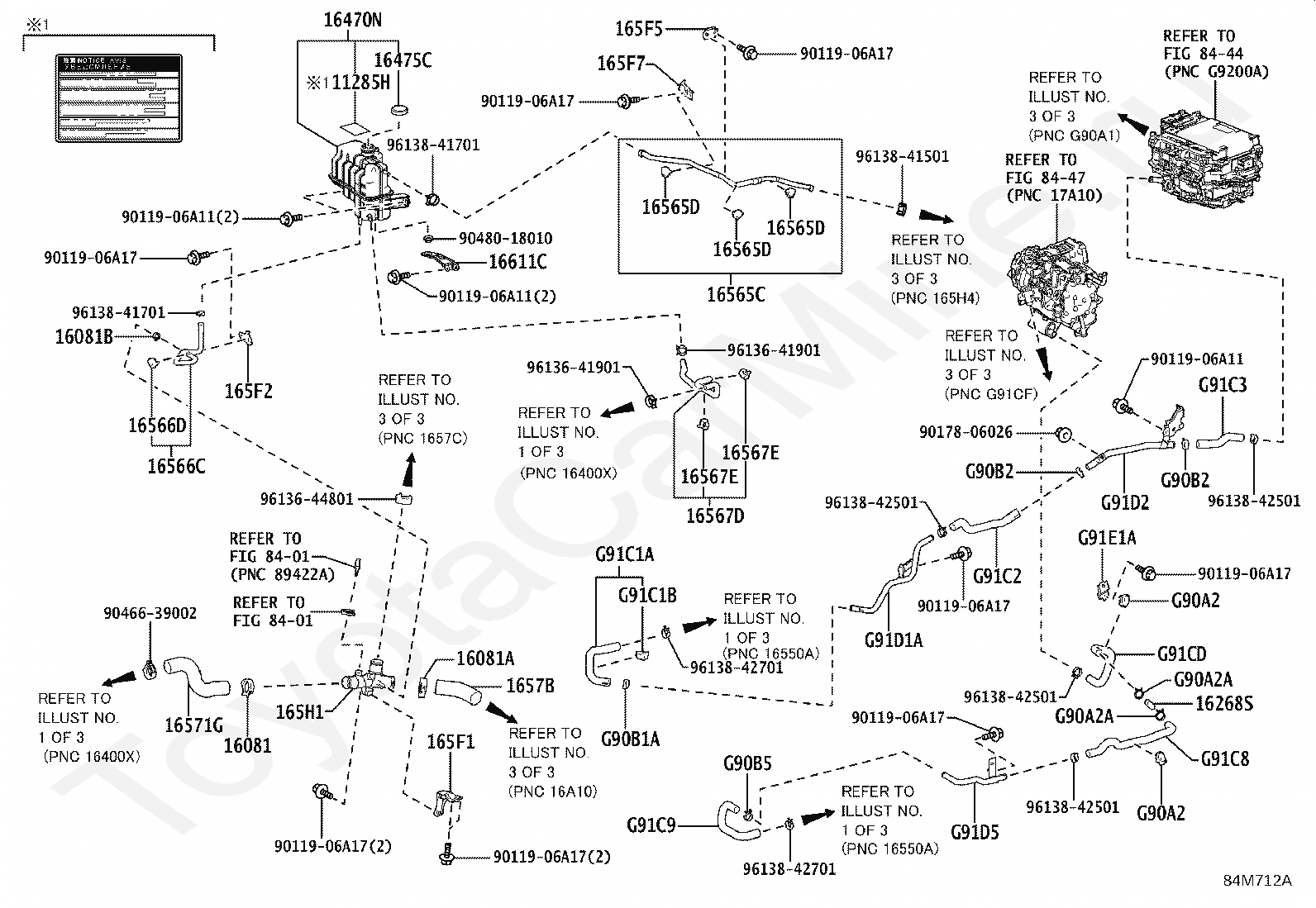

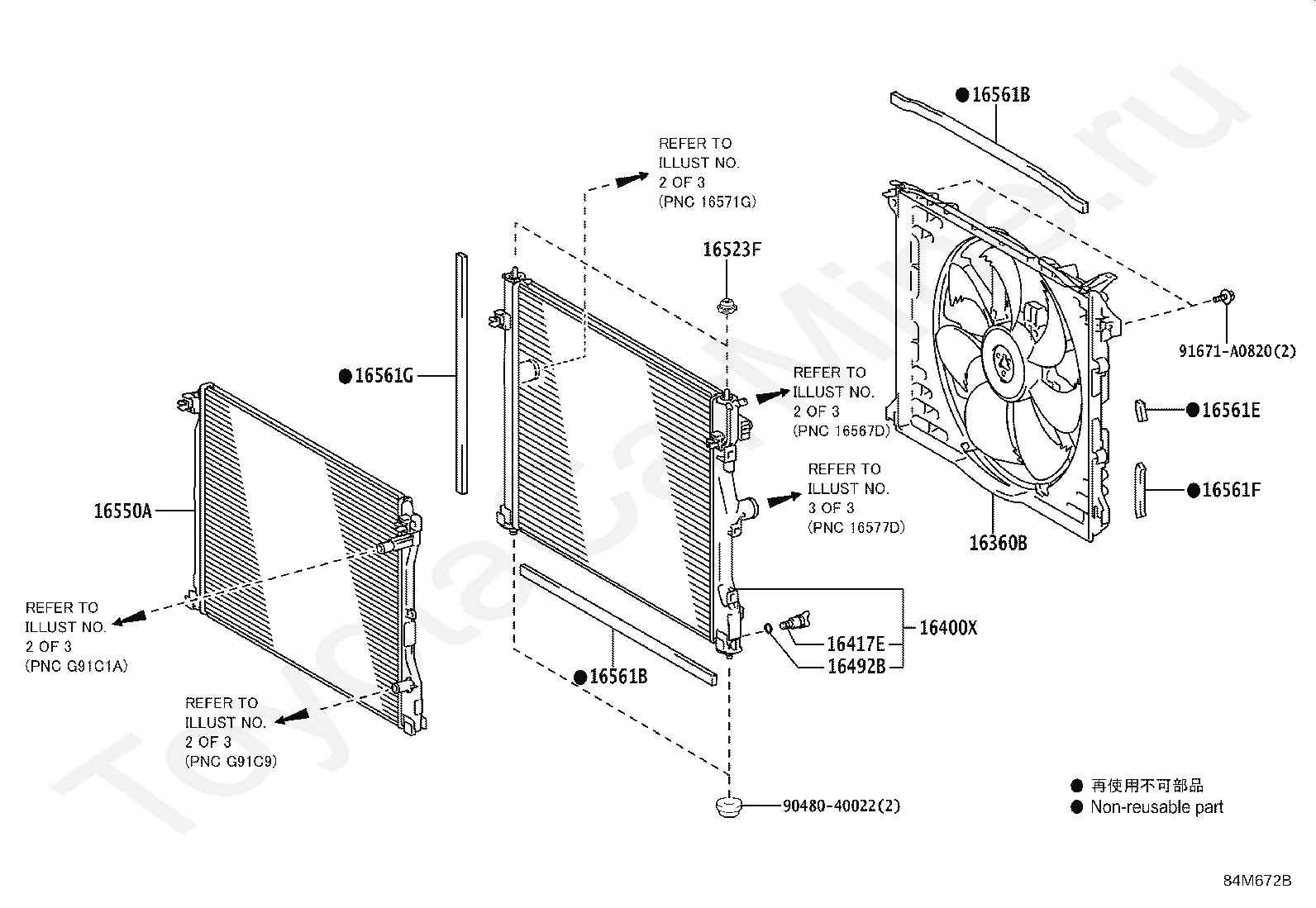

FCEV COOLING TOYOTA MIRAI

Код

Описание

16360B

FAN ASSY, W/MOTOR

16400X

RADIATOR ASSY, FC

16417E

COCK, RADIATOR DRAIN

16492B

RING, O(FOR RADIATOR DRAIN COCK)

16523F

CUSHION, RADIATOR SUPPORT

16550A

RADIATOR ASSY, EV

16561B

SEAL, RADIATOR TO SUPPORT, NO.1

16561B

SEAL, RADIATOR TO SUPPORT, NO.1

16561E

SEAL, RADIATOR TO SUPPORT, NO.2

16561F

SEAL, RADIATOR TO SUPPORT, NO.3

16561G

SEAL, RADIATOR TO SUPPORT, NO.4

9048040022

Крепеж

91671A0820

Крепеж

Код

Описание

11285H

LABEL, COOLANT SYSTEM NOTICE

16081

CLIP, NO.1(FOR FC RADIATOR HOSE, NO.1)

16081A

CLIP, NO.2(FOR FC RADIATOR HOSE, NO.1)

16081B

CLIP, NO.3(FOR FC RADIATOR HOSE, NO.1)

16268S

PIPE, WATER BY-PASS

16470N

TANK ASSY, FC RADIATOR RESERVE

16475C

CAP, RESERVE TANK

16565C

HOSE, RESERVE TANK INLET

16565D

CLAMP(FOR RESERVE TANK INLET HOSE)

16565D

CLAMP(FOR RESERVE TANK INLET HOSE)

16565D

CLAMP(FOR RESERVE TANK INLET HOSE)

16566C

HOSE, RESERVE TANK OUTLET

16566D

CLAMP(FOR RESERVE TANK OUTLET)

16567D

HOSE, RADIATOR TO RESERVE TANK

16567E

CLAMP(FOR RADIATOR TO RESERVE TANK HOSE)

16567E

CLAMP(FOR RADIATOR TO RESERVE TANK HOSE)

16571G

HOSE, FC RADIATOR, NO.1

1657B

HOSE, FC RADIATOR, NO.11

165F1

BRACKET, RADIATOR HOSE, NO.1

165F2

BRACKET, RADIATOR HOSE, NO.2

165F5

BRACKET, RADIATOR HOSE, NO.5

165F7

BRACKET, RADIATOR HOSE, NO.7

165H1

PIPE, FC RADIATOR, NO.1

16611C

BRACKET, RADIATOR RESERVE TANK

8401

переход к группе запчастей

8401

переход к группе запчастей

8444

переход к группе запчастей

8447

переход к группе запчастей

9011906A11

Крепеж

9011906A11

Крепеж

9011906A11

Крепеж

9011906A17

Крепеж

9011906A17

Крепеж

9011906A17

Крепеж

9011906A17

Крепеж

9011906A17

Крепеж

9011906A17

Крепеж

9011906A17

Крепеж

9011906A17

Крепеж

9017806026

Крепеж

9046639002

Крепеж

9048018010

Крепеж

9613641901

Крепеж

9613641901

Крепеж

9613644801

Крепеж

9613841501

Крепеж

9613841701

Крепеж

9613841701

Крепеж

9613842501

Крепеж

9613842501

Крепеж

9613842501

Крепеж

9613842501

Крепеж

9613842701

Крепеж

9613842701

Крепеж

G90A2

CLAMP(FOR FC INVERTER COOLING HOSE NO.2)

G90A2

CLAMP(FOR FC INVERTER COOLING HOSE NO.2)

G90A2A

CLIP(FOR FC INVERTER COOLING HOSE NO.2)

G90A2A

CLIP(FOR FC INVERTER COOLING HOSE NO.2)

G90B1A

CLAMP(FOR FC INVERTER COOLING HOSE NO.1)

G90B2

CLIP(FOR FC INVERTER COOLING PIPE NO.2)

G90B2

CLIP(FOR FC INVERTER COOLING PIPE NO.2)

G90B5

CLIP(FOR FC INVERTER COOLING PIPE NO.5)

G91C1A

HOSE, FC INVERTER COOLING, NO.1

G91C1B

CLAMP(FOR FC INVERTER COOLING HOSE NO.1)

G91C2

HOSE, FC INVERTER COOLING, NO.2

G91C3

HOSE, FC INVERTER COOLING, NO.3

G91C8

HOSE, FC INVERTER COOLING, NO.8

G91C9

HOSE, FC INVERTER COOLING, NO.9

G91CD

HOSE, FC INVERTER COOLING, NO.13

G91D1A

PIPE, FC INVERTER COOLING, NO.1

G91D2

PIPE, FC INVERTER COOLING, NO.2

G91D5

PIPE, FC INVERTER COOLING, NO.5

G91E1A

BRACKET, FC INVERTER COOLING, NO.1

Код

Описание

16082

CLIP, NO.1(FOR FC RADIATOR HOSE, NO.2)

16082

CLIP, NO.1(FOR FC RADIATOR HOSE, NO.2)

16082A

CLIP, NO.2(FOR FC RADIATOR HOSE, NO.2)

16083

CLIP(FOR FC RADIATOR HOSE, NO.3)

16083

CLIP(FOR FC RADIATOR HOSE, NO.3)

16083

CLIP(FOR FC RADIATOR HOSE, NO.3)

16083

CLIP(FOR FC RADIATOR HOSE, NO.3)

16085

CLIP, NO.1(FOR FC RADIATOR HOSE, NO.5)

16085

CLIP, NO.1(FOR FC RADIATOR HOSE, NO.5)

160B1

COCK ASSY, DRAIN

160B1A

CLIP(FOR FC INTERCOOLER HOSE)

160B1A

CLIP(FOR FC INTERCOOLER HOSE)

16407D

COCK SUB-ASSY, RADIATOR DRAIN

16475E

CAP, EV RESERVE TANK

16572F

HOSE, FC RADIATOR, NO.2

16573D

HOSE, FC RADIATOR, NO.3

16574B

HOSE, FC RADIATOR, NO.4

16575G

HOSE, FC RADIATOR, NO.5

16576B

HOSE, FC RADIATOR, NO.6

16577D

HOSE, FC RADIATOR, NO.7

16577E

CLAMP(FOR FC RADIATOR HOSE NO.7)

16579A

HOSE, FC RADIATOR, NO.9

1657C

HOSE, FC RADIATOR, NO.12

1657D

HOSE, FC RADIATOR, NO.13

165A1C

HOSE, FC INTERCOOLER, NO.1

165A2

HOSE, FC INTERCOOLER, NO.2

165A3

HOSE, FC INTERCOOLER, NO.3

165A3A

CLAMP(FOR FC INTERCOOLER HOSE NO.3)

165A3A

CLAMP(FOR FC INTERCOOLER HOSE NO.3)

165F3

BRACKET, RADIATOR HOSE, NO.3

165H2

PIPE, FC RADIATOR, NO.2

165H3

PIPE, FC RADIATOR, NO.3

165H4

PIPE, FC RADIATOR, NO.4

165H6

PIPE, FC RADIATOR, NO.6

16A10

PUMP ASSY, FC COOLING WATER

16A31

VALVE, FC COOLING WATER TEMPERATURE CONTROL

16A40

EXCHANGER ASSY, FC COOLING WATER ION

16A42

ELEMENT, FC COOLING WATER ION EXCHANGER

16A45

BRACKET, FC COOLING WATER ION EXCHANGER

8444

переход к группе запчастей

8447

переход к группе запчастей

8447

переход к группе запчастей

8448

переход к группе запчастей

8448

переход к группе запчастей

8448

переход к группе запчастей

9011906619

Крепеж

9011906983

Крепеж

9011906983

Крепеж

9011906A11

Крепеж

9011906A11

Крепеж

9011906A11

Крепеж

9011906A17

Крепеж

9011906A17

Крепеж

9011906A17

Крепеж

9011906A17

Крепеж

9017908228

Крепеж

9046639002

Крепеж

9046639002

Крепеж

9048018010

Крепеж

91551A0630

Крепеж

91673A0630

Крепеж

91673A0630

Крепеж

91673A0820

Крепеж

91673A0820

Крепеж

9613644801

Крепеж

9613644801

Крепеж

9613644801

Крепеж

9613644801

Крепеж

9613644801

Крепеж

9613644801

Крепеж

9613644801

Крепеж

9613644801

Крепеж

9613842101

Крепеж

9613842501

Крепеж

9613842501

Крепеж

9613842501

Крепеж

9613842501

Крепеж

9613842501

Крепеж

9613842501

Крепеж

9613842501

Крепеж

9613842501

Крепеж

9613842701

Крепеж

9613842701

Крепеж

G9040E

PUMP ASSY, WATER W/MOTOR

G90A1

HOSE SUB-ASSY, FC INVERTER COOLING, NO.1

G90B3

CLIP(FOR FC INVERTER COOLING PIPE NO.3)

G90B3

CLIP(FOR FC INVERTER COOLING PIPE NO.3)

G90B3A

CLAMP(FOR FC INVERTER COOLING PIPE NO.3)

G90B4

CLIP(FOR FC INVERTER COOLING PIPE NO.4)

G9141E

BRACKET, WATER PUMP, NO.1

G9142A

BRACKET, WATER PUMP, NO.2

G91C4

HOSE, FC INVERTER COOLING, NO.4

G91C5

HOSE, FC INVERTER COOLING, NO.5

G91C6

HOSE, FC INVERTER COOLING, NO.6

G91C7

HOSE, FC INVERTER COOLING, NO.7

G91CF

HOSE, FC INVERTER COOLING, NO.15

G91CFA

CLAMP(FOR FC INVERTER COOLING HOSE NO.15)

G91D3

PIPE, FC INVERTER COOLING, NO.3

G91D4

PIPE, FC INVERTER COOLING, NO.4

G91H0D

TANK ASSY, EV RESERVE

G922KE

CONNECTOR, FC WATER HOSE

FCEV COOLING TOYOTA MIRAI
