Япония

Модель

MEGA CRUISER

VIN

Дата

1999/06

Двигатель

4,1 литра, турбо-дизель, EFI

Фрейм

BXD20

КПП

автомат

Опции

TURBO DIESEL EFI

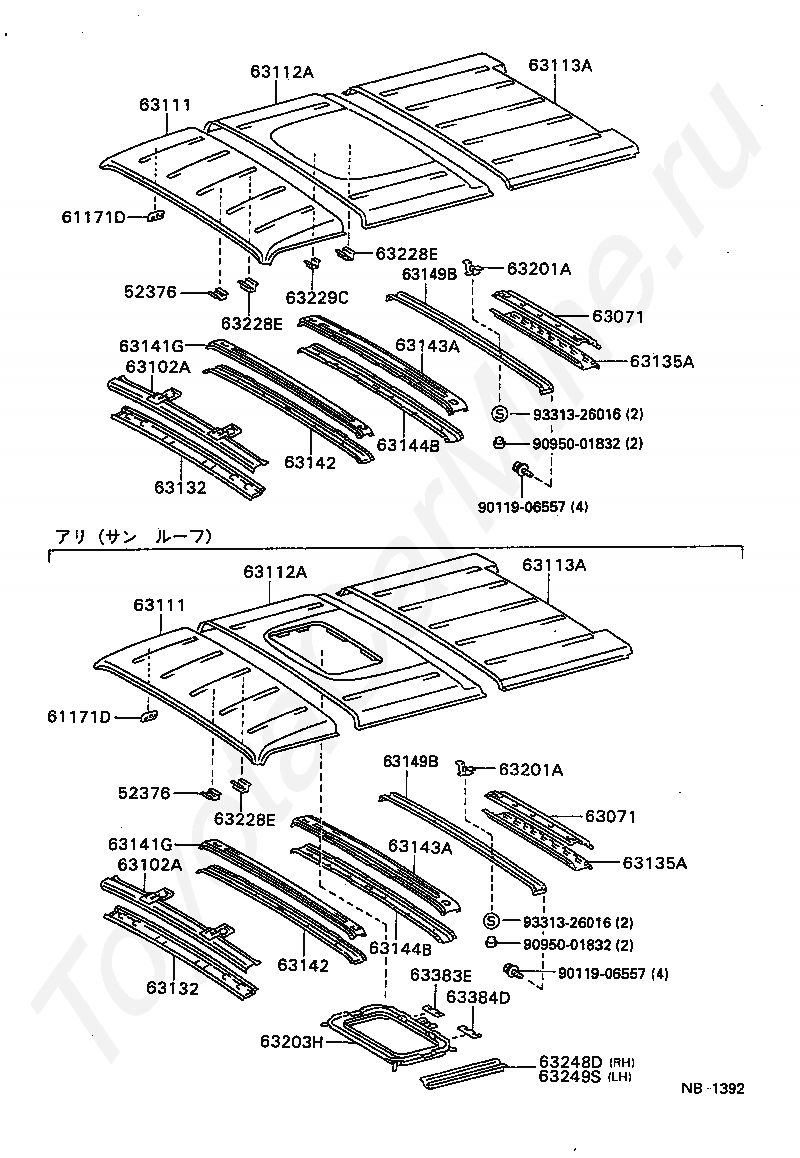

ROOF PANEL & BACK PANEL TOYOTA MEGA CRUISER

Код

Описание

52376

BRACKET, MOUNTING HOOK GUIDE

52376

BRACKET, MOUNTING HOOK GUIDE

61171D

BRACKET, ANTENNA POLE MOUNTING

61171D

BRACKET, ANTENNA POLE MOUNTING

63071

FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

63071

FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

63102A

PANEL SUB-ASSY, WINDSHIELD HEADER

63102A

PANEL SUB-ASSY, WINDSHIELD HEADER

63111

PANEL, ROOF

63111

PANEL, ROOF

63112A

PANEL, ROOF, NO.2

63112A

PANEL, ROOF, NO.2

63113A

PANEL, ROOF, NO.3

63113A

PANEL, ROOF, NO.3

63132

PANEL, WINDSHIELD HEADER, INNER

63132

PANEL, WINDSHIELD HEADER, INNER

63135A

FRAME, BACK DOOR OPENING, LOWER

63135A

FRAME, BACK DOOR OPENING, LOWER

63141G

REINFORCEMENT, ROOF PANEL, NO.1

63141G

REINFORCEMENT, ROOF PANEL, NO.1

63142

REINFORCEMENT, ROOF PANEL, NO.2

63142

REINFORCEMENT, ROOF PANEL, NO.2

63143A

REINFORCEMENT, ROOF PANEL

63143A

REINFORCEMENT, ROOF PANEL

63144B

REINFORCEMENT, ROOF PANEL, NO.4

63144B

REINFORCEMENT, ROOF PANEL, NO.4

63149B

REINFORCEMENT, ROOF PANEL, NO.1 REAR

63149B

REINFORCEMENT, ROOF PANEL, NO.1 REAR

63201A

PANEL SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF

63201A

PANEL SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF

63203H

HOUSING SUB-ASSY, REMOVABLE ROOF

63228E

BRACKET, ROOF HEADLINING, NO.1

63228E

BRACKET, ROOF HEADLINING, NO.1

63228E

BRACKET, ROOF HEADLINING, NO.1

63229C

BRACKET, ROOF HEADLINING, NO.2

63248D

SUPPORT, REMOVABLE ROOF HOUSING, RH

63249S

SUPPORT, REMOVABLE ROOF HOUSING, LH

63383E

RETAINER, ROOF HEADLINING TRIM, REAR RH

63384D

RETAINER, ROOF HEADLINING TRIM, REAR LH

9011906557

Крепеж

9011906557

Крепеж

9095001832

Крепеж

9095001832

Крепеж

9331326016

Крепеж

9331326016

Крепеж

Код

Описание

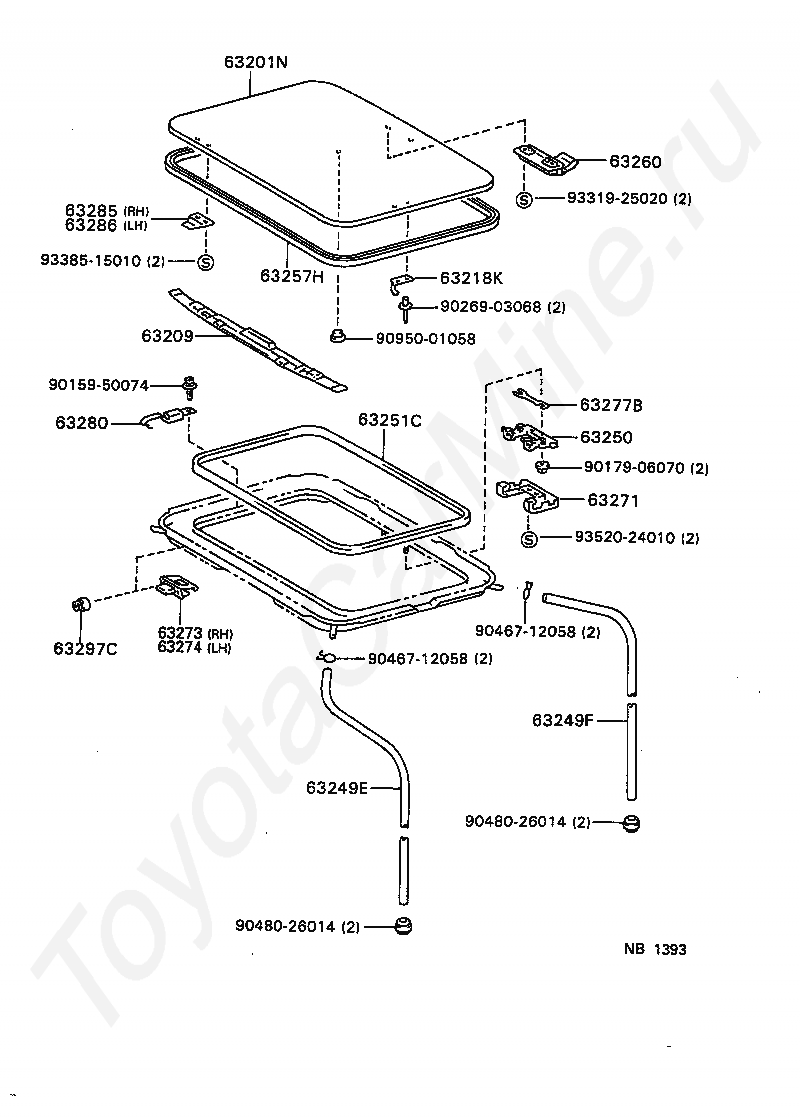

63201N

PANEL SUB-ASSY, REMOVABLE ROOF

63209

PANEL SUB-ASSY, ROOF WIND DEFLECTOR

63218K

HOOK, REMOVABLE ROOF AUXILIARY

63249E

HOSE, SLIDING ROOF DRAIN

63249F

HOSE, SLIDING ROOF DRAIN

63250

BASE ASSY, REMOVABLE ROOF LOCK

63251C

WEATHERSTRIP, REMOVABLE ROOF

63257H

SEAL, REMOVABLE ROOF

63260

HANDLE ASSY, REMOVABLE ROOF LOCK

63271

GARNISH, REMOVABLE ROOF LOCK

63273

CASE, REMOVABLE ROOF HINGE, RH

63274

CASE, REMOVABLE ROOF HINGE, LH

63277B

SPACER, REMOVABLE ROOF LOCK BASE

63280

CATCH ASSY, REMOVABLE ROOF AUXILIARY, LH

63285

HINGE, REMOVABLE ROOF, RH

63286

HINGE, REMOVABLE ROOF, LH

63297C

BOLT, REMOVABLE ROOF HINGE CASE

9015950074

Крепеж

9017906070

Крепеж

9026903068

Крепеж

9046712058

Крепеж

9046712058

Крепеж

9048026014

Крепеж

9048026014

Крепеж

9095001058

Крепеж

9331925020

Крепеж

9338515010

Крепеж

9352024010

Крепеж

Код

Описание

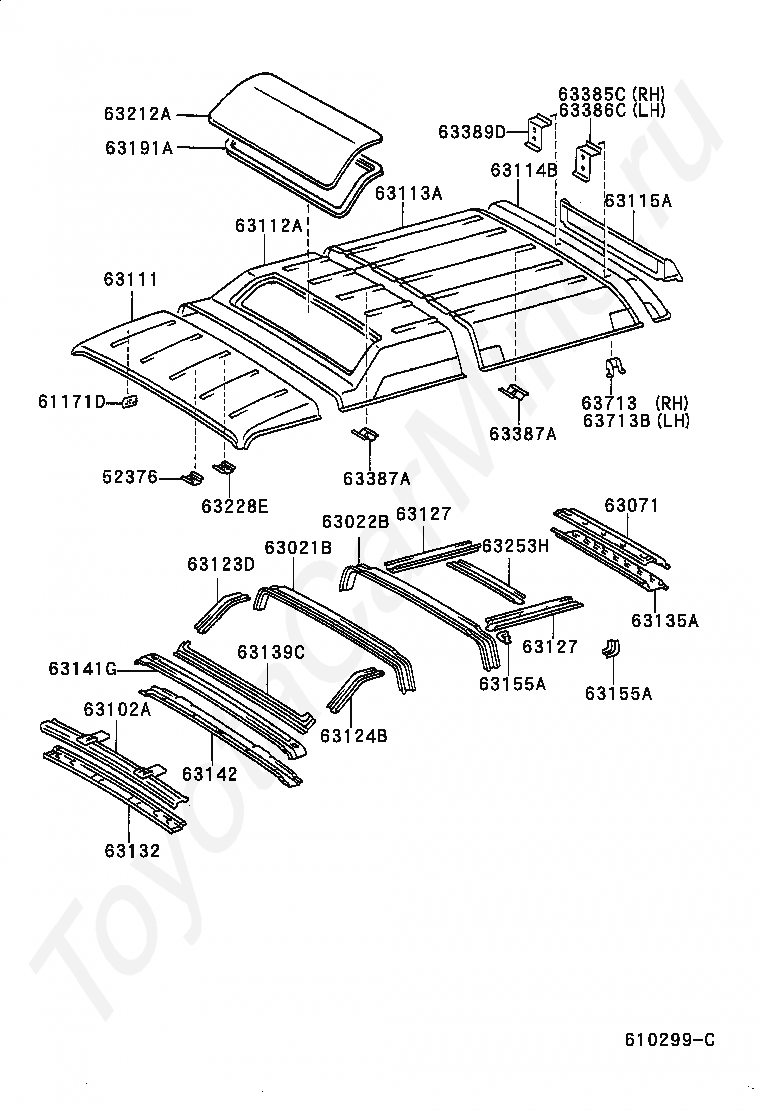

52376

BRACKET, MOUNTING HOOK GUIDE

61171D

BRACKET, ANTENNA POLE MOUNTING

63021B

STRENGTH SUB-ASSY, ROOF PANEL

63022B

STRENGTH SUB-ASSY, ROOF PANEL, NO.2

63071

FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

63102A

PANEL SUB-ASSY, WINDSHIELD HEADER

63111

PANEL, ROOF

63112A

PANEL, ROOF, NO.2

63113A

PANEL, ROOF, NO.3

63114B

PANEL, ROOF, NO.4

63115A

PANEL, ROOF, NO.5

63123D

REINFORCEMENT, ROOF PANEL, FRONT RH

63124B

REINFORCEMENT, ROOF PANEL, FRONT LH

63127

REINFORCEMENT, ROOF PANEL, NO.5

63127

REINFORCEMENT, ROOF PANEL, NO.5

63132

PANEL, WINDSHIELD HEADER, INNER

63135A

FRAME, BACK DOOR OPENING, LOWER

63139C

FRAME, ROOF WINDOW

63141G

REINFORCEMENT, ROOF PANEL, NO.1

63142

REINFORCEMENT, ROOF PANEL, NO.2

63155A

PLATE, ROOF PANEL REINFORCEMENT

63155A

PLATE, ROOF PANEL REINFORCEMENT

63191A

WEATHERSTRIP, ROOF WINDOW, NO.1

63212A

GLASS, ROOF WINDOW

63228E

BRACKET, ROOF HEADLINING, NO.1

63253H

STRENGTH, ROOF PANEL, CENTER NO.3

63385C

RETAINER, ROOF HEADLINING TRIM SIDE, RH

63386C

RETAINER, ROOF HEADLINING TRIM SIDE, LH

63387A

BRACKET, ROOF HEADLINING HOLDER

63387A

BRACKET, ROOF HEADLINING HOLDER

63389D

RETAINER, ROOF HEADLINING TRIM, CENTER

63713

BRACKET, ROOF PANEL REINFORCEMENT, NO.3

63713B

BRACKET, ROOF PANEL REINFORCEMENT, NO.3 LH

ROOF PANEL & BACK PANEL TOYOTA MEGA CRUISER
