Каталог

Япония

Модель

MARK 2

VIN

Дата

1981/10

Двигатель

2 литра, EFI, турбо

Кузов

седан

Класс

GRANDE TYPE,GRANDE FOUR TYPE

Фрейм

MX61

КПП

автомат АКПП, 4 ступени

Опции

WITH TURBO (HARGER)

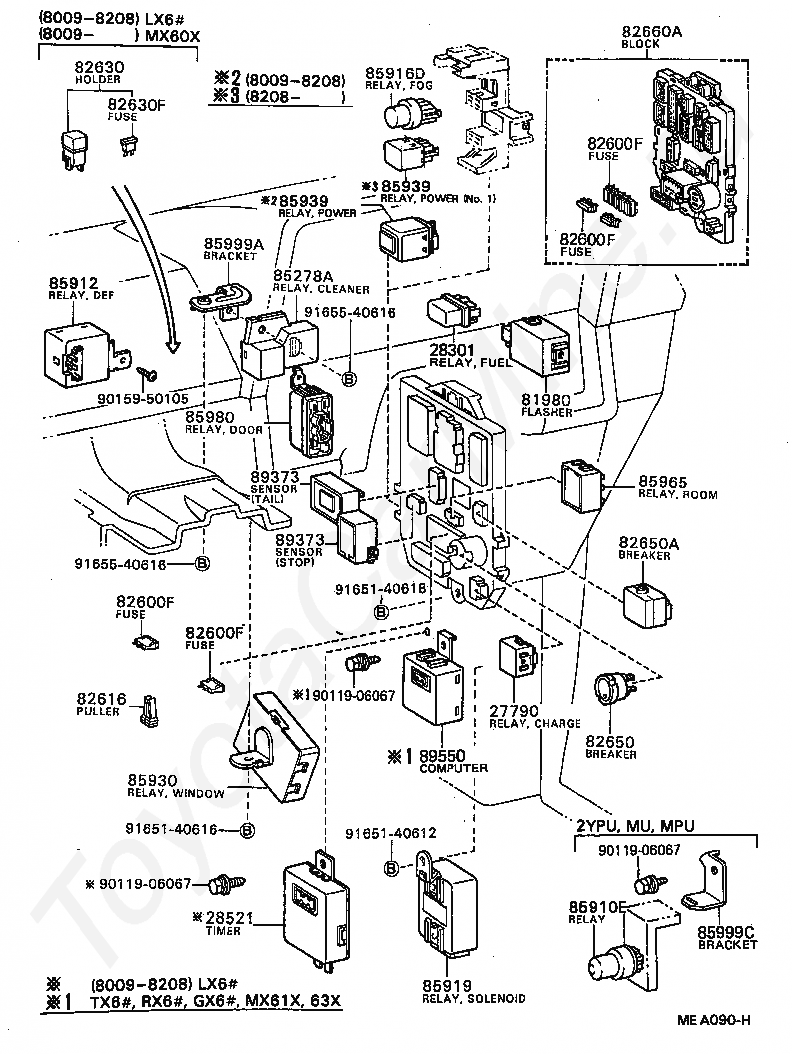

Реле и кнопки TOYOTA MARK 2

Код

Описание

1903

переход к группе запчастей

28515A

RESISTOR, SOLENOID

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82660

BLOCK ASSY, RELAY, ENGINE ROOM

82661

COVER, RELAY BLOCK, NO.1

82661

COVER, RELAY BLOCK, NO.1

8271124120

Крепеж

83391

SWITCH, VACUUM

83399

BRACKET, VACUUM SWITCH

83420

GAGE ASSY, WATER TEMPERATURE SENDER

83520

GAGE ASSY,OIL PRESSURE SENDER

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

8404

переход к группе запчастей

84210

SWITCH ASSY, BACK-UP LAMP

84540

SWITCH ASSY, NEUTRAL START

85335

SWITCH ASSY, WASHER LEVEL WARNING

85336

SWITCH ASSY, RESERVE TANK LEVEL WARNING

85909A

BRACKET SUB-ASSY, RELAY BLOCK

85915

RELAY, MAIN

85916

RELAY, LIGHT CONTROL

85916

RELAY, LIGHT CONTROL

89427

SWITCH, TEMPERATURE DETECT

89453

SWITCH, THROTTLE POSITION (FOR T.C.S.)

89465

SENSOR, OXYGEN

89466

GASKET, OXYGEN SENSOR

89615

SENSOR, KNOCK CONTROL

89620

IGNITER ASSY

89620

IGNITER ASSY

89620

IGNITER ASSY

89620

IGNITER ASSY

89629

BRACKET, IGNITER ASSY

89629

BRACKET, IGNITER ASSY

9011906005

Крепеж

9011906005

Крепеж

9011906018

Крепеж

9011906157

Крепеж

9017908059

Крепеж

9043018007

Крепеж

9046108312

Крепеж

9046110284

Крепеж

9046208008

Крепеж

9046400073

Крепеж

9046400156

Крепеж

9046400156

Крепеж

9161160612

Крепеж

9161160812

Крепеж

9161160814

Крепеж

9165140612

Крепеж

9165540616

Крепеж

9165540616

Крепеж

9338516025

Крепеж

Код

Описание

8271114530

Крепеж

8271114550

Крепеж

84052

SWITCH ASSY, UN-LOCK WARNING

84110

SWITCH ASSY, LIGHT CONTROL, NO.1

84118

KNOB, LIGHT CONTROL RHEOSTAT

84119

RHEOSTAT, LIGHT CONTROL

84119A

BOLT OR NUT, RHEOSTAT CONTROL SET

84140

SWITCH ASSY, HEADLAMP DIMMER

84162

SWITCH, FRONT FOG LAMP

84310

SWITCH ASSY, TURN SIGNAL

84312

PLATE, HORN CONTACT

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84335

SWITCH ASSY, PARKING LAMP

84335

SWITCH ASSY, PARKING LAMP

84450

SWITCH ASSY, IGNITION OR STARTER

84560

SWITCH ASSY, FUEL VALVE CONTROL

84650

SWITCH ASSY, WINDSHIELD WIPER

84653A

SWITCH, REAR WIPER

84660C

SWITCH, COOLER

84660D

BULB(FOR COOLER SWITCH)

84730

SWITCH ASSY, HEATER BLOWER

84730

SWITCH ASSY, HEATER BLOWER

84751

SWITCH, SEAT HEATER

84760

SWITCH ASSY, ANTENNA

84790

SWITCH ASSY, REAR WINDOW DEFOGGER

84790B

BULB(FOR REAR WINDOW DEFOGGER SWITCH)

84870A

SWITCH ASSY, OUTER MIRROR

84930

SWITCH ASSY, DOOR CONTROL

85500

LIGHTER ASSY, CIGARETTE

85500B

BULB, CIGARETTE LIGHTER

85533

LENS, CIGARETTE LIGHTER INDICATOR

9016450048

Крепеж

9046112206

Крепеж

9046208006

Крепеж

9046313003

Крепеж

9046315003

Крепеж

9046315402

Крепеж

9331514010

Крепеж

9331913008

Крепеж

9331914012

Крепеж

9331915012

Крепеж

9354054012

Крепеж

9356655512

Крепеж

Код

Описание

27790

RELAY ASSY, CHARGE LAMP

28301

RELAY ASSY, FUEL PUMP

28521

TIMER, PREHEATING

81980

FLASHER ASSY, TURN SIGNAL

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82616

PULLER, FUSE

82630

HOLDER ASSY, FUSE

82630F

HOLDER, FUSE

82650

BREAKER ASSY, WIRING CIRCUIT, NO.1

82650A

BREAKER ASSY, WIRING CIRCUIT, NO.2

82660A

BLOCK ASSY, RELAY, COWL SIDE

85278A

RELAY ASSY, HEADLAMP CLEANER CONTROL

85910E

RELAY, INJECTOR

85912

RELAY, DEFOGGER

85916D

RELAY, FOG LAMP

85919

RELAY, SOLENOID LOCK DOOR CONTROL

85930

RELAY ASSY, POWER WINDOW

85939

RELAY, POWER WINDOW

85939

RELAY, POWER WINDOW

85965

RELAY, ROOM LAMP CONTROL

85980

RELAY ASSY, DOOR CONTROL

85999A

BRACKET, RELAY, NO.2

85999C

BRACKET, RELAY, NO.3

89373

SENSOR, LAMP FAILURE INDICATOR

89373

SENSOR, LAMP FAILURE INDICATOR

89550

COMPUTER ASSY, EMISSION CONTROL

9011906067

Крепеж

9011906067

Крепеж

9011906067

Крепеж

9015950105

Крепеж

9165140612

Крепеж

9165140616

Крепеж

9165140618

Крепеж

9165540616

Крепеж

9165540616

Крепеж

Код

Описание

28521

TIMER, PREHEATING

28529

BRACKET, PREHEATING TIMER, NO.1

82650B

BREAKER ASSY, WIRING CIRCUIT, NO.3

83650

FUSEE

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85939

RELAY, POWER WINDOW

85940

RELAY ASSY, WINDSHIELD WIPER

85940

RELAY ASSY, WINDSHIELD WIPER

86690

BUZZER ASSY, SPEED INDICATOR

88630G

RELAY ASSY, COOLER

89550

COMPUTER ASSY, EMISSION CONTROL

89610

COMPUTER ASSY, KNOCK CONTROL

9017906015

Крепеж

9017906060

Крепеж

9017906162

Крепеж

9018305002

Крепеж

9165140612

Крепеж

9165140612

Крепеж

9165140612

Крепеж

9165140612

Крепеж

9338516012

Крепеж

9354015014

Крепеж

9354015016

Крепеж

9354055016

Крепеж

9354055016

Крепеж

9356655512

Крепеж

9368016016

Крепеж

Код

Описание

84095

BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH

84230F

SWITCH ASSY, COURTESY (FOR POWER WINDOW)

84231

SWITCH ASSY, COURTESY LAMP (FOR PARKING BRAKE)

84231

SWITCH ASSY, COURTESY LAMP (FOR PARKING BRAKE)

84232

SWITCH ASSY, COURTESY LAMP (FOR GLOVE BOX)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233B

CUSHION, COURTESY SWITCH (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234B

CUSHION, COURTESY SWITCH (FOR REAR DOOR)

84340

SWITCH ASSY, STOP LAMP

84380

SWITCH ASSY, BRAKE WARNING TEST

84532

SWITCH, ROOM LAMP RETAINER

84931B

SWITCH, DOOR CONTROL

89425

SENSOR, EXHAUST GAS TEMPERATURE

89437

COVER, SENSOR

9016840006

Крепеж

9017908026

Крепеж

9017910032

Крепеж

9020110572

Крепеж

9020110572

Крепеж

9043008252

Крепеж

9165160616

Крепеж

9166140612

Крепеж

9411041000

Крепеж

9412040800

Крепеж

9412041000

Крепеж

9412041000

Крепеж

9461111001

Крепеж

Код

Описание

8473930020

Крепеж

8473930020

Крепеж

84751

SWITCH, SEAT HEATER

84810
