Каталог

Япония

Модель

MARK 2

VIN

Дата

1988/08

Двигатель

2 литра, 24 клапана DOHC, EFI, нагнетатель

Кузов

HARD TOP SERIES

Класс

GRANDE G TYPE,GRANDE G FOUR TYPE

Фрейм

GX81

КПП

автомат АКПП, 4 ступени

Опции

SPACE CASUAL SPECIFICATION

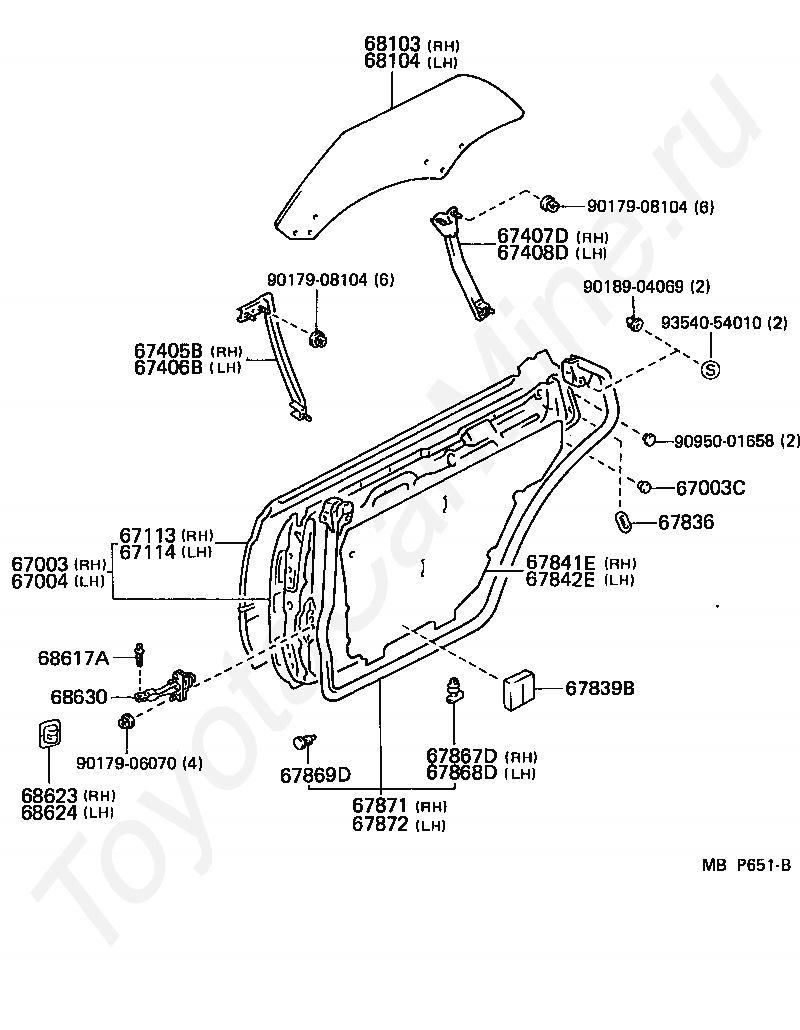

Задние двери TOYOTA MARK 2

Код

Описание

67003

PANEL SUB-ASSY, REAR DOOR, RH

67003C

CUSHION, REAR DOOR PANEL

67004

PANEL SUB-ASSY, REAR DOOR, LH

67113

PANEL, REAR DOOR, OUTER RH

67114

PANEL, REAR DOOR, OUTER LH

67405B

GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH

67406B

GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH

67407D

GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH

67408D

GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH

67836

COVER, REAR DOOR LOCK CHILD PROTECTION, RH

67839B

COVER, REAR DOOR SERVICE HOLE, LOWER

67841E

COVER, REAR DOOR SERVICE HOLE, RH

67842E

COVER, REAR DOOR SERVICE HOLE, LH

67867D

RETAINER, REAR DOOR WEATHERSTRIP, RH

67868D

RETAINER, REAR DOOR WEATHERSTRIP, LH

67869D

CLIP, DOOR WEATHERSTRIP

67871

WEATHERSTRIP, REAR DOOR, RH

67872

WEATHERSTRIP, REAR DOOR, LH

68103

GLASS SUB-ASSY, REAR DOOR, RH

68104

GLASS SUB-ASSY, REAR DOOR, LH

68617A

PIN, REAR DOOR CHECK

68623

COVER, DOOR CHECK, RH

68624

COVER, DOOR CHECK, LH

68630

CHECK ASSY, REAR DOOR

9017906070

Крепеж

9017908104

Крепеж

9017908104

Крепеж

9018904069

Крепеж

9095001658

Крепеж

9354054010

Крепеж

Код

Описание

67603

BOARD SUB-ASSY, REAR DOOR TRIM, RH

67603

BOARD SUB-ASSY, REAR DOOR TRIM, RH

67603D

RETAINER, REAR DOOR TRIM, RH

67603D

RETAINER, REAR DOOR TRIM, RH

67604

BOARD SUB-ASSY, REAR DOOR TRIM, LH

67604

BOARD SUB-ASSY, REAR DOOR TRIM, LH

67604D

RETAINER, REAR DOOR TRIM, LH

67604D

RETAINER, REAR DOOR TRIM, LH

68190

WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

68190

WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

68190

WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

68190

WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

68250A

WEATHERSTRIP ASSY, QUARTER GLASS, INNER REAR

68250A

WEATHERSTRIP ASSY, QUARTER GLASS, INNER REAR

7404

переход к группе запчастей

9016860015

Крепеж

9016860015

Крепеж

9018906015

Крепеж

9018906015

Крепеж
