Каталог

Япония

Модель

MARK 2

VIN

Дата

1984/11

Двигатель

2 литра, EFI

Кузов

фургон

Класс

LG TYPE

Фрейм

GX70

КПП

механика МКПП, 5 скоростей

Опции

электронная система впрыска топлива

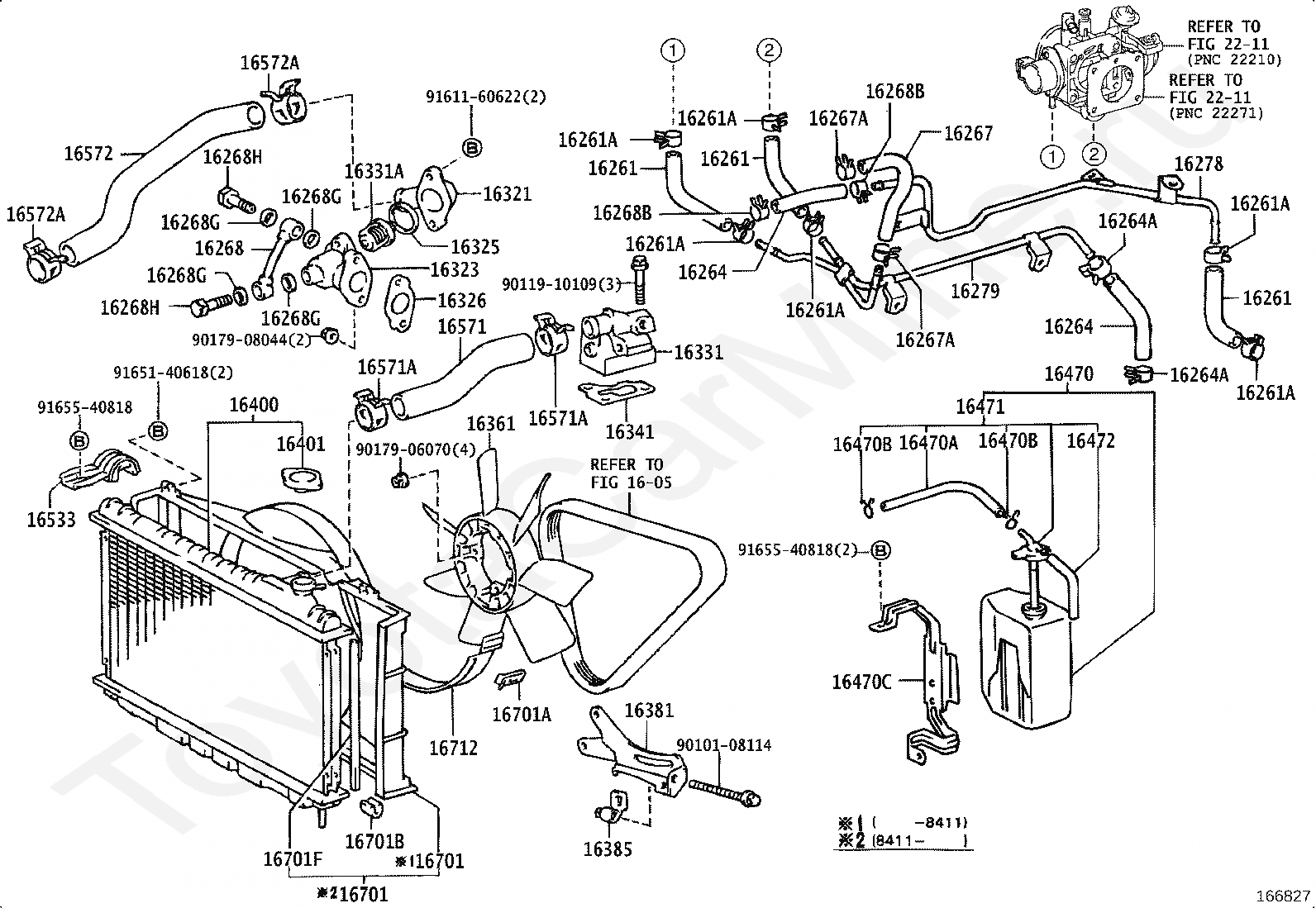

Радиатор и шланги TOYOTA MARK 2







Код

Описание

1605

переход к группе запчастей

16261

HOSE, WATER BY-PASS

16261

HOSE, WATER BY-PASS

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16268

PIPE, WATER BY-PASS, NO.1

16268B

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)

16268B

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)

16268G

GASKET(FOR WATER BY-PASS PIPE)

16268G

GASKET(FOR WATER BY-PASS PIPE)

16268G

GASKET(FOR WATER BY-PASS PIPE)

16268G

GASKET(FOR WATER BY-PASS PIPE)

16268H

BOLT, UNION(FOR WATER BY-PASS PIPE)

16268H

BOLT, UNION(FOR WATER BY-PASS PIPE)

16278

PIPE, WATER BY-PASS, NO.2

16279

PIPE, WATER BY-PASS, NO.3

16321

INLET, WATER

16323

HOUSING, WATER INLET

16325

GASKET, WATER INLET HOUSING, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

16331

OUTLET, WATER

16331A

THERMOSTAT

16341

GASKET, WATER OUTLET

16361

FAN

16381

BAR, FAN BELT ADJUSTING

16385

SLIDER, FAN BELT ADJUSTING

16400

RADIATOR ASSY

16401

CAP SUB-ASSY, RADIATOR

16470

TANK ASSY, RADIATOR RESERVE

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16470C

BRACKET(FOR RADIATOR RESERVE TANK)

16471

CAP SUB-ASSY, RESERVE TANK

16472

HOSE, BREATHER

16533

SUPPORT, RADIATOR, UPPER

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16701

SHROUD SUB-ASSY, FAN

16701

SHROUD SUB-ASSY, FAN

16701A

CLIP(FOR FAN SHROUD)

16701B

CUSHION, FAN SHROUD

16701F

SEAL(FOR FAN SHROUD)

16712

SHROUD, FAN, NO.2

2211

переход к группе запчастей

2211

переход к группе запчастей

9010108114

Крепеж

9011910109

Крепеж

9017906070

Крепеж

9017908044

Крепеж

9161160622

Крепеж

9165140618

Крепеж

9165540818

Крепеж

9165540818

Крепеж

Код

Описание

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16403F

CORE SUB-ASSY, RADIATOR

16442

RING, O(FOR RADIATOR UPPER TANK)

16443

PLATE, RADIATOR TANK, LOCK, UPPER

16451

PLATE, RADIATOR CORE, UPPER

16452

PLATE, RADIATOR CORE, LOWER

16462

RING, O(FOR RADIATOR LOWER TANK)

16463

PLATE, RADIATOR TANK, LOCK, LOWER

16491

COOLER, OIL(FOR ATM)

16491A

RING, O(FOR ATM OIL COOLER)

16491B

WASHER, PLATE(FOR ATM OIL COOLER)

16491C

WASHER, SPRING(FOR ATM OIL COOLER)

16491D

NUT(FOR ATM OIL COOLER)

16495

NUT, FLARE(FOR ATM OIL COOLER)
