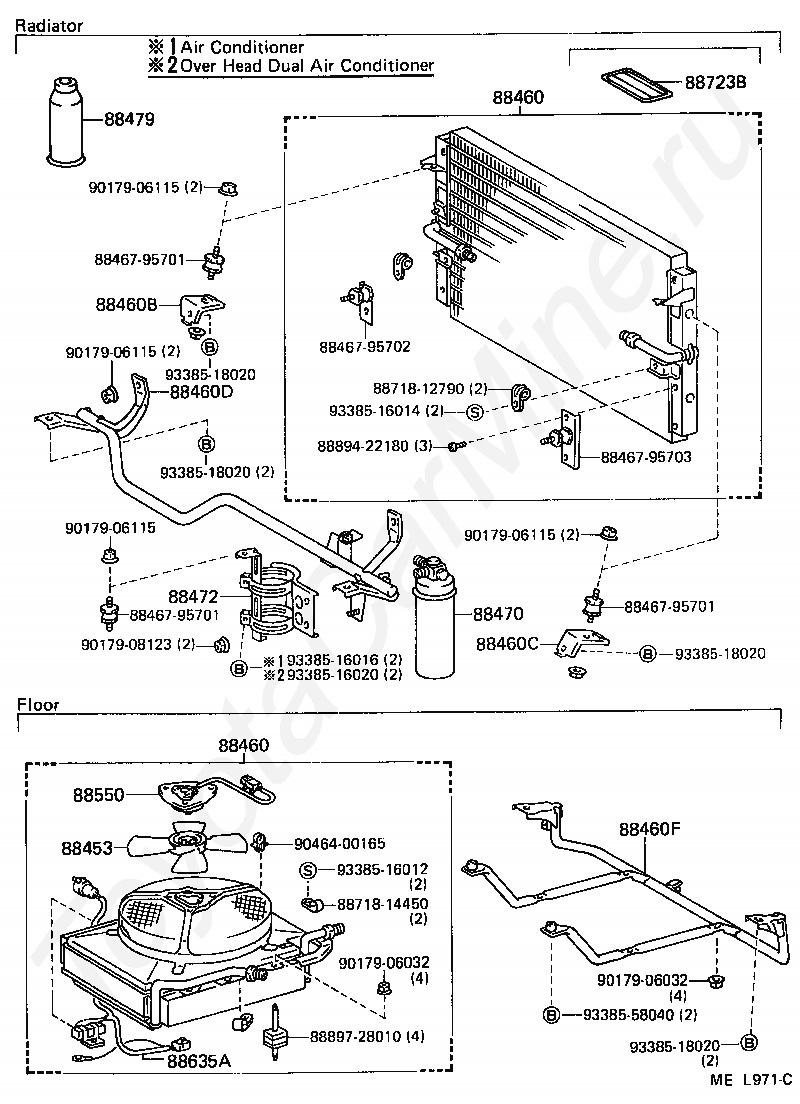

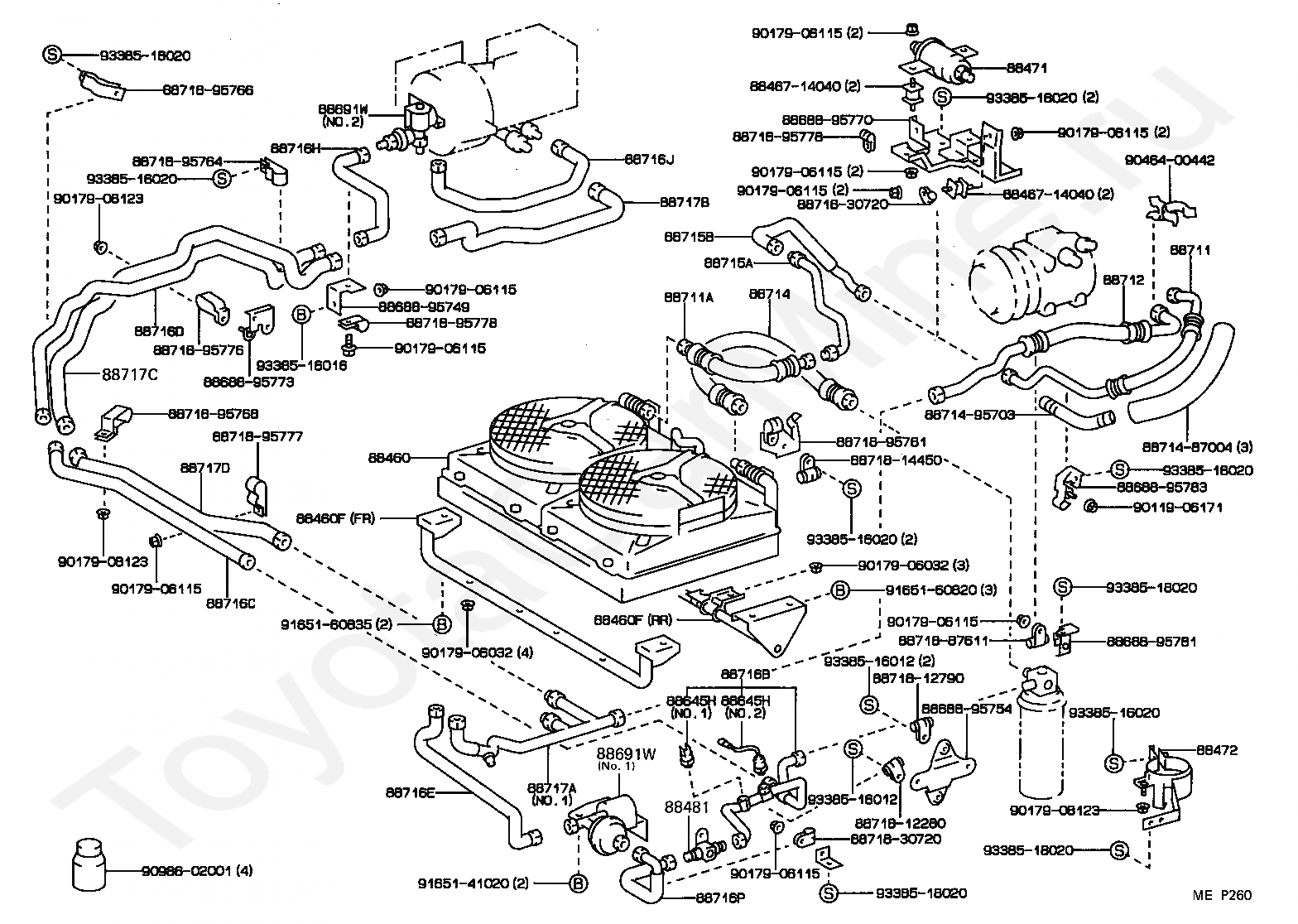

88460
CONDENSER ASSY, COOLER
88460F
BRACKET, COOLER CONDENSER, NO.4
88460F
BRACKET, COOLER CONDENSER, NO.4
88471
TANK, RECEIVER AIR CONDITIONER
88472
BRACKET, RECEIVER TANK, NO.1
88645H
SWITCH, PRESSURE NO.1
88645H
SWITCH, PRESSURE NO.1

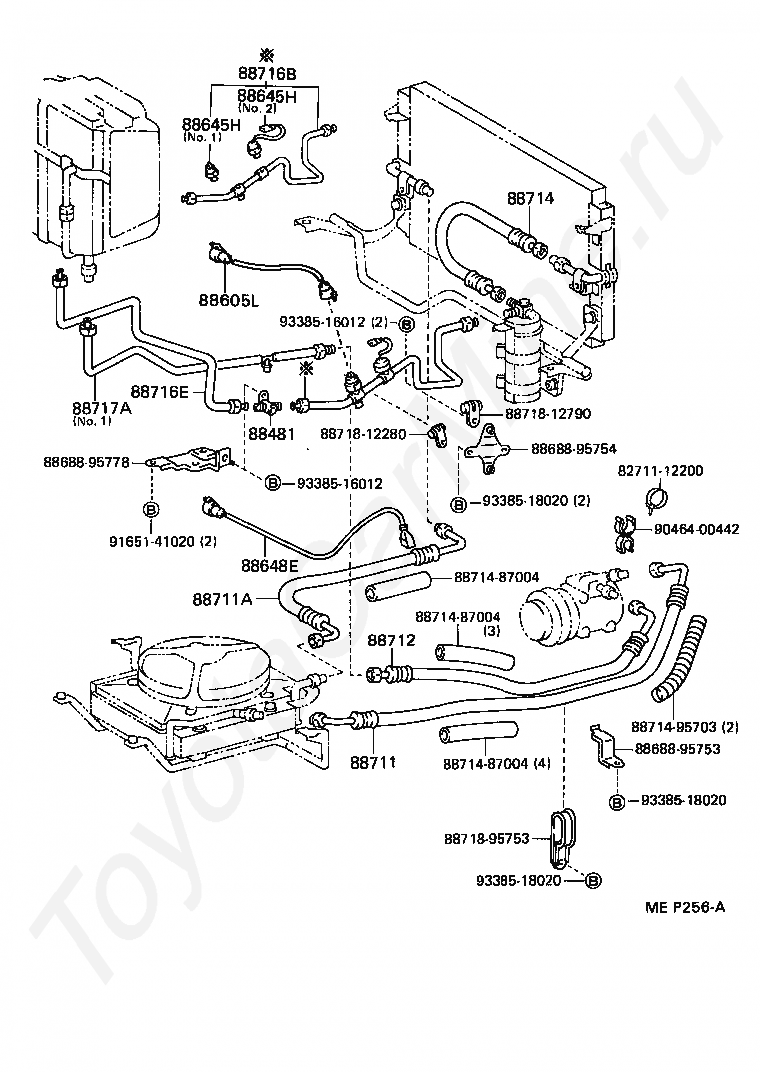

88711
HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711A
HOSE, COOLER REFRIGERANT DISCHARGE, NO.2
88712
HOSE, COOLER REFRIGERANT SUCTION, NO.1
88714
HOSE, COOLER REFRIGERANT LIQUID, NO.1
88715A
PIPE, COOLER REFRIGERANT DISCHARGE, A
88715B
PIPE, COOLER REFRIGERANT DISCHARGE, B
88716B
PIPE, COOLER REFRIGERANT LIQUID, B
88716C
PIPE, COOLER REFRIGERANT LIQUID, C
88716D
PIPE, COOLER REFRIGERANT LIQUID, D
88716E
PIPE, COOLER REFRIGERANT LIQUID, E
88716H
PIPE, COOLER REFRIGERANT LIQUID, H
88716J
PIPE, COOLER REFRIGERANT LIQUID, J
88716P
PIPE, COOLER REFRIGERANT LIQUID, P

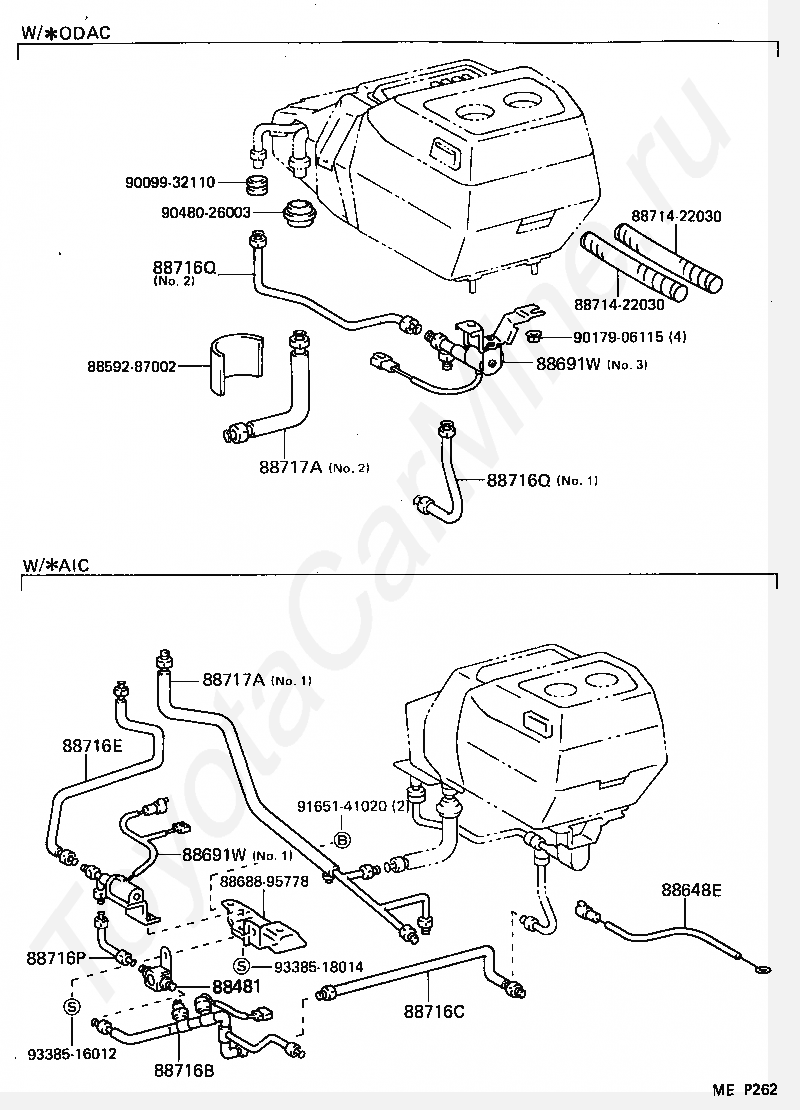

88717A
PIPE, COOLER REFRIGERANT SUCTION, A
88717B
PIPE, COOLER REFRIGERANT SUCTION, B
88717C
PIPE, COOLER REFRIGERANT SUCTION, C
88717D
PIPE, COOLER REFRIGERANT SUCTION, D
