Япония

Модель

LITEACE VAN,WAGON

VIN

Дата

1988/08

Двигатель

2 литра, турбо-дизель

Кузов

фургон

Класс

GXL SPECIFICATION

Фрейм

CM40

КПП

механика МКПП, 5 скоростей

Опции

4-дверный универсал MIDDLE ROOF TURBO DIESEL

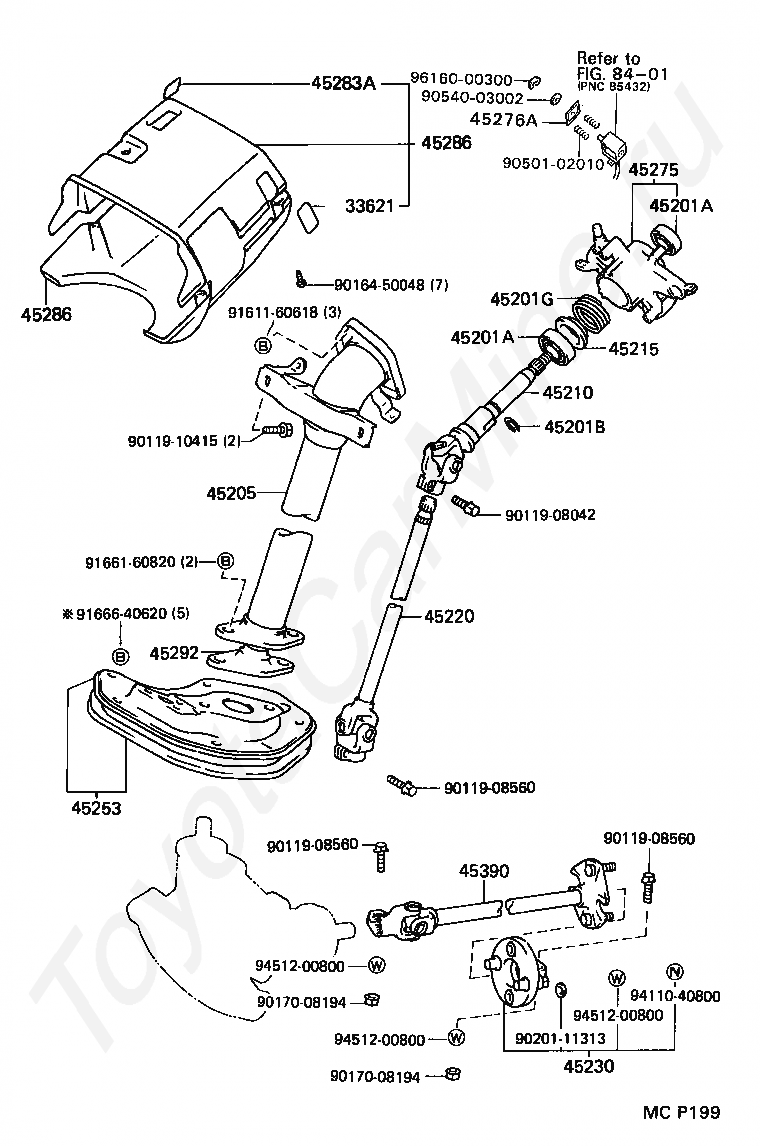

Рулевая колонка TOYOTA LITEACE VAN,WAGON







Код

Описание

33621

PLATE, CONTROL LEVER CAUTION

45201A

BEARING(FOR STEERING MAIN SHAFT)

45201A

BEARING(FOR STEERING MAIN SHAFT)

45201B

RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

45201G

SPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

45205

TUBE SUB-ASSY, STEERING COLUMN

45210

SHAFT ASSY, STEERING MAIN

45215

COLLAR, MAIN SHAFT BEARING THRUST

45220

SHAFT ASSY, STEERING INTERMEDIATE

45230

COUPLING ASSY, FLEXIBLE

45253

COVER, STEERING COLUMN HOLE

45275

BRACKET, STEERING COLUMN, UPPER

45276A

STOPPER, KEY INTER LOCK RELEASE BUTTON

45283A

PLATE, BEAM CHANGE & TURN SIGNAL CAUTION

45286

COVER, STEERING COLUMN

45286

COVER, STEERING COLUMN

45292

SEAL, MAIN SHAFT LOWER DUST

45390

SHAFT ASSY, STEERING TORQUE

8401

переход к группе запчастей

9011908042

Крепеж

9011908560

Крепеж

9011908560

Крепеж

9011908560

Крепеж

9011910415

Крепеж

9016450048

Крепеж

9017008194

Крепеж

9017008194

Крепеж

9020111313

Крепеж

9050102010

Крепеж

9054003002

Крепеж

9161160618

Крепеж

9166160820

Крепеж

9166640620

Крепеж

9411040800

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9616000300

Крепеж

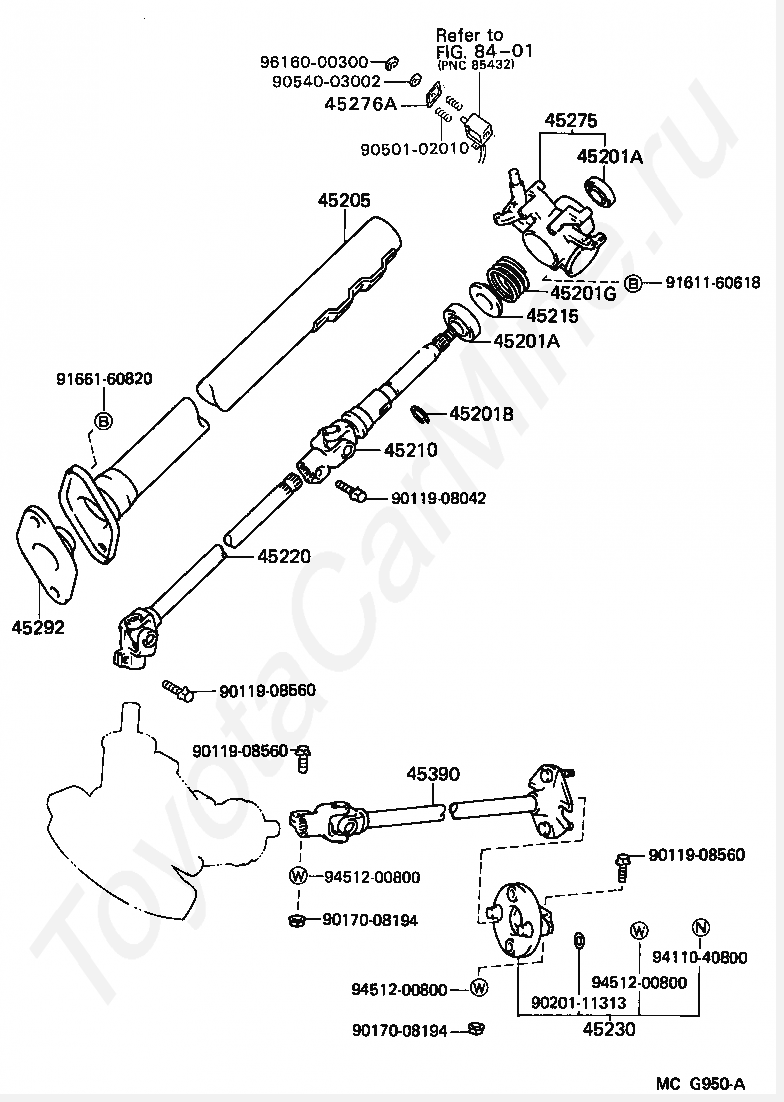

Код

Описание

45201A

BEARING(FOR STEERING MAIN SHAFT)

45201A

BEARING(FOR STEERING MAIN SHAFT)

45201B

RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

45201G

SPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

45205

TUBE SUB-ASSY, STEERING COLUMN

45210

SHAFT ASSY, STEERING MAIN

45215

COLLAR, MAIN SHAFT BEARING THRUST

45220

SHAFT ASSY, STEERING INTERMEDIATE

45230

COUPLING ASSY, FLEXIBLE

45275

BRACKET, STEERING COLUMN, UPPER

45276A

STOPPER, KEY INTER LOCK RELEASE BUTTON

45292

SEAL, MAIN SHAFT LOWER DUST

45390

SHAFT ASSY, STEERING TORQUE

8401

переход к группе запчастей

9011908042

Крепеж

9011908560

Крепеж

9011908560

Крепеж

9011908560

Крепеж

9017008194

Крепеж

9017008194

Крепеж

9020111313

Крепеж

9050102010

Крепеж

9054003002

Крепеж

9161160618

Крепеж

9166160820

Крепеж

9411040800

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9616000300

Крепеж

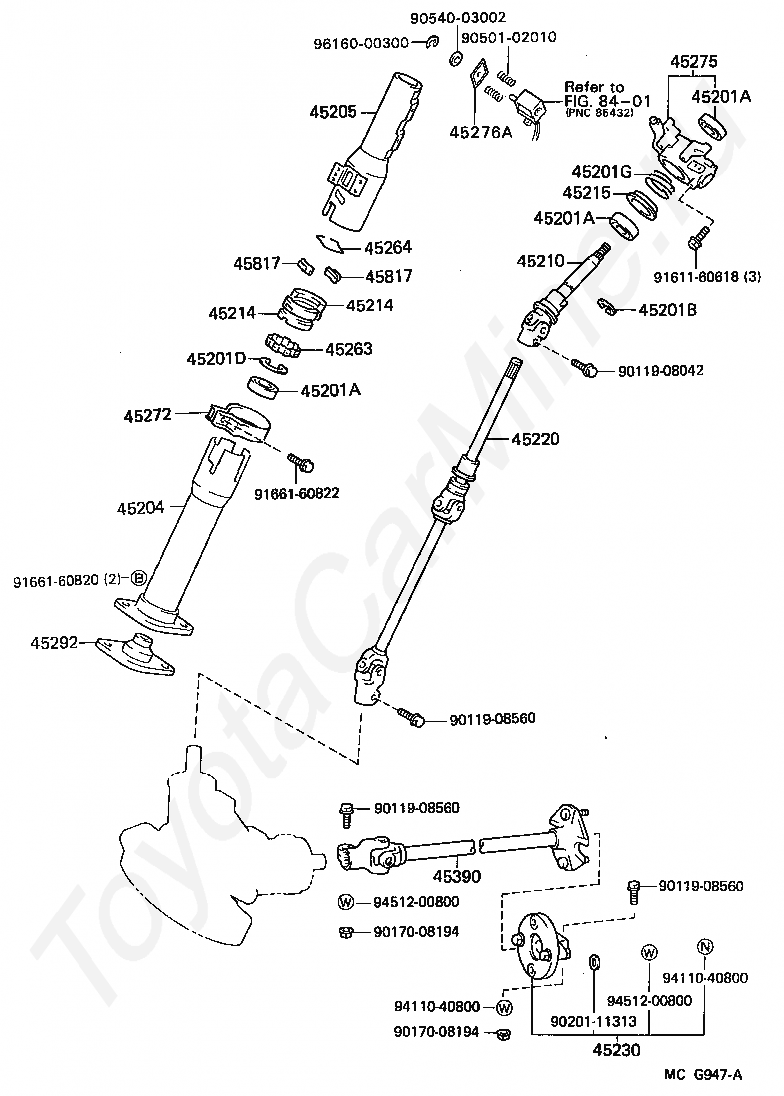

Код

Описание

45201A

BEARING(FOR STEERING MAIN SHAFT)

45201A

BEARING(FOR STEERING MAIN SHAFT)

45201A

BEARING(FOR STEERING MAIN SHAFT)

45201B

RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

45201D

RING(FOR STEERING MAIN SHAFT)

45201G

SPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

45204

TUBE ASSY, STEERING COLUMN, LOWER

45205

TUBE SUB-ASSY, STEERING COLUMN

45210

SHAFT ASSY, STEERING MAIN

45214

RETAINER, MAIN SHAFT SPRING

45214

RETAINER, MAIN SHAFT SPRING

45215

COLLAR, MAIN SHAFT BEARING THRUST

45220

SHAFT ASSY, STEERING INTERMEDIATE

45230

COUPLING ASSY, FLEXIBLE

45263

RING, STEERING COLUMN, NO.1

45264

RING, STEERING COLUMN, NO.2

45272

CLAMP, STEERING COLUMN, LOWER

45275

BRACKET, STEERING COLUMN, UPPER

45276A

STOPPER, KEY INTER LOCK RELEASE BUTTON

45292

SEAL, MAIN SHAFT LOWER DUST

45390

SHAFT ASSY, STEERING TORQUE

45817

STOPPER, STEERING SHAFT THRUST

45817

STOPPER, STEERING SHAFT THRUST

8401

переход к группе запчастей

9011908042

Крепеж

9011908560

Крепеж

9011908560

Крепеж

9011908560

Крепеж

9017008194

Крепеж

9017008194

Крепеж

9020111313

Крепеж

9050102010

Крепеж

9054003002

Крепеж

9161160618

Крепеж

9166160820

Крепеж

9166160822

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9616000300

Крепеж

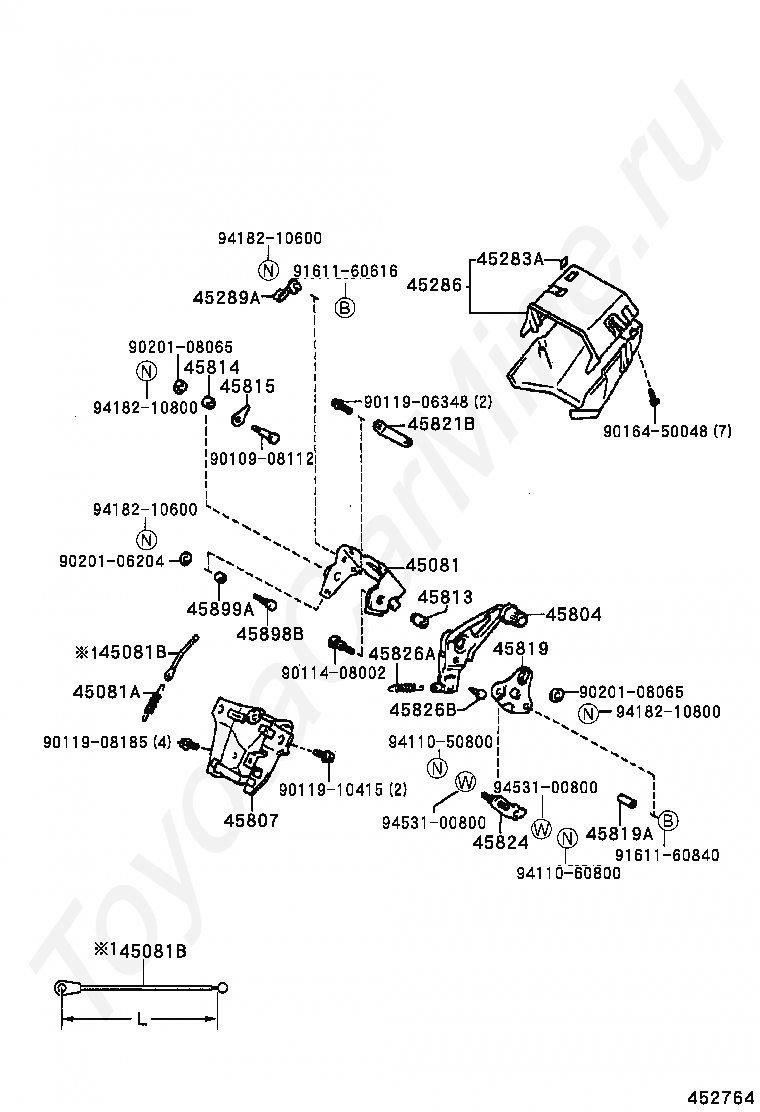

Код

Описание

45081

SUPPORT SUB-ASSY, TILT STEERING

45081A

SPRING, TENSION(FOR TILT STEERING)

45081B

CORD(FOR TILT STEERING)

45081B

CORD(FOR TILT STEERING)

45283A

PLATE, BEAM CHANGE & TURN SIGNAL CAUTION

45286

COVER, STEERING COLUMN

45286

COVER, STEERING COLUMN

45289A

SUPPORT, STEERING COLUMN COVER

45804

LEVER SUB-ASSY, STEERING TILT

45807

BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

45813

COLLAR, TILT STEERING SUPPORT, NO.1

45814

COLLAR, TILT STEERING SUPPORT, NO.2

45815

SHIM, TILT STEERING SUPPORT

45819

RETAINER, TILT LEVER

45819A

COLLAR(FOR TILT LEVER RETAINER)

45821B

REINFORCE, TILT STEERING SUPPORT, NO.1

45824

PAWL, TILT STEERING

45826A

SPRING, TENSION(FOR STEERING TILT LEVER)

45826B

PIN(FOR STEERING TILT LEVER)

45898B

BOLT, TILT STEERING SUPPORT STOPPER

45899A

COVER, TILT STEERING SUPPORT STOPPER

9010908112

Крепеж

9011408002

Крепеж

9011906348

Крепеж

9011908185

Крепеж

9011910415

Крепеж

9016450048

Крепеж

9020106204

Крепеж

9020108065

Крепеж

9020108065

Крепеж

9161160616

Крепеж

9161160840

Крепеж

9411050800

Крепеж

9411050800

Крепеж

9418210600

Крепеж

9418210600

Крепеж

9418210800

Крепеж

9418210800

Крепеж

9453100800

Крепеж

9453100800

Крепеж

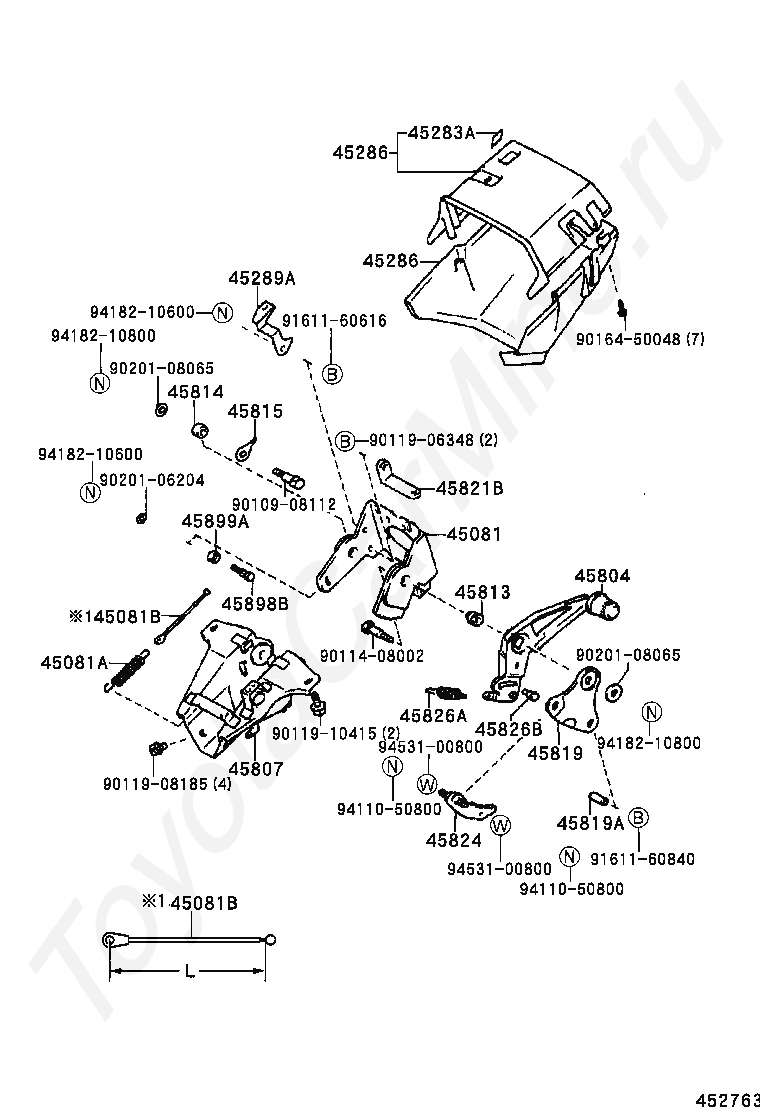

Код

Описание

45081

SUPPORT SUB-ASSY, TILT STEERING

45081A

SPRING, TENSION(FOR TILT STEERING)

45081B

CORD(FOR TILT STEERING)

45081B

CORD(FOR TILT STEERING)

45283A

PLATE, BEAM CHANGE & TURN SIGNAL CAUTION

45286

COVER, STEERING COLUMN

45289A

SUPPORT, STEERING COLUMN COVER

45804

LEVER SUB-ASSY, STEERING TILT

45807

BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

45813

COLLAR, TILT STEERING SUPPORT, NO.1

45814

COLLAR, TILT STEERING SUPPORT, NO.2

45815

SHIM, TILT STEERING SUPPORT

45819

RETAINER, TILT LEVER

45819A

COLLAR(FOR TILT LEVER RETAINER)

45821B

REINFORCE, TILT STEERING SUPPORT, NO.1

45824

PAWL, TILT STEERING

45826A

SPRING, TENSION(FOR STEERING TILT LEVER)

45826B

PIN(FOR STEERING TILT LEVER)

45898B

BOLT, TILT STEERING SUPPORT STOPPER

45899A

COVER, TILT STEERING SUPPORT STOPPER

9010908112

Крепеж

9011408002

Крепеж

9011906348

Крепеж

9011908185

Крепеж

9011910415

Крепеж

9016450048

Крепеж

9020106204

Крепеж

9020108065

Крепеж

9020108065

Крепеж

9161160616

Крепеж

9161160840

Крепеж

9411050800

Крепеж

9411060800

Крепеж

9418210600

Крепеж

9418210600

Крепеж

9418210800

Крепеж

9418210800

Крепеж

9453100800

Крепеж

9453100800

Крепеж

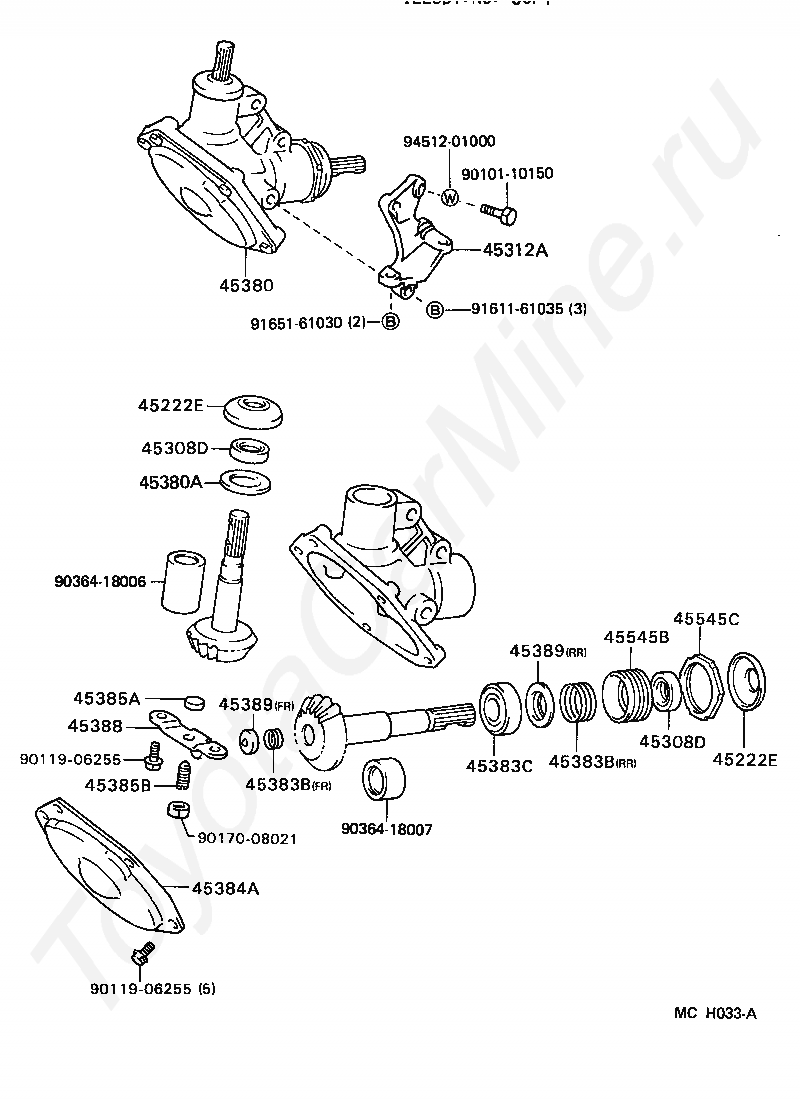

Код

Описание

45222E

COVER, DUST(FOR STEERING BEVEL GEAR)

45222E

COVER, DUST(FOR STEERING BEVEL GEAR)

45308D

SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING)

45308D

SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING)

45312A

BRACKET, STEERING BEVEL GEAR HOUSING

45380

GEAR ASSY, STEERING BEVEL

45380A

WASHER(FOR STEERING BEVEL GEAR)

45383B

SPRING, COMPRESSION(FOR STEERING BEVEL GEAR)

45383B

SPRING, COMPRESSION(FOR STEERING BEVEL GEAR)

45383C

BEARING, RADIAL BALL(FOR STEERING BEVEL GEAR)

45384A

COVER, STEERING BEVEL GEAR

45385A

SEAT, LOCK BOLT(FOR STEERING BEVEL GEAR)

45385B

BOLT, SET(FOR LOCK BOLT SEAT)

45388

PLATE, STEERING BEVEL GEAR

45389

HOLDER, STEERING BEVEL GEAR SPRING

45389

HOLDER, STEERING BEVEL GEAR SPRING

45545B

SCREW, PINION BEARING ADJUSTING(FOR STEERING BEVEL GEAR)

45545C

NUT(FOR STEERING BEVEL GEAR PINION BEARING ADJUST SCREW)

9010110150

Крепеж

9011906255

Крепеж

9011906255

Крепеж

9017008021

Крепеж

9036418006

Крепеж

9036418007

Крепеж

9161161035

Крепеж

9165161030

Крепеж

9451201000

Крепеж

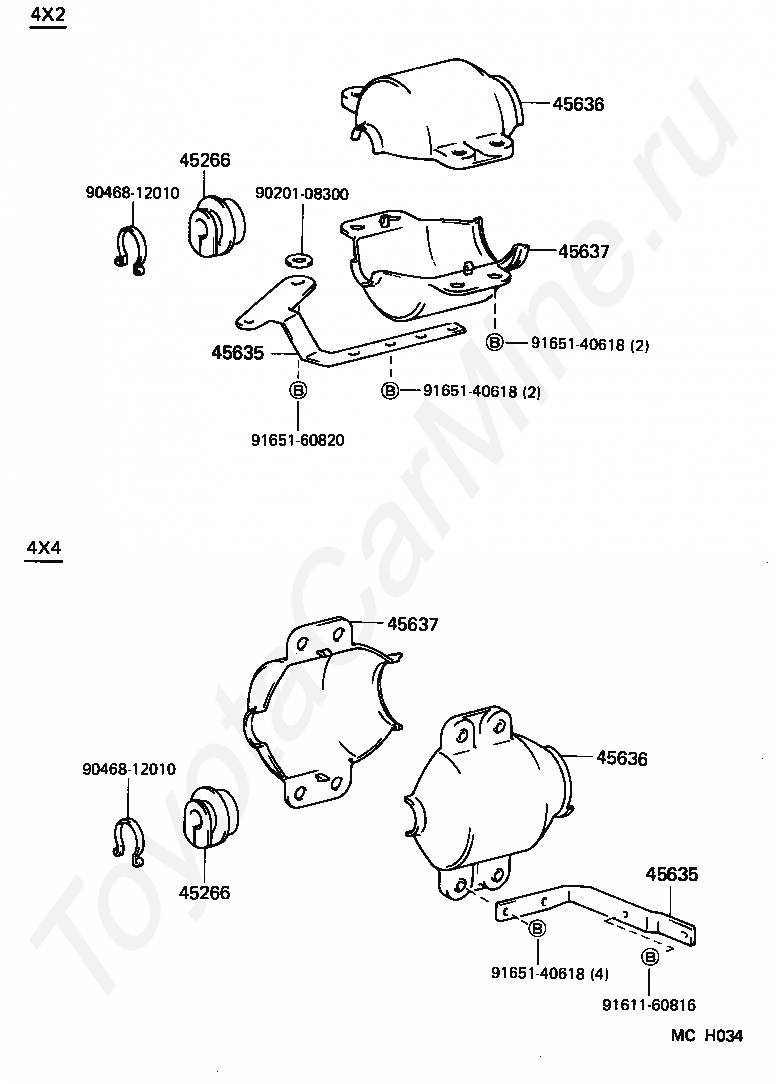

Код

Описание

45266

COVER, STEERING INTERMEDIATE SHAFT DUST

45266

COVER, STEERING INTERMEDIATE SHAFT DUST

45635

SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR

45635

SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR

45636

PROTECTOR, INTERMEDIATE LINK JOINT, UPPER

45636

PROTECTOR, INTERMEDIATE LINK JOINT, UPPER

45637

PROTECTOR, INTER LINK JOINT, LWR NO.1

45637

PROTECTOR, INTER LINK JOINT, LWR NO.1

9020108300

Крепеж

9046812010

Крепеж

9046812010

Крепеж

9161160816

Крепеж

9165140618

Крепеж

9165140618

Крепеж

9165140618

Крепеж

9165160820

Крепеж
