Каталог

Европа

Модель

LITEACE VAN,WAGON

VIN

Дата

1988/08

Двигатель

1,5 литра

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

KM36

КПП

механика МКПП, 4 ступени

Опции

левый руль 4-дверный вэн SIDE GLASS VAN MIDDLE ROOF 5-местный

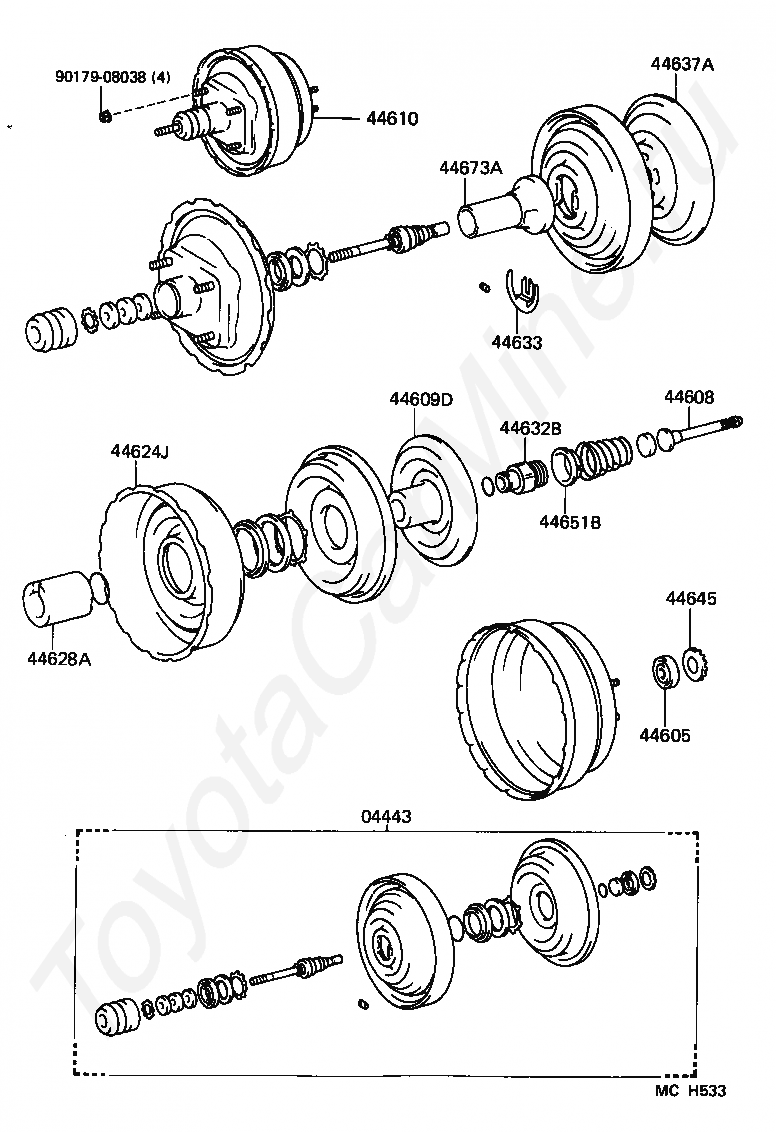

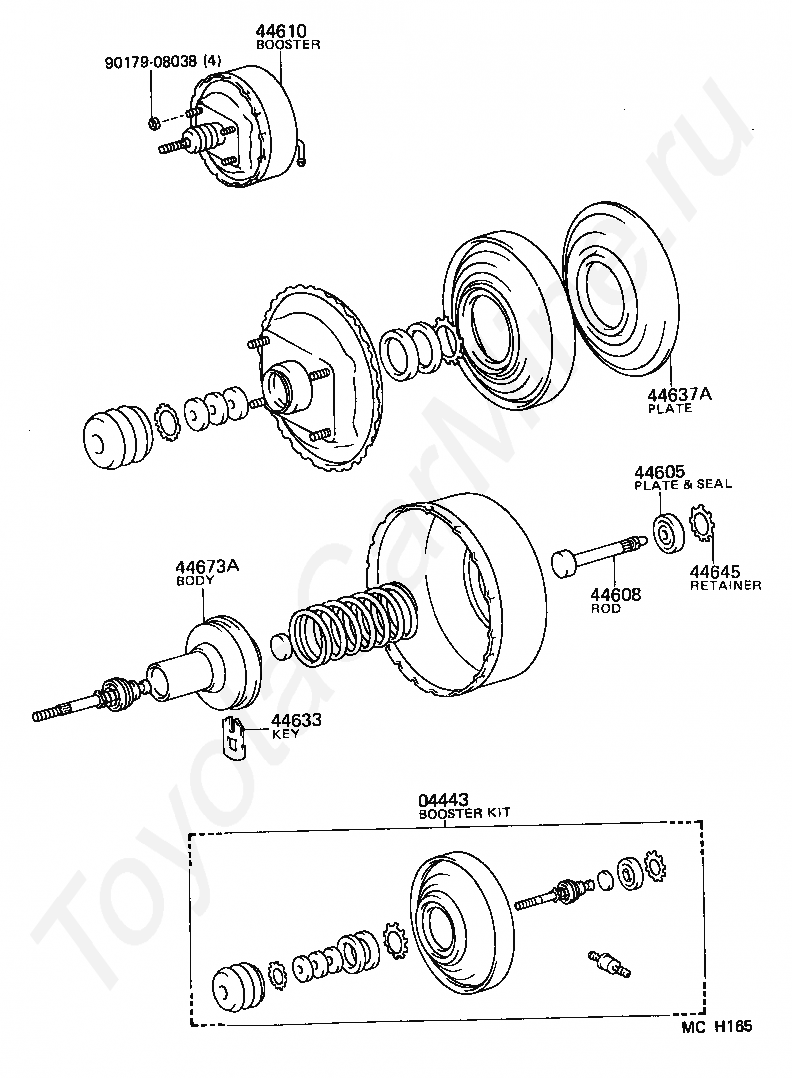

Вакуумный тормозной цилиндр TOYOTA LITEACE VAN,WAGON

Код

Описание

04443

BOOSTER KIT, BRAKE

44605

PLATE & SEAL SUB-ASSY, BOOSTER

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44633

KEY, BOOSTER VALVE PLUNGER

44637A

PLATE, BOOSTER DIAPHRAGM

44645

RETAINER, BOOSTER PUSH ROD SEAL

44673A

BODY, BOOSTER VALVE

9017908038

Крепеж

Код

Описание

04443

BOOSTER KIT, BRAKE

44605

PLATE & SEAL SUB-ASSY, BOOSTER

44608

PUSH ROD SUB-ASSY, BOOSTER

44609D

PLATE & RETAINER SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44624J

PLATE, BOOSTER CENTER

44628A

BODY, BOOSTER CENTER

44632B

HUB, BOOSTER REACTION DISK

44633

KEY, BOOSTER VALVE PLUNGER

44637A

PLATE, BOOSTER DIAPHRAGM

44645

RETAINER, BOOSTER PUSH ROD SEAL

44651B

NUT, BOOSTER

44673A

BODY, BOOSTER VALVE

9017908038

Крепеж

Код

Описание

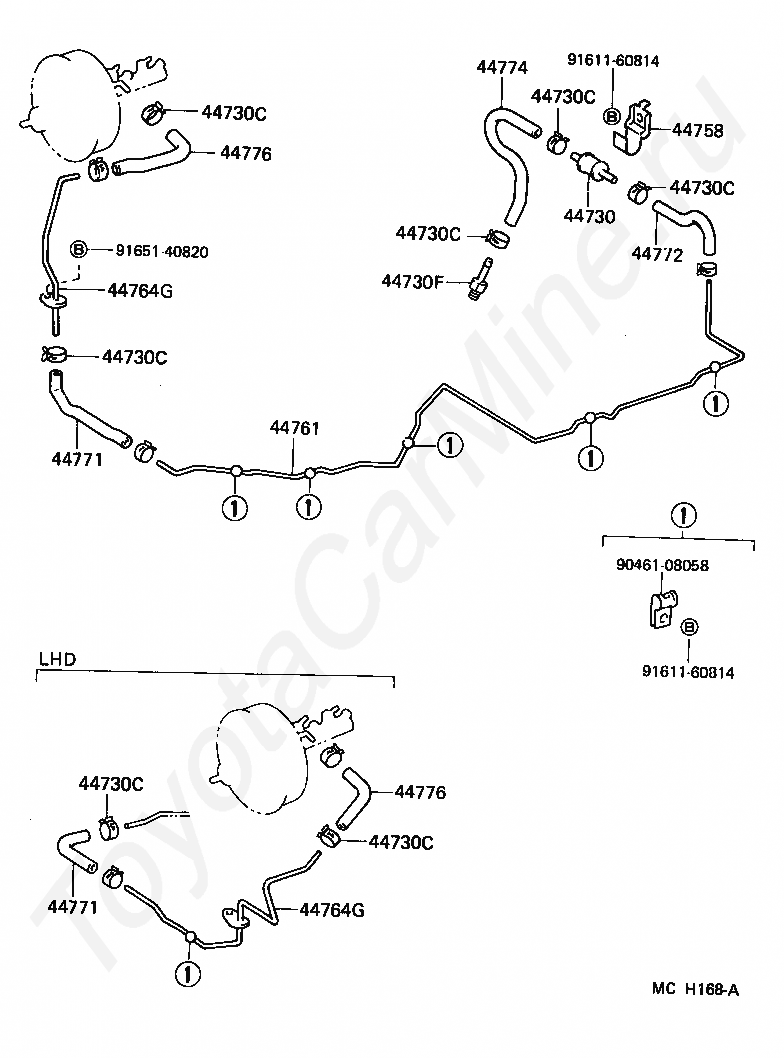

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44758

BRACKET, VACUUM CHECK VALVE

44761

TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR

44764G

TUBE, CONNECTOR TO BRAKE BOOSTER

44764G

TUBE, CONNECTOR TO BRAKE BOOSTER

44771

HOSE, VACUUM TUBE CONNECTOR

44771

HOSE, VACUUM TUBE CONNECTOR

44772

HOSE, CHECK VALVE TO CONNECTOR TUBE

44774

HOSE, UNION TO CONNECTOR TUBE

44776

HOSE, BRAKE BOOSTER

44776

HOSE, BRAKE BOOSTER

9046108058

Крепеж

9161160814

Крепеж

9161160814

Крепеж

9165140820

Крепеж

Вакуумный тормозной цилиндр TOYOTA LITEACE VAN,WAGON
