Каталог

Япония

Модель

LITEACE VAN,WAGON

VIN

Дата

1988/08

Двигатель

1,5 литра

Кузов

фургон

Класс

SUPER CUSTOM SPECIFICATION: SUPER CASUAL SPECIFICATION

Фрейм

KM30

КПП

автомат АКПП, 3 ступени

Опции

4-дверный универсал MIDDLE ROOF STANDARD CARBURETOR SPECIFICATION

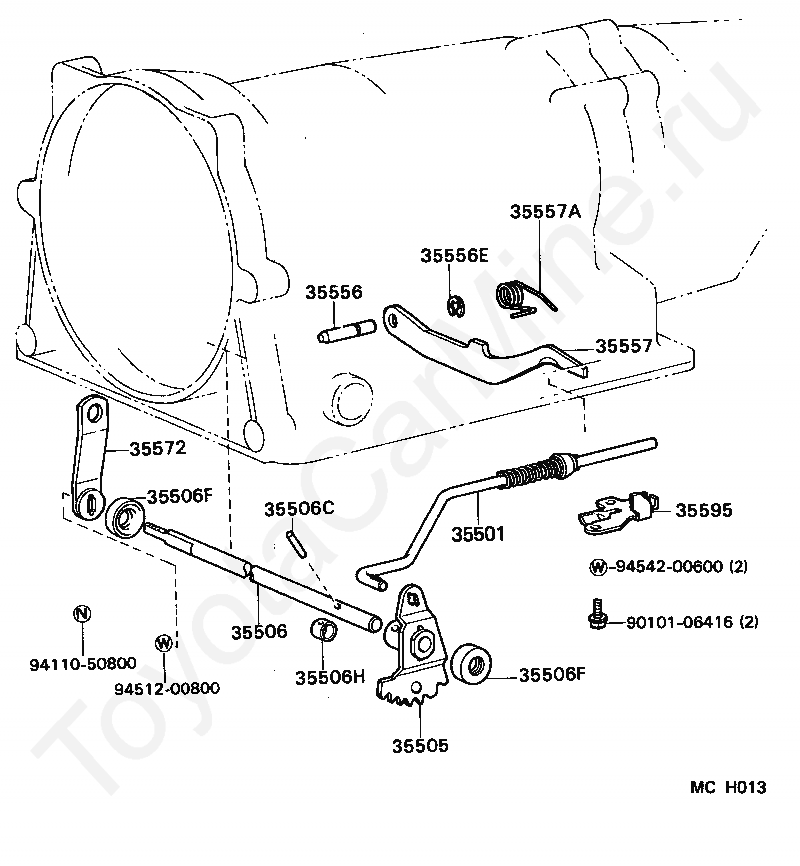

THROTTLE LINK & VALVE LEVER (ATM) TOYOTA LITEACE VAN,WAGON

Код

Описание

35501

ROD SUB-ASSY, PARKING LOCK

35505

LEVER SUB-ASSY, MANUAL VALVE

35506

SHAFT SUB-ASSY, MANUAL VALVE LEVER

35506C

PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

35506F

SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

35506F

SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

35506H

SPACER (FOR MANUAL VALVE LEVER SHAFT)

35556

SHAFT, PARKING LOCK PAWL

35556E

RING, E (FOR PARKING LOCK PAWL SHAFT)

35557

PAWL, PARKING LOCK

35557A

SPRING, TORSION (FOR PARKING LOCK PAWL)

35572

LEVER, TRANSMISSION CONTROL SHAFT, RH

35595

BRACKET, PARKING LOCK PAWL

9010106416

Крепеж

9411050800

Крепеж

9451200800

Крепеж

9454200600

Крепеж

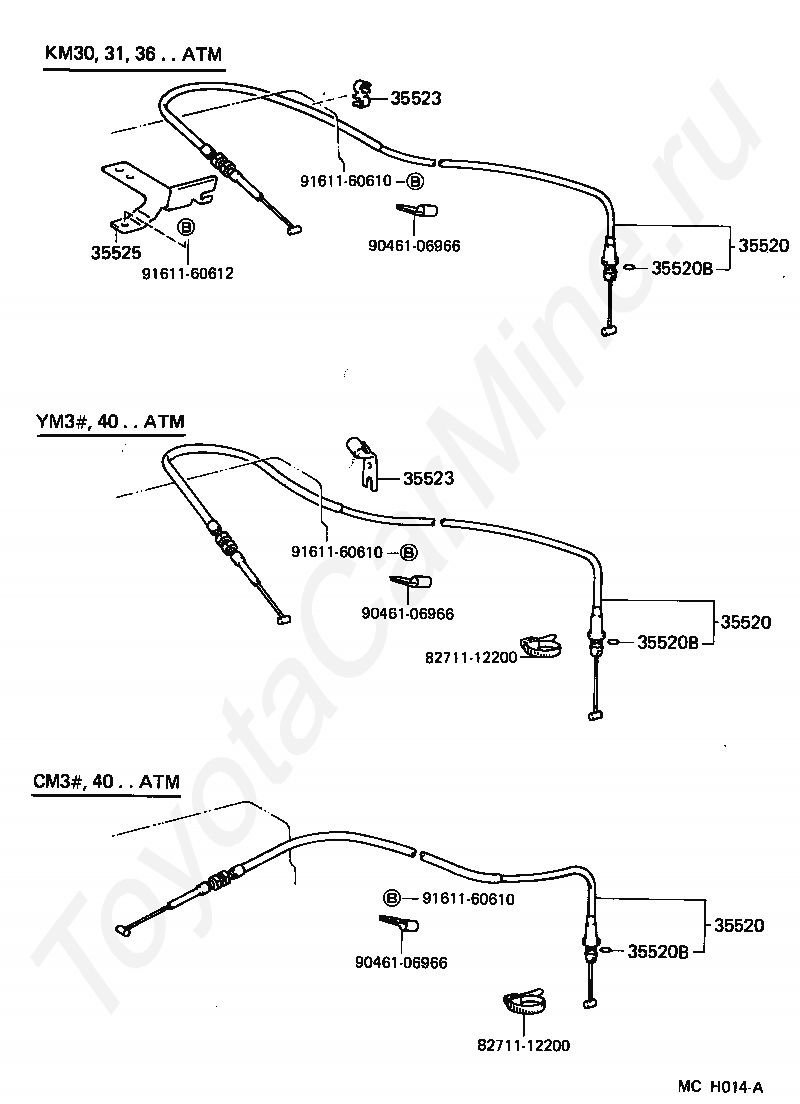

Код

Описание

35520

CABLE ASSY, THROTTLE

35520

CABLE ASSY, THROTTLE

35520

CABLE ASSY, THROTTLE

35520B

RING, O(FOR THROTTLE CABLE)

35520B

RING, O(FOR THROTTLE CABLE)

35520B

RING, O(FOR THROTTLE CABLE)

35523

CLAMP, THROTTLE CABLE

35523

CLAMP, THROTTLE CABLE

35525

BRACKET, THROTTLE CABLE

8271112200

Крепеж

8271112200

Крепеж

9046106966

Крепеж

9046106966

Крепеж

9046106966

Крепеж

9161160610

Крепеж

9161160610

Крепеж

9161160610

Крепеж

9161160612

Крепеж

THROTTLE LINK & VALVE LEVER (ATM) TOYOTA LITEACE VAN,WAGON
