Европа

Модель

LITEACE

VIN

Дата

1979/10

Двигатель

1,3 литра

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

KM20

КПП

механика МКПП, 4 ступени, на руле

Опции

левый руль 4-дверный вэн высокая крыша ROUTE VAN (SIDE PANEL VAN) 03S GEN CBU

Кондиционер: компрессор TOYOTA LITEACE

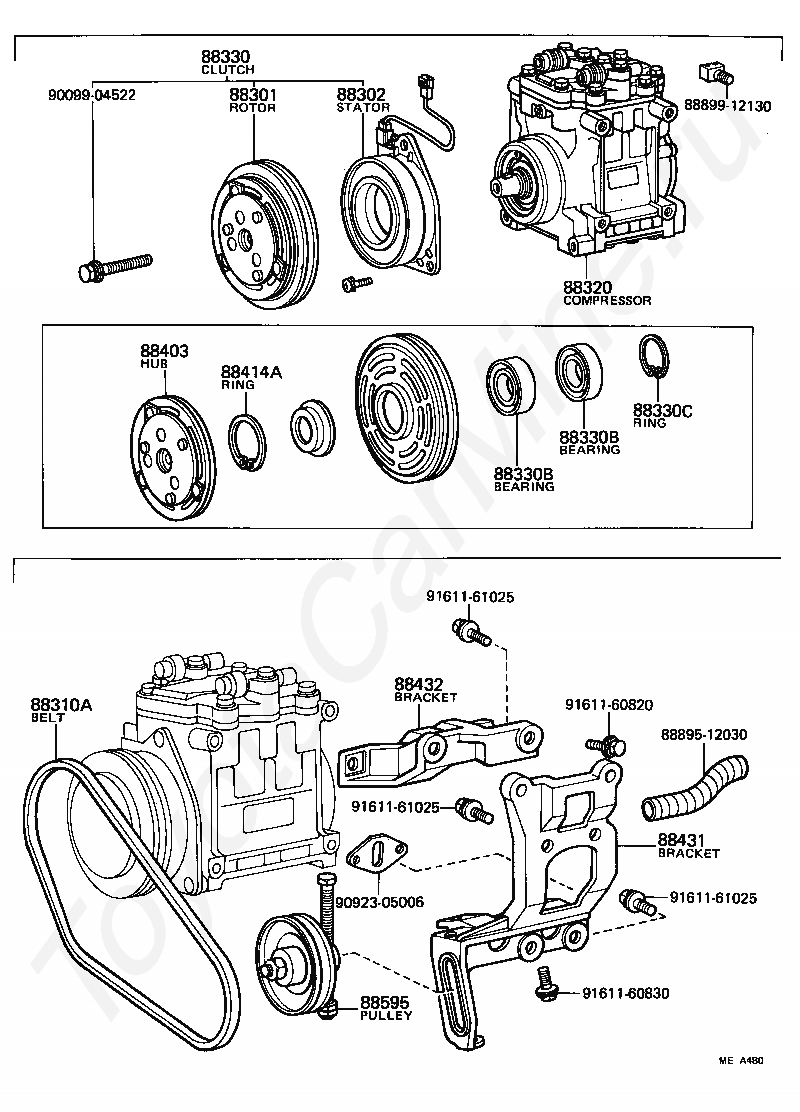

Код

Описание

88301

ROTOR SUB-ASSY, MAGNET CLUTCH

88302

STATOR SUB-ASSY, MAGNET CLUTCH

88310A

BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

88320

COMPRESSOR ASSY, COOLER

88330

CLUTCH ASSY, MAGNET

88330B

BEARING, MAGNET CLUTCH

88330B

BEARING, MAGNET CLUTCH

88330C

RING, SNAP (FOR MAGNET CLUTCH)

88403

HUB SUB-ASSY, MAGNET CLUTCH

88414A

RING, SHIELD SNAP

88431

BRACKET, COMPRESSOR MOUNTING, NO.1

88432

BRACKET, COMPRESSOR MOUNTING, NO.2

88595

PULLEY, COOLER COMPRESSOR IDLE

8889512030

Крепеж

8889912130

Крепеж

9009904522

Крепеж

9092305006

Крепеж

9161160820

Крепеж

9161160830

Крепеж

9161161025

Крепеж

9161161025

Крепеж

9161161025

Крепеж

Код

Описание

88301

ROTOR SUB-ASSY, MAGNET CLUTCH

88302

STATOR SUB-ASSY, MAGNET CLUTCH

88310A

BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

88320

COMPRESSOR ASSY, COOLER

88330

CLUTCH ASSY, MAGNET

88330B

BEARING, MAGNET CLUTCH

88330B

BEARING, MAGNET CLUTCH

88330C

RING, SNAP (FOR MAGNET CLUTCH)

88403

HUB SUB-ASSY, MAGNET CLUTCH

88414A

RING, SHIELD SNAP

88431

BRACKET, COMPRESSOR MOUNTING, NO.1

88432

BRACKET, COMPRESSOR MOUNTING, NO.2

88595

PULLEY, COOLER COMPRESSOR IDLE

8889512030

Крепеж

8889912130

Крепеж

9009904522

Крепеж

9092305006

Крепеж

9161160820

Крепеж

9161160830

Крепеж

9161161025

Крепеж

9161161025

Крепеж

9161161025

Крепеж

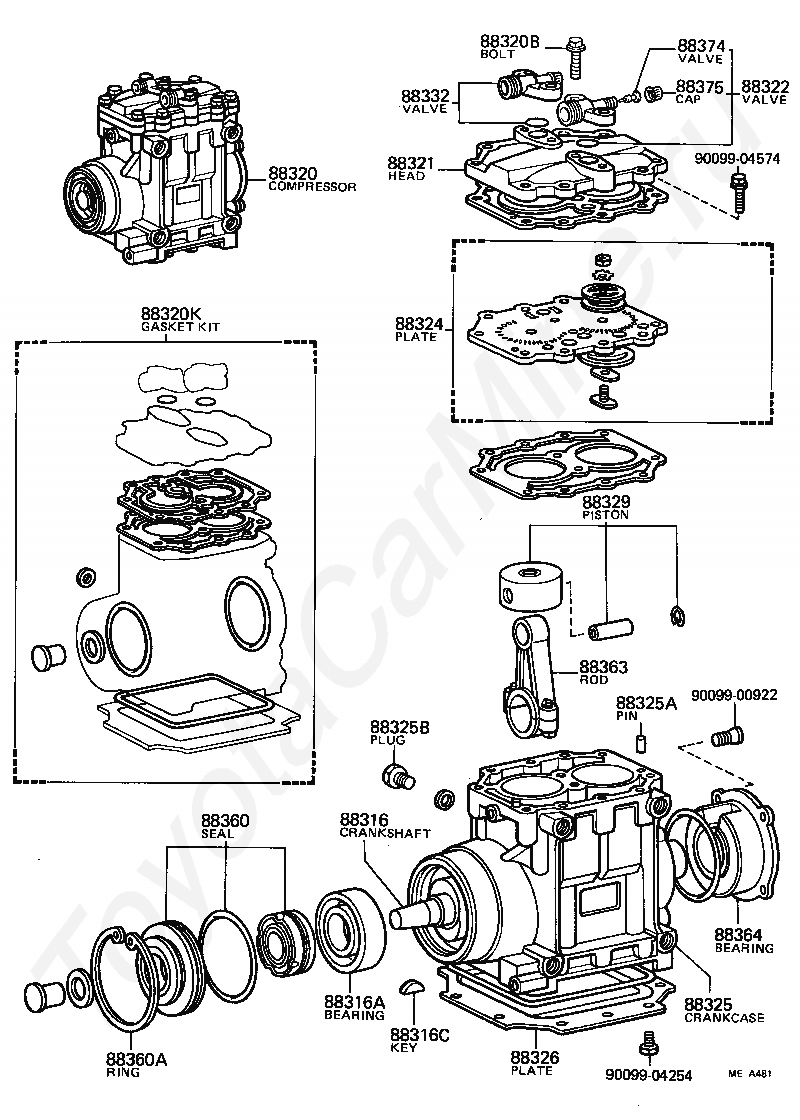

Код

Описание

88316

CRANKSHAFT, COOLER COMPRESSOR

88316A

BEARING, COMPRESSOR CRANKSHAFT, FRONT

88316C

KEY, COMPRESSOR CRANKSHAFT

88320

COMPRESSOR ASSY, COOLER

88320B

BOLT, SERVICE VALVE

88320K

GASKET KIT, COOLER COMPRESSOR OVERHAUL

88321

HEAD, COOLER COMPRESSOR CYLINDER

88322

VALVE, COOLER COMPRESSOR SUCTION SERVICE

88324

PLATE SUB-ASSY, COOLER COMPRESSOR VALVE

88325

CRANKCASE, COOLER COMPRESSOR

88325A

PIN, CYLINDER BLOCK

88325B

PLUG, CYLINDER BLOCK OIL

88326

PLATE, COOLER COMPRESSOR BOTTOM

88329

PISTON SUB-ASSY, COOLER COMPRESSOR

88332

VALVE, COOLER COMPRESSOR DISCHARGE SERVICE

88360

SEAL ASSY, COOLER COMPRESSOR SHAFT

88360A

RING, COMPRESSOR SEAL PLATE SNAP

88363

ROD SUB-ASSY, COOLER COMPRESSOR CONNECTING

88364

BEARING, COMPRESSOR CRANKSHAFT, REAR

88374

VALVE, COOLER COMPRESSOR SERVICE

88375

CAP, COOLER COMPRESSOR SERVICE VALVE

9009900922

Крепеж

9009904254

Крепеж

9009904574

Крепеж

Код

Описание

88316

CRANKSHAFT, COOLER COMPRESSOR

88316A

BEARING, COMPRESSOR CRANKSHAFT, FRONT

88316C

KEY, COMPRESSOR CRANKSHAFT

88320

COMPRESSOR ASSY, COOLER

88320B

BOLT, SERVICE VALVE

88320K

GASKET KIT, COOLER COMPRESSOR OVERHAUL

88321

HEAD, COOLER COMPRESSOR CYLINDER

88322

VALVE, COOLER COMPRESSOR SUCTION SERVICE

88324

PLATE SUB-ASSY, COOLER COMPRESSOR VALVE

88325

CRANKCASE, COOLER COMPRESSOR

88325A

PIN, CYLINDER BLOCK

88325B

PLUG, CYLINDER BLOCK OIL

88326

PLATE, COOLER COMPRESSOR BOTTOM

88329

PISTON SUB-ASSY, COOLER COMPRESSOR

88332

VALVE, COOLER COMPRESSOR DISCHARGE SERVICE

88360

SEAL ASSY, COOLER COMPRESSOR SHAFT

88360A

RING, COMPRESSOR SEAL PLATE SNAP

88363

ROD SUB-ASSY, COOLER COMPRESSOR CONNECTING

88364

BEARING, COMPRESSOR CRANKSHAFT, REAR

88374

VALVE, COOLER COMPRESSOR SERVICE

88375

CAP, COOLER COMPRESSOR SERVICE VALVE

9009900922

Крепеж

9009904254

Крепеж

9009904574

Крепеж

Кондиционер: компрессор TOYOTA LITEACE
