Каталог

Япония

Модель

LITE/TOWNACE V,WG

VIN

Дата

1992/01

Двигатель

2 литра, дизель

Класс

N(MODEL MARK)

Фрейм

CR36

КПП

механика

Опции

высокая крыша SIDE GLASS VAN 5 дверей 5-местный V1 SPECIFICATION: VAN (STANDARD)

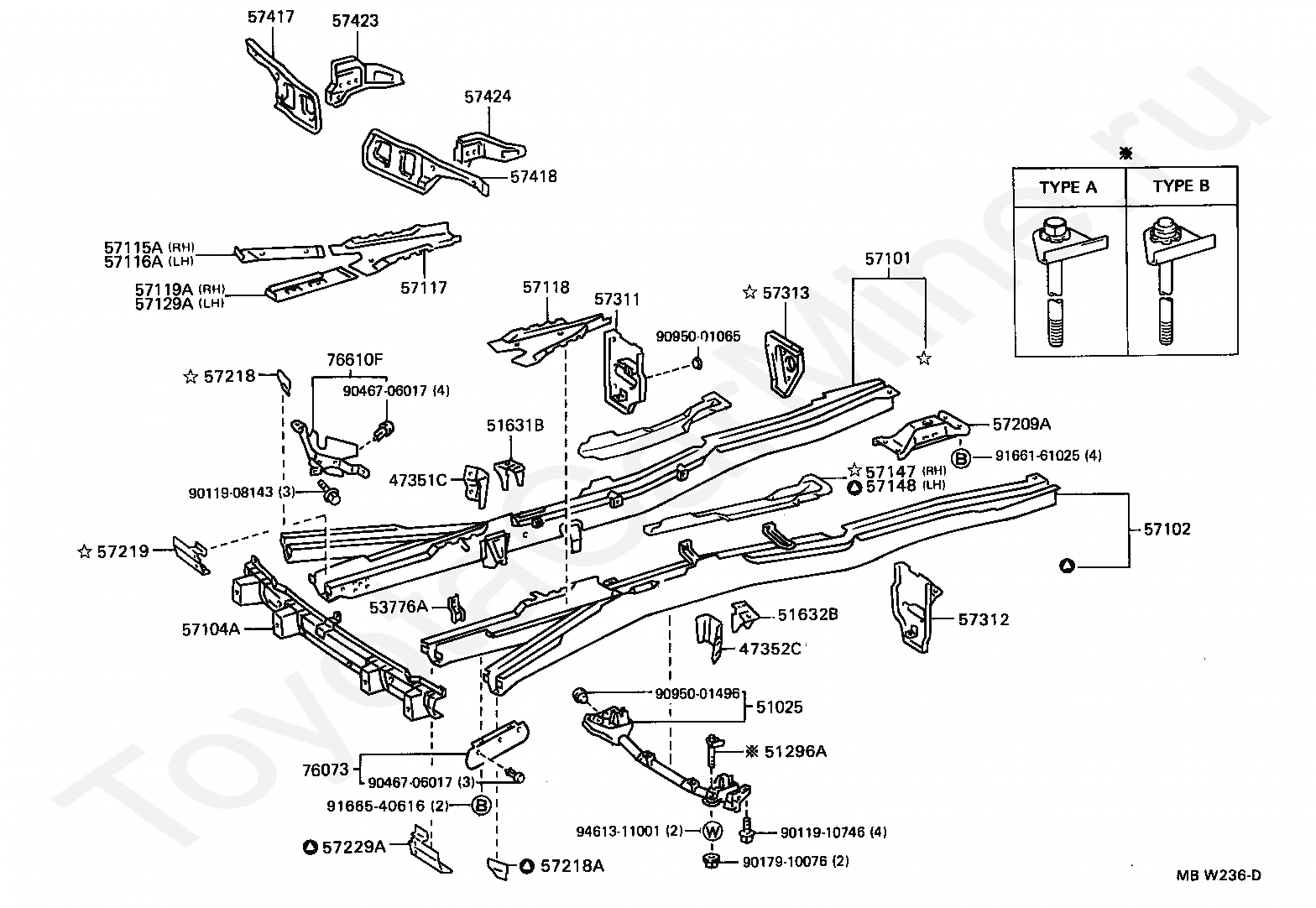

Нижняя часть кузова TOYOTA LITE/TOWNACE V,WG







Код

Описание

47351C

BRACKET, FLEXIBLE HOSE, RH

47352C

BRACKET, FLEXIBLE HOSE, LH

51025

MEMBER SUB-ASSY, ENGINE FRONT MOUNTING

51296A

BOLT, ENGINE FRONT SUPPORT MEMBER

51631B

STOPPER, FRONT SUSPENSION REBOUND, RH

51632B

STOPPER, FRONT SUSPENSION REBOUND, LH

53776A

BRACKET, COOL AIR INTAKE DUCT MOUNT, NO.2

57101

MEMBER SUB-ASSY, FRONT SIDE, RH

57102

MEMBER SUB-ASSY, FRONT SIDE, LH

57104A

MEMBER SUB-ASSY, FRONT CROSS

57115A

PLATE, FRONT SIDE MEMBER, OUTER RH

57116A

PLATE, FRONT SIDE MEMBER, OUTER LH

57117

PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

57118

PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

57119A

PLATE, FRONT SIDE MEMBER, FRONT RH

57129A

PLATE, FRONT SIDE MEMBER, FRONT LH

57147

PLATE, FRONT SIDE MEMBER, REAR RH

57148

PLATE, FRONT SIDE MEMBER, REAR LH

57209A

MEMBER SUB-ASSY, ENGINE REAR MOUNTING

57218

GUSSET, FRONT SIDE MEMBER, NO.1

57218A

GUSSET, FRONT SIDE MEMBER, NO.1 LH

57219

GUSSET, FRONT SIDE MEMBER, NO.2

57229A

GUSSET, FRONT SIDE MEMBER, NO.2 LH

57311

OUTRIGGER, NO.1 RH

57312

OUTRIGGER, NO.1 LH

57313

OUTRIGGER, NO.2 RH

57417

REINFORCEMENT, FRONT FLOOR UNDER, RH

57418

REINFORCEMENT, FRONT FLOOR UNDER, LH

57423

BRACKET, FRONT FLOOR REINFORCEMENT, RH

57424

BRACKET, FRONT FLOOR REINFORCEMENT, LH

76073

PROTECTOR SUB-ASSY, STEERING MAIN SHAFT, RH

76610F

PROTECTOR ASSY, STEERING MAIN SHAFT, RH

9011908143

Крепеж

9011910746

Крепеж

9017910076

Крепеж

9046706017

Крепеж

9046706017

Крепеж

9095001065

Крепеж

9095001496

Крепеж

9166161025

Крепеж

9166540616

Крепеж

9461311001

Крепеж

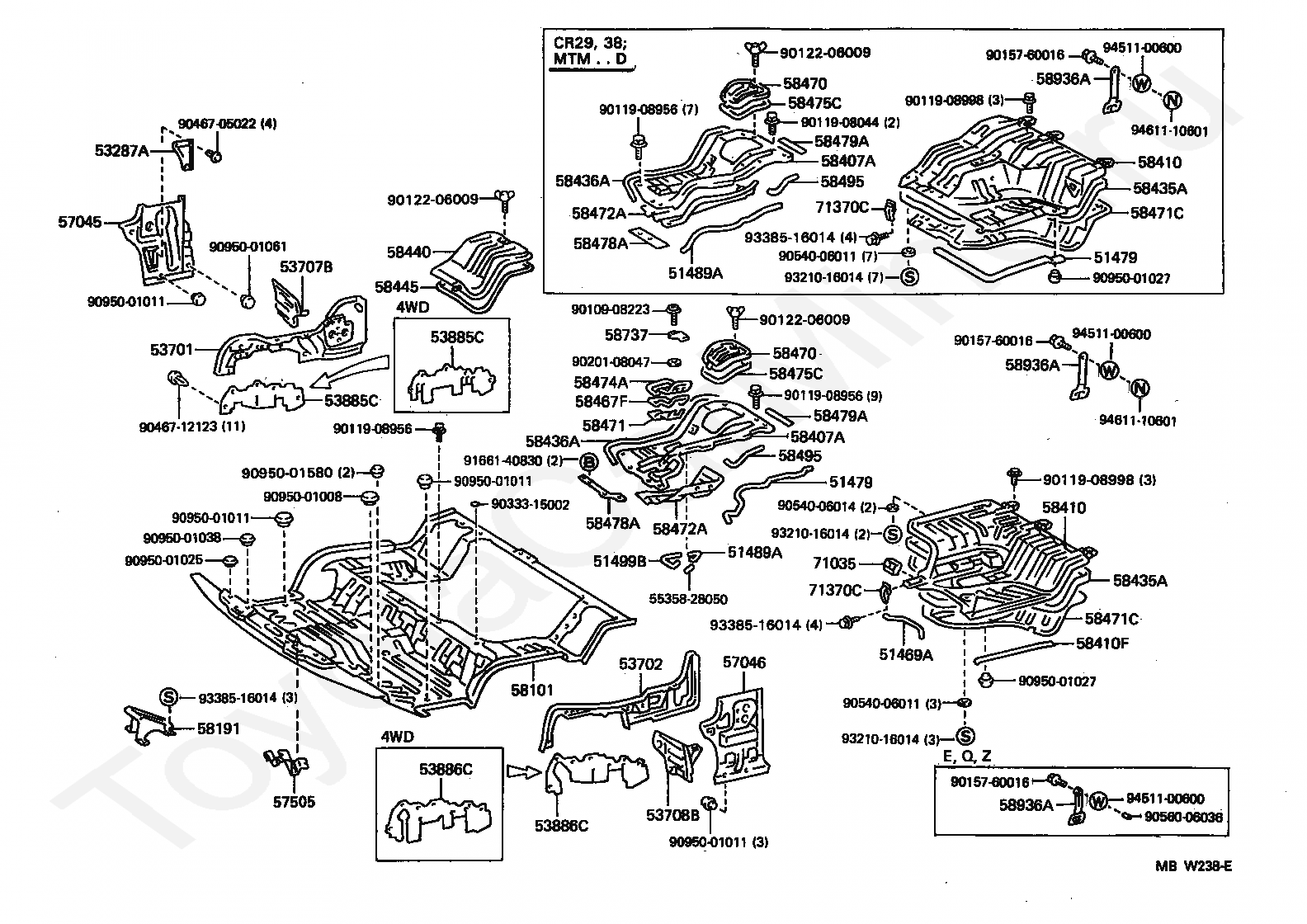

Код

Описание

51469A

TRIM, ENGINE COVER, NO.1

51479

TRIM, ENGINE COVER, NO.2

51479

TRIM, ENGINE COVER, NO.2

51489A

TRIM, ENGINE COVER, NO.3

51489A

TRIM, ENGINE COVER, NO.3

51499B

TRIM, ENGINE COVER, NO.4

53287A

COVER, COOLER PIPE HOLE

53701

APRON SUB-ASSY, FRONT FENDER, RH

53702

APRON SUB-ASSY, FRONT FENDER, LH

53707B

APRON SUB-ASSY, FENDER SIDE, RH

53708B

APRON SUB-ASSY, FENDER SIDE, LH

53885C

SEAL, FENDER APRON MUDGUARD, RH

53885C

SEAL, FENDER APRON MUDGUARD, RH

53886C

SEAL, FENDER APRON MUDGUARD, LH

53886C

SEAL, FENDER APRON MUDGUARD, LH

5535828050

Крепеж

57045

PLATE SUB-ASSY, FLOOR SIDE RAIL, RH

57046

PLATE SUB-ASSY, FLOOR SIDE RAIL, LH

57505

BRACKET SUB-ASSY, PARKING BRAKE, NO.1

58101

PAN SUB-ASSY, FRONT FLOOR

58191

FOOTREST, FRONT FLOOR

58407A

COVER SUB-ASSY, ENGINE SERVICE HOLE SUB

58407A

COVER SUB-ASSY, ENGINE SERVICE HOLE SUB

58410

COVER, ENGINE SERVICE HOLE

58410

COVER, ENGINE SERVICE HOLE

58410F

TRIM, ENGINE SERVICE HOLE COVER

58435A

PACKING, ENGINE MAIN COVER

58435A

PACKING, ENGINE MAIN COVER

58436A

PACKING, ENGINE SUB COVER, NO.1

58436A

PACKING, ENGINE SUB COVER, NO.1

58440

COVER ASSY, BATTERY SERVICE HOLE

58445

PACKING, BATTERY SERVICE HOLE COVER

58467F

PACKING, INSPECTION HOLE

58470

COVER ASSY, INSPECTION HOLE

58470

COVER ASSY, INSPECTION HOLE

58471

COVER, SEAT FLOOR SERVICE HOLE

58471C

SILENCER, ENGINE MAIN COVER

58471C

SILENCER, ENGINE MAIN COVER

58472A

SILENCER, ENGINE SUB COVER

58472A

SILENCER, ENGINE SUB COVER

58474A

PACKING, ENGINE SUB COVER, NO.2

58475C

PACKING, ENGIN SUB COVER, NO.3

58475C

PACKING, ENGIN SUB COVER, NO.3

58478A

PACKING, ENGINE SUB COVER, NO.2

58478A

PACKING, ENGINE SUB COVER, NO.2

58479A

PACKING, ENGINE SUB COVER, NO.3

58479A

PACKING, ENGINE SUB COVER, NO.3

58495

TRIM, INSPECTION HOLE COVER

58495

TRIM, INSPECTION HOLE COVER

58737

STOPPER, ENGINE SERVICE HOLE COVER

58936A

BAND, ENGINE SERVICE HOLE COVER SUPPORT

58936A

BAND, ENGINE SERVICE HOLE COVER SUPPORT

58936A

BAND, ENGINE SERVICE HOLE COVER SUPPORT

71035

CUSHION SUB-ASSY, SEAT STOPPER

71370C

CATCH ASSY, FR SEAT CUSHION

71370C

CATCH ASSY, FR SEAT CUSHION

9010908223

Крепеж

9011908044

Крепеж

9011908956

Крепеж

9011908956

Крепеж

9011908956

Крепеж

9011908998

Крепеж

9011908998

Крепеж

9012206009

Крепеж

9012206009

Крепеж

9012206009

Крепеж

9015760016

Крепеж

9015760016

Крепеж

9015760016

Крепеж

9020108047

Крепеж

9033315002

Крепеж

9046705022

Крепеж

9046712123

Крепеж

9054006011

Крепеж

9054006011

Крепеж

9054006014

Крепеж

9056006036

Крепеж

9095001008

Крепеж

9095001011

Крепеж

9095001011

Крепеж

9095001011

Крепеж

9095001011

Крепеж

9095001025

Крепеж

9095001027

Крепеж

9095001027

Крепеж

9095001038

Крепеж

9095001061

Крепеж

9095001580

Крепеж

9166140830

Крепеж

9321016014

Крепеж

9321016014

Крепеж

9321016014

Крепеж

9338516014

Крепеж

9338516014

Крепеж

9338516014

Крепеж

9451100600

Крепеж

9451100600

Крепеж

9451100600

Крепеж

9461110601

Крепеж

9461110601

Крепеж
