Япония

Модель

LITE/TOWNACE V,WG

VIN

Дата

1992/01

Двигатель

2 литра, дизель

Класс

N(MODEL MARK)

Фрейм

CR36

КПП

механика

Опции

высокая крыша SIDE GLASS VAN 5 дверей 5-местный V1 SPECIFICATION: VAN (STANDARD)

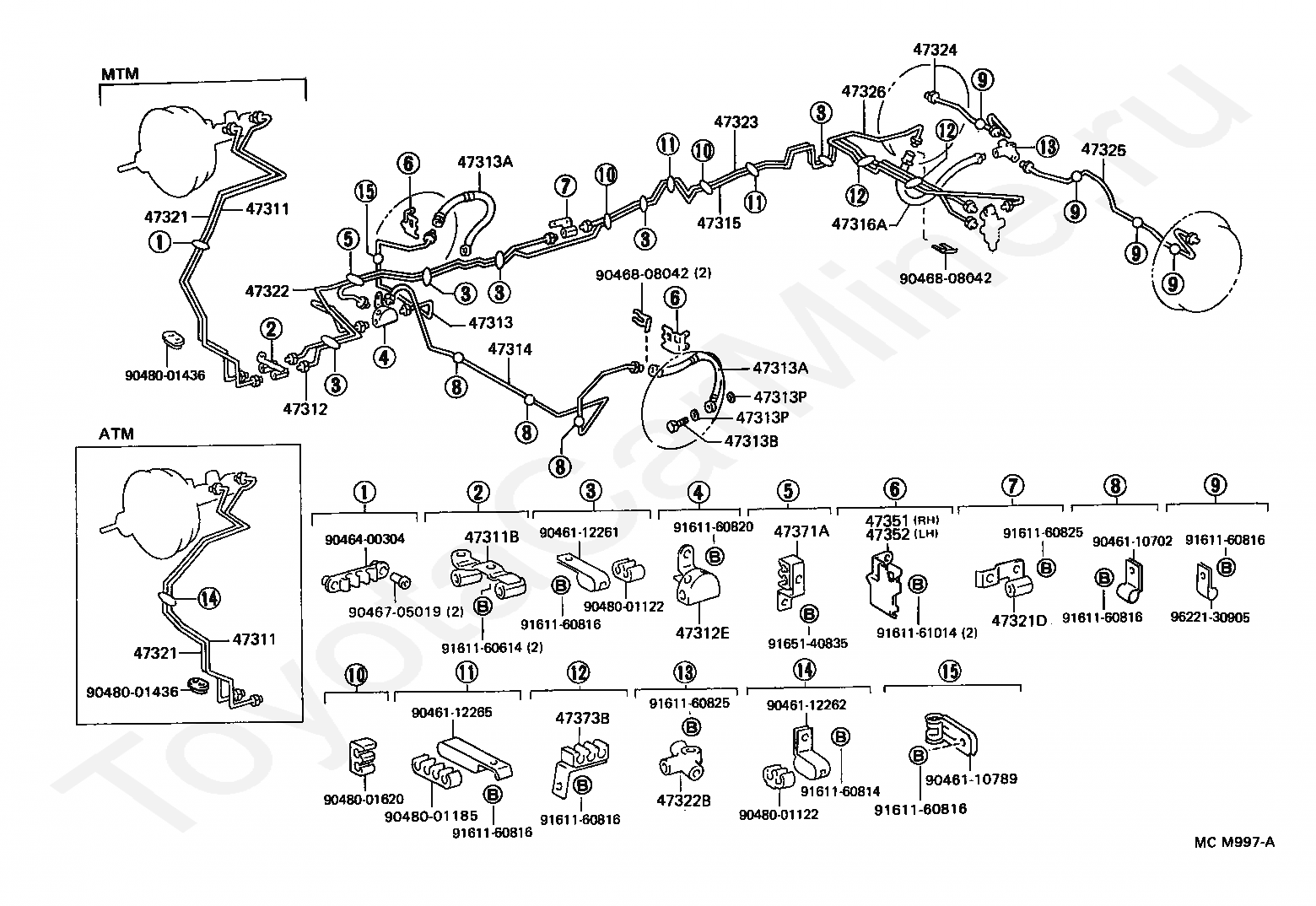

Тормозная магистраль TOYOTA LITE/TOWNACE V,WG

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47312E

WAY, NO.2(FOR FRONT BRAKE TUBE)

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47321

TUBE, REAR BRAKE, NO.1

47321

TUBE, REAR BRAKE, NO.1

47321D

WAY, NO.1(FOR REAR BRAKE TUBE)

47322

TUBE, REAR BRAKE, NO.2

47322B

WAY, NO.2(FOR REAR BRAKE TUBE)

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47325

TUBE, REAR BRAKE, NO.5

47326

TUBE, REAR BRAKE, NO.6

47351

BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

47352

BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

47371A

CLAMP, BRAKE TUBE, NO.1

47373B

CLAMP, BRAKE TUBE, NO.3

9046110702

Крепеж

9046110789

Крепеж

9046112261

Крепеж

9046112262

Крепеж

9046112265

Крепеж

9046400304

Крепеж

9046705019

Крепеж

9046808042

Крепеж

9046808042

Крепеж

9048001122

Крепеж

9048001122

Крепеж

9048001185

Крепеж

9048001436

Крепеж

9048001436

Крепеж

9048001620

Крепеж

9161160614

Крепеж

9161160814

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161160820

Крепеж

9161160825

Крепеж

9161160825

Крепеж

9161161014

Крепеж

9165140835

Крепеж

9622130905

Крепеж

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47312E

WAY, NO.2(FOR FRONT BRAKE TUBE)

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47321

TUBE, REAR BRAKE, NO.1

47321

TUBE, REAR BRAKE, NO.1

47321D

WAY, NO.1(FOR REAR BRAKE TUBE)

47322

TUBE, REAR BRAKE, NO.2

47322B

WAY, NO.2(FOR REAR BRAKE TUBE)

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47325

TUBE, REAR BRAKE, NO.5

47326

TUBE, REAR BRAKE, NO.6

47351

BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

47352

BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

47371A

CLAMP, BRAKE TUBE, NO.1

47373B

CLAMP, BRAKE TUBE, NO.3

9046110702

Крепеж

9046110789

Крепеж

9046112261

Крепеж

9046112262

Крепеж

9046112265

Крепеж

9046400304

Крепеж

9046705019

Крепеж

9046808042

Крепеж

9046808042

Крепеж

9048001122

Крепеж

9048001122

Крепеж

9048001185

Крепеж

9048001436

Крепеж

9048001436

Крепеж

9048001620

Крепеж

9161160614

Крепеж

9161160814

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161160820

Крепеж

9161160825

Крепеж

9161160825

Крепеж

9161161014

Крепеж

9165140835

Крепеж

9622130905

Крепеж

Код

Описание

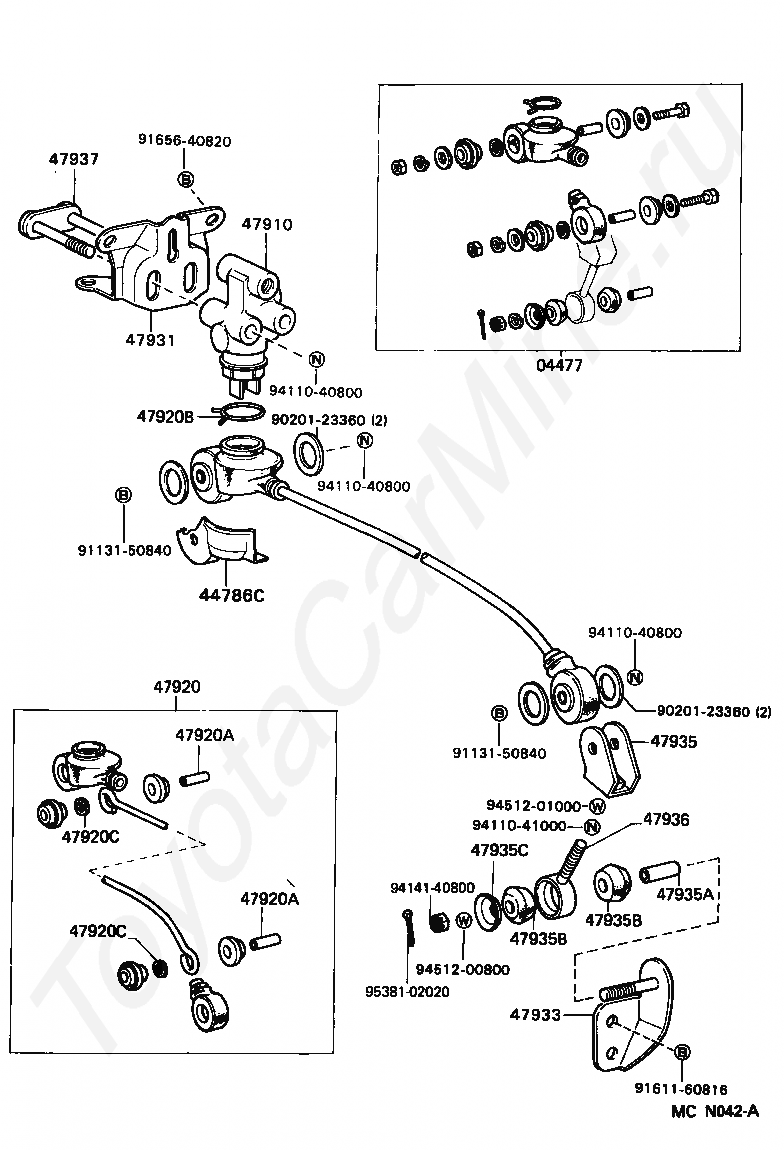

04477

BUSH & BOOT KIT, LOAD SENSING SPRING

44786C

INSULATOR, LOAD SENSING VALVE HEAT

47910

VALVE ASSY, LOAD SENSING PROPORTIONING

47920

SPRING ASSY, LOAD SENSING

47920A

COLLAR(FOR LOAD SENSING SPRING)

47920A

COLLAR(FOR LOAD SENSING SPRING)

47920B

CLIP(FOR LOAD SENSING VALVE BOOT)

47920C

WASHER(FOR LOAD SENSING SPRING)

47920C

WASHER(FOR LOAD SENSING SPRING)

47931

BRACKET, LOAD SENSING VALVE

47933

BRACKET, LOAD SENSING SHACKLE, NO.1

47935

SHACKLE, LOAD SENSING SPRING, NO.1

47935A

COLLAR(FOR LOAD SENSING SPRING SHACKLE)

47935B

BUSH(FOR LOAD SENSING SPRING SHACKLE)

47935B

BUSH(FOR LOAD SENSING SPRING SHACKLE)

47935C

RETAINER(FOR LOAD SENSING SPRING SHACKLE)

47936

SHACKLE, LOAD SENSING SPRING, NO.2

47937

PLATE, LOAD SENSING VALVE SET

9020123360

Крепеж

9020123360

Крепеж

9113150840

Крепеж

9113150840

Крепеж

9161160816

Крепеж

9165640820

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411041000

Крепеж

9414140800

Крепеж

9451200800

Крепеж

9451201000

Крепеж

9538102020

Крепеж

Тормозная магистраль TOYOTA LITE/TOWNACE V,WG
