Каталог

Япония

Модель

LITE/TOWNACE V,WG

VIN

Дата

1993/09

Двигатель

2,2 литра, турбо-дизель

Класс

D(MODEL MARK)

Фрейм

CR22

КПП

механика

Опции

MIDDLE ROOF 4 двери 8-местный

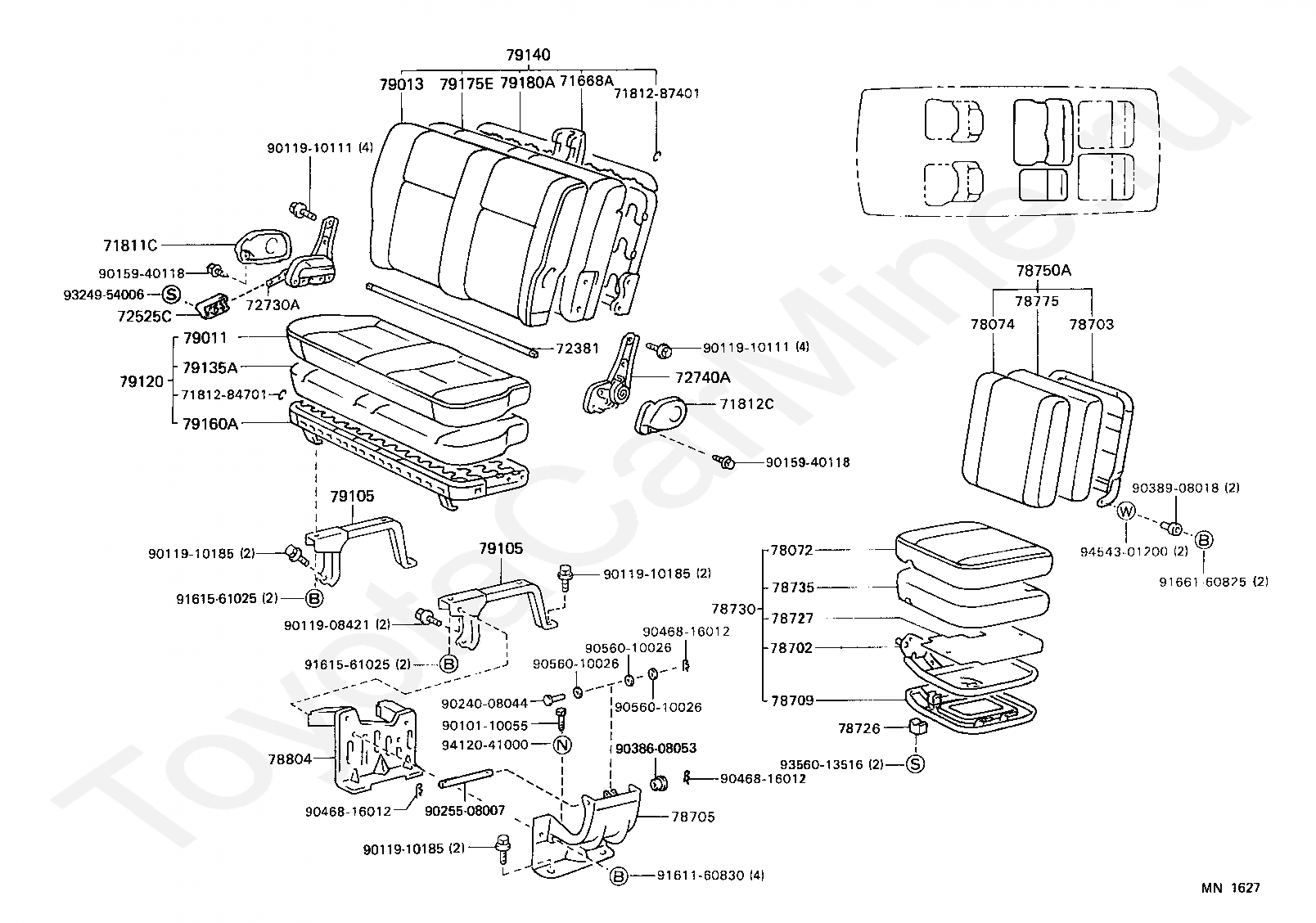

Кресла TOYOTA LITE/TOWNACE V,WG







Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71306D

BRACKET SUB-ASSY, FRONT SEAT SET

71362

BRACKET, FRONT SEAT SET, NO.2

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537A

PROTECTOR, FRONT SEAT CUSHION

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71588

PROTECTOR, FRONT SEAT BACK EDGE, NO.2

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

7181287401

Крепеж

7181287401

Крепеж

7181287401

Крепеж

7181287401

Крепеж

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72012C

ADJUSTER SUB-ASSY, FRONT SEAT, LH

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72991

COVER, FRONT SEAT CUSHION, RH

72992

COVER, FRONT SEAT CUSHION, LH

9010910057

Крепеж

9010910057

Крепеж

9011908421

Крепеж

9011910116

Крепеж

9011910116

Крепеж

9011910310

Крепеж

9011910310

Крепеж

9011910310

Крепеж

9015950120

Крепеж

9015950120

Крепеж

9017910125

Крепеж

9038612052

Крепеж

9038612052

Крепеж

9324954006

Крепеж

9324954006

Крепеж

9356015010

Крепеж

9461211001

Крепеж

Код

Описание

71668A

PAD, RR SEAT BACK, CENTER B

71811C

COVER, RECLINING ADJUSTER, RH

7181284701

Крепеж

7181287401

Крепеж

71812C

COVER, RECLINING ADJUSTER, LH

72381

ROD, RECLINING ADJUSTER EQUALIZING, NO.1

72525C

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

78072

COVER SUB-ASSY, SUB SEAT CUSHION, LH

78074

COVER SUB-ASSY, SUB SEAT BACK, LH

78702

FRAME SUB-ASSY, SUB SEAT CUSHION, LH

78703

FRAME SUB-ASSY, SUB SEAT BACK

78705

BRACKET SUB-ASSY, SUB SEAT CUSHION

78709

PANEL SUB-ASSY, SUB SEAT CUSHION

78726

CUSHION, SUB SEAT CUSHION FRAME

78727

BOARD, SUB SEAT CUSHION

78730

CUSHION ASSY, SUB SEAT, LH

78735

PAD, SUB SEAT CUSHION

78750A

BACK ASSY, SUB SEAT, LH

78775

PAD, SUB SEAT BACK

78804

LEG SUB ASSY, SUB SEAT CUSHION

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79105

LEG SUB-ASSY, NO.1 SEAT, RH

79105

LEG SUB-ASSY, NO.1 SEAT, RH

79120

CUSHION ASSY, NO.1 SEAT, RH

79135A

PAD, NO.1 SEAT CUSHION, RH

79140

BACK ASSY, NO.1 SEAT, RH

79160A

SPRING ASSY, NO.1 SEAT CUSHION, RH

79175E

PAD, NO.1 SEAT BACK, RH

79180A

SPRING ASSY, NO.1 SEAT BACK, RH

9010110055

Крепеж

9011908421

Крепеж

9011910111

Крепеж

9011910111

Крепеж

9011910185

Крепеж

9011910185

Крепеж

9011910185

Крепеж

9015940118

Крепеж

9015940118

Крепеж

9024008044

Крепеж

9025508007

Крепеж

9038608053

Крепеж

9038908018

Крепеж

9046816012

Крепеж

9046816012

Крепеж

9046816012

Крепеж

9056010026

Крепеж

9056010026

Крепеж

9056010026

Крепеж

9161160830

Крепеж

9161561025

Крепеж

9161561025

Крепеж

9166160825

Крепеж

9324954006

Крепеж

9356013516

Крепеж

9412041000

Крепеж

9454301200

Крепеж

Код

Описание

71257

PLATE, REAR SEAT BACK ANCHOR

71258A

PLATE, REAR SEAT BACK ANCHOR, LH

71324A

CUSHION, REAR SEAT

71349B

COVER, REAR SEAT BACK STAY, RH

71369B

COVER, REAR SEAT BACK STAY, LH

71629

COVER, REAR SEAT CUSHION HINGE

71691A

COVER, REAR NO.3 SEAT LOCK, RH

71692A

COVER, REAR NO.3 SEAT LOCK, LH

71811F

COVER, RECLINING ADJUSTER, RH

7181287401

Крепеж

7181287401

Крепеж

7181287401

Крепеж

7181287401

Крепеж

71812E

COVER, RECLINING ADJUSTER, LH

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72065

BELT SUB-ASSY, REAR SEAT HOOK, RH

72066

BELT SUB-ASSY, REAR SEAT HOOK, LH

72525D

HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH

72526C

HANDLE, RECLINING ADJUSTER RELEASE, NO.2 LH

72650B

LOCK ASSY, REAR NO.3 SEAT, RH

72658B

KNOB, REAR SEAT LOCK HANDLE

72658D

KNOB, REAR SEAT LOCK HANDLE

72660B

LOCK ASSY, REAR NO.3 SEAT, LH

72691

STRIKER, REAR NO.3 SEAT LOCK

72730C

ADJUSTER ASSY, NO.2 SEAT RECLINING, RH

72740C

ADJUSTER ASSY, NO.2 SEAT RECLINING, LH

72995A

COVER, REAR SEAT

79031

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79032

COVER SUB-ASSY, NO.3 SEAT CUSHION, LH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79034

COVER SUB-ASSY, NO.3 SEAT BACK, LH

79232

LEG, REAR NO.2 SEAT, RH

79242

LEG, REAR NO.2 SEAT, LH

79305A

LEG SUB-ASSY, NO.3 SEAT, RH

79306

LEG SUB ASSY, NO.3 SEAT, LH

79320

CUSHION ASSY, NO.3 SEAT, RH

79330

CUSHION ASSY, NO.3 SEAT, LH

79331

LEG, NO.3 SEAT, OUTER RH

79335A

PAD, NO.3 SEAT CUSHION, RH

79340

BACK ASSY, NO.3 SEAT, RH

79341

LEG, NO.3 SEAT, OUTER LH

79345A

PAD, NO.3 SEAT CUSHION, LH

79350

BACK ASSY, NO.3 SEAT, LH

79360A

SPRING ASSY, NO.3 SEAT CUSHION, RH

79370A

SPRING ASSY, NO.3 SEAT CUSHION, LH

79372

COVER, NO.3 SEAT FRONT BRACKET, RH

79372A

COVER, NO.3 SEAT FRONT BRACKET, RH

79374

COVER, NO.3 SEAT LEG, REAR RH

79374

COVER, NO.3 SEAT LEG, REAR RH

79374A

COVER, NO.3 SEAT LEG, REAR RH

79375A

PAD, NO.3 SEAT BACK, RH

79380A

SPRING ASSY, NO.3 SEAT BACK, RH

79382

COVER, NO.3 SEAT FRONT BRACKET, LH

79382A

COVER, NO.3 SEAT FRONT BRACKET, LH

79384

COVER, NO.3 SEAT LEG, REAR LH

79384

COVER, NO.3 SEAT LEG, REAR LH

79384A

COVER, NO.3 SEAT LEG, REAR LH

79385A

PAD, NO.3 SEAT BACK, LH

79390A

SPRING ASSY, NO.3 SEAT BACK, LH

9010908095

Крепеж

9010908095

Крепеж

9011610111

Крепеж

9011910392

Крепеж

9015940118

Крепеж

9015960280

Крепеж

9016000800

Крепеж

9016450020

Крепеж

9017910125

Крепеж

9020612035

Крепеж

9020612035

Крепеж

9020612035

Крепеж

9020612035

Крепеж

9024908242

Крепеж

9038612005

Крепеж

9038612052

Крепеж

9050626018

Крепеж

9052306017

Крепеж

9161161021

Крепеж

9165161025

Крепеж

9321046025

Крепеж

9324954006

Крепеж

9356055016

Крепеж

9356055016

Крепеж
