Каталог

Япония

Модель

LITE/TOWNACE V,WG

VIN

Дата

1992/01

Двигатель

2 литра, турбо-дизель

Класс

Q TYPE

Фрейм

CR21

КПП

автомат

Опции

высокая крыша 4 двери 7-местный

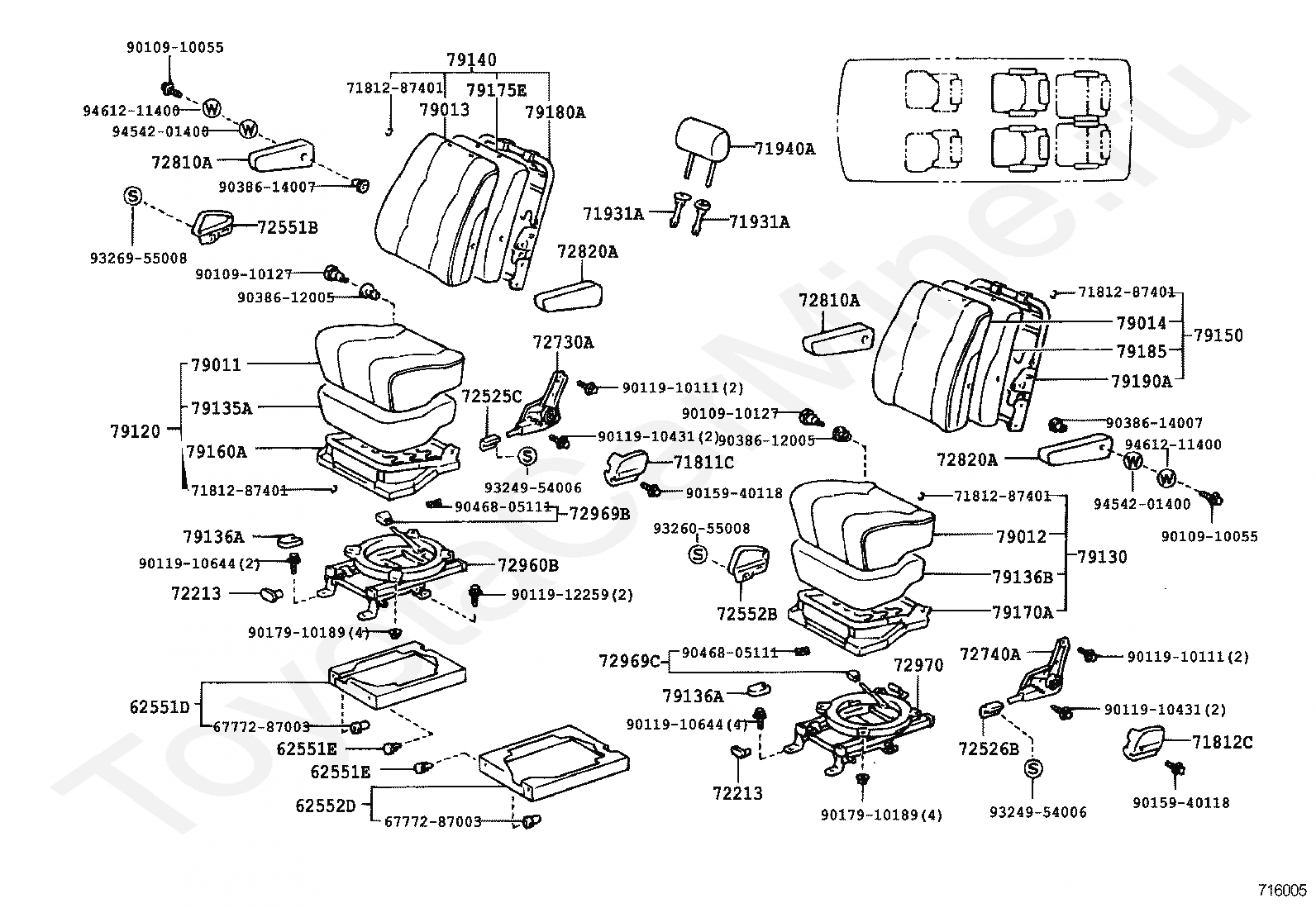

Кресла TOYOTA LITE/TOWNACE V,WG







Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537A

PROTECTOR, FRONT SEAT CUSHION

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71588

PROTECTOR, FRONT SEAT BACK EDGE, NO.2

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

7181287401

Крепеж

7181287401

Крепеж

7181287401

Крепеж

7181287401

Крепеж

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72012C

ADJUSTER SUB-ASSY, FRONT SEAT, LH

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72880

ARMREST ASSY, SEAT, C RH

72890

ARMREST ASSY, SEAT, C LH

72991

COVER, FRONT SEAT CUSHION, RH

72992

COVER, FRONT SEAT CUSHION, LH

9010910057

Крепеж

9010910057

Крепеж

9011908412

Крепеж

9011908421

Крепеж

9011910116

Крепеж

9011910116

Крепеж

9011910310

Крепеж

9011910310

Крепеж

9011910456

Крепеж

9011910456

Крепеж

9015950120

Крепеж

9015950120

Крепеж

9038612052

Крепеж

9038612052

Крепеж

9038625001

Крепеж

9038625001

Крепеж

9324954006

Крепеж

9324954006

Крепеж

9356015010

Крепеж

Код

Описание

62551D

GARNISH, REAR SEAT SIDE, RH

62551E

CLIP(FOR REAR SEAT SIDE GARNISH)

62551E

CLIP(FOR REAR SEAT SIDE GARNISH)

62552D

GARNISH, REAR SEAT SIDE, LH

6777287003

Крепеж

6777287003

Крепеж

71811C

COVER, RECLINING ADJUSTER, RH

7181287401

Крепеж

7181287401

Крепеж

7181287401

Крепеж

7181287401

Крепеж

71812C

COVER, RECLINING ADJUSTER, LH

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72213

KNOB, SEAT TRACK ADJUSTING HANDLE

72213

KNOB, SEAT TRACK ADJUSTING HANDLE

72525C

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

72526B

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

72551B

COVER, RECLINING HINGE, RH

72552B

COVER, RECLINING HINGE, LH

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72810A

ARMREST ASSY, SEAT, RH

72810A

ARMREST ASSY, SEAT, RH

72820A

ARMREST ASSY, SEAT, LH

72820A

ARMREST ASSY, SEAT, LH

72960B

TABLE ASSY, REAR SEAT TURN, RH

72969B

KNOB, REAR SEAT TURN LOCK, RH

72969C

KNOB, REAR SEAT TURN LOCK, LH

72970

TABLE ASSY, REAR SEAT TURN, LH

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79120

CUSHION ASSY, NO.1 SEAT, RH

79130

CUSHION ASSY, NO.1 SEAT, LH

79135A

PAD, NO.1 SEAT CUSHION, RH

79136A

COVER, NO.1 SEAT LEG, A

79136A

COVER, NO.1 SEAT LEG, A

79136B

PAD, NO.1 SEAT CUSHION, LH

79140

BACK ASSY, NO.1 SEAT, RH

79150

BACK ASSY, NO.1 SEAT, LH

79160A

SPRING ASSY, NO.1 SEAT CUSHION, RH

79170A

SPRING ASSY, NO.1 SEAT CUSUION, LH

79175E

PAD, NO.1 SEAT BACK, RH

79180A

SPRING ASSY, NO.1 SEAT BACK, RH

79185

PAD, NO.1 SEAT BACK, LH

79190A

SPRING ASSY, NO.1 SEAT BACK, LH

9010910055

Крепеж

9010910055

Крепеж

9010910127

Крепеж

9010910127

Крепеж

9011910111

Крепеж

9011910111

Крепеж

9011910431

Крепеж

9011910431

Крепеж

9011910644

Крепеж

9011910644

Крепеж

9011912259

Крепеж

9015940118

Крепеж

9015940118

Крепеж

9017910189

Крепеж

9017910189

Крепеж

9038612005

Крепеж

9038612005

Крепеж

9038614007

Крепеж

9038614007

Крепеж

9046805111

Крепеж

9046805111

Крепеж

9324954006

Крепеж

9324954006

Крепеж

9326055008

Крепеж

9326955008

Крепеж

9454201400

Крепеж

9454201400

Крепеж

9461211400

Крепеж

9461211400

Крепеж

Код

Описание

71257

PLATE, REAR SEAT BACK ANCHOR

71258A

PLATE, REAR SEAT BACK ANCHOR, LH

71324A

CUSHION, REAR SEAT

71338A

PLATE, REAR SEAT LEG, NO.2

71338A

PLATE, REAR SEAT LEG, NO.2

71339

PLATE, RR SEAT LEG, NO.3

71339

PLATE, RR SEAT LEG, NO.3

71349B

COVER, REAR SEAT BACK STAY, RH

71369B

COVER, REAR SEAT BACK STAY, LH

7161287401

Крепеж

71629

COVER, REAR SEAT CUSHION HINGE

71691A

COVER, REAR NO.3 SEAT LOCK, RH

71691A

COVER, REAR NO.3 SEAT LOCK, RH

71692A

COVER, REAR NO.3 SEAT LOCK, LH

71692A

COVER, REAR NO.3 SEAT LOCK, LH

71727B

TRIM, REAR SEAT CUSHION

71727B

TRIM, REAR SEAT CUSHION

7181287401

Крепеж

7181287401

Крепеж

7181287401

Крепеж

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72065

BELT SUB-ASSY, REAR SEAT HOOK, RH

72066

BELT SUB-ASSY, REAR SEAT HOOK, LH

72650B

LOCK ASSY, REAR NO.3 SEAT, RH

72658B

KNOB, REAR SEAT LOCK HANDLE

72658D

KNOB, REAR SEAT LOCK HANDLE

72660B

LOCK ASSY, REAR NO.3 SEAT, LH

72691

STRIKER, REAR NO.3 SEAT LOCK

72727D

BELT, REAR SEAT RECLINING RELEASE

72730C

ADJUSTER ASSY, NO.2 SEAT RECLINING, RH

72740C

ADJUSTER ASSY, NO.2 SEAT RECLINING, LH

72810A

ARMREST ASSY, SEAT, RH

72810A

ARMREST ASSY, SEAT, RH

72820A

ARMREST ASSY, SEAT, LH

72820A

ARMREST ASSY, SEAT, LH

72927

COVER, REAR SEAT CUSHION UNDER, RH

72928

COVER, REAR SEAT CUSHION UNDER, LH

72995A

COVER, REAR SEAT

79031

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79032

COVER SUB-ASSY, NO.3 SEAT CUSHION, LH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79034

COVER SUB-ASSY, NO.3 SEAT BACK, LH

79035

LEG SUB ASSY, NO.3 SEAT OUTER REAR, RH

79036

LEG SUB ASSY, NO.3 SEAT OUTER REAR, LH

79095

LEG SUB ASSY, NO.3 SEAT OUTER FRONT, RH

79096

LEG SUB-ASSY, NO.3 SEAT, INNER LH

79306

LEG SUB ASSY, NO.3 SEAT, LH

79320

CUSHION ASSY, NO.3 SEAT, RH

79330

CUSHION ASSY, NO.3 SEAT, LH

79335A

PAD, NO.3 SEAT CUSHION, RH

79340

BACK ASSY, NO.3 SEAT, RH

79345A

PAD, NO.3 SEAT CUSHION, LH

79350

BACK ASSY, NO.3 SEAT, LH

79360A

SPRING ASSY, NO.3 SEAT CUSHION, RH

79370A

SPRING ASSY, NO.3 SEAT CUSHION, LH

79372

COVER, NO.3 SEAT FRONT BRACKET, RH

79374

COVER, NO.3 SEAT LEG, REAR RH

79374

COVER, NO.3 SEAT LEG, REAR RH

79374A

COVER, NO.3 SEAT LEG, REAR RH

79375A

PAD, NO.3 SEAT BACK, RH

79380A

SPRING ASSY, NO.3 SEAT BACK, RH

79382

COVER, NO.3 SEAT FRONT BRACKET, LH

79384

COVER, NO.3 SEAT LEG, REAR LH

79384

COVER, NO.3 SEAT LEG, REAR LH

79384A

COVER, NO.3 SEAT LEG, REAR LH

79385A

PAD, NO.3 SEAT BACK, LH

79390A

SPRING ASSY, NO.3 SEAT BACK, LH

9010910055

Крепеж

9010910055

Крепеж

9011910111

Крепеж

9011910392

Крепеж

9015960280

Крепеж

9016450020

Крепеж

9016450020

Крепеж

9017910125

Крепеж

9024906102

Крепеж

9024906150

Крепеж

9024908155

Крепеж

9038606065

Крепеж

9038606065

Крепеж

9038606065

Крепеж

9038606065

Крепеж

9038612005

Крепеж

9038612052

Крепеж

9038614007

Крепеж

9038614007

Крепеж

9050626018

Крепеж

9052304004

Крепеж

9052304004

Крепеж

9052306017

Крепеж

9161261020

Крепеж

9161261020

Крепеж

9165161025

Крепеж

9321046025

Крепеж

9356055016

Крепеж

9356055016

Крепеж

9356055016

Крепеж

9356055016

Крепеж

9454201400

Крепеж

9454201400

Крепеж

9461211400

Крепеж

9461211400

Крепеж

9616000800

Крепеж
