Каталог

Япония

Модель

LITE/TOWNACE V,WG

VIN

Дата

1992/01

Двигатель

1,8 литра

Класс

D(MODEL MARK)

Фрейм

YR25

КПП

автомат

Опции

STANDARD ROOF SIDE GLASS VAN 4 двери 5-местный V1 SPECIFICATION: VAN (STANDARD)

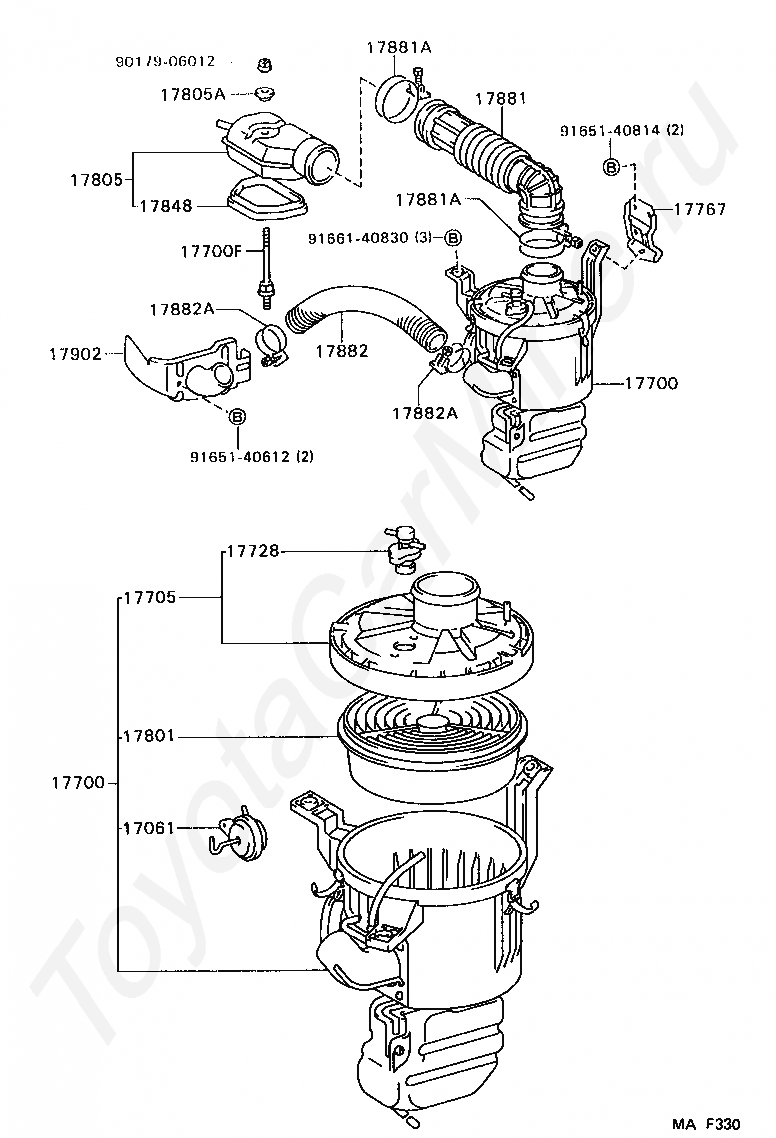

Воздушный фильтр TOYOTA LITE/TOWNACE V,WG

Код

Описание

17061

DIAPHRAGM SUB-ASSY

17700

CLEANER ASSY, AIR

17700

CLEANER ASSY, AIR

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17705

CAP SUB-ASSY, AIR CLEANER

17728

VALVE, THERMOSTATIC

17767

BRACKET, AIR CLEANER

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17805

CONNECTOR SUB-ASSY, INTAKE AIR

17805A

GASKET & WASHER, SEAL

17848

GASKET, AIR CLEANER TO CARBURETOR

17881

HOSE, AIR CLEANER, NO.1

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17882

HOSE, AIR CLEANER, NO.2

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

17902

INLET SUB-ASSY, HOT AIR INTAKE, NO.1

9017906012

Крепеж

9165140612

Крепеж

9165140814

Крепеж

9166140830

Крепеж

Код

Описание

17911

DUCT, COOL AIR INTAKE, NO.1

17911A

HOSE, COOL AIR INTAKE, NO.1

17912

DUCT, COOL AIR INTAKE, NO.2

17912

DUCT, COOL AIR INTAKE, NO.2

17912B

BRACKET, COOL AIR INTAKE DUCT, NO.2

17912B

BRACKET, COOL AIR INTAKE DUCT, NO.2

17912B

BRACKET, COOL AIR INTAKE DUCT, NO.2

17912B

BRACKET, COOL AIR INTAKE DUCT, NO.2

17913

DUCT, COOL AIR INTAKE, NO.3

17913

DUCT, COOL AIR INTAKE, NO.3

17913F

FLANGE, COOL AIR INTAKE DUCT, NO.3

17913F

FLANGE, COOL AIR INTAKE DUCT, NO.3

9011908337

Крепеж

9011908337

Крепеж

9011908337

Крепеж

9011908337

Крепеж

9011908337

Крепеж

9011908710

Крепеж

9011908710

Крепеж

9011908710

Крепеж

9011908710

Крепеж

9048012010

Крепеж

9048012010

Крепеж

9048012010

Крепеж

9056008038

Крепеж

9056008038

Крепеж

9056008038

Крепеж

9161160814

Крепеж

9162140820

Крепеж

9162140820

Крепеж

9163260820

Крепеж

9163260820

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9611110650

Крепеж

9611110670

Крепеж

9611110670

Крепеж

9611110690

Крепеж

9611110800

Крепеж
