Каталог

Япония

Модель

LITE/TOWNACE TRUCK

VIN

Дата

1986/10

Двигатель

2 литра, дизель

Кузов

SUPER SINGLE JUST LOW

Класс

DELUX SPECIFICATION

Фрейм

CM55

КПП

автомат АКПП, 4 ступени, на руле

Опции

STEEL-MADE DECK THREE SIDE OPEN COMPLETED VEHICLE

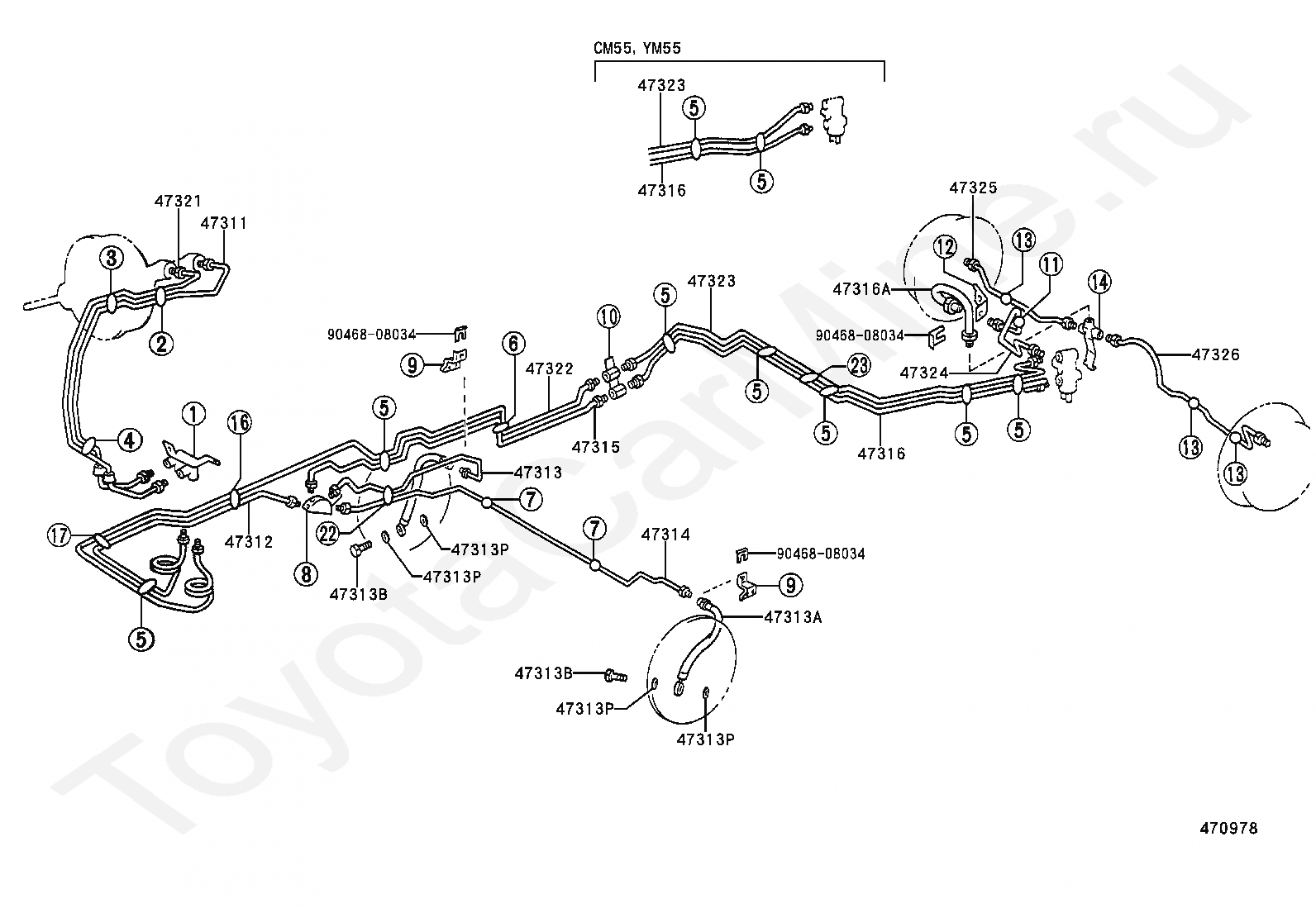

Тормозная магистраль TOYOTA LITE/TOWNACE TRUCK

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47316

TUBE, FRONT BRAKE, NO.6

47316

TUBE, FRONT BRAKE, NO.6

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47325

TUBE, REAR BRAKE, NO.5

47326

TUBE, REAR BRAKE, NO.6

9046808034

Крепеж

9046808034

Крепеж

9046808034

Крепеж

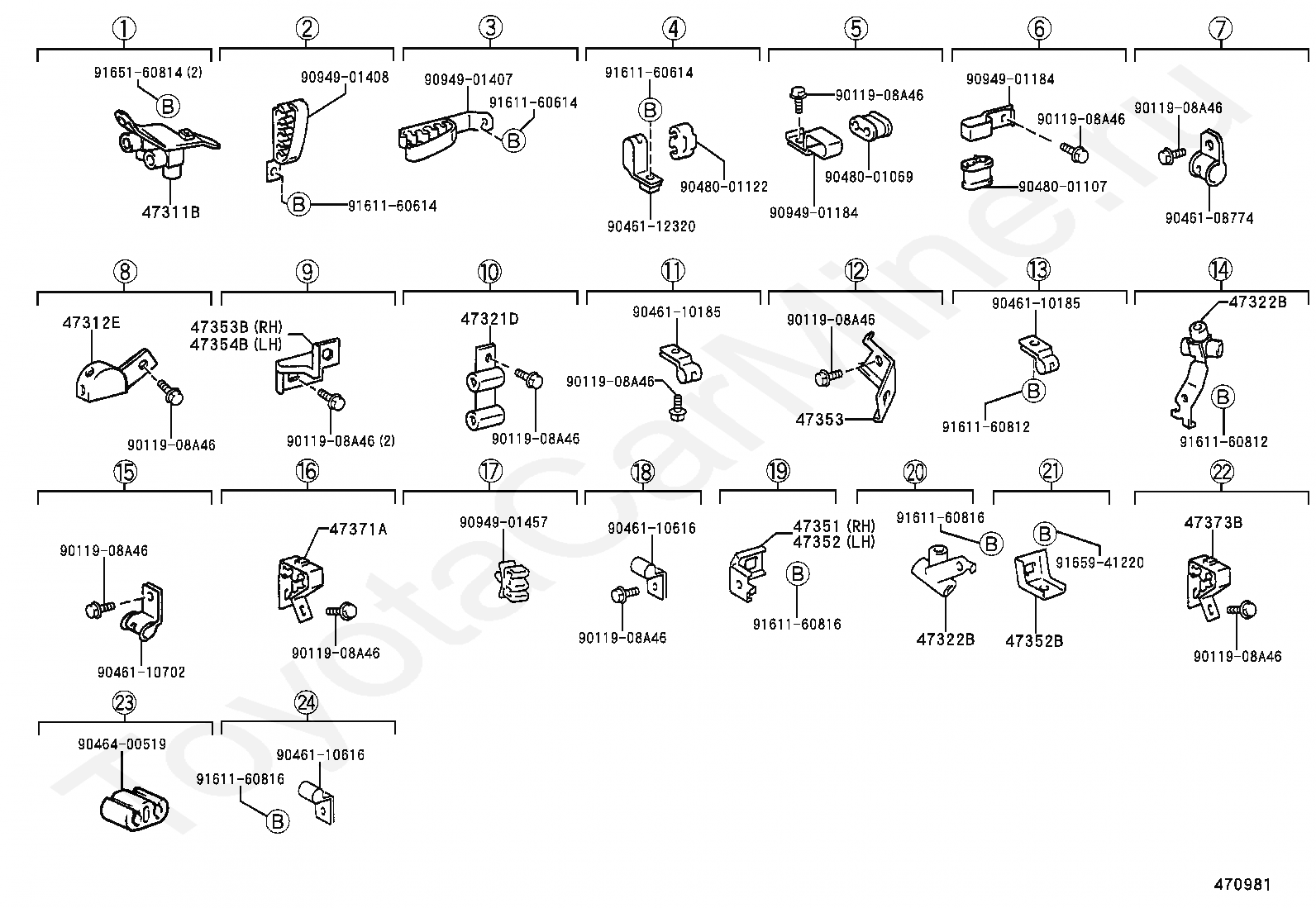

Код

Описание

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47312E

WAY, NO.2(FOR FRONT BRAKE TUBE)

47321D

WAY, NO.1(FOR REAR BRAKE TUBE)

47322B

WAY, NO.2(FOR REAR BRAKE TUBE)

47322B

WAY, NO.2(FOR REAR BRAKE TUBE)

47351

BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

47352

BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

47352B

BRACKET, FLEXIBLE HOSE, NO.2

47353

BRACKET, FLEXIBLE HOSE(FOR REAR)

47353B

BRACKET, FLEXIBLE HOSE, NO.3

47354B

BRACKET, FLEXIBLE HOSE, NO.4

47371A

CLAMP, BRAKE TUBE, NO.1

47373B

CLAMP, BRAKE TUBE, NO.3

9011908A46

Крепеж

9011908A46

Крепеж

9011908A46

Крепеж

9011908A46

Крепеж

9011908A46

Крепеж

9011908A46

Крепеж

9011908A46

Крепеж

9011908A46

Крепеж

9011908A46

Крепеж

9011908A46

Крепеж

9011908A46

Крепеж

9011908A46

Крепеж

9046108774

Крепеж

9046110185

Крепеж

9046110185

Крепеж

9046110616

Крепеж

9046110616

Крепеж

9046110702

Крепеж

9046112320

Крепеж

9046400519

Крепеж

9048001069

Крепеж

9048001107

Крепеж

9048001122

Крепеж

9094901184

Крепеж

9094901184

Крепеж

9094901407

Крепеж

9094901408

Крепеж

9094901457

Крепеж

9161160614

Крепеж

9161160614

Крепеж

9161160614

Крепеж

9161160812

Крепеж

9161160812

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9165160814

Крепеж

9165941220

Крепеж

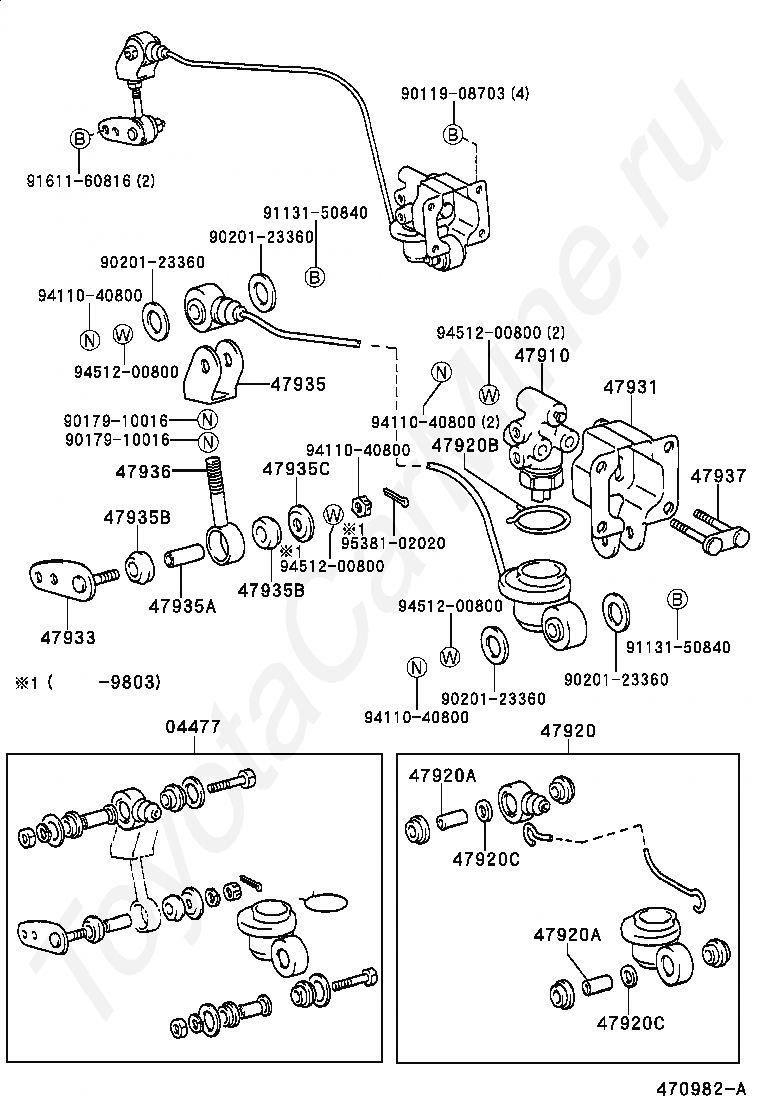

Код

Описание

04477

BUSH & BOOT KIT, LOAD SENSING SPRING

47910

VALVE ASSY, LOAD SENSING PROPORTIONING

47920

SPRING ASSY, LOAD SENSING

47920A

COLLAR(FOR LOAD SENSING SPRING)

47920A

COLLAR(FOR LOAD SENSING SPRING)

47920B

CLIP(FOR LOAD SENSING VALVE BOOT)

47920C

WASHER(FOR LOAD SENSING SPRING)

47920C

WASHER(FOR LOAD SENSING SPRING)

47931

BRACKET, LOAD SENSING VALVE

47933

BRACKET, LOAD SENSING SHACKLE, NO.1

47935

SHACKLE, LOAD SENSING SPRING, NO.1

47935A

COLLAR(FOR LOAD SENSING SPRING SHACKLE)

47935B

BUSH(FOR LOAD SENSING SPRING SHACKLE)

47935B

BUSH(FOR LOAD SENSING SPRING SHACKLE)

47935C

RETAINER(FOR LOAD SENSING SPRING SHACKLE)

47936

SHACKLE, LOAD SENSING SPRING, NO.2

47937

PLATE, LOAD SENSING VALVE SET

9011908703

Крепеж

9017910016

Крепеж

9017910016

Крепеж

9020123360

Крепеж

9020123360

Крепеж

9020123360

Крепеж

9020123360

Крепеж

9113150840

Крепеж

9113150840

Крепеж

9161160816

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9538102020

Крепеж

Тормозная магистраль TOYOTA LITE/TOWNACE TRUCK
