Каталог

Япония

Модель

LITE/TOWNACE TRUCK

VIN

Дата

1986/10

Двигатель

2 литра, дизель

Кузов

SUPER SINGLE JUST LOW

Класс

DELUX SPECIFICATION

Фрейм

CM55

КПП

автомат АКПП, 4 ступени, на руле

Опции

STEEL-MADE DECK THREE SIDE OPEN COMPLETED VEHICLE

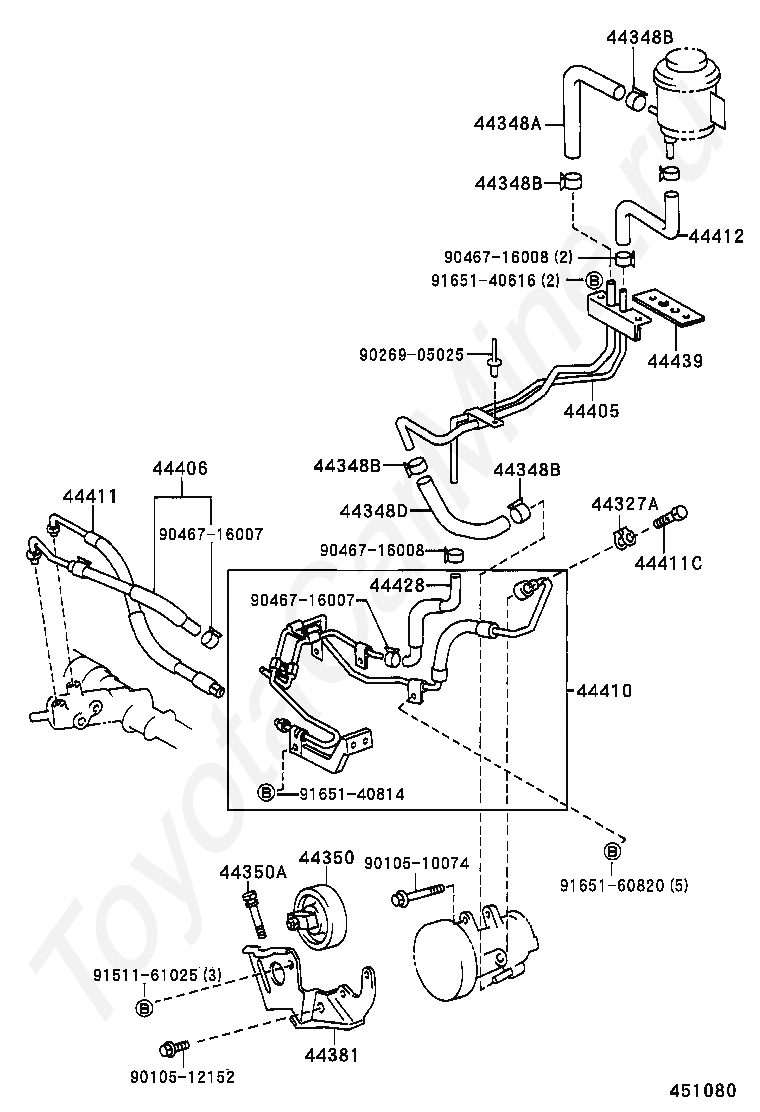

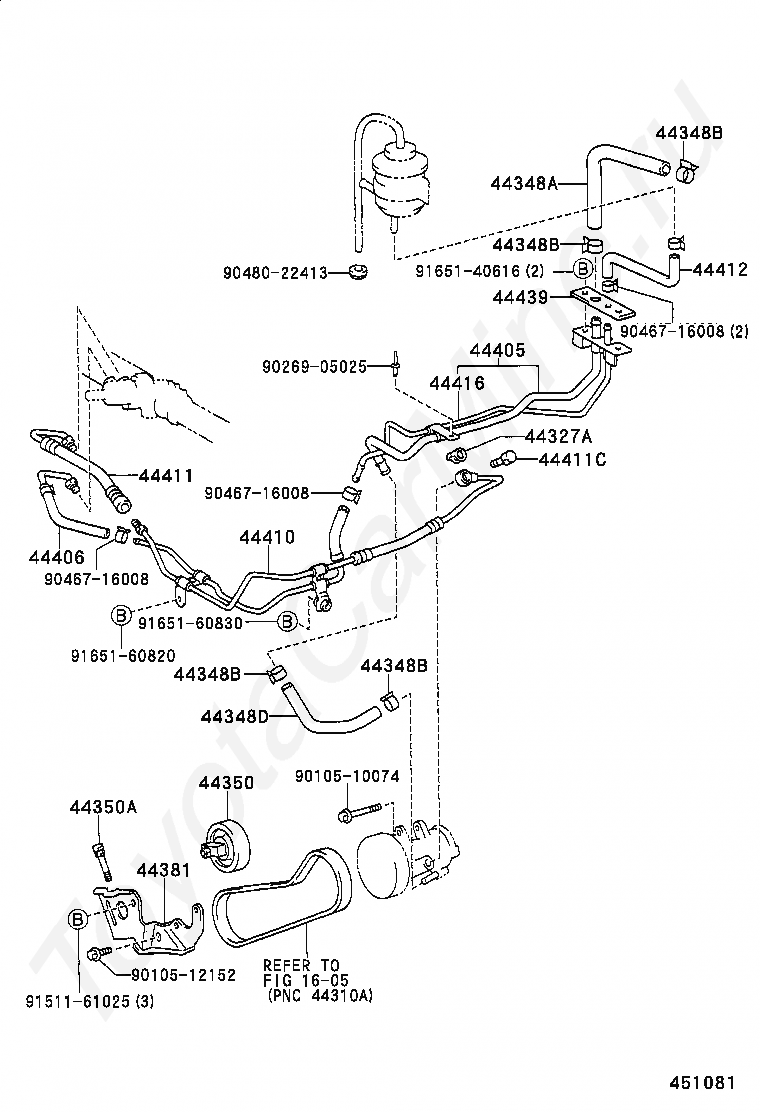

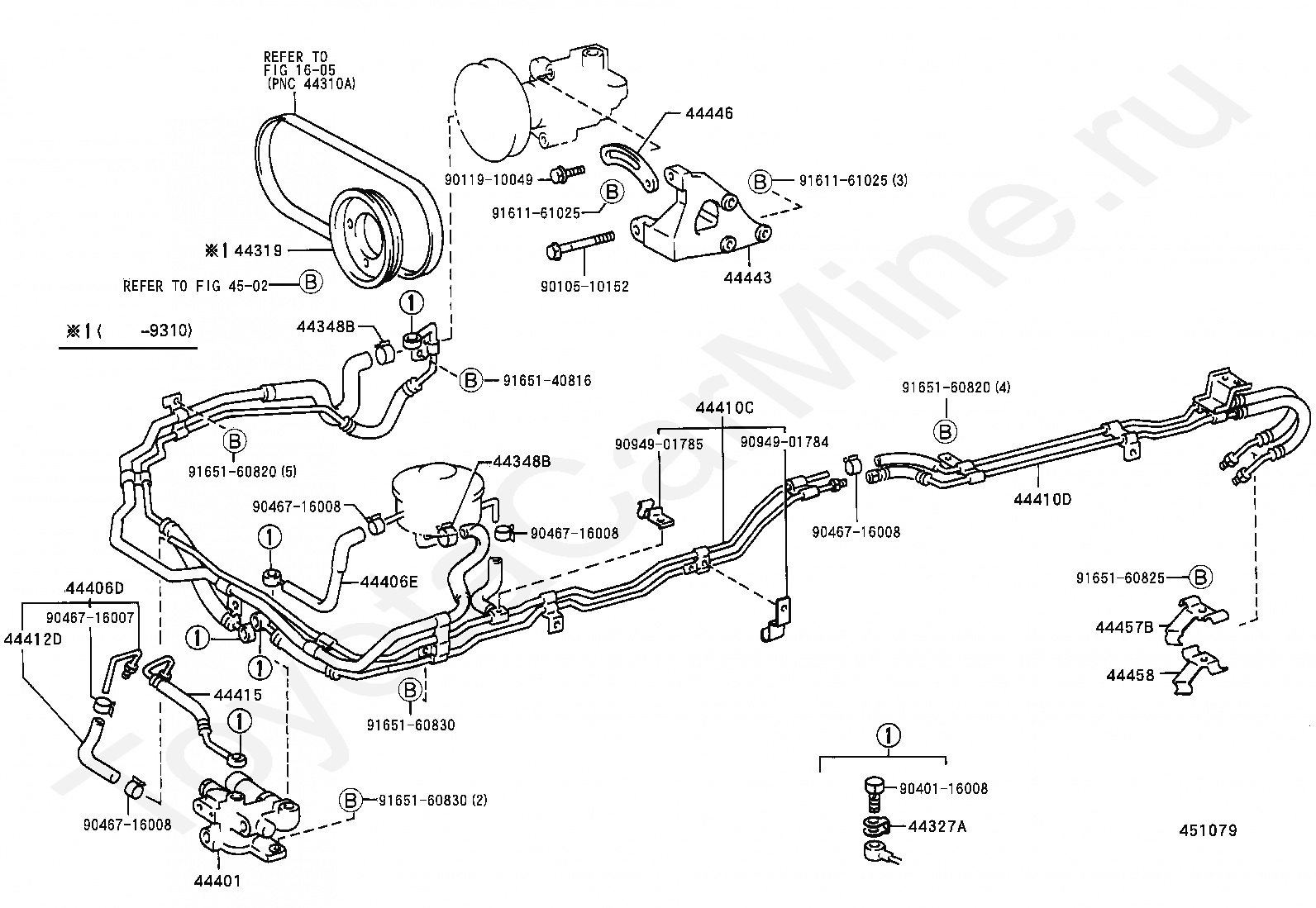

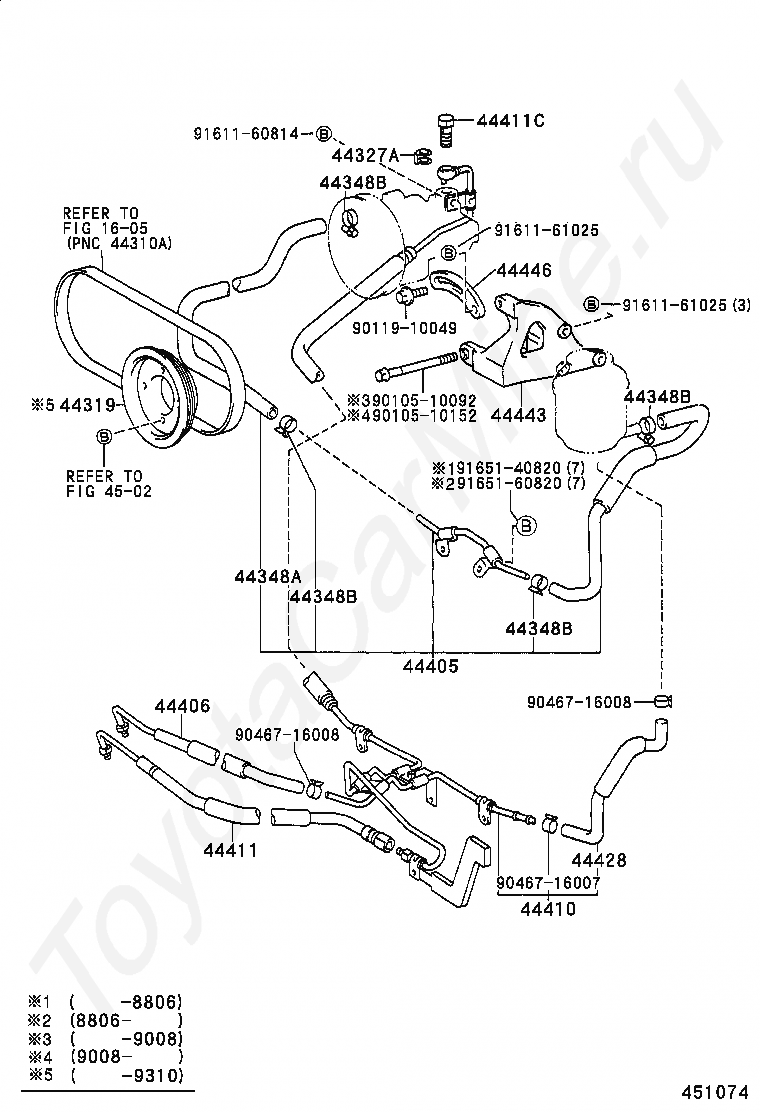

POWER STEERING TUBE TOYOTA LITE/TOWNACE TRUCK

Код

Описание

1605

переход к группе запчастей

44319

PULLEY, VANE PUMP DRIVE

44327A

GASKET, PRESSURE PORT, NO.1

44348A

HOSE, OIL RESERVOIR TO PUMP, NO.1

44348B

CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

44348B

CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

44348B

CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

44348B

CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

44405

TUBE SUB-ASSY, OIL RESERVOIR TO PUMP, NO.1

44406

TUBE SUB-ASSY, RETURN

44410

TUBE ASSY, PRESSURE FEED

44411

HOSE, PRESSURE FEED

44411C

BOLT, UNION(FOR PRESSURE FEED HOSE)

44428

HOSE, RETURN, NO.2

44443

BRACKET, PUMP

44446

STRUT, ADJUSTING

4502

переход к группе запчастей

9010510092

Крепеж

9010510152

Крепеж

9011910049

Крепеж

9046716007

Крепеж

9046716008

Крепеж

9046716008

Крепеж

9161160814

Крепеж

9161161025

Крепеж

9161161025

Крепеж

9165140820

Крепеж

9165160820

Крепеж

Код

Описание

1605

переход к группе запчастей

44319

PULLEY, VANE PUMP DRIVE

44327A

GASKET, PRESSURE PORT, NO.1

44348B

CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

44348B

CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

44401

VALVE SUB-ASSY, POWER STEERING FLOW DIVIDER

44406D

TUBE SUB-ASSY, RETURN, NO.1

44406E

TUBE SUB-ASSY, RETURN, NO.2

44410C

TUBE ASSY, PRESSURE FEED, NO.1

44410D

TUBE ASSY, PRESSURE FEED, NO.2

44412D

HOSE, RETURN, NO.1

44415

HOSE, PRESSURE FEED, NO.2

44443

BRACKET, PUMP

44446

STRUT, ADJUSTING

44457B

BRACKET, POWER STEERING TUBE SUPPORT, NO.2

44458

BRACKET, TUBE SUPPORT, NO.2

4502

переход к группе запчастей

9010510152

Крепеж

9011910049

Крепеж

9040116008

Крепеж

9046716007

Крепеж

9046716008

Крепеж

9046716008

Крепеж

9046716008

Крепеж

9046716008

Крепеж

9094901784

Крепеж

9094901785

Крепеж

9161161025

Крепеж

9161161025

Крепеж

9165140816

Крепеж

9165160820

Крепеж

9165160820

Крепеж

9165160825

Крепеж

9165160830

Крепеж

9165160830

Крепеж

Код

Описание

44327A

GASKET, PRESSURE PORT, NO.1

44348A

HOSE, OIL RESERVOIR TO PUMP, NO.1

44348B

CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

44348B

CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

44348B

CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

44348B

CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

44348D

HOSE, OIL RESERVOIR TO PUMP, NO.2

44350

PULLEY ASSY, POWER STEERING IDLE

44350A

BOLT(FOR POWER STEERING IDLE PULLEY)

44381

BRACKET, POWER STEERING IDLE PULLEY

44405

TUBE SUB-ASSY, OIL RESERVOIR TO PUMP, NO.1

44406

TUBE SUB-ASSY, RETURN

44410

TUBE ASSY, PRESSURE FEED

44411

HOSE, PRESSURE FEED

44411C

BOLT, UNION(FOR PRESSURE FEED HOSE)

44412

HOSE, RETURN

44428

HOSE, RETURN, NO.2

44439

PACKING, OIL RESERVOIR TO PUMP TUBE

9010510074

Крепеж

9010512152

Крепеж

9026905025

Крепеж

9046716007

Крепеж

9046716007

Крепеж

9046716008

Крепеж

9046716008

Крепеж

9151161025

Крепеж

9165140616

Крепеж

9165140814

Крепеж

9165160820

Крепеж

Код

Описание

1605

переход к группе запчастей

44327A

GASKET, PRESSURE PORT, NO.1

44348A

HOSE, OIL RESERVOIR TO PUMP, NO.1

44348B

CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

44348B

CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

44348B

CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

44348B

CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

44348D

HOSE, OIL RESERVOIR TO PUMP, NO.2

44350

PULLEY ASSY, POWER STEERING IDLE

44350A

BOLT(FOR POWER STEERING IDLE PULLEY)

44381

BRACKET, POWER STEERING IDLE PULLEY

44405

TUBE SUB-ASSY, OIL RESERVOIR TO PUMP, NO.1

44406

TUBE SUB-ASSY, RETURN

44410

TUBE ASSY, PRESSURE FEED

44411

HOSE, PRESSURE FEED

44411C

BOLT, UNION(FOR PRESSURE FEED HOSE)

44412

HOSE, RETURN

44416

TUBE, RETURN(FOR STEERING GEAR OUTLET)

44439

PACKING, OIL RESERVOIR TO PUMP TUBE

9010510074

Крепеж

9010512152

Крепеж

9026905025

Крепеж

9046716008

Крепеж

9046716008

Крепеж

9046716008

Крепеж

9048022413

Крепеж

9151161025

Крепеж

9165140616

Крепеж

9165160820

Крепеж

9165160830

Крепеж

POWER STEERING TUBE TOYOTA LITE/TOWNACE TRUCK
