Каталог

Япония

Модель

LITE/TOWNACE NOAH,V

VIN

Дата

1998/12

Двигатель

2,2 литра, дизель, EFI

Кузов

VAN

Класс

D(MODEL MARK)

Фрейм

CR52

КПП

механика

Опции

STANDARD ROOF 4 двери 6-местный COMPLETED VEHICLE V1 DEFI

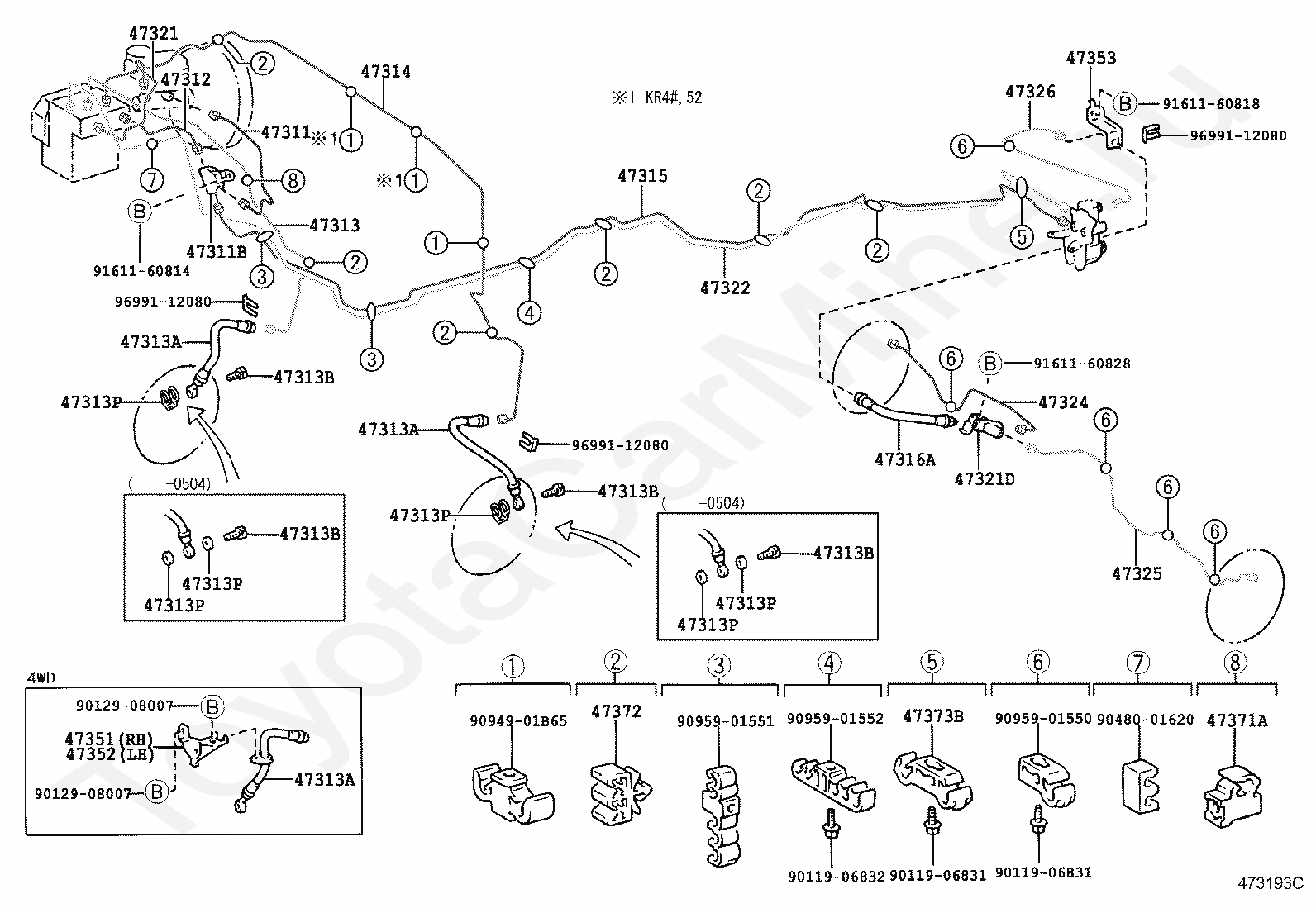

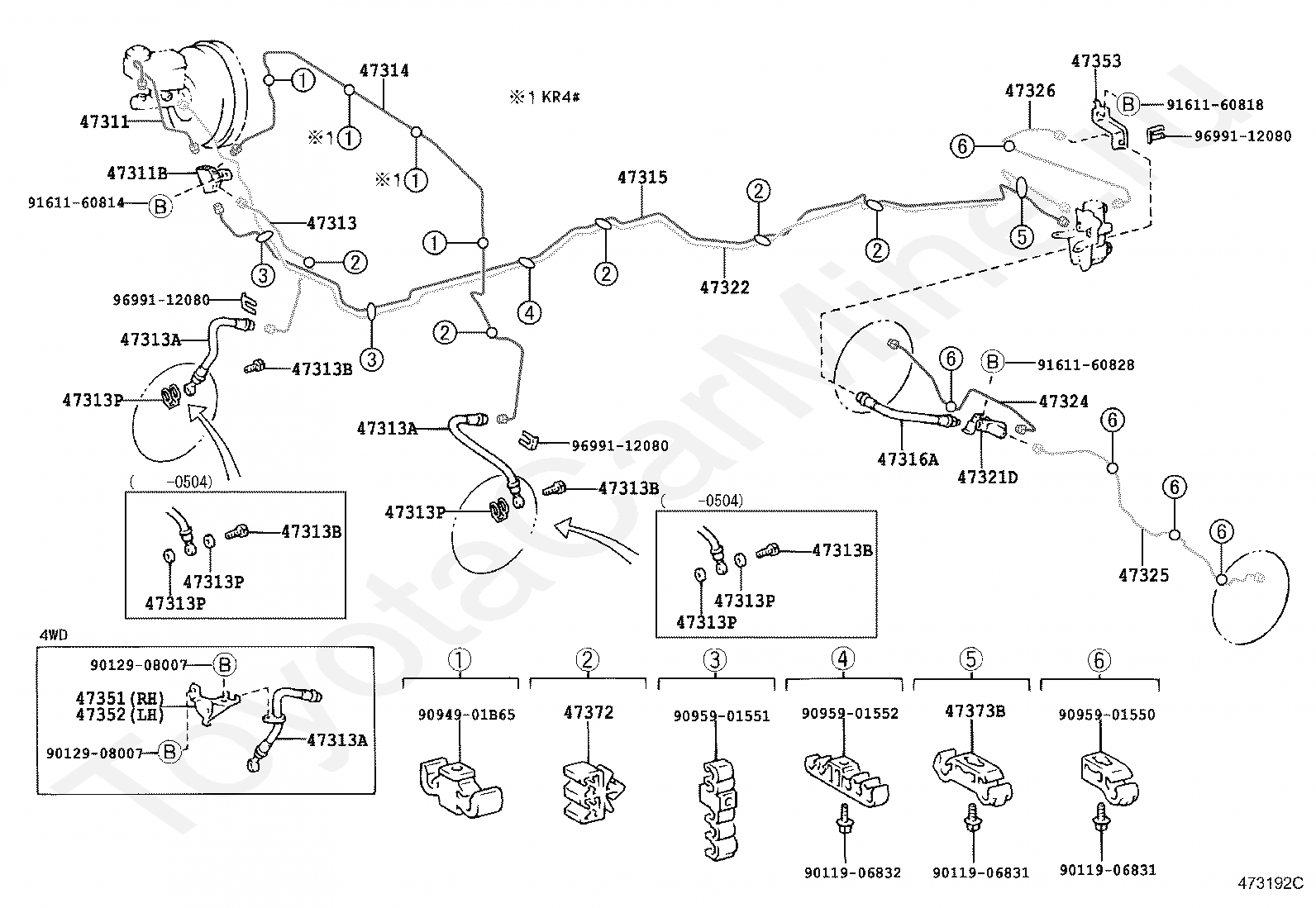

Тормозная магистраль TOYOTA LITE/TOWNACE NOAH,V

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47321D

WAY, NO.1(FOR REAR BRAKE TUBE)

47322

TUBE, REAR BRAKE, NO.2

47324

TUBE, REAR BRAKE, NO.4

47325

TUBE, REAR BRAKE, NO.5

47326

TUBE, REAR BRAKE, NO.6

47351

BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

47352

BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

47353

BRACKET, FLEXIBLE HOSE(FOR REAR)

47372

CLAMP, BRAKE TUBE, NO.2

47373B

CLAMP, BRAKE TUBE, NO.3

9011906831

Крепеж

9011906831

Крепеж

9011906832

Крепеж

9012908007

Крепеж

9012908007

Крепеж

9094901B65

Крепеж

9095901550

Крепеж

9095901551

Крепеж

9095901552

Крепеж

9161160814

Крепеж

9161160818

Крепеж

9161160828

Крепеж

9699112080

Крепеж

9699112080

Крепеж

9699112080

Крепеж

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47321

TUBE, REAR BRAKE, NO.1

47321D

WAY, NO.1(FOR REAR BRAKE TUBE)

47322

TUBE, REAR BRAKE, NO.2

47324

TUBE, REAR BRAKE, NO.4

47325

TUBE, REAR BRAKE, NO.5

47326

TUBE, REAR BRAKE, NO.6

47351

BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

47352

BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

47353

BRACKET, FLEXIBLE HOSE(FOR REAR)

47371A

CLAMP, BRAKE TUBE, NO.1

47372

CLAMP, BRAKE TUBE, NO.2

47373B

CLAMP, BRAKE TUBE, NO.3

9011906831

Крепеж

9011906831

Крепеж

9011906832

Крепеж

9012908007

Крепеж

9012908007

Крепеж

9048001620

Крепеж

9094901B65

Крепеж

9095901550

Крепеж

9095901551

Крепеж

9095901552

Крепеж

9161160814

Крепеж

9161160818

Крепеж

9161160828

Крепеж

9699112080

Крепеж

9699112080

Крепеж

9699112080

Крепеж

Код

Описание

44510

ACTUATOR ASSY, BRAKE

44545D

HOLDER, BRAKE ACTUATOR BOLT

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44591

BRACKET, BRAKE ACTUATOR, NO.1

9009905277

Крепеж

9009905277

Крепеж

9017908200

Крепеж

Код

Описание

04477

BUSH & BOOT KIT, LOAD SENSING SPRING

47910

VALVE ASSY, LOAD SENSING PROPORTIONING

47920

SPRING ASSY, LOAD SENSING

47920A

COLLAR(FOR LOAD SENSING SPRING)

47920A

COLLAR(FOR LOAD SENSING SPRING)

47920B

CLIP(FOR LOAD SENSING VALVE BOOT)

47920C

WASHER(FOR LOAD SENSING SPRING)

47920C

WASHER(FOR LOAD SENSING SPRING)

47931

BRACKET, LOAD SENSING VALVE

47935

SHACKLE, LOAD SENSING SPRING, NO.1

47935A

COLLAR(FOR LOAD SENSING SPRING SHACKLE)

47935B

BUSH(FOR LOAD SENSING SPRING SHACKLE)

47935B

BUSH(FOR LOAD SENSING SPRING SHACKLE)

47936

SHACKLE, LOAD SENSING SPRING, NO.2

47937

PLATE, LOAD SENSING VALVE SET

9011908B11

Крепеж

9017910132

Крепеж

9017910132

Крепеж

9020123360

Крепеж

9020123360

Крепеж

9020123360

Крепеж

9020123360

Крепеж

9113160840

Крепеж

9113160840

Крепеж

91611B0816

Крепеж

9413000802

Крепеж

9413000802

Крепеж

9413000802

Крепеж

9451200800

Крепеж
