Спидометр Тойота LITE/TOWNACE NOAH,V, Япония, 1996/10 - 2001/11, 2 литра, 16 клапанов, DOHC, EFI, фургон, V(MODEL MARK), SR50, автомат, STANDARD ROOF, 4 двери, 8-местный, COMPLETED VEHICLE, электронная система впрыска топлива

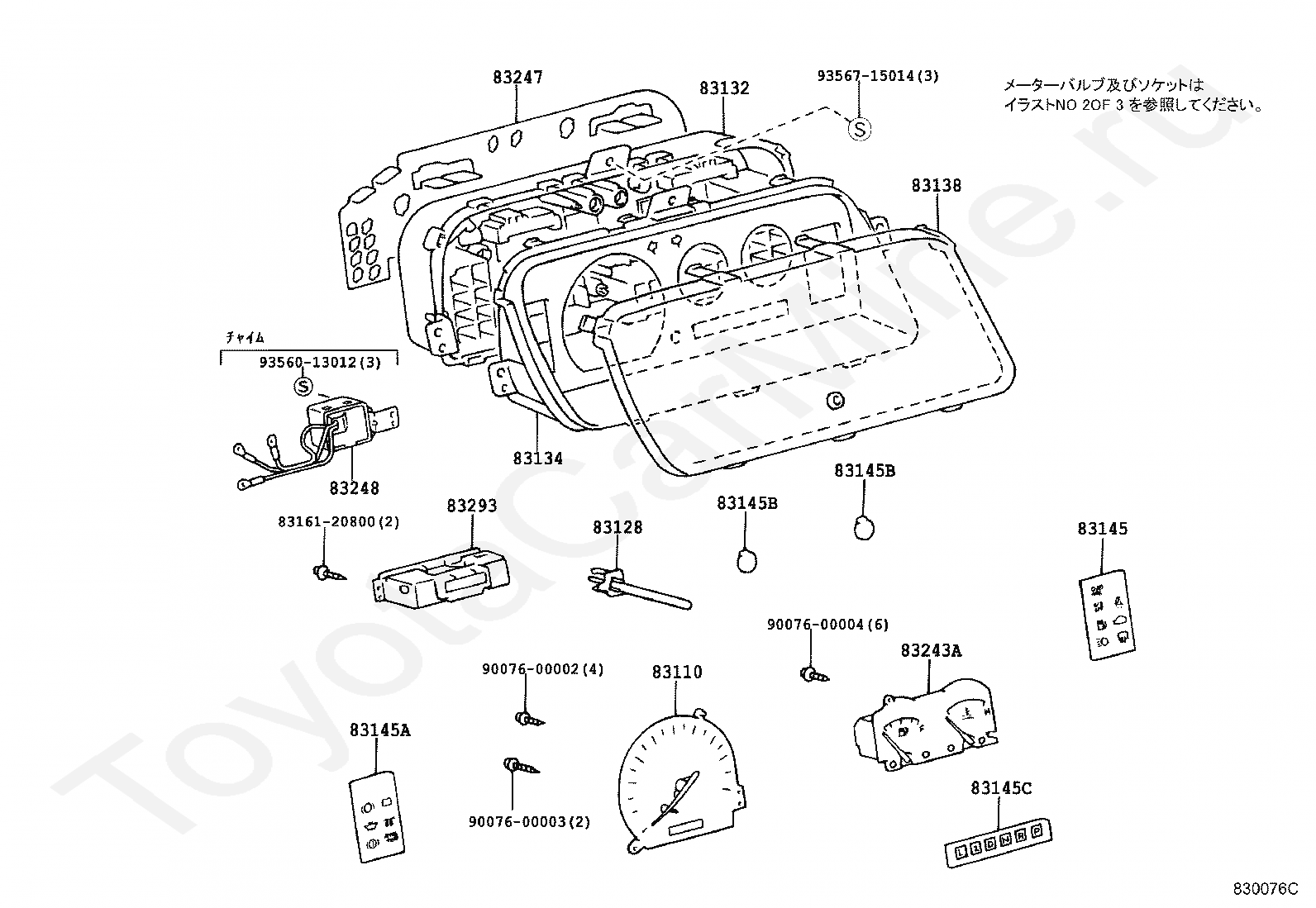

Код

Описание

83110

SPEEDOMETER ASSY

83128

KNOB, TRIP COUNTER

83132

CASE, COMBINATION METER

83134

COVER, COMBINATION METER, NO.1

83138

GLASS, SPEEDOMETER

83145

LENS, METER, NO.1

83145A

LENS, METER, NO.2

83145B

LENS, METER, NO.3

83145B

LENS, METER, NO.3

83145C

LENS, METER, NO.4

8316120800

Крепеж

83243A

GAUGE SUB-ASSY, FUEL RECEIVER

83247

PLATE, METER CIRCUIT

83248

CHIME, SPEED WARNING

83293

COMPUTER, TOTAL COUNTER MODULE

9007600002

Крепеж

9007600003

Крепеж

9007600004

Крепеж

9356013012

Крепеж

9356715014

Крепеж

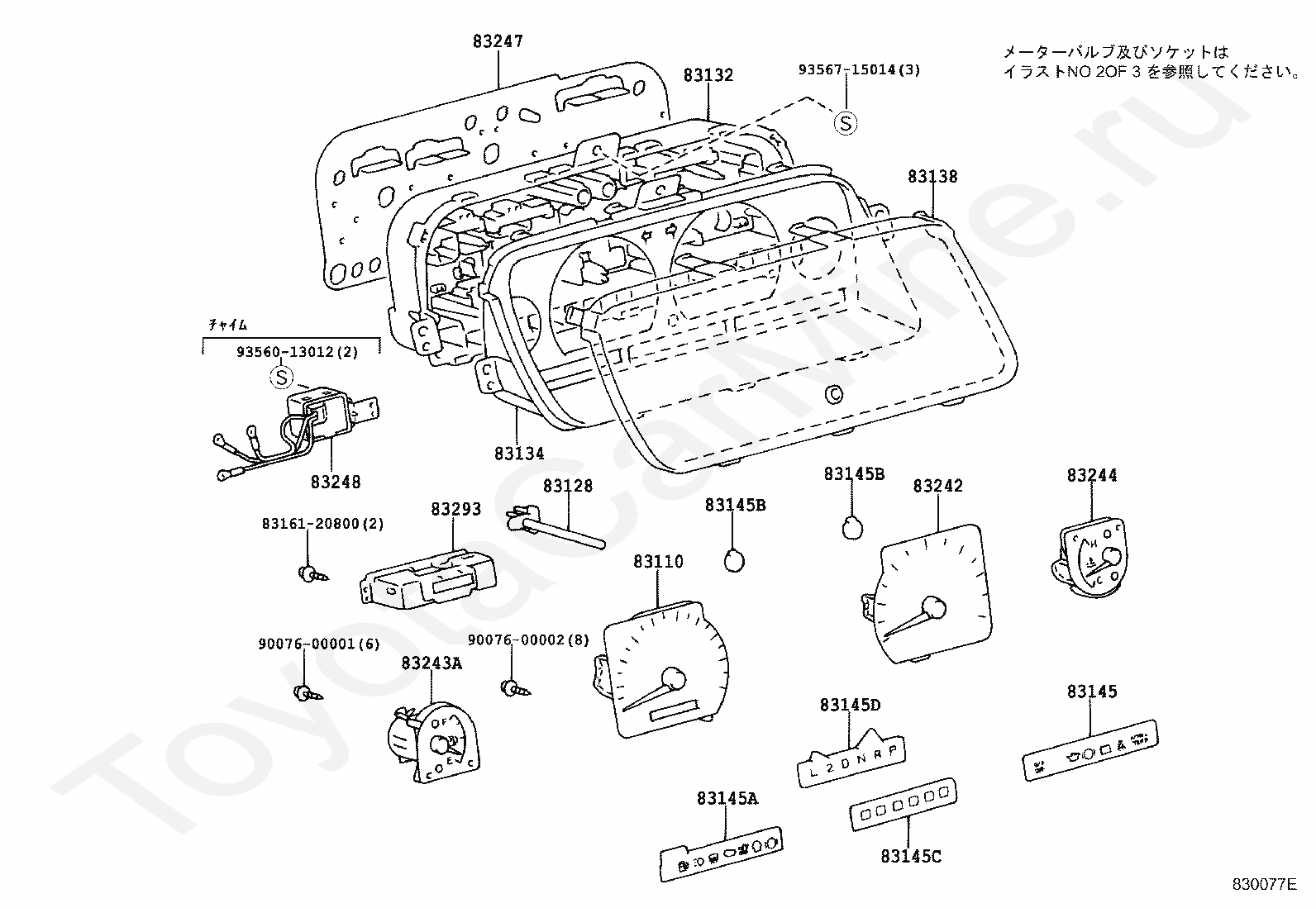

Код

Описание

83110

SPEEDOMETER ASSY

83128

KNOB, TRIP COUNTER

83132

CASE, COMBINATION METER

83134

COVER, COMBINATION METER, NO.1

83138

GLASS, SPEEDOMETER

83145

LENS, METER, NO.1

83145A

LENS, METER, NO.2

83145B

LENS, METER, NO.3

83145B

LENS, METER, NO.3

83145C

LENS, METER, NO.4

83145D

LENS, METER, NO.5

8316120800

Крепеж

83242

TACHOMETER ASSY, ENGINE

83243A

GAUGE SUB-ASSY, FUEL RECEIVER

83244

GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

83247

PLATE, METER CIRCUIT

83248

CHIME, SPEED WARNING

83293

COMPUTER, TOTAL COUNTER MODULE

9007600001

Крепеж

9007600002

Крепеж

9356013012

Крепеж

9356715014

Крепеж

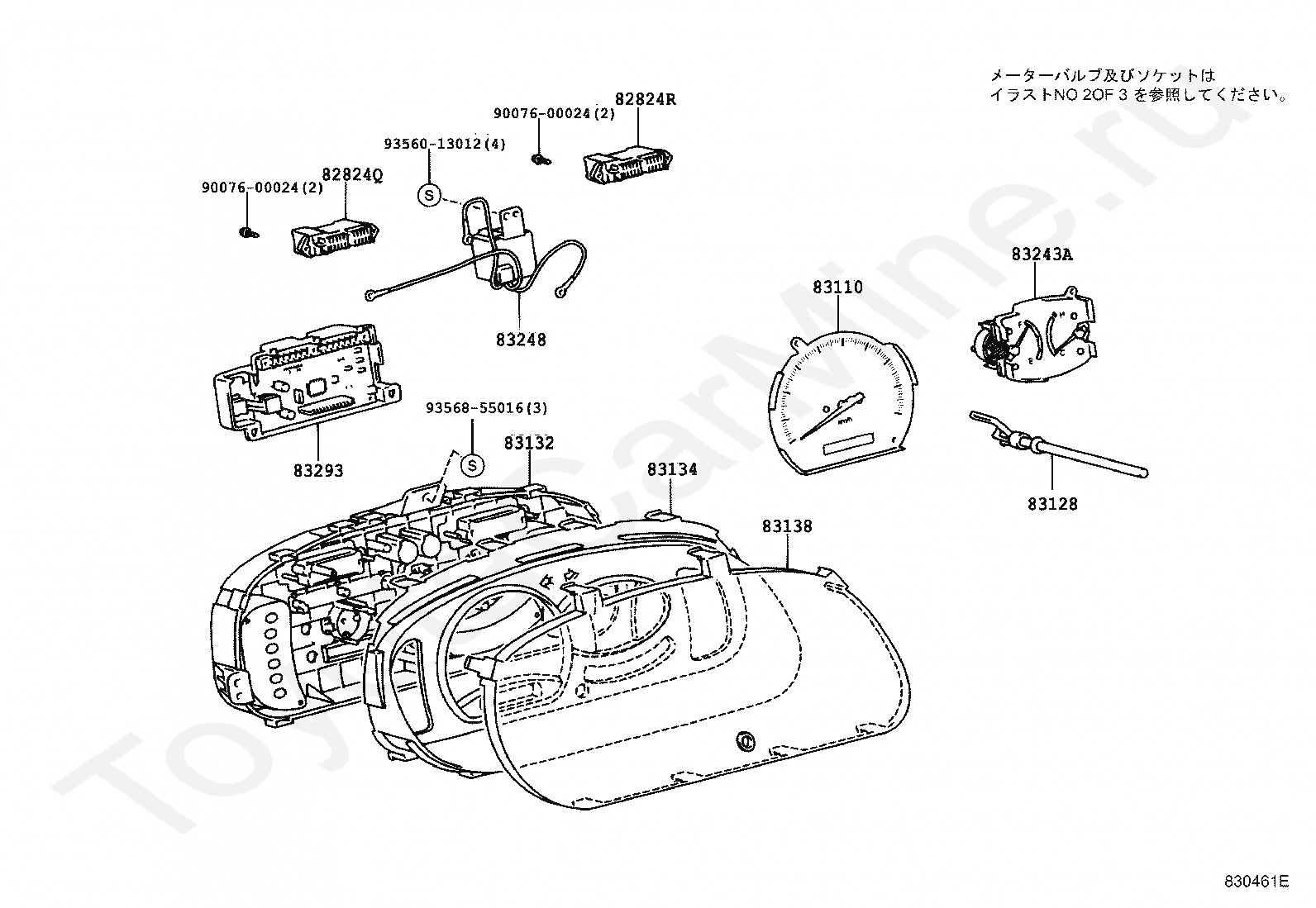

Код

Описание

82824Q

CONNECTOR, WIRING HARNESS, NO.1(FOR SPEEDOMETER)

82824R

CONNECTOR, WIRING HARNESS, NO.2(FOR SPEEDOMETER)

83110

SPEEDOMETER ASSY

83128

KNOB, TRIP COUNTER

83132

CASE, COMBINATION METER

83134

COVER, COMBINATION METER, NO.1

83138

GLASS, SPEEDOMETER

83243A

GAUGE SUB-ASSY, FUEL RECEIVER

83248

CHIME, SPEED WARNING

83293

COMPUTER, TOTAL COUNTER MODULE

9007600024

Крепеж

9007600024

Крепеж

9356013012

Крепеж

9356855016

Крепеж

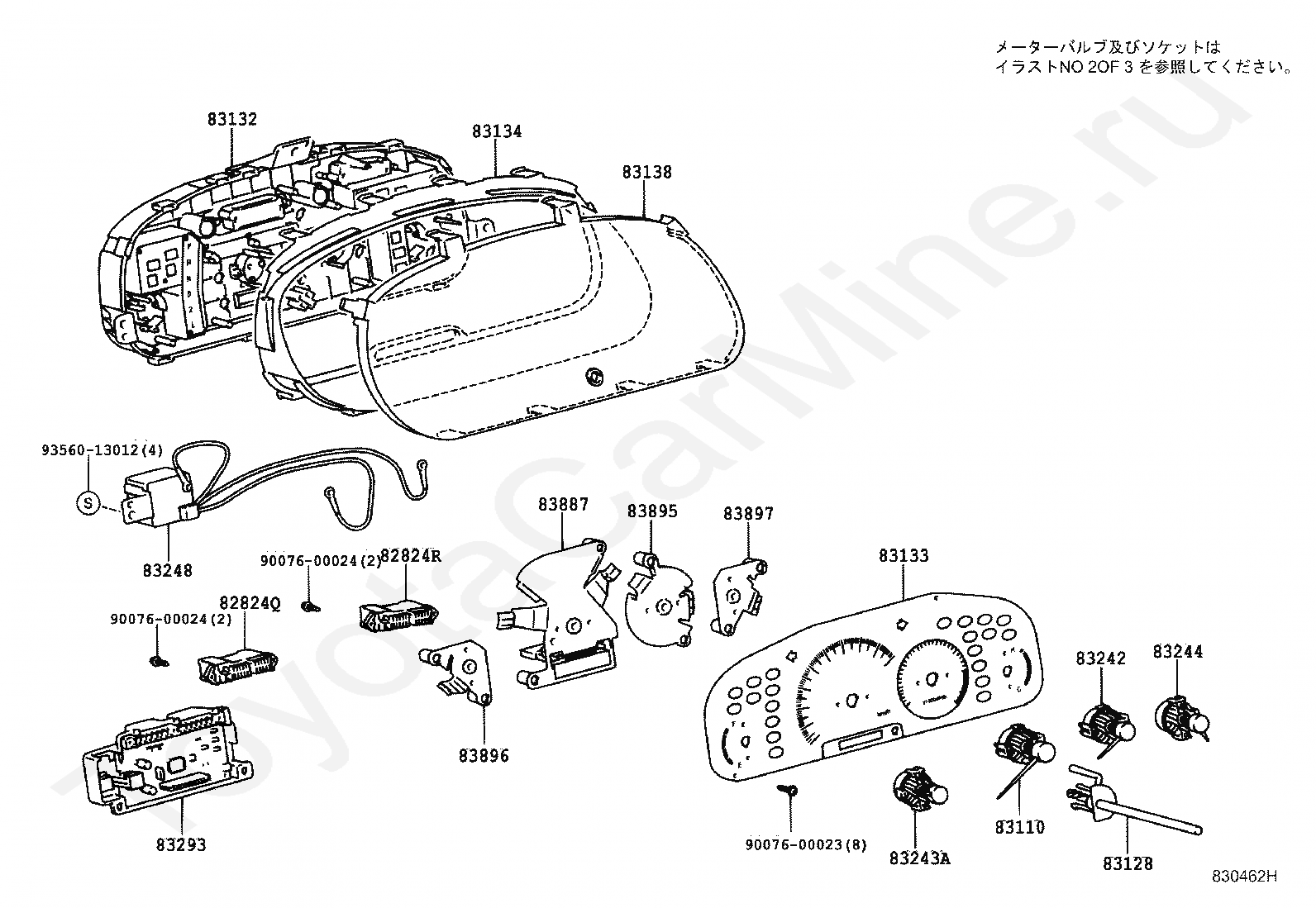

Код

Описание

82824Q

CONNECTOR, WIRING HARNESS, NO.1(FOR SPEEDOMETER)

82824R

CONNECTOR, WIRING HARNESS, NO.2(FOR SPEEDOMETER)

83110

SPEEDOMETER ASSY

83128

KNOB, TRIP COUNTER

83132

CASE, COMBINATION METER

83133

PLATE, COMBINATION METER, NO.1

83134

COVER, COMBINATION METER, NO.1

83138

GLASS, SPEEDOMETER

83242

TACHOMETER ASSY, ENGINE

83243A

GAUGE SUB-ASSY, FUEL RECEIVER

83244

GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

83248

CHIME, SPEED WARNING

83293

COMPUTER, TOTAL COUNTER MODULE

83887

PLATE, COMBINATION METER PRISM, NO.1

83895

PLATE, COMBINATION METER PRISM, NO.2

83896

PLATE, COMBINATION METER PRISM, NO.3

83897

PLATE, COMBINATION METER PRISM, NO.4

9007600023

Крепеж

9007600024

Крепеж

9007600024

Крепеж

9356013012

Крепеж

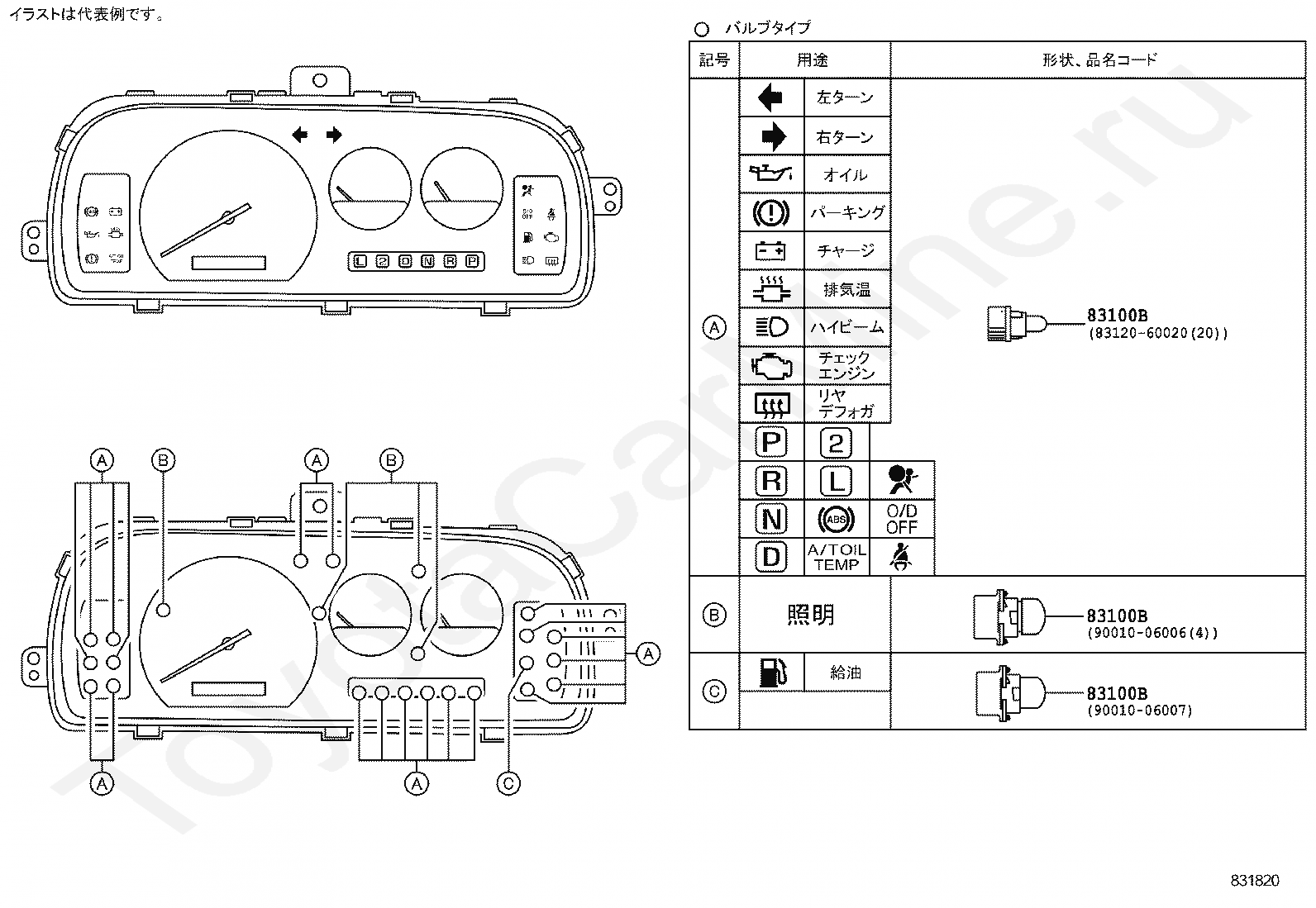

Код

Описание

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

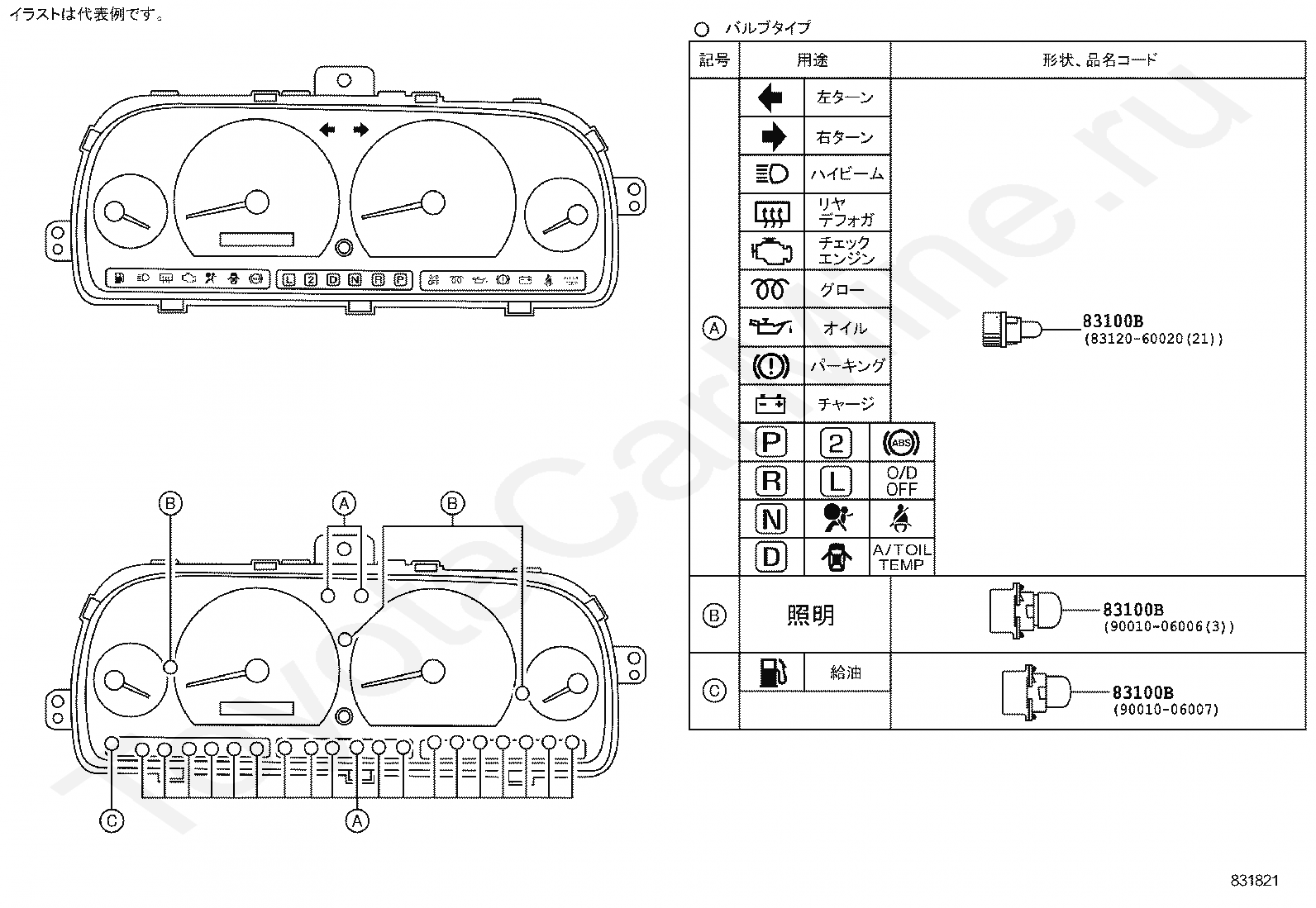

Код

Описание

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

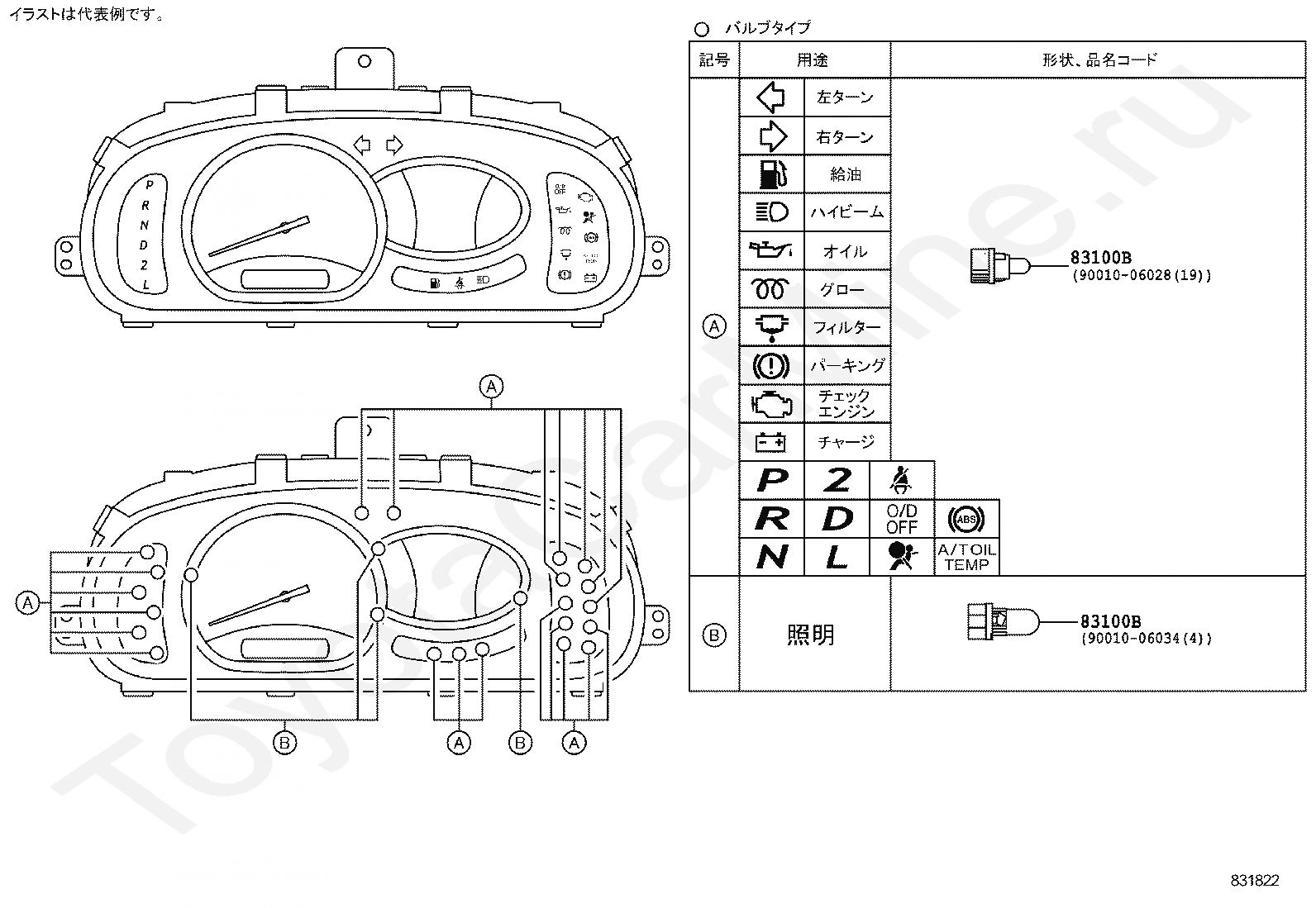

Код

Описание

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

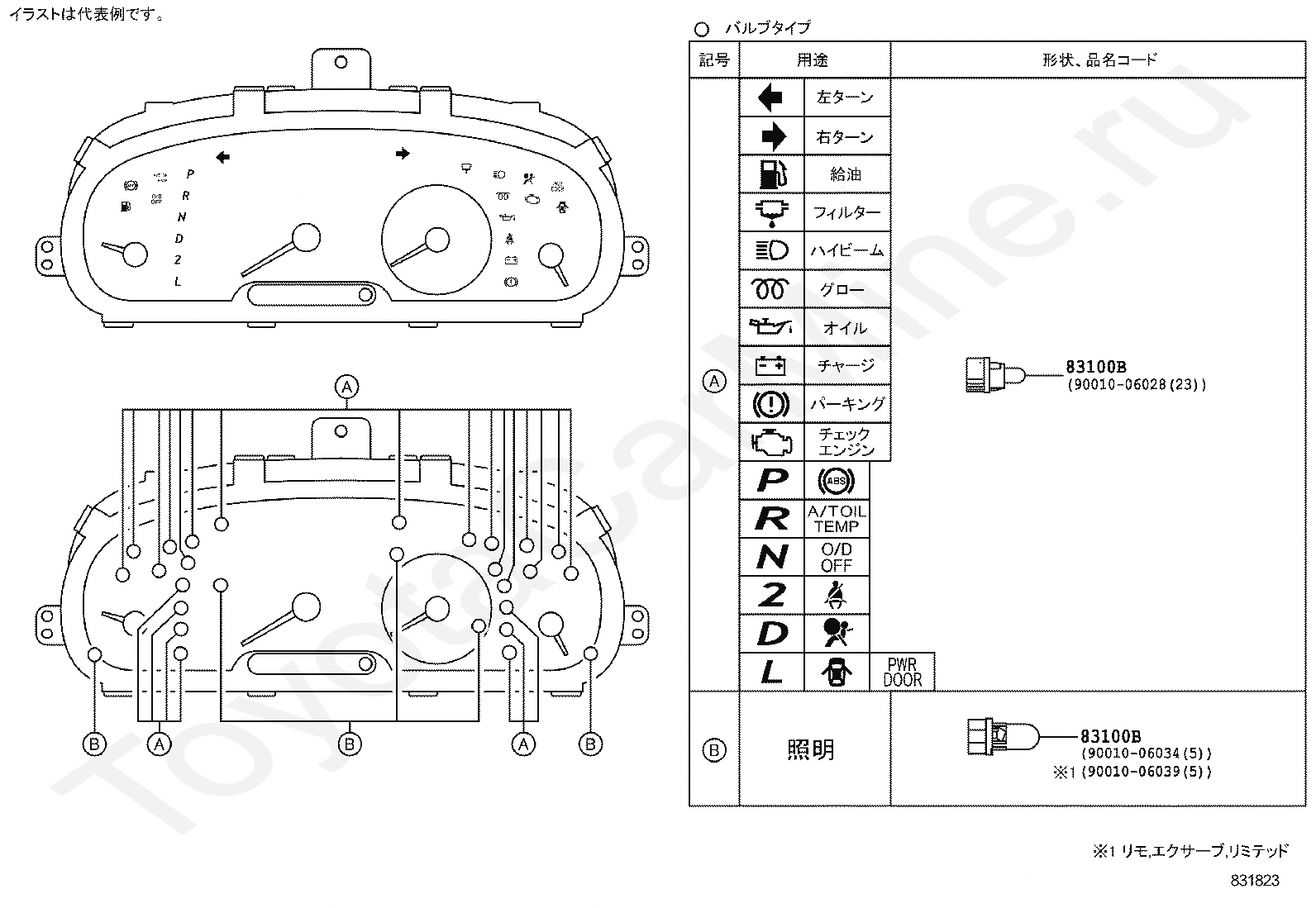

Код

Описание

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

Код

Описание

8202

переход к группе запчастей

8202

переход к группе запчастей

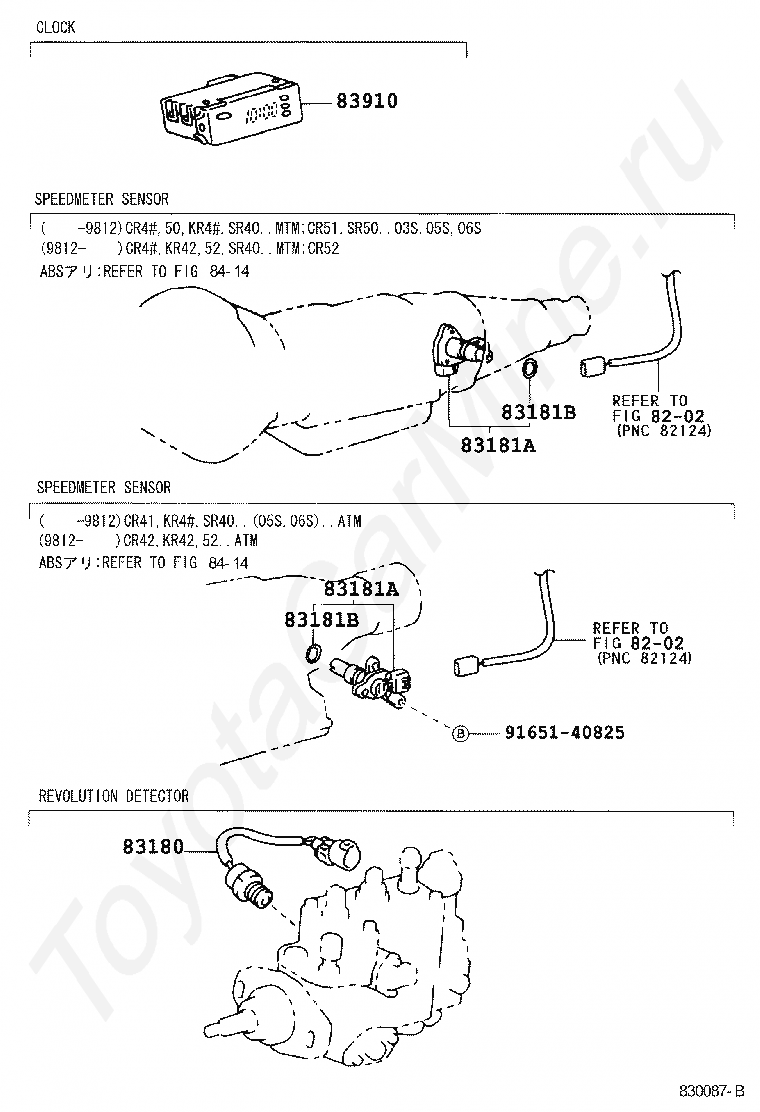

83180

DETECTOR ASSY, REVOLUTION

83181A

SENSOR, SPEEDOMETER

83181A

SENSOR, SPEEDOMETER

83181B

RING, O (FOR SPEEDOMETER SENSOR)

83181B

RING, O (FOR SPEEDOMETER SENSOR)

83910

CLOCK ASSY

8414

переход к группе запчастей

8414

переход к группе запчастей

9165140825

Крепеж

Спидометр TOYOTA LITE/TOWNACE NOAH,V
