5551
переход к группе запчастей
5851
переход к группе запчастей
5852
переход к группе запчастей

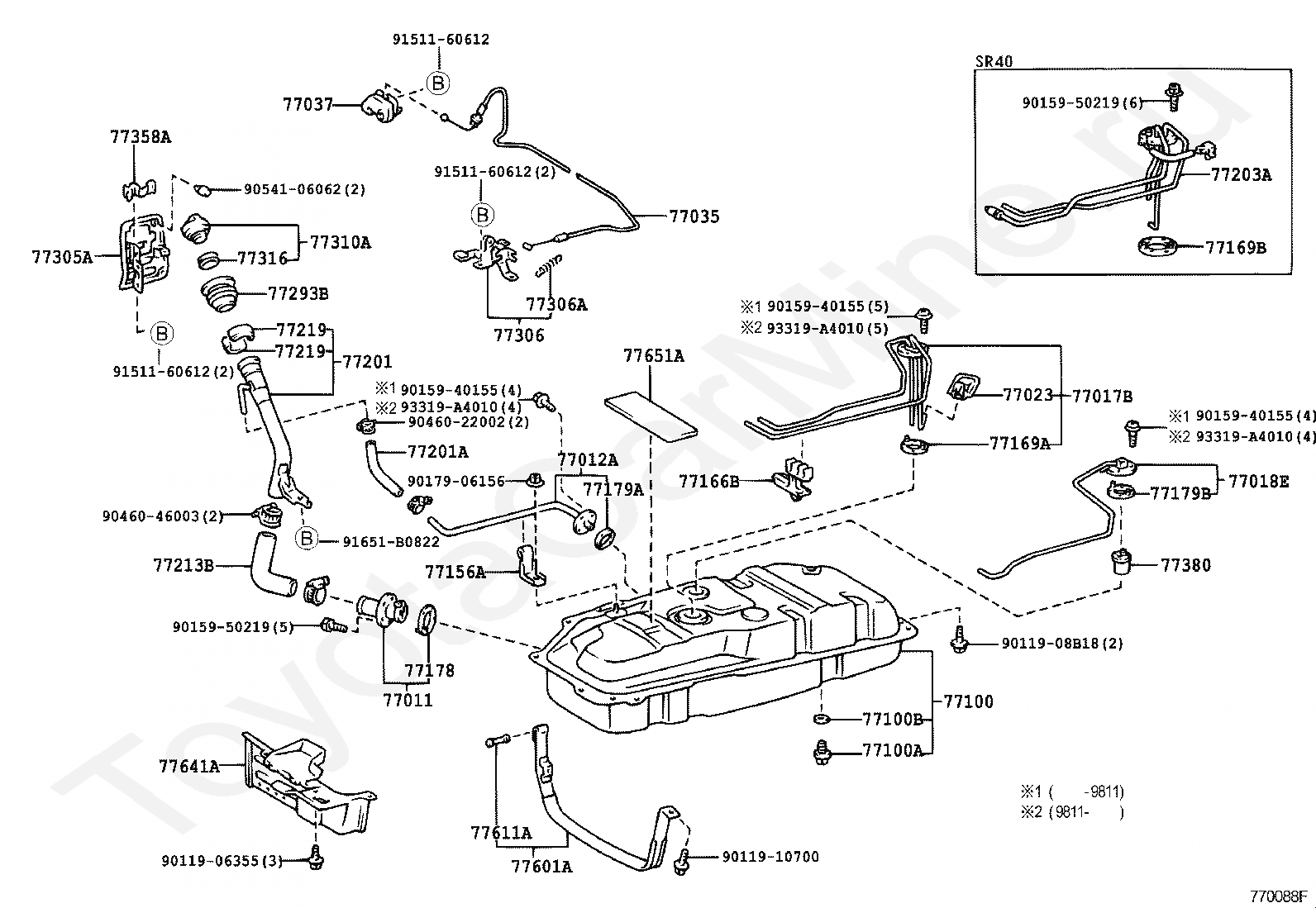

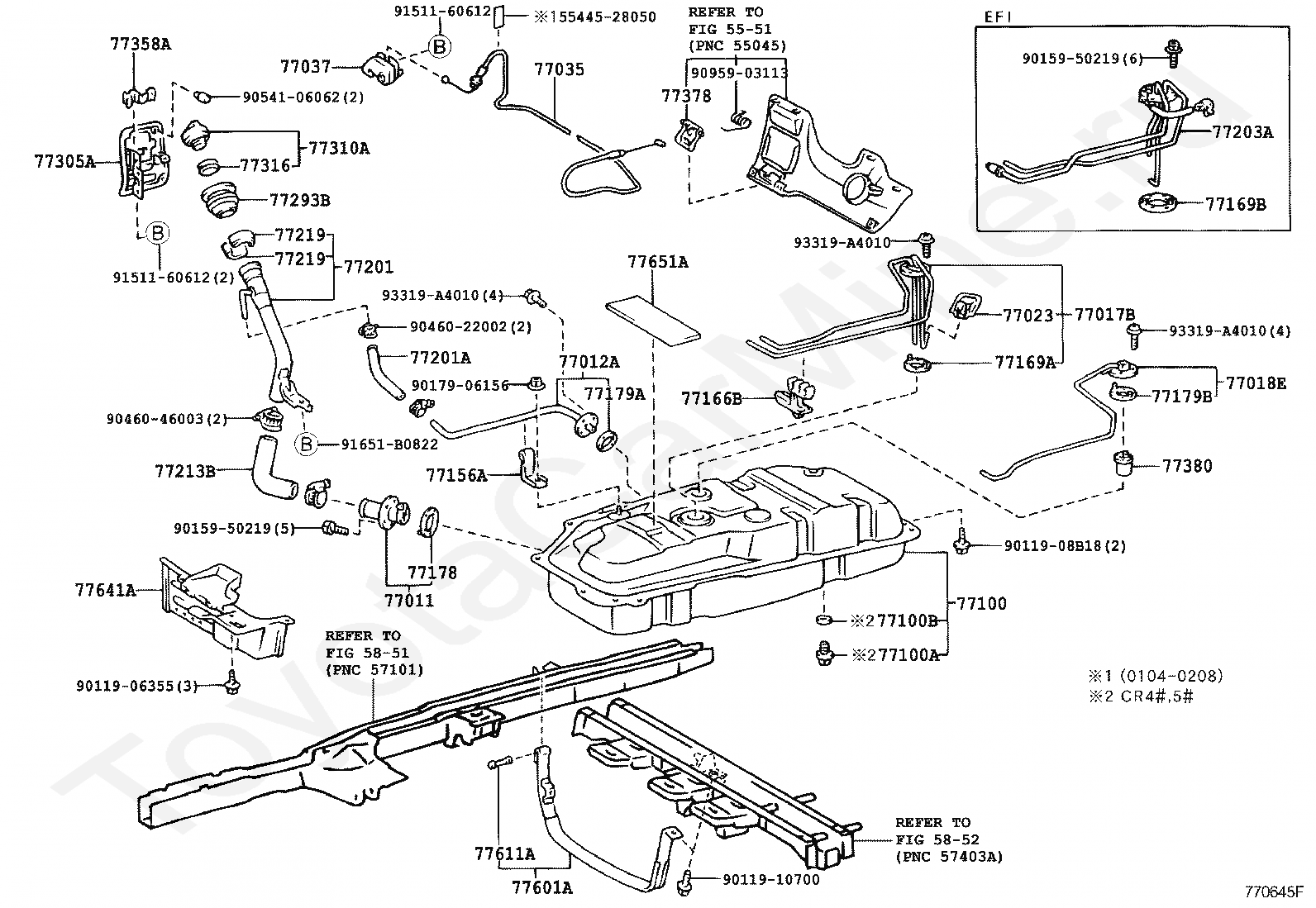

77011
PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77012A
TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
77017B
TUBE SUB-ASSY, FUEL TANK VENT
77018E
TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77023
FILTER SUB-ASSY, FUEL SUCTION TUBE
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037
LOCK SUB-ASSY, FUEL FILLER OPENING LID
77100A
PLUG(FOR FUEL TANK)
77100B
GASKET(FOR FUEL TANK)
77156A
PLATE, BREATHER TUBE SUPPORT, NO.2
77166B
SUPPORT, FUEL TANK VENT TUBE, NO.1
77169A
GASKET, FUEL SUCTION TUBE SET
77169B
GASKET, FUEL SUCTION TUBE SET, NO.1
77178
GASKET, FUEL TANK FILLER PIPE, LOWER
77179A
GASKET, FUEL TANK BREATHER TUBE
77179B
GASKET, FUEL TANK EVAPORATION VENT TUBE
77201
PIPE SUB-ASSY, FUEL TANK INLET
77201A
HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77203A
TUBE SUB-ASSY, FUEL SUCTION
77213B
HOSE, FUEL TANK TO FILLER PIPE
77219
COVER, FUEL TANK FILLER PIPE
77219
COVER, FUEL TANK FILLER PIPE
77293B
PACKING, FUEL INLET PIPE LOWER SHIELD PLATE
77305A
LID SUB-ASSY, FUEL FILLER OPENING
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77358A
STOPPER, FUEL FILLER OPENING LID
77378
LEVER, FUEL FILLER LID LOCK
77380
VALVE ASSY, FUEL CUT OFF
77601A
BAND SUB-ASSY, FUEL TANK, NO.1
77611A
PIN (FOR FUEL TANK BAND)
77641A
PROTECTOR, FUEL TANK, NO.1
77651A
CUSHION, FUEL TANK, NO.1
