Япония

Модель

LITE/TOWNACE NOAH,V

VIN

Дата

1996/10

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Кузов

фургон

Класс

V(MODEL MARK)

Фрейм

SR50

КПП

автомат

Опции

STANDARD ROOF 4 двери 8-местный COMPLETED VEHICLE электронная система впрыска топлива

Кресла TOYOTA LITE/TOWNACE NOAH,V

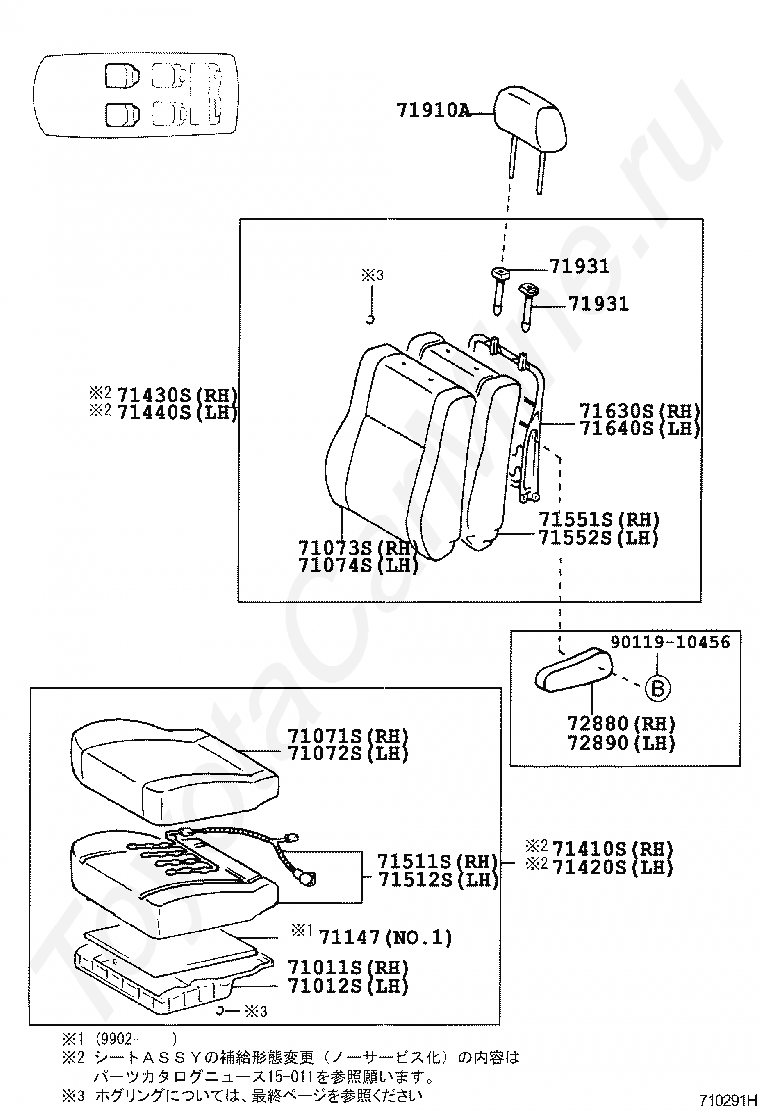

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71147

SILENCER, SEAT SPRING

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72880

ARMREST ASSY, SEAT, C RH

72890

ARMREST ASSY, SEAT, C LH

9011910456

Крепеж

Код

Описание

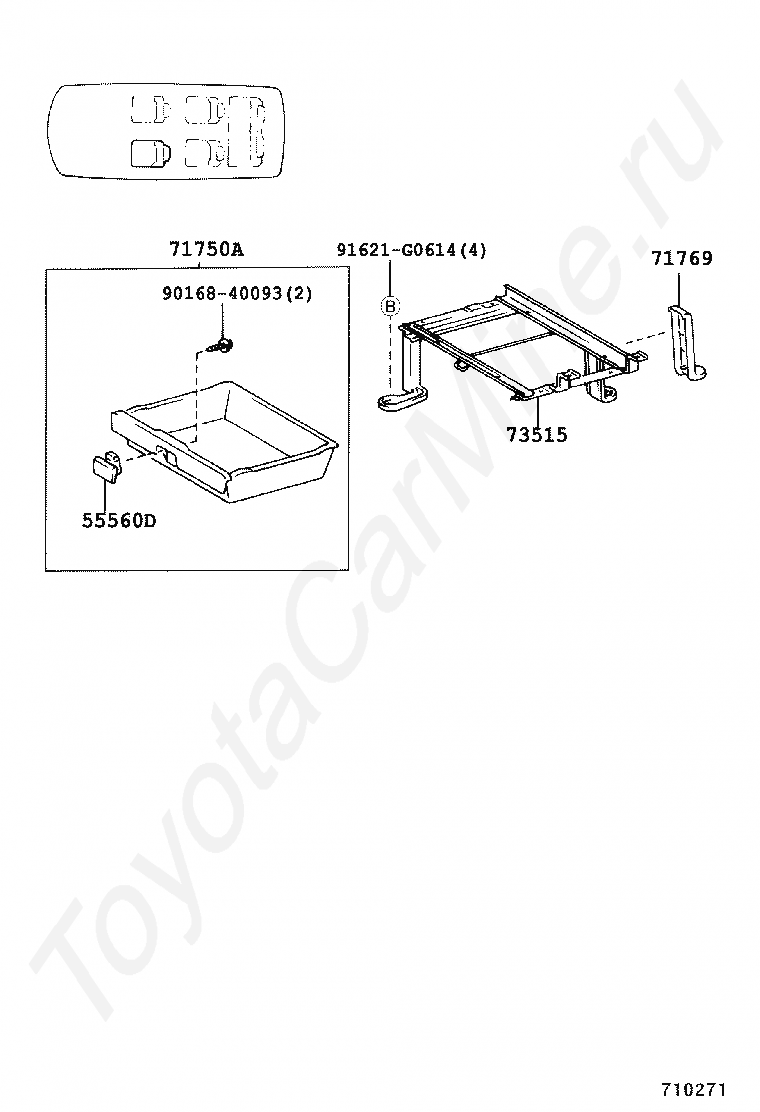

55560D

LOCK ASSY, SEAT UNDER TRAY

71750A

TRAY ASSY, FRONT SEAT UNDER

71769

COVER, FRONT SEAT UNDER TRAY BRACKET

73515

RAIL, FRONT SEAT UNDER TRAY, NO.1

9016840093

Крепеж

91621G0614

Крепеж

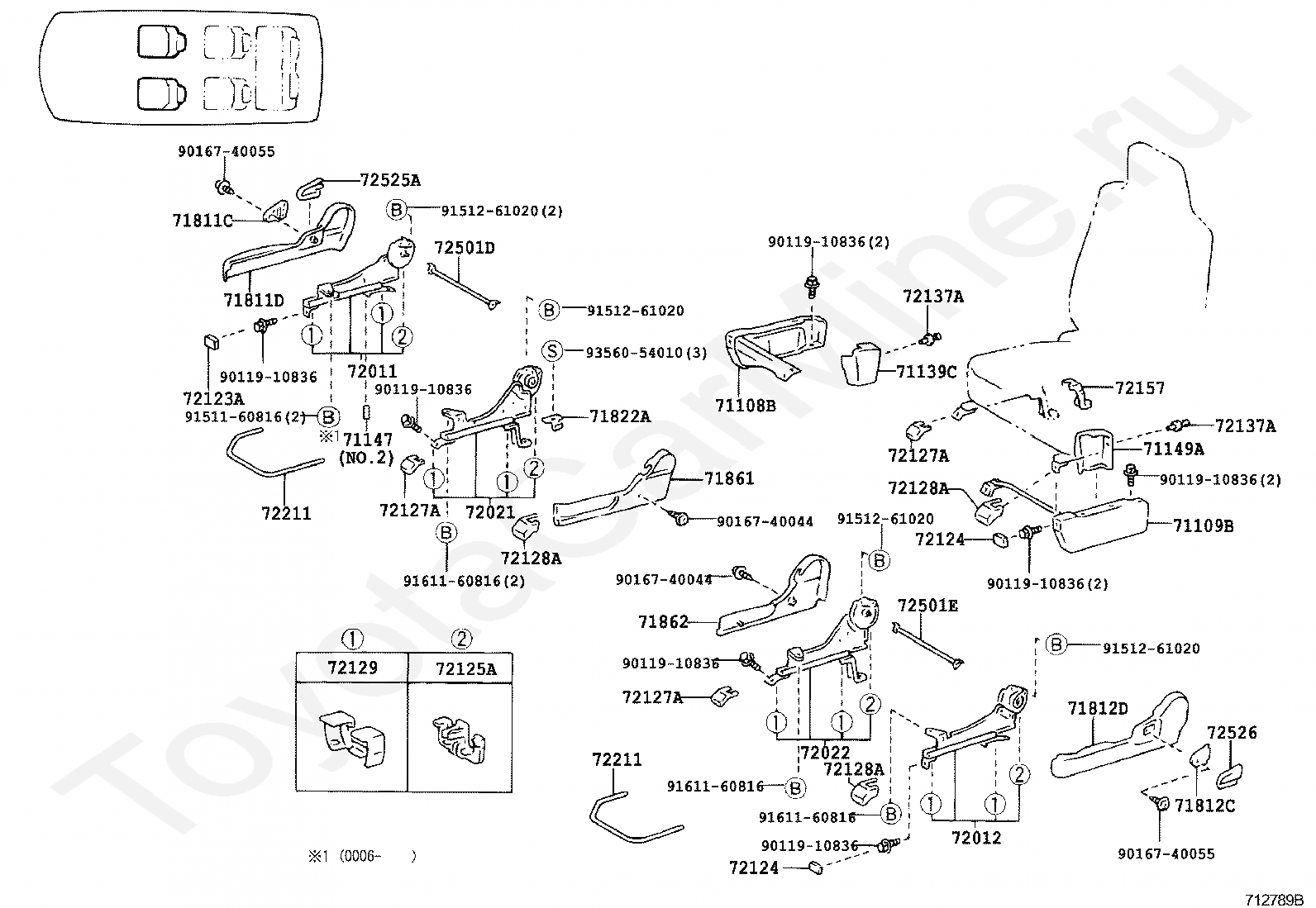

Код

Описание

71108B

LEG SUB-ASSY, FRONT SEAT, RH

71109B

LEG SUB-ASSY, FRONT SEAT, LH

71139C

COVER, FRONT SEAT LEG, RH

71147

SILENCER, SEAT SPRING

71149A

COVER, FRONT SEAT LEG, LH

71811C

COVER, RECLINING ADJUSTER, RH

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812C

COVER, RECLINING ADJUSTER, LH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71822A

BRACKET, FRONT SEAT SHIELD SET, NO.1 LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

72011

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

72012

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH

72021

ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH

72022

ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72125A

COVER, SEAT TRACK, UPPER REAR

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72137A

CLIP (FOR SEAT TRACK COVER)

72137A

CLIP (FOR SEAT TRACK COVER)

72157

COVER, SEAT TRACK BRACKET, INNER

72211

HANDLE, SEAT TRACK ADJUSTING

72211

HANDLE, SEAT TRACK ADJUSTING

72501D

PIPE SUB-ASSY, RECLINING CONNECTING, RH

72501E

PIPE SUB-ASSY, RECLINING CONNECTING, LH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

9011910836

Крепеж

9011910836

Крепеж

9011910836

Крепеж

9011910836

Крепеж

9011910836

Крепеж

9011910836

Крепеж

9011910836

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740055

Крепеж

9016740055

Крепеж

9151160816

Крепеж

9151261020

Крепеж

9151261020

Крепеж

9151261020

Крепеж

9151261020

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9356054010

Крепеж

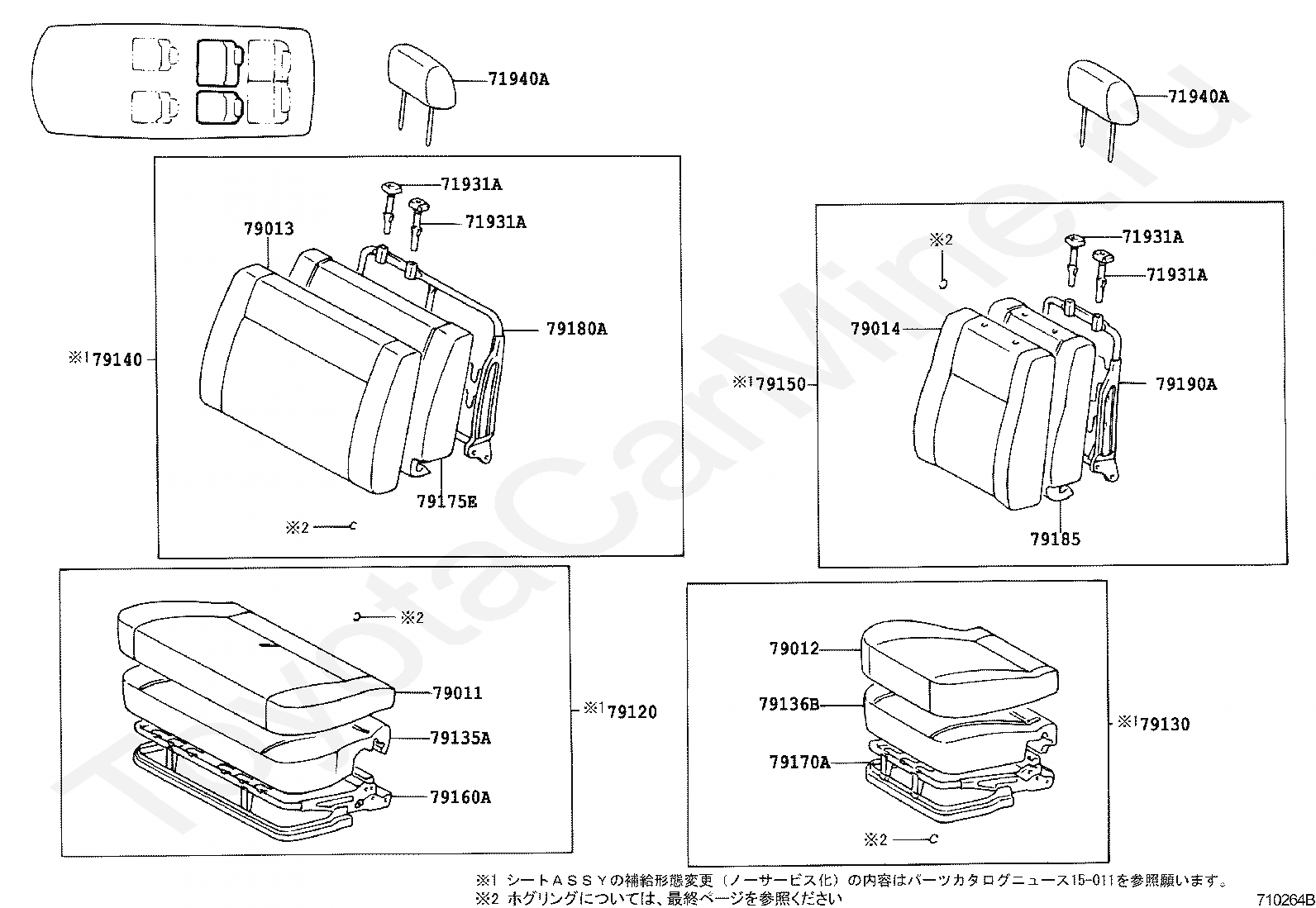

Код

Описание

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71940A

HEADREST ASSY, REAR SEAT

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79120

CUSHION ASSY, NO.1 SEAT, RH

79130

CUSHION ASSY, NO.1 SEAT, LH

79135A

PAD, NO.1 SEAT CUSHION, RH

79136B

PAD, NO.1 SEAT CUSHION, LH

79140

BACK ASSY, NO.1 SEAT, RH

79150

BACK ASSY, NO.1 SEAT, LH

79160A

SPRING ASSY, NO.1 SEAT CUSHION, RH

79170A

SPRING ASSY, NO.1 SEAT CUSUION, LH

79175E

PAD, NO.1 SEAT BACK, RH

79180A

SPRING ASSY, NO.1 SEAT BACK, RH

79185

PAD, NO.1 SEAT BACK, LH

79190A

SPRING ASSY, NO.1 SEAT BACK, LH

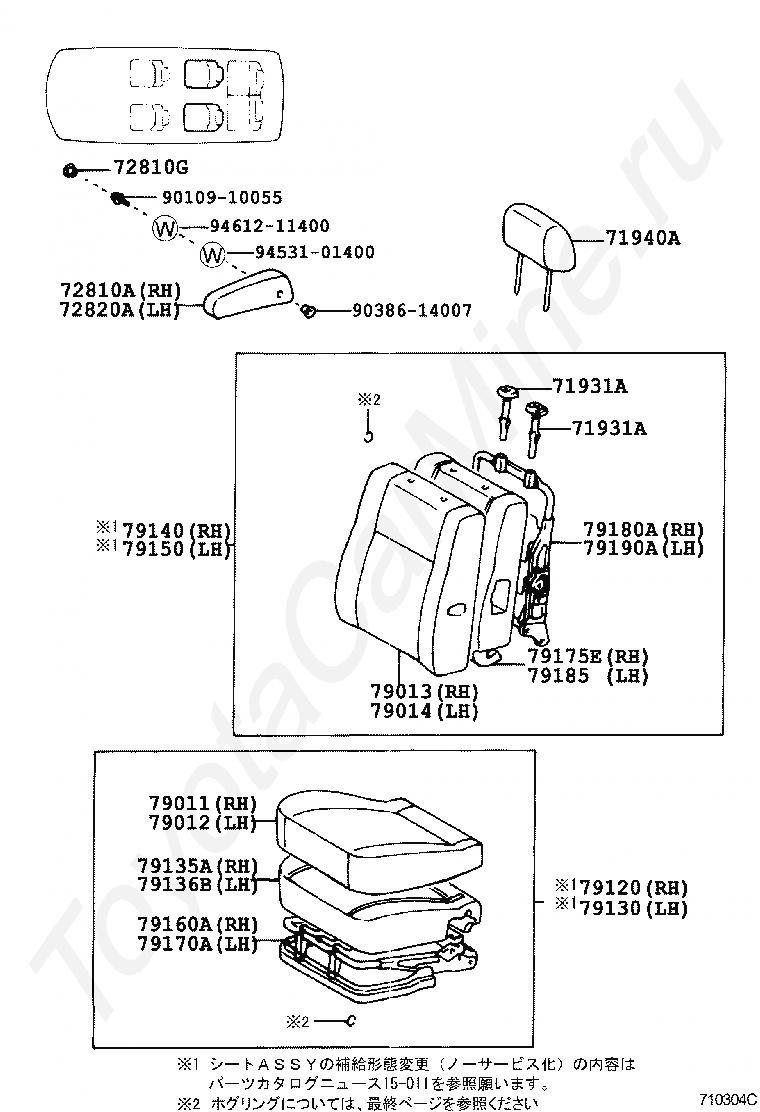

Код

Описание

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72810A

ARMREST ASSY, SEAT, RH

72810G

CLIP, REAR SEAT ARMREST

72820A

ARMREST ASSY, SEAT, LH

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79120

CUSHION ASSY, NO.1 SEAT, RH

79130

CUSHION ASSY, NO.1 SEAT, LH

79135A

PAD, NO.1 SEAT CUSHION, RH

79136B

PAD, NO.1 SEAT CUSHION, LH

79140

BACK ASSY, NO.1 SEAT, RH

79150

BACK ASSY, NO.1 SEAT, LH

79160A

SPRING ASSY, NO.1 SEAT CUSHION, RH

79170A

SPRING ASSY, NO.1 SEAT CUSUION, LH

79175E

PAD, NO.1 SEAT BACK, RH

79180A

SPRING ASSY, NO.1 SEAT BACK, RH

79185

PAD, NO.1 SEAT BACK, LH

79190A

SPRING ASSY, NO.1 SEAT BACK, LH

9010910055

Крепеж

9038614007

Крепеж

9453101400

Крепеж

9461211400

Крепеж

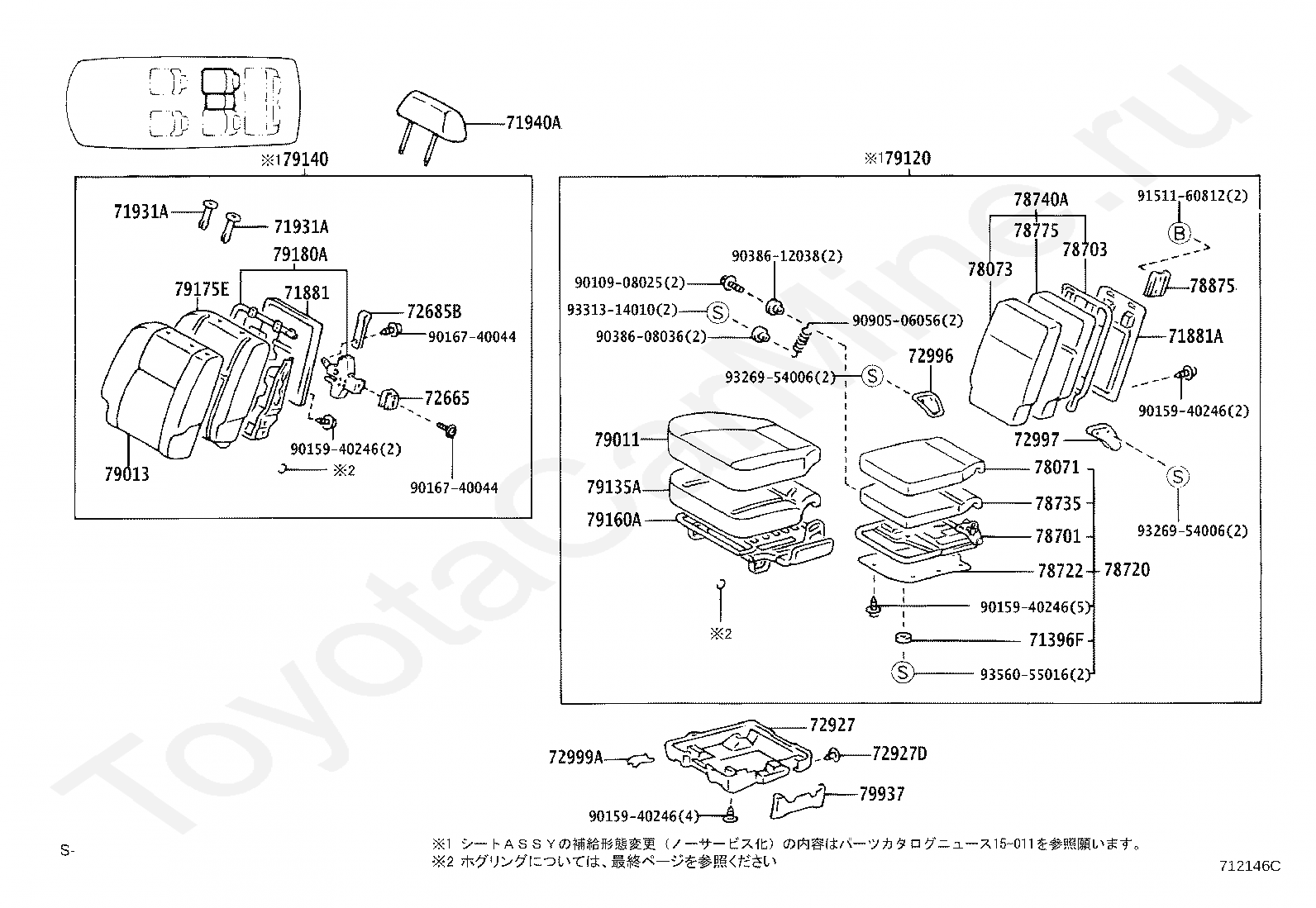

Код

Описание

71396F

CUSHION, NO.1 SEAT SUPPORT, REAR

71881

BOARD, REAR SEAT BACK, RH

71881A

BOARD, REAR SEAT BACK

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72665

COVER, REAR SEAT BACK LOCK, RH

72685B

BELT, REAR SEAT BACK LOCK, RH

72927

COVER, REAR SEAT CUSHION UNDER, RH

72927D

CLIP (FOR REAR SEAT CUSHION UNDER COVER)

72996

COVER, REAR SEAT BACK, RH

72997

COVER, REAR SEAT BACK, LH

72999A

COVER, REAR SEAT CUSHION SIDE, RH

78071

COVER SUB-ASSY, SUB SEAT CUSHION, RH

78073

COVER SUB-ASSY, SUB SEAT BACK, RH

78701

FRAME SUB-ASSY, SUB SEAT CUSHION, RH

78703

FRAME SUB-ASSY, SUB SEAT BACK

78720

CUSHION ASSY, SUB SEAT, RH

78722

PLATE, SUB SEAT CUSHION BOARD, NO.1

78735

PAD, SUB SEAT CUSHION

78740A

BACK ASSY, SUB SEAT, RH

78775

PAD, SUB SEAT BACK

78875

STRIKER, SUB SEAT LOCK

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79120

CUSHION ASSY, NO.1 SEAT, RH

79135A

PAD, NO.1 SEAT CUSHION, RH

79140

BACK ASSY, NO.1 SEAT, RH

79160A

SPRING ASSY, NO.1 SEAT CUSHION, RH

79175E

PAD, NO.1 SEAT BACK, RH

79180A

SPRING ASSY, NO.1 SEAT BACK, RH

79937

COVER, REAR SEAT LEG, NO.2

9010908025

Крепеж

9015940246

Крепеж

9015940246

Крепеж

9015940246

Крепеж

9015940246

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9038608036

Крепеж

9038612038

Крепеж

9090506056

Крепеж

9151160812

Крепеж

9326954006

Крепеж

9326954006

Крепеж

9331314010

Крепеж

9356055016

Крепеж

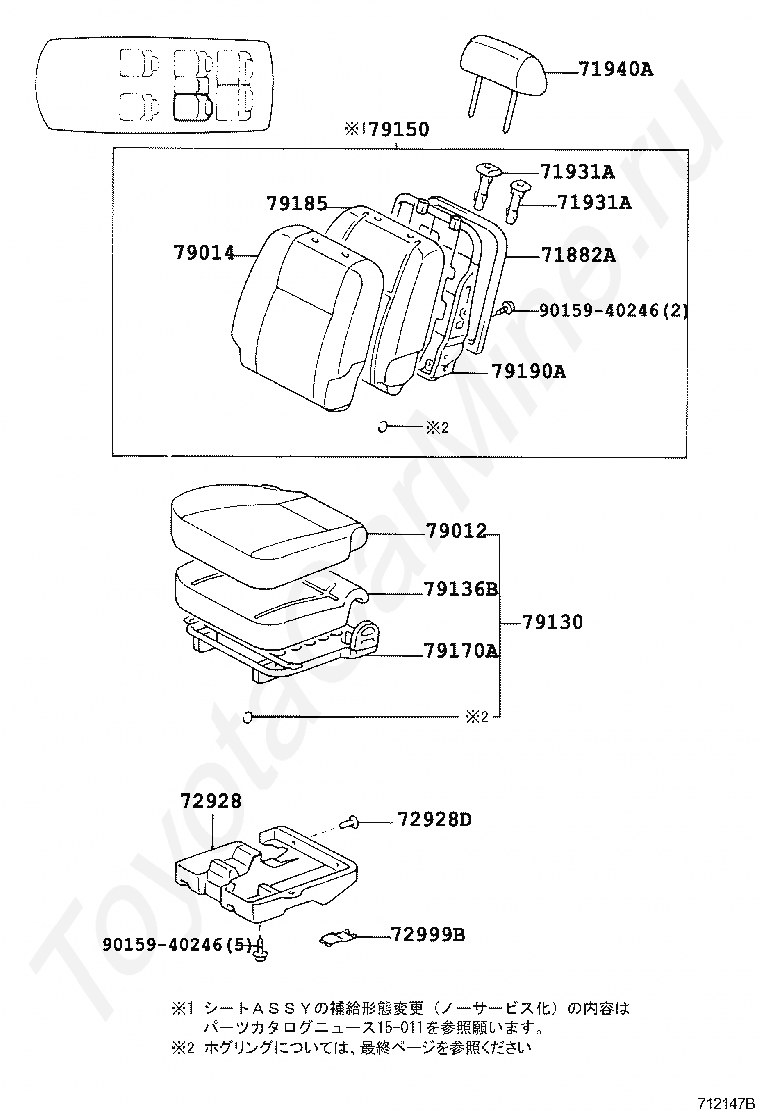

Код

Описание

71882A

BOARD, REAR SEAT BACK, LH

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72928

COVER, REAR SEAT CUSHION UNDER, LH

72928D

CLIP (FOR REAR SEAT CUSHION UNDER COVER)

72999B

COVER, REAR SEAT CUSHION SIDE, LH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79130

CUSHION ASSY, NO.1 SEAT, LH

79136B

PAD, NO.1 SEAT CUSHION, LH

79150

BACK ASSY, NO.1 SEAT, LH

79170A

SPRING ASSY, NO.1 SEAT CUSUION, LH

79185

PAD, NO.1 SEAT BACK, LH

79190A

SPRING ASSY, NO.1 SEAT BACK, LH

9015940246

Крепеж

9015940246

Крепеж

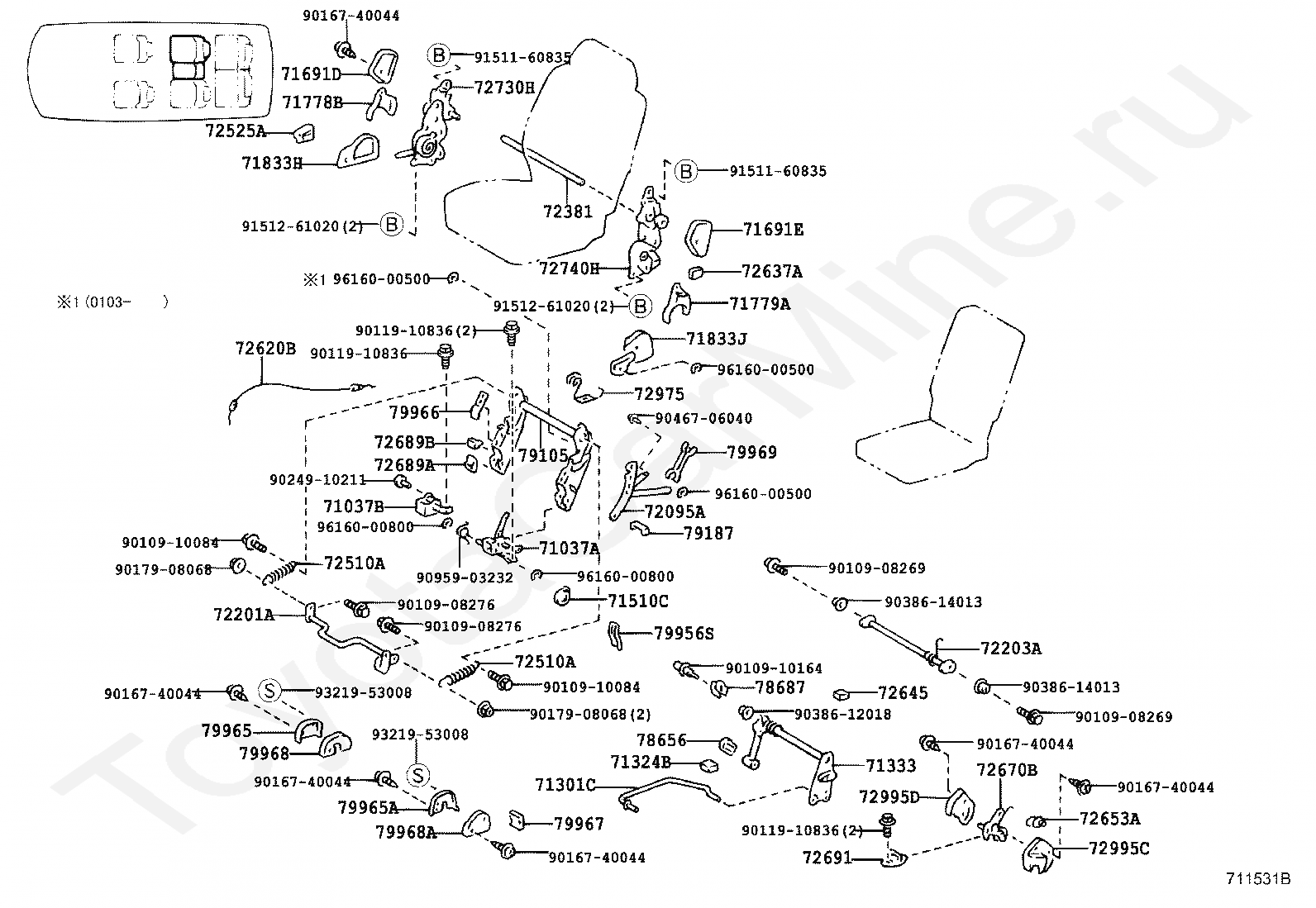

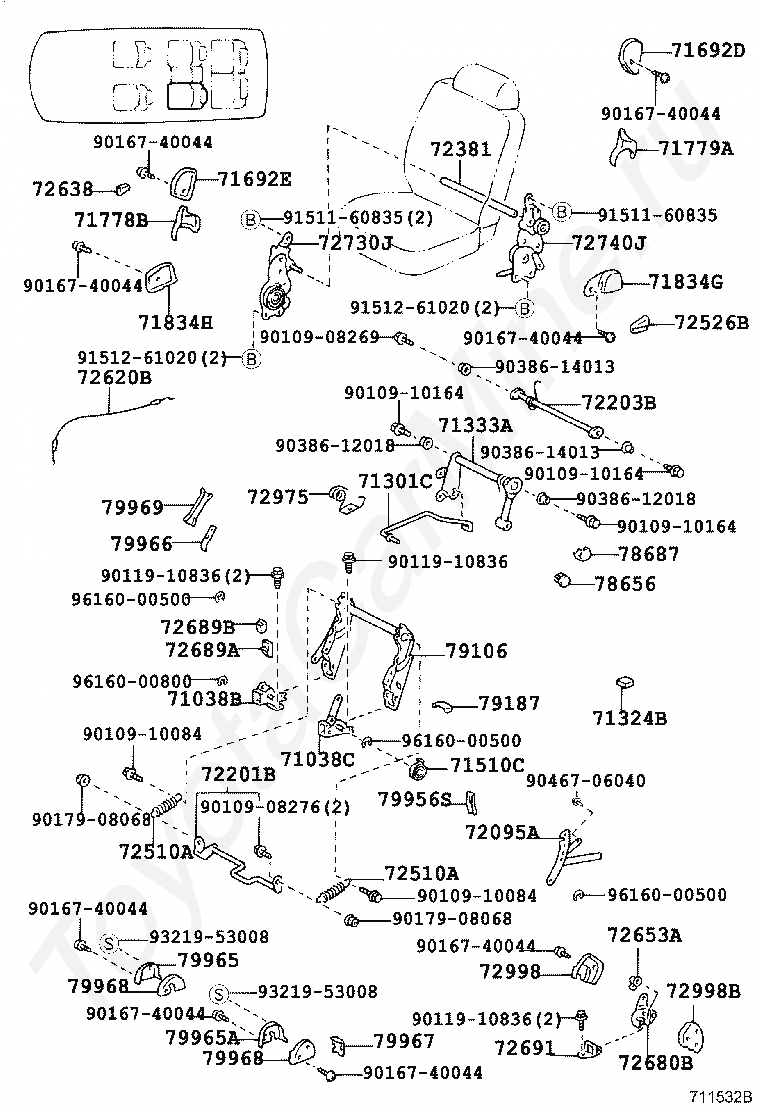

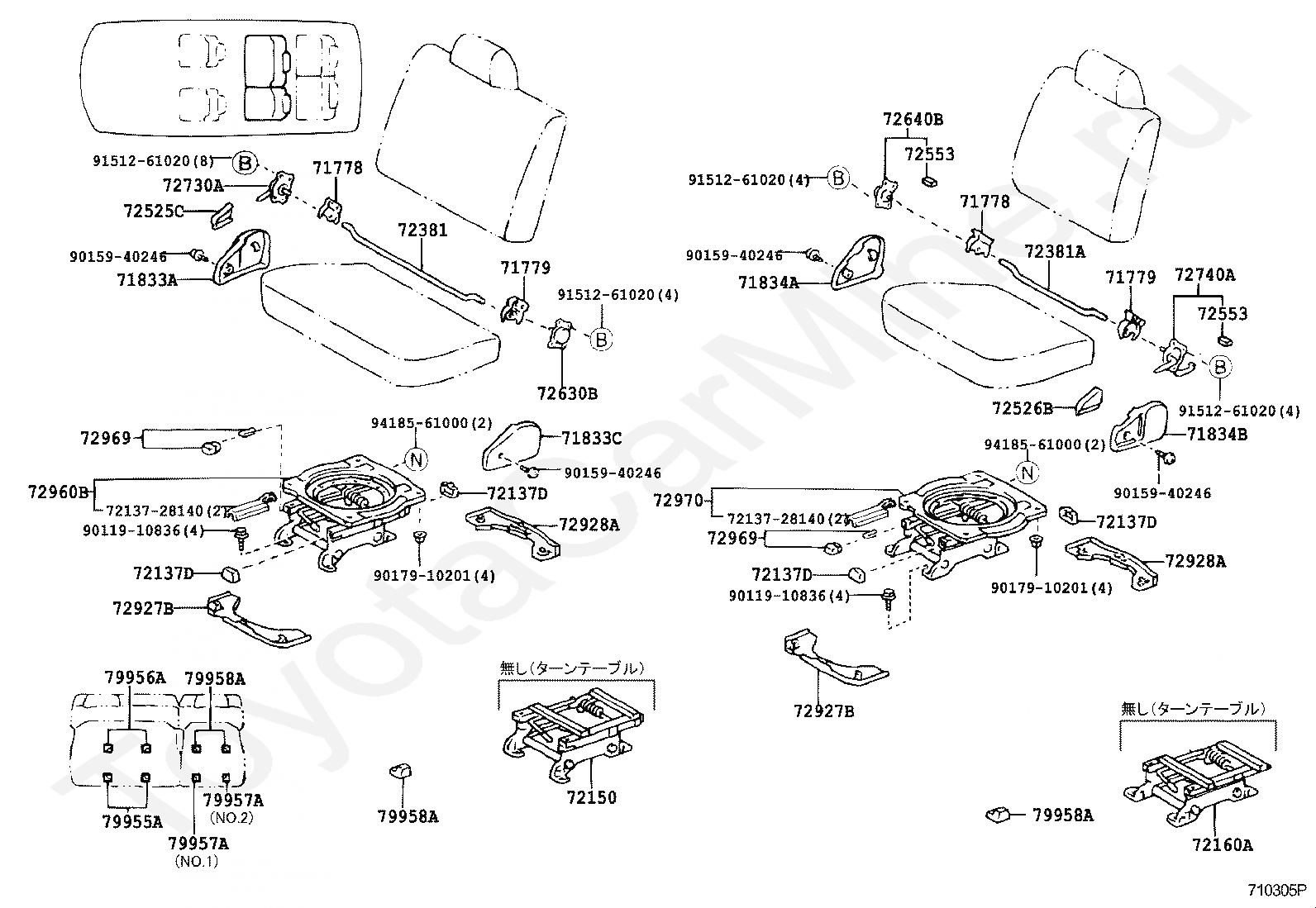

Код

Описание

71778

COVER, REAR SEAT SIDE HINGE MALE, RH

71778

COVER, REAR SEAT SIDE HINGE MALE, RH

71779

COVER, REAR SEAT SIDE HINGE MALE, LH

71779

COVER, REAR SEAT SIDE HINGE MALE, LH

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71833C

COVER, REAR SEAT RECLINING, NO.2 RH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71834B

COVER, REAR SEAT RECLINING, NO.2 LH

7213728140

Крепеж

7213728140

Крепеж

72137D

COVER, REAR SEAT TRACK, RH

72137D

COVER, REAR SEAT TRACK, RH

72137D

COVER, REAR SEAT TRACK, RH

72137D

COVER, REAR SEAT TRACK, RH

72150

TRACK ASSY, REAR SEAT, RH

72160A

TRACK ASSY, REAR SEAT, LH

72381

ROD, RECLINING ADJUSTER EQUALIZING, NO.1

72381A

ROD, REAR SEAT RECLINING ADJUSTER EQUALIZING, LH

72525C

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

72526B

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

72553

COVER, RECLINING PEDAL

72553

COVER, RECLINING PEDAL

72630B

ADJUSTER ASSY, REAR NO.1 SEAT, INNER RH

72640B

ADJUSTER ASSY, REAR NO.1 SEAT, INNER LH

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72927B

COVER, REAR SEAT CUSHION UNDER

72927B

COVER, REAR SEAT CUSHION UNDER

72928A

COVER, REAR SEAT CUSHION UNDER, NO.2

72928A

COVER, REAR SEAT CUSHION UNDER, NO.2

72960B

TABLE ASSY, REAR SEAT TURN, RH

72969

KNOB, REAR SEAT TURN LOCK

72969

KNOB, REAR SEAT TURN LOCK

72970

TABLE ASSY, REAR SEAT TURN, LH

79955A

COVER, REAR SEAT FRONT BRACKET, RH

79956A

CLIP (FOR REAR SEAT LEG BRACKET COVER)

79957A

COVER, REAR SEAT REAR BRACKET, RH

79957A

COVER, REAR SEAT REAR BRACKET, RH

79958A

COVER, REAR SEAT REAR BRACKET, LH

79958A

COVER, REAR SEAT REAR BRACKET, LH

79958A

COVER, REAR SEAT REAR BRACKET, LH

9011910836

Крепеж

9011910836

Крепеж

9015940246

Крепеж

9015940246

Крепеж

9015940246

Крепеж

9015940246

Крепеж

9017910201

Крепеж

9017910201

Крепеж

9151261020

Крепеж

9151261020

Крепеж

9151261020

Крепеж

9151261020

Крепеж

9418561000

Крепеж

9418561000

Крепеж

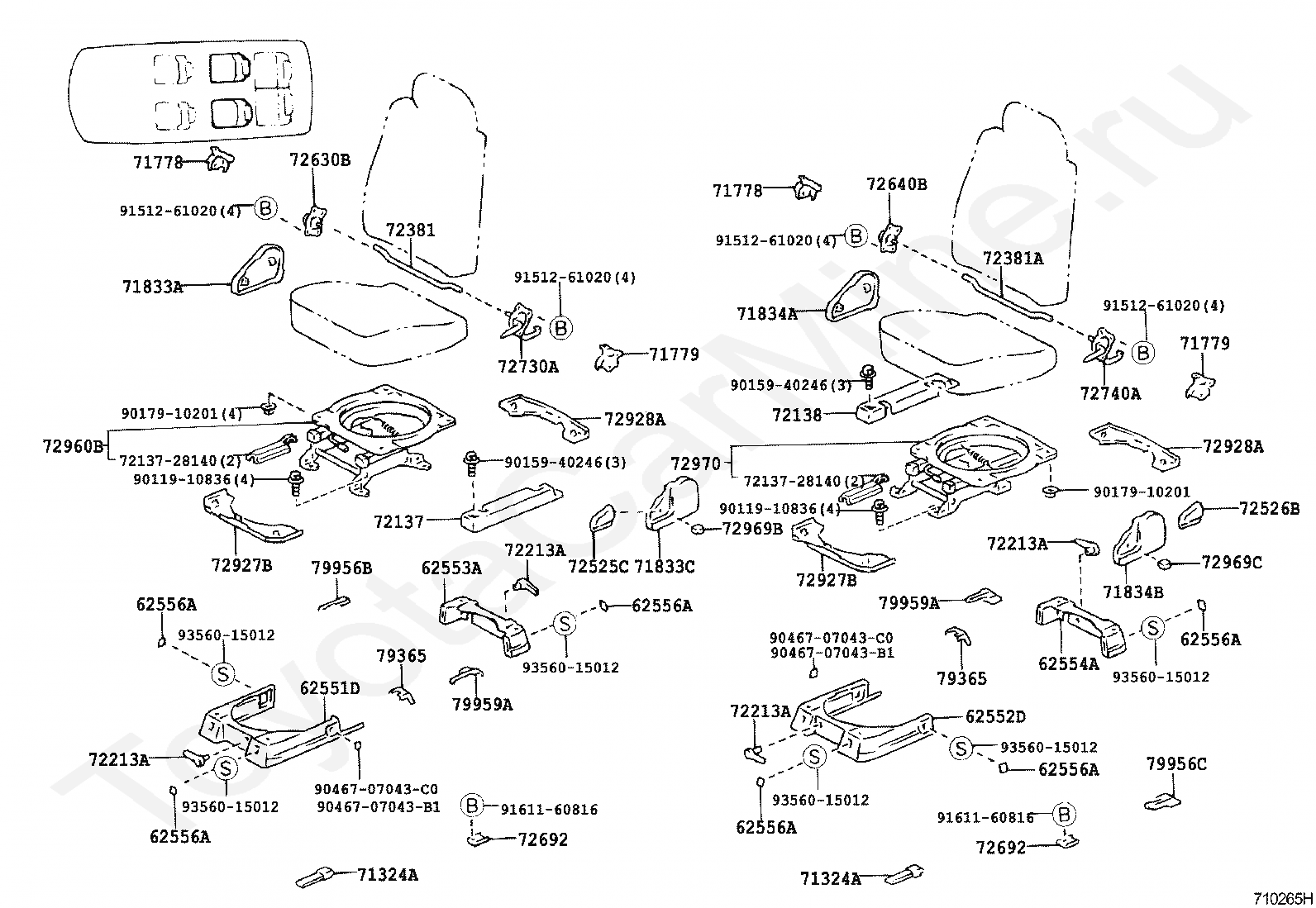

Код

Описание

62551D

GARNISH, REAR SEAT SIDE, RH

62552D

GARNISH, REAR SEAT SIDE, LH

62553A

GARNISH, REAR SEAT SIDE, NO.2 RH

62554A

GARNISH, REAR SEAT SIDE, NO.2 LH

62556A

CAP, REAR SEAT SIDE GARNISH

62556A

CAP, REAR SEAT SIDE GARNISH

62556A

CAP, REAR SEAT SIDE GARNISH

62556A

CAP, REAR SEAT SIDE GARNISH

62556A

CAP, REAR SEAT SIDE GARNISH

62556A

CAP, REAR SEAT SIDE GARNISH

71324A

CUSHION, REAR SEAT

71324A

CUSHION, REAR SEAT

71778

COVER, REAR SEAT SIDE HINGE MALE, RH

71778

COVER, REAR SEAT SIDE HINGE MALE, RH

71779

COVER, REAR SEAT SIDE HINGE MALE, LH

71779

COVER, REAR SEAT SIDE HINGE MALE, LH

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71833C

COVER, REAR SEAT RECLINING, NO.2 RH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71834B

COVER, REAR SEAT RECLINING, NO.2 LH

72137

COVER, SEAT TRACK, OUTER RH

7213728140

Крепеж

7213728140

Крепеж

72138

COVER, SEAT TRACK, OUTER LH

72213A

KNOB, SEAT TRACK ADJUSTING HANDLE

72213A

KNOB, SEAT TRACK ADJUSTING HANDLE

72213A

KNOB, SEAT TRACK ADJUSTING HANDLE

72213A

KNOB, SEAT TRACK ADJUSTING HANDLE

72381

ROD, RECLINING ADJUSTER EQUALIZING, NO.1

72381A

ROD, REAR SEAT RECLINING ADJUSTER EQUALIZING, LH

72525C

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

72526B

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

72630B

ADJUSTER ASSY, REAR NO.1 SEAT, INNER RH

72640B

ADJUSTER ASSY, REAR NO.1 SEAT, INNER LH

72692

STRIKER, REAR SEAT CUSHION LOCK, NO.2

72692

STRIKER, REAR SEAT CUSHION LOCK, NO.2

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72927B

COVER, REAR SEAT CUSHION UNDER

72927B

COVER, REAR SEAT CUSHION UNDER

72928A

COVER, REAR SEAT CUSHION UNDER, NO.2

72928A

COVER, REAR SEAT CUSHION UNDER, NO.2

72960B

TABLE ASSY, REAR SEAT TURN, RH

72969B

KNOB, REAR SEAT TURN LOCK, RH

72969C

KNOB, REAR SEAT TURN LOCK, LH

72970

TABLE ASSY, REAR SEAT TURN, LH

79365

COVER, NO.3 SEAT LEG BRACKET

79365

COVER, NO.3 SEAT LEG BRACKET

79956B

COVER, REAR SEAT LEG SIDE, RH

79956C

COVER, REAR SEAT LEG SIDE, LH

79959A

COVER, REAR SEAT LEG, RH

79959A

COVER, REAR SEAT LEG, RH

9011910836

Крепеж

9011910836

Крепеж

9015940246

Крепеж

9015940246

Крепеж

9017910201

Крепеж

9017910201

Крепеж

9046707043B1

Крепеж

9046707043B1

Крепеж

9046707043C0

Крепеж

9046707043C0

Крепеж

9151261020

Крепеж

9151261020

Крепеж

9151261020

Крепеж

9151261020

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9356015012

Крепеж

9356015012

Крепеж

9356015012

Крепеж

9356015012

Крепеж

9356015012

Крепеж

9356015012

Крепеж

Код

Описание

71037A

HINGE SUB-ASSY, CENTER SEAT BACK, INNER RH

71037B

HINGE SUB-ASSY, CENTER SEAT BACK, OUTER RH

71301C

LINK SUB-ASSY, REAR SEAT CUSHION

71324B

CUSHION, REAR SEAT

71333

LEG, REAR SEAT CUSHION, NO.1

71510C

SPRING, SPIRAL

71691D

COVER, REAR SEAT CUSHION HINGE, UPPER RH

71691E

COVER, REAR SEAT CUSHION HINGE, NO.1

71778B

COVER, REAR SEAT SIDE HINGE MALE, RH

71779A

COVER, REAR SEAT SIDE HINGE MALE, LH

71833H

COVER, REAR SEAT RECLINING, NO.1 RH

71833J

COVER, REAR SEAT RECLINING, NO.1 RH

72095A

PLATE SUB-ASSY, REAR SEAT TURN SET

72201A

HANDLE SUB-ASSY, SEAT TRACK RH

72203A

HANDLE SUB-ASSY, REAR SEAT TRACK, RH

72381

ROD, RECLINING ADJUSTER EQUALIZING, NO.1

72510A

SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER)

72510A

SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER)

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72620B

CABLE ASSY, REAR NO.1 SEAT LOCK

72637A

HANDLE, REAR SEAT LOCK

72645

CUSHION, REAR SEAT BACK LOCK

72653A

SNAP, REAR SEAT BACK LOCK ROD

72670B

LOCK ASSY, REAR SEAT CUSHION, RH

72689A

CUSHION, REAR SEAT CUSHION LOCK

72689B

CUSHION, REAR SEAT CUSHION LOCK, NO.2

72691

STRIKER, REAR NO.3 SEAT LOCK

72730H

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72740H

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72975

PROTECTOR, REAR SEAT TURN PLATE

72995C

COVER, REAR SEAT CUSHION, OUTER RH

72995D

COVER, REAR SEAT CUSHION, INNER RH

78656

COVER, REAR SEAT LEGREST

78687

COVER, REAR SEAT LEGREST LOCK

79105

LEG SUB-ASSY, NO.1 SEAT, RH

79187

COVER, NO.1 SEAT INNER BRACKET

79956S

COVER, REAR SEAT LEG SIDE

79965

COVER, REAR SEAT LEG SIDE, NO.2

79965A

COVER, REAR SEAT LEG SIDE, NO.2

79966

COVER, REAR SEAT LEG SIDE, NO.3

79967

COVER, REAR SEAT LEG SIDE, NO.4

79968

COVER, REAR SEAT LEG SIDE, NO.5

79968A

COVER, REAR SEAT LEG SIDE, NO.5

79969

COVER, REAR SEAT LEG SIDE, NO.6

9010908269

Крепеж

9010908269

Крепеж

9010908276

Крепеж

9010908276

Крепеж

9010910084

Крепеж

9010910084

Крепеж

9010910164

Крепеж

9011910836

Крепеж

9011910836

Крепеж

9011910836

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017908068

Крепеж

9017908068

Крепеж

9024910211

Крепеж

9038612018

Крепеж

9038614013

Крепеж

9038614013

Крепеж

9046706040

Крепеж

9095903232

Крепеж

9151160835

Крепеж

9151160835

Крепеж

9151261020

Крепеж

9151261020

Крепеж

9321953008

Крепеж

9321953008

Крепеж

9616000500

Крепеж

9616000500

Крепеж

9616000500

Крепеж

9616000800

Крепеж

9616000800

Крепеж

Код

Описание

71038B

HINGE SUB-ASSY, REAR SEAT CUSHION LEG, LH

71038C

HINGE SUB-ASSY, REAR SEAT CUSHION LEG, LH

71301C

LINK SUB-ASSY, REAR SEAT CUSHION

71324B

CUSHION, REAR SEAT

71333A

LEG, REAR SEAT CUSHION, NO.2

71510C

SPRING, SPIRAL

71692D

COVER, REAR SEAT CUSHION HINGE, UPPER LH

71692E

COVER, REAR SEAT CUSHION HINGE, NO.2

71778B

COVER, REAR SEAT SIDE HINGE MALE, RH

71779A

COVER, REAR SEAT SIDE HINGE MALE, LH

71834G

COVER, REAR SEAT RECLINING, NO.1 LH

71834H

COVER, REAR SEAT RECLINING, NO.1 LH

72095A

PLATE SUB-ASSY, REAR SEAT TURN SET

72201B

HANDLE SUB-ASSY, SEAT TRACK LH

72203B

HANDLE SUB-ASSY, REAR SEAT TRACK, LH

72381

ROD, RECLINING ADJUSTER EQUALIZING, NO.1

72510A

SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER)

72510A

SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER)

72526B

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

72620B

CABLE ASSY, REAR NO.1 SEAT LOCK

72638

HANDLE, REAR SEAT LOCK, LH

72653A

SNAP, REAR SEAT BACK LOCK ROD

72680B

LOCK ASSY, REAR SEAT CUSHION, LH

72689A

CUSHION, REAR SEAT CUSHION LOCK

72689B

CUSHION, REAR SEAT CUSHION LOCK, NO.2

72691

STRIKER, REAR NO.3 SEAT LOCK

72730J

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72740J

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72975

PROTECTOR, REAR SEAT TURN PLATE

72998

COVER, REAR SEAT CUSHION, LH

72998B

COVER, REAR SEAT CUSHION, LH

78656

COVER, REAR SEAT LEGREST

78687

COVER, REAR SEAT LEGREST LOCK

79106

LEG SUB ASSY, NO.1 SEAT, LH

79187

COVER, NO.1 SEAT INNER BRACKET

79956S

COVER, REAR SEAT LEG SIDE

79965

COVER, REAR SEAT LEG SIDE, NO.2

79965A

COVER, REAR SEAT LEG SIDE, NO.2

79966

COVER, REAR SEAT LEG SIDE, NO.3

79967

COVER, REAR SEAT LEG SIDE, NO.4

79968

COVER, REAR SEAT LEG SIDE, NO.5

79968

COVER, REAR SEAT LEG SIDE, NO.5

79969

COVER, REAR SEAT LEG SIDE, NO.6

9010908269

Крепеж

9010908276

Крепеж

9010910084

Крепеж

9010910084

Крепеж

9010910164

Крепеж

9010910164

Крепеж

9010910164

Крепеж

9011910836

Крепеж

9011910836

Крепеж

9011910836

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017908068

Крепеж

9017908068

Крепеж

9038612018

Крепеж

9038612018

Крепеж

9038614013

Крепеж

9038614013

Крепеж

9046706040

Крепеж

9151160835

Крепеж

9151160835

Крепеж

9151261020

Крепеж

9151261020

Крепеж

9321953008

Крепеж

9321953008

Крепеж

9616000500

Крепеж

9616000500

Крепеж

9616000500

Крепеж

9616000800

Крепеж

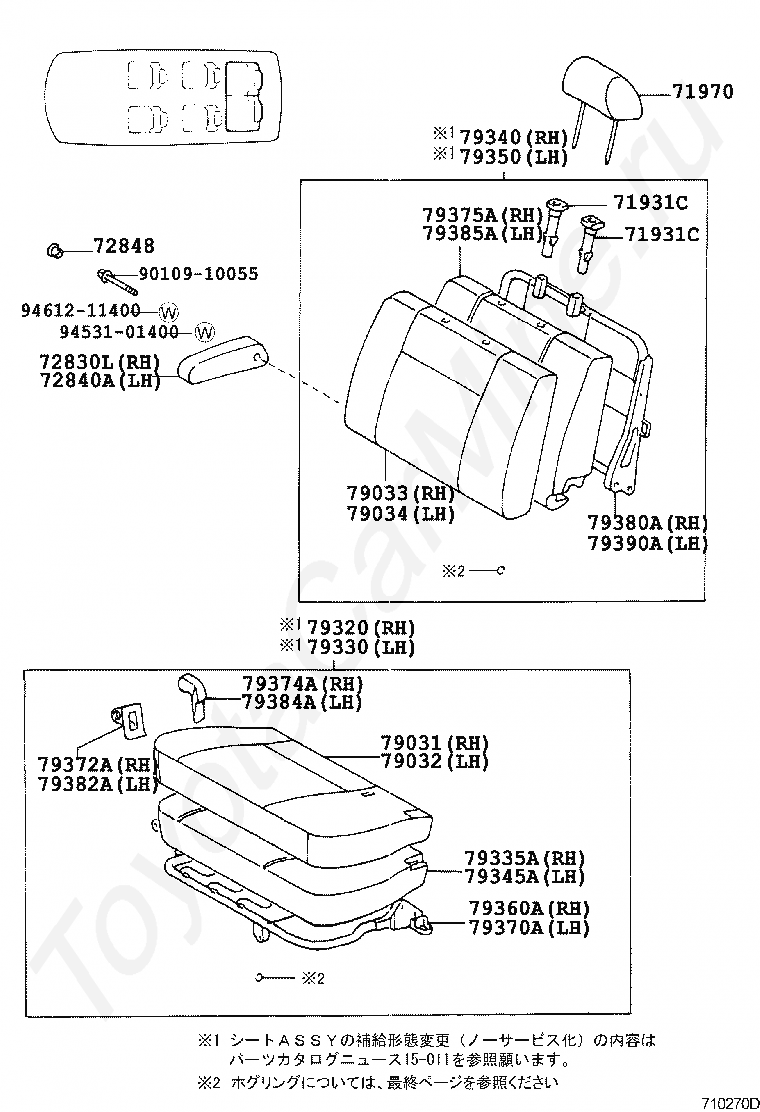

Код

Описание

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71970

HEADREST ASSY, REAR SEAT

72830L

ARMREST ASSY, REAR NO.2 SEAT, RH

72840A

ARMREST ASSY, REAR NO.2 SEAT, LH

72848

CAP, NO.3 SEAT ARMREST

79031

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79032

COVER SUB-ASSY, NO.3 SEAT CUSHION, LH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79034

COVER SUB-ASSY, NO.3 SEAT BACK, LH

79320

CUSHION ASSY, NO.3 SEAT, RH

79330

CUSHION ASSY, NO.3 SEAT, LH

79335A

PAD, NO.3 SEAT CUSHION, RH

79340

BACK ASSY, NO.3 SEAT, RH

79345A

PAD, NO.3 SEAT CUSHION, LH

79350

BACK ASSY, NO.3 SEAT, LH

79360A

SPRING ASSY, NO.3 SEAT CUSHION, RH

79370A

SPRING ASSY, NO.3 SEAT CUSHION, LH

79372A

COVER, NO.3 SEAT FRONT BRACKET, RH

79374A

COVER, NO.3 SEAT LEG, REAR RH

79375A

PAD, NO.3 SEAT BACK, RH

79380A

SPRING ASSY, NO.3 SEAT BACK, RH

79382A

COVER, NO.3 SEAT FRONT BRACKET, LH

79384A

COVER, NO.3 SEAT LEG, REAR LH

79385A

PAD, NO.3 SEAT BACK, LH

79390A

SPRING ASSY, NO.3 SEAT BACK, LH

9010910055

Крепеж

9453101400

Крепеж

9461211400

Крепеж

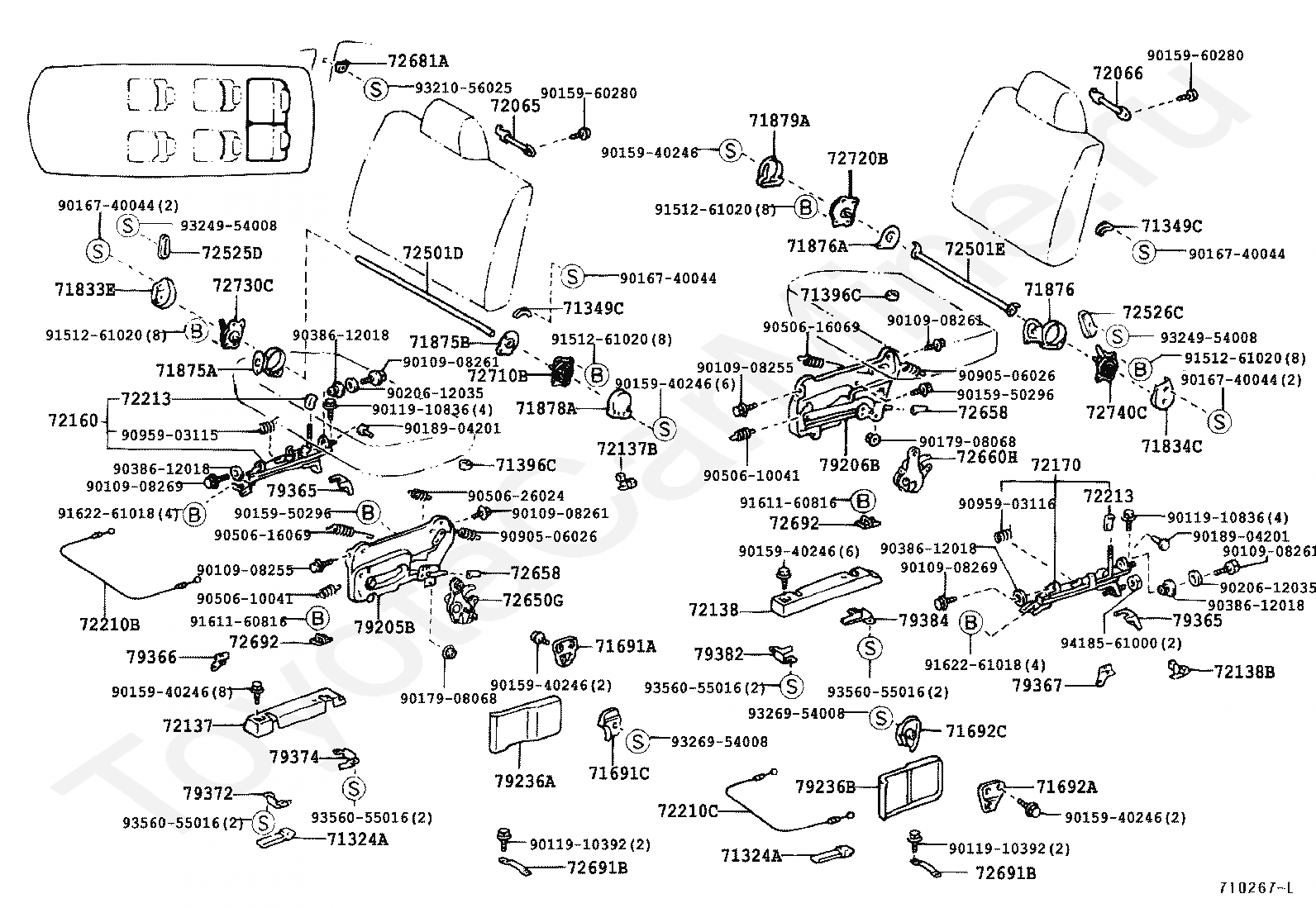

Код

Описание

71324A

CUSHION, REAR SEAT

71324A

CUSHION, REAR SEAT

71349C

COVER, REAR SEAT BACK HINGE

71349C

COVER, REAR SEAT BACK HINGE

71396C

CUSHION, NO.2 SEAT SUPPORT, REAR

71396C

CUSHION, NO.2 SEAT SUPPORT, REAR

71691A

COVER, REAR NO.3 SEAT LOCK, RH

71691C

COVER, REAR SEAT LOCK, INNER RH

71692A

COVER, REAR NO.3 SEAT LOCK, LH

71692C

COVER, REAR SEAT LOCK, INNER LH

71833E

COVER, REAR SEAT RECLINING, NO.3 RH

71834C

COVER, REAR SEAT RECLINING, NO.3 LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71878A

COVER, REAR SEAT RECLINING, INNER RH

71879A

COVER, REAR SEAT RECLINING, INNER LH

72065

BELT SUB-ASSY, REAR SEAT HOOK, RH

72066

BELT SUB-ASSY, REAR SEAT HOOK, LH

72137

COVER, SEAT TRACK, OUTER RH

72137B

COVER, SEAT TRACK, RH

72138

COVER, SEAT TRACK, OUTER LH

72138B

COVER, SEAT TRACK, LH

72160

TRACK ASSY, REAR SEAT, OUTER RH

72170

TRACK ASSY, REAR SEAT, OUTER LH

72210B

CABLE ASSY, SEAT TRACK CONTROL, RH

72210C

CABLE ASSY, SEAT TRACK CONTROL, LH

72213

KNOB, SEAT TRACK ADJUSTING HANDLE

72213

KNOB, SEAT TRACK ADJUSTING HANDLE

72501D

PIPE SUB-ASSY, RECLINING CONNECTING, RH

72501E

PIPE SUB-ASSY, RECLINING CONNECTING, LH

72525D

HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH

72526C

HANDLE, RECLINING ADJUSTER RELEASE, NO.2 LH

72650G

LOCK ASSY, REAR NO.2 SEAT, RH

72658

KNOB, REAR SEAT HANDLE

72658

KNOB, REAR SEAT HANDLE

72660H

LOCK ASSY, REAR NO.2 SEAT, LH

72681A

HOOK, REAR SEAT

72691B

STRIKER, REAR SEAT CUSHION LOCK

72691B

STRIKER, REAR SEAT CUSHION LOCK

72692

STRIKER, REAR SEAT CUSHION LOCK, NO.2

72692

STRIKER, REAR SEAT CUSHION LOCK, NO.2

72710B

ADJUSTER ASSY, REAR SEAT BACK, INNER RH

72720B

ADJUSTER ASSY, REAR SEAT BACK, INNER LH

72730C

ADJUSTER ASSY, NO.2 SEAT RECLINING, RH

72740C

ADJUSTER ASSY, NO.2 SEAT RECLINING, LH

79205B

LEG SUB-ASSY, NO.2 SEAT, RH

79206B

LEG SUB-ASSY, NO.2 SEAT, LH

79236A

COVER, NO.2 SEAT LEG

79236B

COVER, NO.2 SEAT LEG, LH

79365

COVER, NO.3 SEAT LEG BRACKET

79365

COVER, NO.3 SEAT LEG BRACKET

79366

COVER, NO.3 SEAT LEG, NO.1

79367

COVER, NO.3 SEAT LEG, NO.2

79372

COVER, NO.3 SEAT FRONT BRACKET, RH

79374

COVER, NO.3 SEAT LEG, REAR RH

79382

COVER, NO.3 SEAT FRONT BRACKET, LH

79384

COVER, NO.3 SEAT LEG, REAR LH

9010908255

Крепеж

9010908255

Крепеж

9010908261

Крепеж

9010908261

Крепеж

9010908261

Крепеж

9010908261

Крепеж

9010908269

Крепеж

9010908269

Крепеж

9011910392

Крепеж

9011910392

Крепеж

9011910836

Крепеж

9011910836

Крепеж

9015940246

Крепеж

9015940246

Крепеж

9015940246

Крепеж

9015940246

Крепеж

9015940246

Крепеж

9015940246

Крепеж

9015950296

Крепеж

9015950296

Крепеж

9015960280

Крепеж

9015960280

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017908068

Крепеж

9017908068

Крепеж

9018904201

Крепеж

9018904201

Крепеж

9020612035

Крепеж

9020612035

Крепеж

9038612018

Крепеж

9038612018

Крепеж

9038612018

Крепеж

9038612018

Крепеж

9050610041

Крепеж

9050610041

Крепеж

9050616069

Крепеж

9050616069

Крепеж

9050626024

Крепеж

9090506026

Крепеж

9090506026

Крепеж

9095903115

Крепеж

9095903116

Крепеж

9151261020

Крепеж

9151261020

Крепеж

9151261020

Крепеж

9151261020

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9162261018

Крепеж

9162261018

Крепеж

9321056025

Крепеж

9324954008

Крепеж

9324954008

Крепеж

9326954008

Крепеж

9326954008

Крепеж

9356055016

Крепеж

9356055016

Крепеж

9356055016

Крепеж

9356055016

Крепеж

9418561000

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

> Запчасти LITE/TOWNACE NOAH,V > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
