Каталог

Япония

Модель

LITE/TOWNACE NOAH,V

VIN

Дата

1996/10

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Кузов

фургон

Класс

V(MODEL MARK)

Фрейм

SR50

КПП

автомат

Опции

STANDARD ROOF 4 двери 8-местный COMPLETED VEHICLE электронная система впрыска топлива

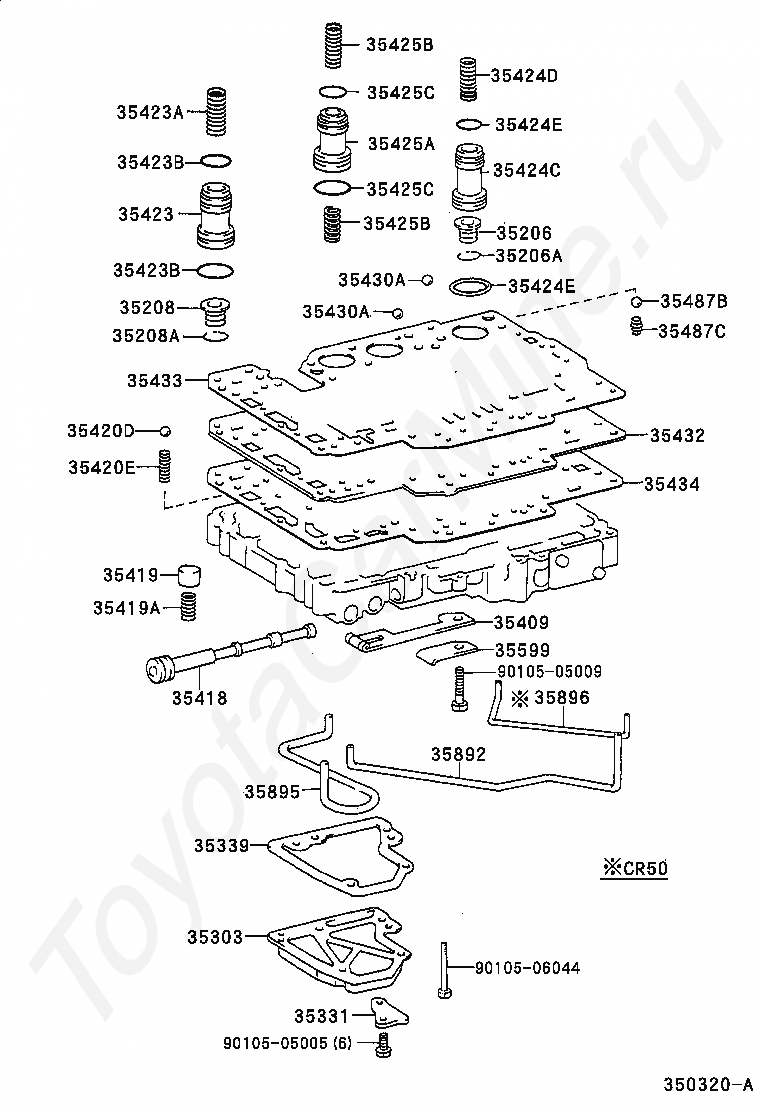

VALVE BODY & OIL STRAINER (ATM) TOYOTA LITE/TOWNACE NOAH,V







Код

Описание

35206

SPRING SUB-ASSY, C-1 ACCUMULATOR

35206A

RING, HOLE SNAP (FOR C-1 ACCUMULATOR SPRING)

35208

SPRING SUB-ASSY, B-2 ACCUMULATOR

35208A

RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

35303

STRAINER SUB-ASSY, OIL

35331

COVER, OIL STRAINER

35339

GASKET, OIL STRAINER

35409

SPRING SUB-ASSY, MANUAL DETENT

35418

VALVE, MANUAL

35419

VALVE, CHECK, NO.1

35419A

SPRING, COMPRESSION (FOR CHECK VALVE)

35420D

BALL (FOR LOWER VALVE BODY)

35420E

SPRING (FOR LOWER VALVE BODY)

35423

PISTON, B-2 ACCUMULATOR

35423A

SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

35423B

RING, O (FOR B-2 ACCUMULATOR PISTON)

35423B

RING, O (FOR B-2 ACCUMULATOR PISTON)

35424C

PISTON, C-1 ACCUMULATOR

35424D

SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

35424E

RING, O (FOR C-1 ACCUMULATOR PISTON)

35424E

RING, O (FOR C-1 ACCUMULATOR PISTON)

35425A

PISTON, C-2 ACCUMULATOR

35425B

SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

35425B

SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35430A

BALL (FOR REAR UPPER VALVE BODY)

35430A

BALL (FOR REAR UPPER VALVE BODY)

35432

PLATE, VALVE BODY, NO.1

35433

GASKET, VALVE BODY, NO.1

35434

GASKET, VALVE BODY, NO.2

35487B

BALL, CHECK, NO.4

35487C

SPRING, COMPRESSION (FOR CHECK BALL)

35599

COVER, MANUAL DETENT SPRING

35892

TUBE, OVERDRIVE BRAKE

35895

TUBE, FRONT CLUTCH APPLY

35896

TUBE, OVERDRIVE SWITCH APPLY

9010505005

Крепеж

9010505009

Крепеж

9010506044

Крепеж

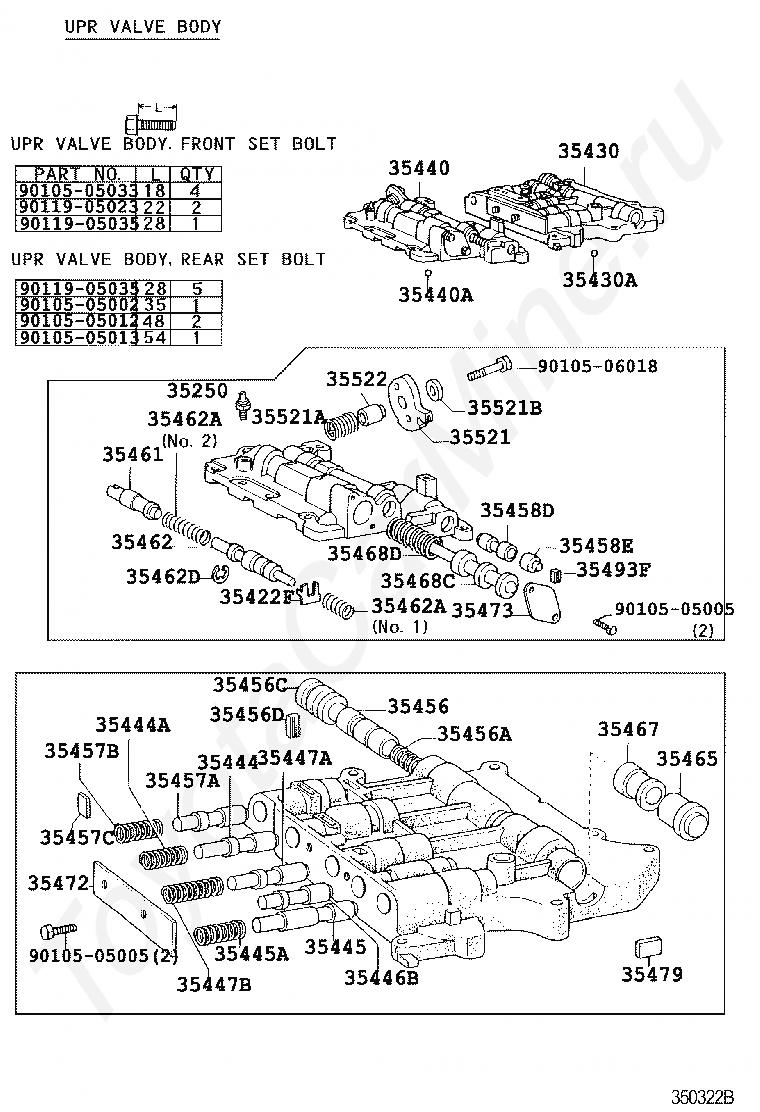

Код

Описание

35250

BODY ASSY, CHECK BALL

35422F

STOPPER, VALVE VIBRATING

35430

BODY ASSY, REAR UPPER VALVE

35430A

BALL (FOR REAR UPPER VALVE BODY)

35440

BODY ASSY, FRONT UPPER VALVE

35440A

BALL (FOR FRONT UPPER VALVE BODY)

35444

VALVE, INTERMEDIATE MODULATOR

35444A

SPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE)

35445

VALVE, LOW MODULATOR

35445A

SPRING, COMPRESSION (FOR LOW MODULATOR VALVE)

35446B

PLUG, GOVERNOR MODULATOR VALVE

35447A

VALVE, REVERSE CLUTCH SEQUENCE

35447B

SPRING, COMPRESSION (FOR REVERSE CLUTCH SEQUENCE VALVE)

35456

VALVE, 2-3 SHIFT

35456A

SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

35456C

PLUG (FOR 2-3 SHIFT VALVE)

35456D

SEAT (FOR 2-3 SHIFT VALVE)

35457A

VALVE, DETENT REGULATOR

35457B

SPRING, COMPRESSION (FOR DETENT REGULATOR VALVE)

35457C

SEAT (FOR DETENT REGULATOR VALVE)

35458D

VALVE, CUT BACK

35458E

PLUG (FOR CUT BACK VALVE)

35461

PLUG, DOWN SHIFT

35462

VALVE, THROTTLE

35462A

SPRING, COMPRESSION (FOR THROTTLE VALVE)

35462A

SPRING, COMPRESSION (FOR THROTTLE VALVE)

35462D

RING, E (FOR THROTTLE VALVE)

35465

PLUG, INTERMEDIATE SHIFT VALVE

35467

VALVE, INTERMEDIATE SHIFT

35468C

VALVE, SECONDARY REGULATOR

35468D

SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

35472

COVER, VALVE BODY, NO.2

35473

COVER, TRANSMISSION VALVE BODY

35479

SEAT, INTERMEDIATE SHIFT VALVE

35493F

SEAT, SHIFT VALVE PLUG

35521

CAM, THROTTLE VALVE

35521A

SPRING (FOR THROTTLE VALVE CAM RETURN)

35521B

WASHER (FOR THROTTLE VALVE CAM SET)

35522

PIN, THROTTLE VALVE CAM

9010505002

Крепеж

9010505005

Крепеж

9010505005

Крепеж

9010505012

Крепеж

9010505013

Крепеж

9010505033

Крепеж

9010506018

Крепеж

9011905023

Крепеж

9011905035

Крепеж

9011905035

Крепеж

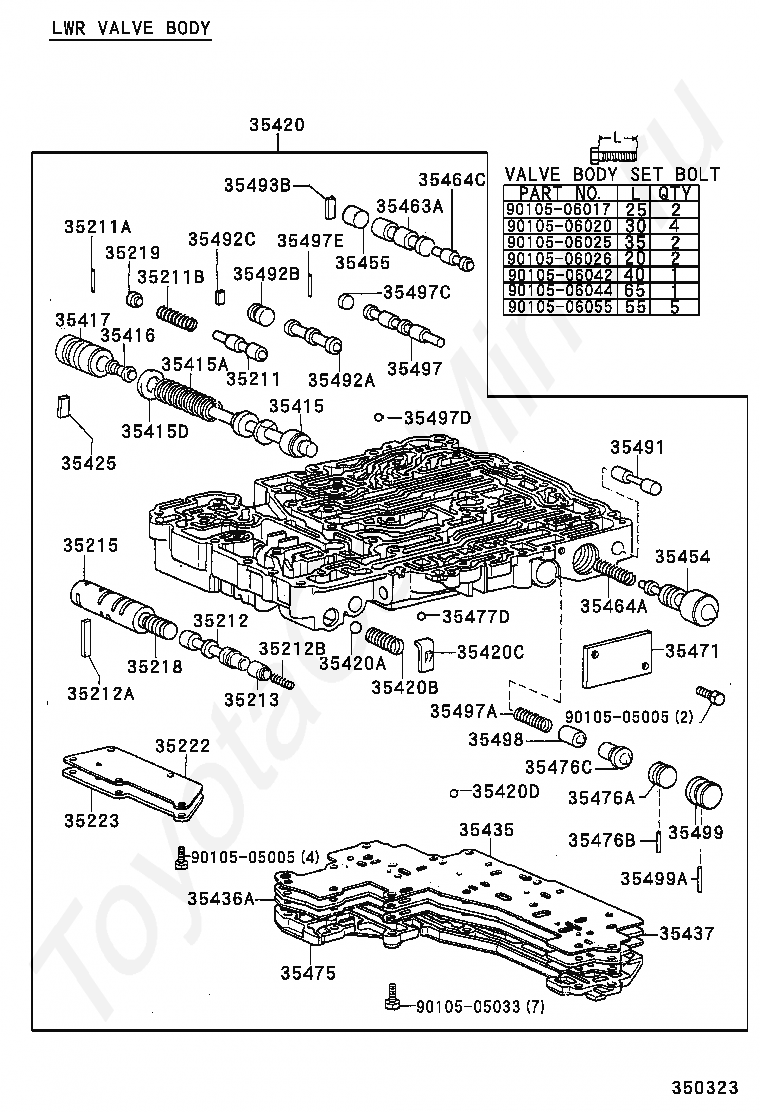

Код

Описание

35211

VALVE, LOCK UP SIGNAL

35211A

PIN, STRAIGHT (FOR LOCK UP SIGNAL VALVE)

35211B

SPRING, COMPRESSION (FOR LOCK UP SIGNAL VALVE)

35212

VALVE, LOCK UP RELAY

35212A

SEAT, PLUG (FOR LOCK UP RELAY VALVE)

35212B

SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE)

35213

VALVE, LOCK UP RELAY CONTROL

35215

SLEEVE, LOCK UP RELAY VALVE

35218

PLUG, LOCK UP RELAY VALVE

35219

PLUG, LOCK UP SIGNAL VALVE

35222

PLATE, LOCK UP RELAY VALVE BODY

35223

GASKET, LOCK UP RELAY VALVE BODY

35415

VALVE, PRESSURE REGULATOR

35415A

SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE)

35415D

SHIM (FOR PRESSURE REGULATOR VALVE)

35416

PLUNGER, PRIMARY REGULATOR VALVE, NO.1

35417

SLEEVE, PRESSURE REGULATOR VALVE

35420

BODY ASSY, LOWER VALVE

35420A

BALL (FOR PRESSURE RELIEF)

35420B

SPRING (FOR PRESSURE RELIEF)

35420C

SEAT (FOR PRESSURE RELIEF)

35420D

BALL (FOR LOWER VALVE BODY)

35425

SEAT, PRESSURE REGULATOR VALVE SLEEVE

35435

GASKET, VALVE BODY PLATE, NO.3

35436A

GASKET, VALVE BODY PLATE, NO.4

35437

PLATE, 3-4 SHIFT VALVE SEPARATOR

35454

VALVE, LOW COAST SHIFT

35455

PLUG, 1-2 SHIFT VALVE LOW

35463A

VALVE, 1-2 SHIFT, LOWER

35464A

SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)

35464C

VALVE, 1-2 SHIFT, UPPER

35471

COVER, VALVE BODY, NO.1

35475

COVER, VALVE BODY, NO.5

35476A

PLUG, STRAIGHT (FOR 3RD COAST SHIFT)

35476B

PIN, LOCATING (FOR 3RD COAST SHIFT)

35476C

VALVE, 3RD COAST

35477D

BALL, CHECK (FOR OVERDRIVE CLUTCH EXHAUST VALVE)

35491

PLUG, REVERSE BRAKE

35492A

VALVE, MANUAL DOWN TIMING

35492B

PLUG (FOR MANUAL DOWN TIMING VALVE)

35492C

SEAT, VALVE (FOR MANUAL DOWN TIMING VALVE)

35493B

SEAT, 1-2 SHIFT VALVE PLUG

35497

VALVE, 3-4 SHIFT

35497A

SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)

35497C

PLUG (FOR 3-4 SHIFT VALVE)

35497D

BALL, CHECK (FOR 3-4 SHIFT VALVE)

35497E

ROLLER, NEEDLE (FOR 3-4 SHIFT VALVE)

35498

VALVE, 3-4 COAST SHIFT

35499

PLUG, 3-4 SHIFT VALVE

35499A

PIN, STRAIGHT (FOR 3-4 SHIFT VALVE)

9010505005

Крепеж

9010505005

Крепеж

9010505033

Крепеж

9010506017

Крепеж

9010506020

Крепеж

9010506025

Крепеж

9010506026

Крепеж

9010506042

Крепеж

9010506044

Крепеж

9010506055

Крепеж

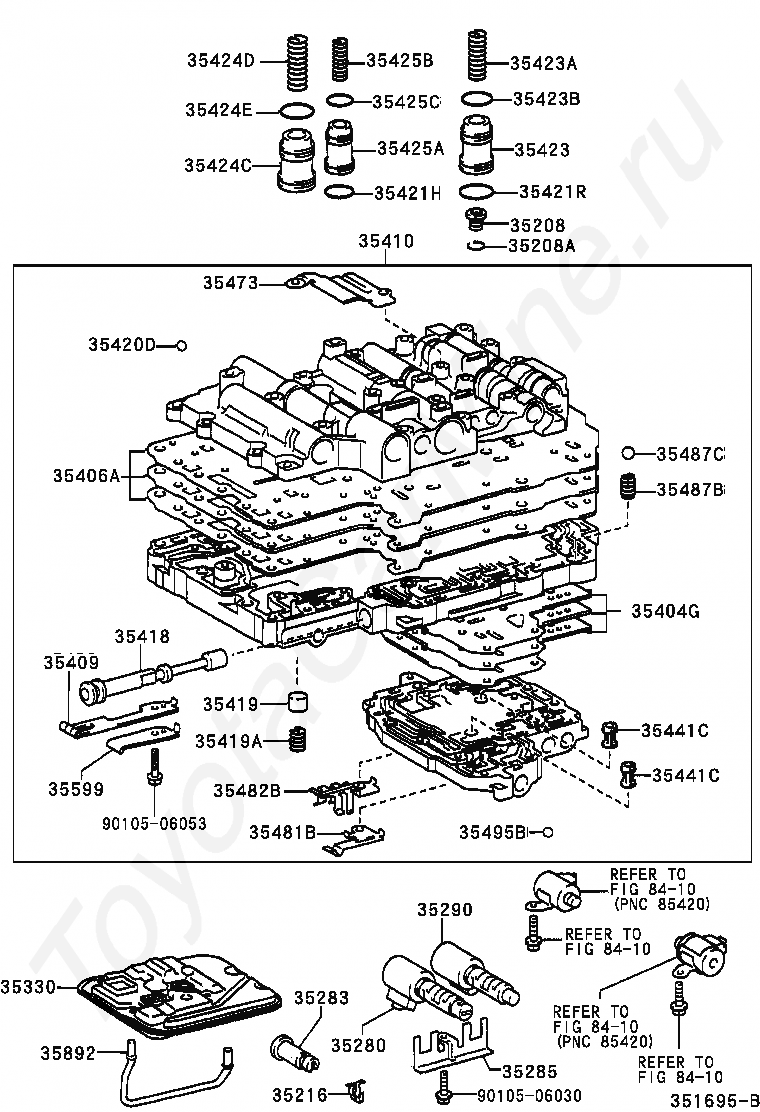

Код

Описание

35208

SPRING SUB-ASSY, B-2 ACCUMULATOR

35208A

RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

35216

STOPPER, VALVE SLEEVE

35280

SOLENOID ASSY, LOCK UP CONTROL

35283

SLEEVE, LOCK UP CONTROL SOLENOID

35285

PLATE, SOLENOID LOCK

35290

SOLENOID ASSY, LINE PRESSURE CONTROL

35330

STRAINER ASSY, VALVE BODY OIL

35404G

PLATE SUB-ASSY, VALVE BODY, NO.2

35406A

PLATE SUB-ASSY, VALVE BODY

35409

SPRING SUB-ASSY, MANUAL DETENT

35410

BODY ASSY, TRANSMISSION VALVE

35418

VALVE, MANUAL

35419

VALVE, CHECK, NO.1

35419A

SPRING, COMPRESSION (FOR CHECK VALVE)

35420D

BALL (FOR LOWER VALVE BODY)

35421H

RING (FOR ACCUMULATOR PISTON NO.2)

35421R

RING (FOR ACCUMULATOR PISTON NO.3)

35423

PISTON, B-2 ACCUMULATOR

35423A

SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

35423B

RING, O (FOR B-2 ACCUMULATOR PISTON)

35424C

PISTON, C-1 ACCUMULATOR

35424D

SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

35424E

RING, O (FOR C-1 ACCUMULATOR PISTON)

35425A

PISTON, C-2 ACCUMULATOR

35425B

SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35441C

STRAINER, SOLENOID OIL

35441C

STRAINER, SOLENOID OIL

35473

COVER, TRANSMISSION VALVE BODY

35481B

CLAMP, VALVE BODY WIRE HARNESS

35482B

CLAMP, TEMPERATURE SENSOR

35487B

BALL, CHECK, NO.4

35487C

SPRING, COMPRESSION (FOR CHECK BALL)

35495B

BALL, CHECK, NO.1

35599

COVER, MANUAL DETENT SPRING

35892

TUBE, OVERDRIVE BRAKE

8410

переход к группе запчастей

8410

переход к группе запчастей

8410

переход к группе запчастей

8410

переход к группе запчастей

9010506030

Крепеж

9010506053

Крепеж

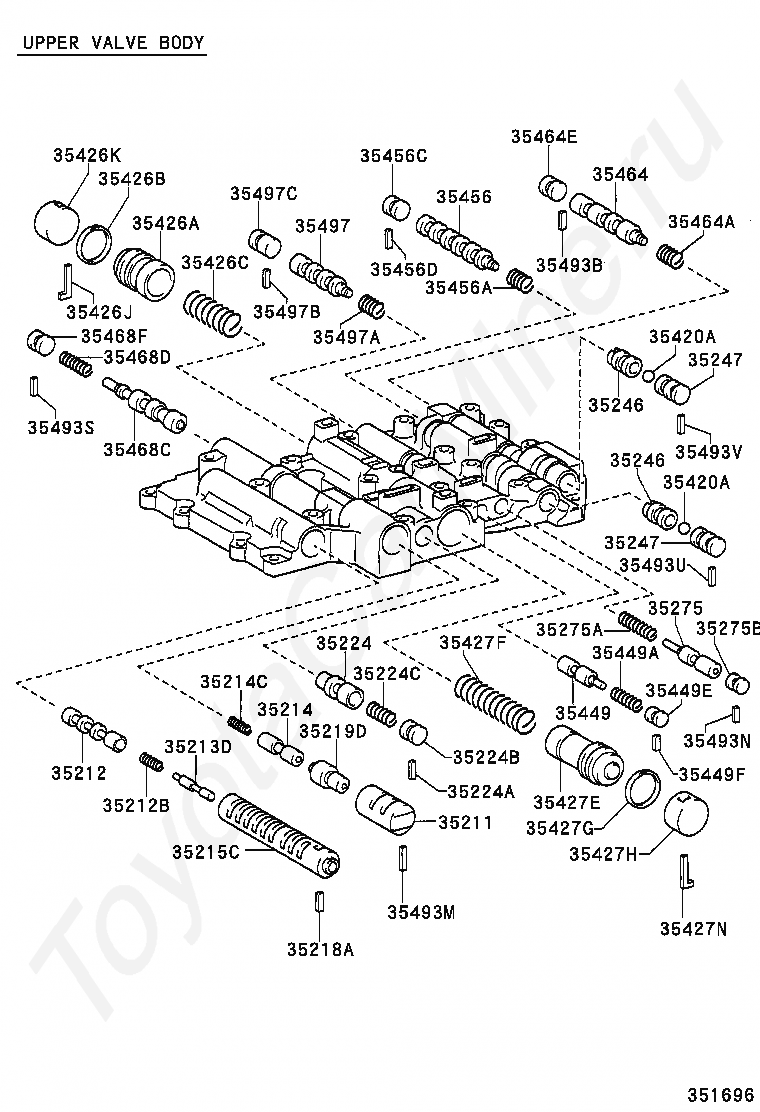

Код

Описание

35211

VALVE, LOCK UP SIGNAL

35212

VALVE, LOCK UP RELAY

35212B

SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE)

35213D

PLUNGER, LOCK UP RELAY VALVE

35214

VALVE, LOCK UP CONTROL

35214C

SPRING, COMPRESSION (FOR LOCK UP CONTROL VALVE)

35215C

SLEEVE, LOCK UP RELAY VALVE, NO.1

35218A

KEY, STRAIGHT (FOR LOCK UP RELAY VALVE PLUG)

35219D

PLUNGER, LOCK UP CONTROL VALVE

35224

VALVE, REVERSE CONTROL

35224A

KEY, STRAIGHT (FOR REVERSE CONTROL VALVE)

35224B

PLUG (FOR REVERSE CONTROL VALVE)

35224C

SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE)

35246

VALVE, CHECK, NO.1

35246

VALVE, CHECK, NO.1

35247

VALVE, CHECK, NO.2

35247

VALVE, CHECK, NO.2

35275

VALVE, SOLENOID MODULATOR

35275A

SPRING, COMPRESSION (FOR SOLENOID MODULATOR VALVE)

35275B

PLUG (FOR SOLENOID MODULATOR VALVE)

35420A

BALL (FOR PRESSURE RELIEF)

35420A

BALL (FOR PRESSURE RELIEF)

35426A

PISTON, C-0 ACCUMULATOR

35426B

RING, O (FOR C-0 ACCUMULATOR PISTON)

35426C

SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)

35426J

SEAT, C-0 ACCUMULATOR PISTON PLUG

35426K

PLUG, C-0 ACCUMULATOR PISTON

35427E

PISTON, B-0 ACCUMULATOR

35427F

SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)

35427G

RING, O (FOR B-0 ACCUMULATOR PISTON)

35427H

PLUG, B-0 ACCUMULATOR PISTON

35427N

SEAT, B-0 ACCUMULATOR PISTON PLUG

35449

VALVE, SEQUENCE

35449A

SPRING, COMPRESSION (FOR SEQUENCE VALVE)

35449E

PLUG, SEQUENCE VALVE

35449F

SEAT, REVERSE SEQUENCE VALVE PLUG

35456

VALVE, 2-3 SHIFT

35456A

SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

35456C

PLUG (FOR 2-3 SHIFT VALVE)

35456D

SEAT (FOR 2-3 SHIFT VALVE)

35464

VALVE, 1-2 SHIFT

35464A

SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)

35464E

PLUG (FOR 1-2 SHIFT VALVE)

35468C

VALVE, SECONDARY REGULATOR

35468D

SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

35468F

PLUG (FOR SECONDARY REGULATOR VALVE)

35493B

SEAT, 1-2 SHIFT VALVE PLUG

35493M

SEAT, LOCK UP CONTROL VALVE PLUG

35493N

SEAT, SOLENOID MODULATOR VALVE PLUG

35493S

SEAT, SECONDARY REGULATOR VALVE PLUG

35493U

SEAT, CHECK VALVE, NO.1

35493V

SEAT, CHECK VALVE, NO.2

35497

VALVE, 3-4 SHIFT

35497A

SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)

35497B

SEAT, SHIFT VALVE PLUG (FOR 3-4 SHIFT VALVE)

35497C

PLUG (FOR 3-4 SHIFT VALVE)

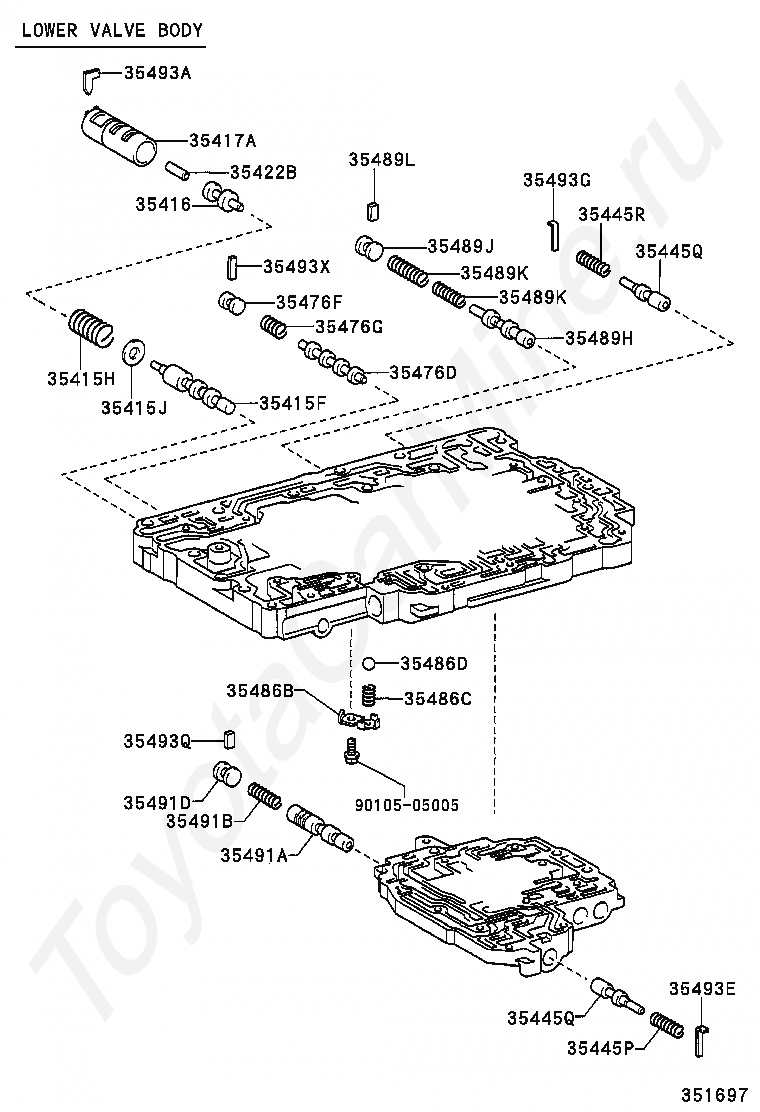

Код

Описание

35415F

VALVE, PRIMARY REGULATOR

35415H

SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE)

35415J

WASHER (FOR PRIMARY REGULATOR VALVE)

35416

PLUNGER, PRIMARY REGULATOR VALVE, NO.1

35417A

SLEEVE, PRIMARY REGULATOR VALVE

35422B

PLUNGER, PRIMARY REGULATOR VALVE, NO.2

35445P

SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE)

35445Q

VALVE, LOW COAST MODULATOR

35445Q

VALVE, LOW COAST MODULATOR

35445R

SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE)

35476D

VALVE, CUT OFF

35476F

PLUG (FOR CUT OFF VALVE)

35476G

SPRING, COMPRESSION (FOR CUT OFF VALVE)

35486B

SEAT, PRESSURE RELIEF VALVE SPRING

35486C

SPRING, COMPRESSION(FOR PRESSURE RELIFE VALVE)

35486D

BALL (FOR PRESSURE RELIFE VALVE)

35489H

VALVE, C-1 ORIFICE CONTROL

35489J

PLUG (FOR C-1 ORIFICE CONTROL VALVE)

35489K

SPRING, COMPRESSION (FOR C-1 ORIFICE CONTROL VALVE)

35489K

SPRING, COMPRESSION (FOR C-1 ORIFICE CONTROL VALVE)

35489L

KEY, STRAIGHT (FOR C-1 ORIFICE CONTROL VALVE)

35491A

VALVE, ACCUMULATOR CONTROL, NO.1

35491B

SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1)

35491D

PLUG (FOR ACCUMULATOR CONTROL VALVE NO.1)

35493A

SEAT, PRIMARY REGULATOR VALVE PLUG

35493E

SEAT, 2ND COAST MODULATOR VALVE PLUG

35493G

SEAT, LOW COAST MODULATOR VALVE PLUG

35493Q

SEAT, ACCUMULATOR CONTROL VALVE PLUG, NO.1

35493X

SEAT, CUT OFF VALAE

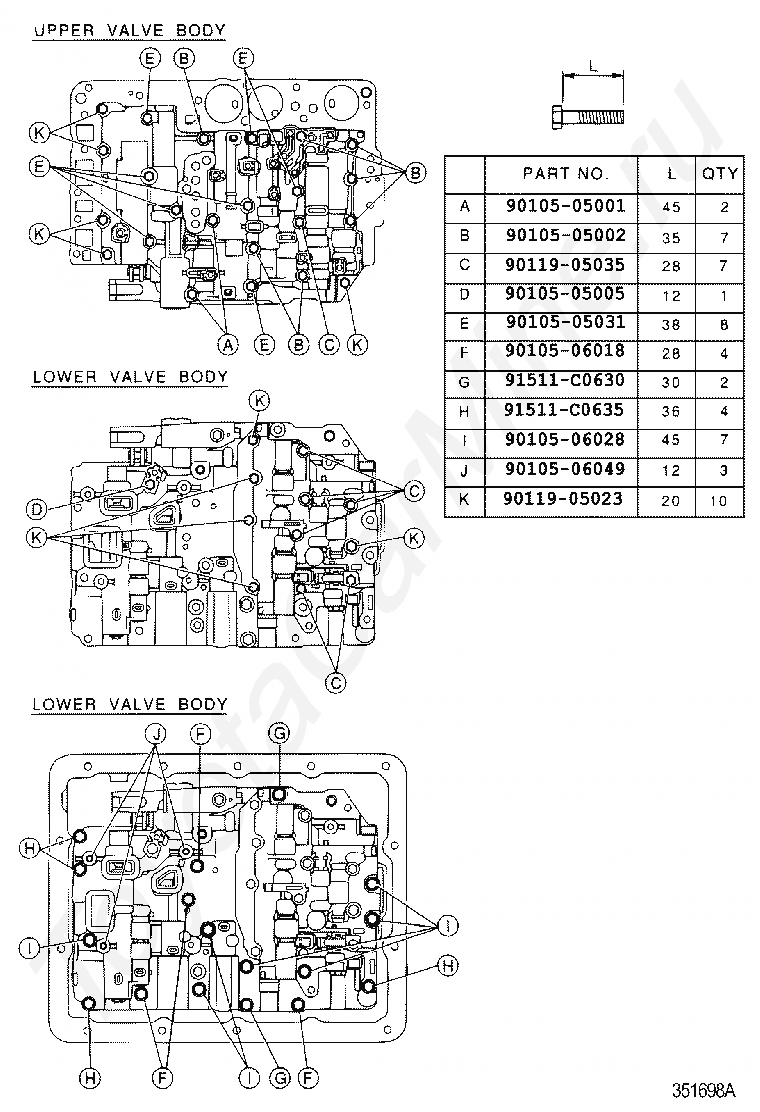

9010505005

Крепеж

Код

Описание

9010505001

Крепеж

9010505002

Крепеж

9010505005

Крепеж

9010505031

Крепеж

9010506018

Крепеж

9010506028

Крепеж

9010506049

Крепеж

9011905023

Крепеж

9011905035

Крепеж

91511C0630

Крепеж

91511C0635

Крепеж

> Запчасти LITE/TOWNACE NOAH,V > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
