Каталог

Япония

Модель

LITE/TOWNACE NOAH,V

VIN

Дата

1996/10

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Кузов

фургон

Класс

V(MODEL MARK)

Фрейм

SR50

КПП

автомат

Опции

STANDARD ROOF 4 двери 8-местный COMPLETED VEHICLE электронная система впрыска топлива

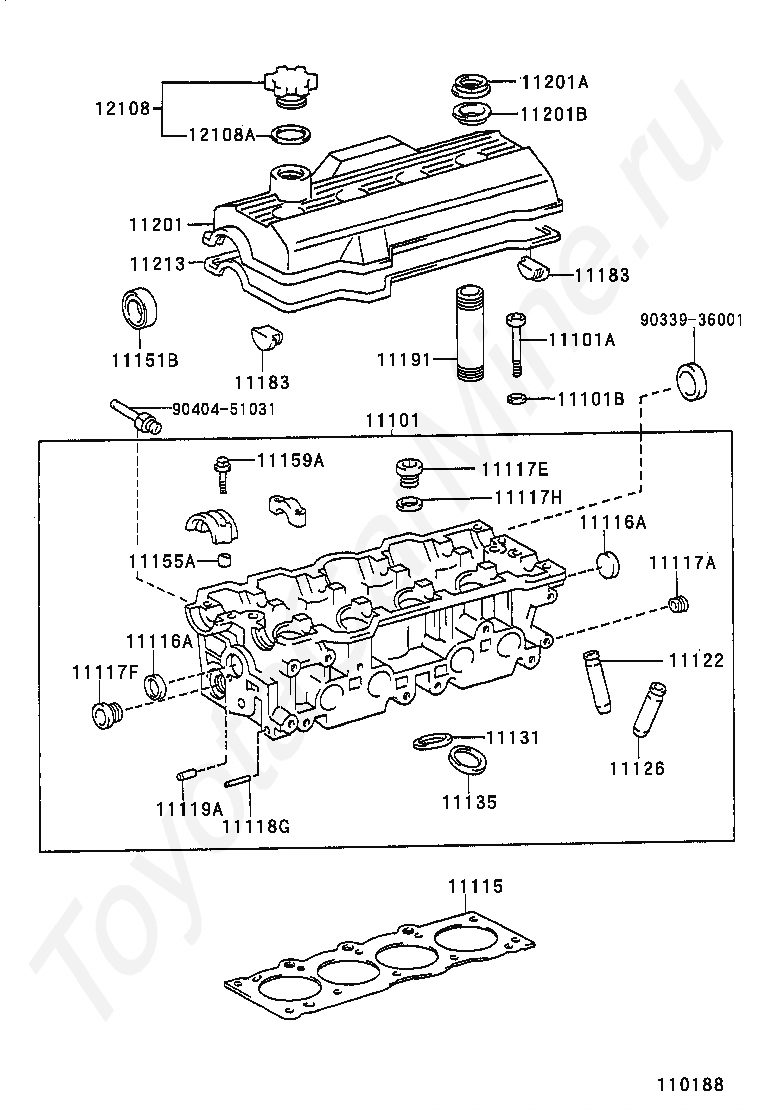

Головка блока цилиндров TOYOTA LITE/TOWNACE NOAH,V

Код

Описание

11101

HEAD SUB-ASSY, CYLINDER

11101A

BOLT(FOR CYLINDER HEAD SET)

11101B

WASHER, PLATE(FOR CYLINDER HEAD SET)

11115

GASKET, CYLINDER HEAD

11116A

PLUG, TIGHT, NO.1

11116A

PLUG, TIGHT, NO.1

11117A

PLUG, W/HEAD TAPER SCREW, NO.1

11117E

PLUG, W/HEAD STRAIGHT SCREW, NO.1

11117F

PLUG, W/HEAD STRAIGHT SCREW, NO.2

11117H

GASKET(FOR WATER HOLE)

11118G

PIN, SLOTTED SPRING, NO.1

11119A

PIN, STRAIGHT, NO.1

11122

BUSH, INTAKE VALVE GUIDE

11126

BUSH, EXHAUST VALVE GUIDE

11131

SEAT, INTAKE VALVE

11135

SEAT, EXHAUST VALVE

11151B

SEAL, OIL(FOR CAMSHAFT SETTING)

11155A

PIN, RING W/HEAD

11159A

BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

11183

PLUG, SEMICIRCULAR

11183

PLUG, SEMICIRCULAR

11191

TUBE, SPARK PLUG

11201

COVER SUB-ASSY, CYLINDER HEAD

11201A

NUT, CAP(FOR CYLINDER HEAD COVER)

11201B

WASHER, SEAL(FOR CYLINDER HEAD COVER)

11213

GASKET, CYLINDER HEAD COVER

12108

CAP SUB-ASSY, OIL FILLER

12108A

GASKET(FOR OIL FILLER CAP)

9033936001

Крепеж

9040451031

Крепеж

Головка блока цилиндров TOYOTA LITE/TOWNACE NOAH,V
