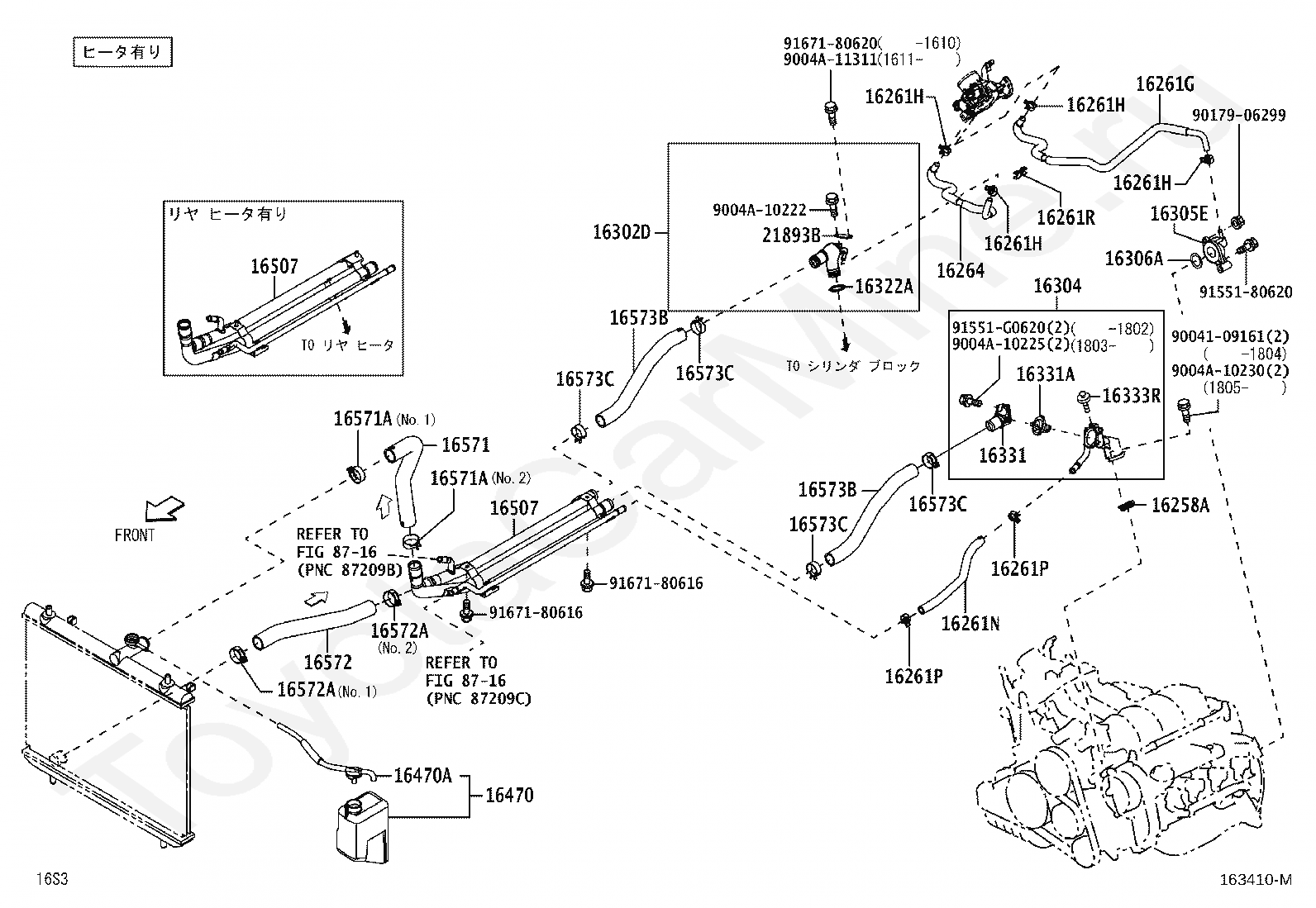

16258A
GASKET(FOR HEATER RETURN)
16261G
HOSE, WATER BY-PASS, NO.1
16261H
CLIP(FOR WATER BY-PASS HOSE NO.1)
16261H
CLIP(FOR WATER BY-PASS HOSE NO.1)
16261H
CLIP(FOR WATER BY-PASS HOSE NO.1)
16261H
CLIP(FOR WATER BY-PASS HOSE NO.1)
16261N
HOSE, WATER BY-PASS, NO.2
16261P
CLIP(FOR WATER BY-PASS HOSE NO.2)
16261P
CLIP(FOR WATER BY-PASS HOSE NO.2)
16261R
CLAMP OR CLIP(FOR WATER BY-PASS HOSE)
16264
HOSE, WATER BY-PASS, NO.2
16302D
PIPE SUB-ASSY, WATER INLET
16304
OUTLET SUB-ASSY, WATER
16305E
OUTLET SUB-ASSY, WATER BY-PASS
16306A
RING, O(FOR WATER OUTLET PIPE)
16322A
RING, O(FOR WATER INLET)
16333R
PLUG(FOR WATER OUTLET HOUSING)
16470
TANK ASSY, RADIATOR RESERVE
16470A
HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16507
PIPE SUB-ASSY, RADIATOR
16507
PIPE SUB-ASSY, RADIATOR
16571
HOSE, RADIATOR, INLET
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572
HOSE, RADIATOR, OUTLET
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16573B
HOSE, RADIATOR, NO.3
16573B
HOSE, RADIATOR, NO.3
16573C
CLAMP OR CLIP, RADIATOR HOSE, NO.3
16573C
CLAMP OR CLIP, RADIATOR HOSE, NO.3
16573C
CLAMP OR CLIP, RADIATOR HOSE, NO.3
16573C
CLAMP OR CLIP, RADIATOR HOSE, NO.3
