2211
переход к группе запчастей

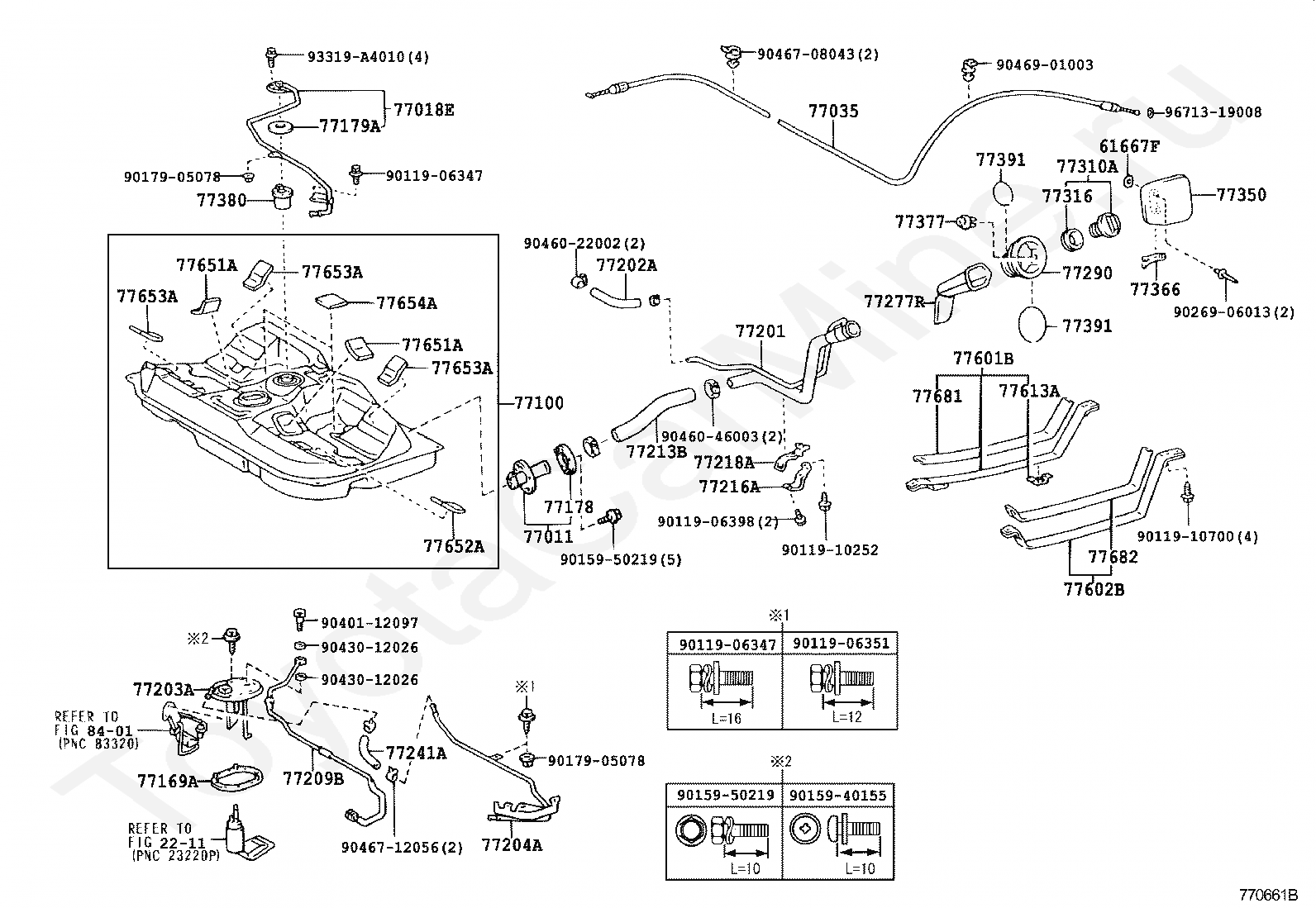

61667F
SEAL, QUARTER PANEL
77011
PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77018E
TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77169A
GASKET, FUEL SUCTION TUBE SET
77178
GASKET, FUEL TANK FILLER PIPE, LOWER
77179A
GASKET, FUEL TANK BREATHER TUBE
77201
PIPE SUB-ASSY, FUEL TANK INLET
77202A
HOSE, FUEL, NO.1 (FOR BREATHER TUBE)
77203A
TUBE SUB-ASSY, FUEL SUCTION
77204A
TUBE, FUEL TANK RETURN
77209B
TUBE SUB-ASSY, FUEL PUMP
77213B
HOSE, FUEL TANK TO FILLER PIPE
77216A
SUPPORT, FUEL TANK FILLER PIPE, NO.1
77218A
SUPPORT, FUEL TANK FILLER PIPE, NO.3
77241A
HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77290
SHIELD ASSY, FUEL TANK FILLER PIPE
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77380
VALVE ASSY, FUEL CUT OFF
77391
RING, FUEL INLET BOX
77391
RING, FUEL INLET BOX
77601B
BAND SUB-ASSY, FUEL TANK, NO.1 RH
77602B
BAND SUB-ASSY, FUEL TANK, NO.1 LH
77613A
BRACKET, FUEL TANK BAND, NO.1
77651A
CUSHION, FUEL TANK, NO.1
77651A
CUSHION, FUEL TANK, NO.1
77652A
CUSHION, FUEL TANK, NO.2
77653A
CUSHION, FUEL TANK, NO.3
77653A
CUSHION, FUEL TANK, NO.3
77653A
CUSHION, FUEL TANK, NO.3
77654A
CUSHION, FUEL TANK, NO.4
77681
SEAT, FUEL TANK BAND, RH
77682
SEAT, FUEL TANK BAND, LH
8401
переход к группе запчастей
