Каталог

Ближний Восток

Модель

LEVIN/HYBRID

VIN

Дата

2014/08

Двигатель

1,6 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Фрейм

ZRE181

КПП

вариатор

Опции

4 двери E(MODEL MARK) 600W

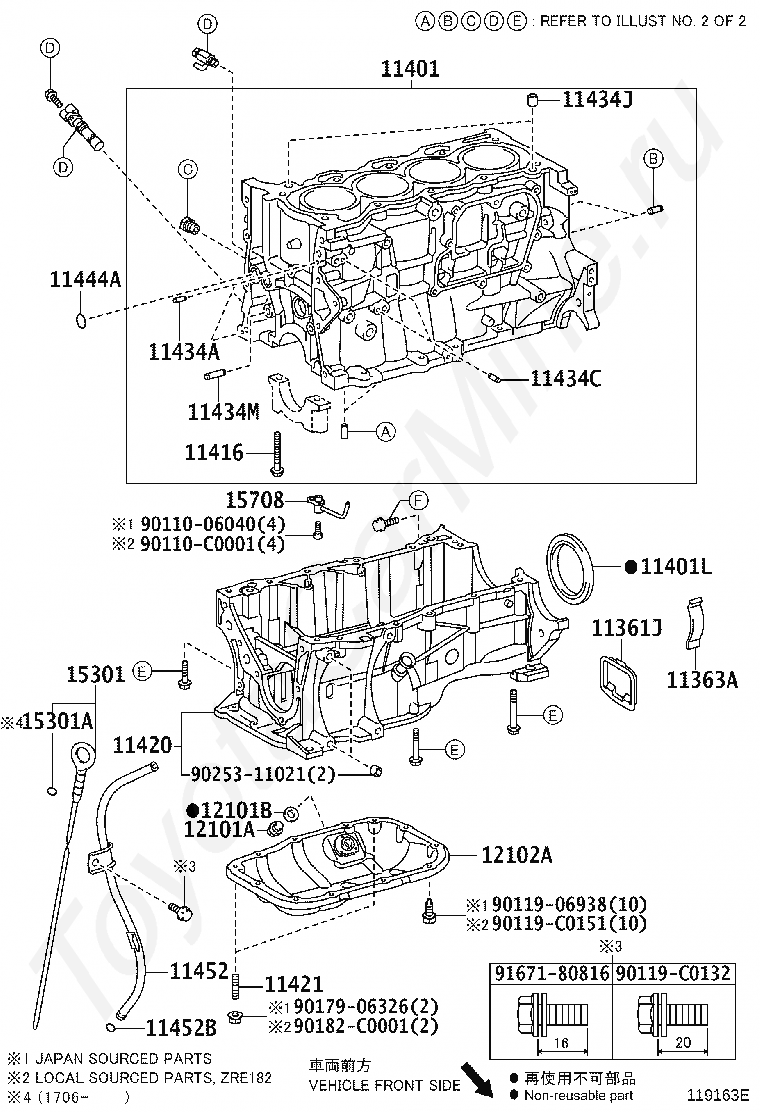

Блок цилиндров TOYOTA LEVIN/HYBRID

Код

Описание

11361J

COVER, FLYWHEEL HOUSING UNDER

11363A

COVER, FLYWHEEL HOUSING SIDE

11401

BLOCK SUB-ASSY, CYLINDER

11401L

SEAL, ENGINE REAR OIL

11416

BOLT(FOR CRANKSHAFT BEARING CAP SET)

11420

CRANKCASE ASSY, STIFFENING

11421

BOLT, STUD(FOR OIL PAN)

11434A

PIN, STRAIGHT(FOR TIMING GEAR COVER SET)

11434C

PIN, STRAIGHT (FOR CYLINDER HEAD SET)

11434J

PIN, RING (FOR CYLINDER HEAD SET)

11434M

PIN, STRAIGHT(FOR CHAIN TENSIONER)

11444A

RING, O

11452

GUIDE, OIL LEVEL GAGE

11452B

RING, O(FOR OIL LEVEL GAGE GUIDE)

12101A

PLUG(FOR OIL PAN DRAIN)

12101B

GASKET(FOR OIL PAN DRAIN PLUG)

12102A

PAN SUB-ASSY, OIL, NO.2

15301

GAGE SUB-ASSY, OIL LEVEL

15301A

RING, O(FOR OIL LEVEL GAGE)

15708

NOZZLE SUB-ASSY, OIL, NO.1

9011006040

Крепеж

90110C0001

Крепеж

9011906938

Крепеж

90119C0132

Крепеж

90119C0151

Крепеж

9017906326

Крепеж

90182C0001

Крепеж

9025311021

Крепеж

9167180816

Крепеж

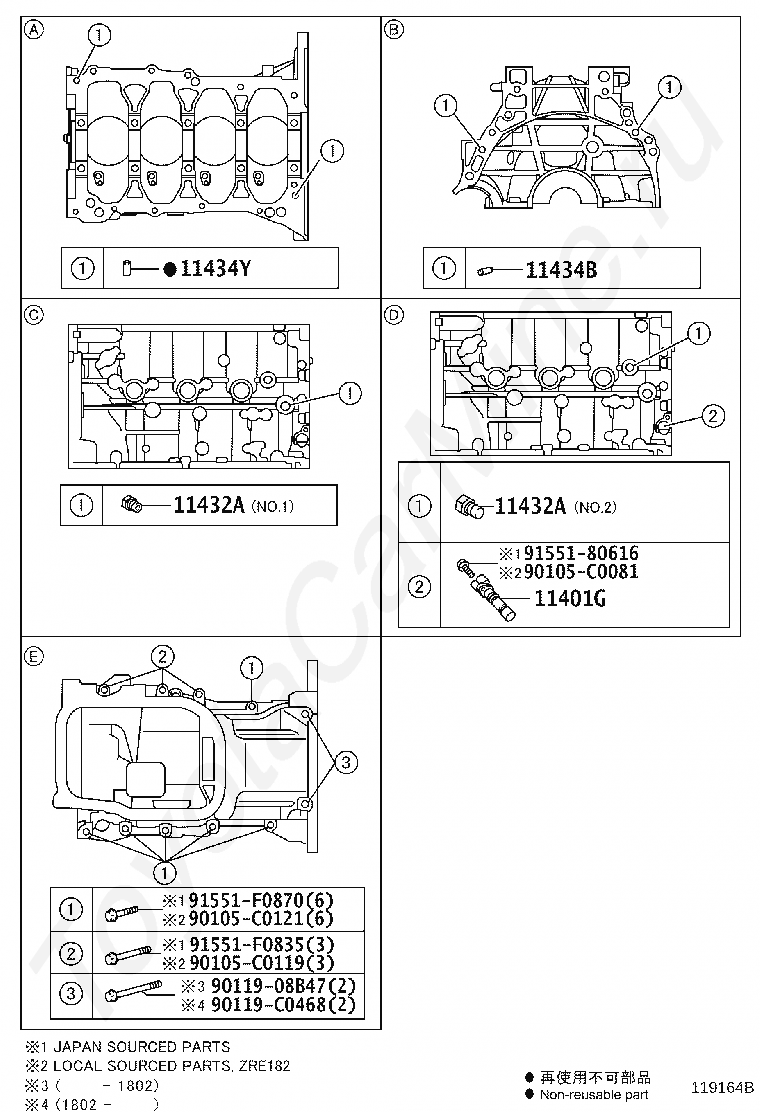

Код

Описание

11401G

SENSOR, CRANK POSITION

11432A

PLUG, W/HEAD TAPER SCREW, NO.1

11432A

PLUG, W/HEAD TAPER SCREW, NO.1

11434B

PIN, STRAIGHT(FOR CLUTCH HOUSING SET)

11434Y

PIN, STRAIGHT(FOR OIL PAN)

90105C0081

Крепеж

90105C0119

Крепеж

90105C0121

Крепеж

9011908B47

Крепеж

90119C0468

Крепеж

9155180616

Крепеж

91551F0835

Крепеж

91551F0870

Крепеж
