Япония

Модель

LAND CRUISER VAN

VIN

Дата

1992/08

Двигатель

4,5 литра, EFI

Класс

VX TYPE

Фрейм

FZJ80

КПП

автомат

Опции

LIFT UP BACK DOOR электронная система впрыска топлива

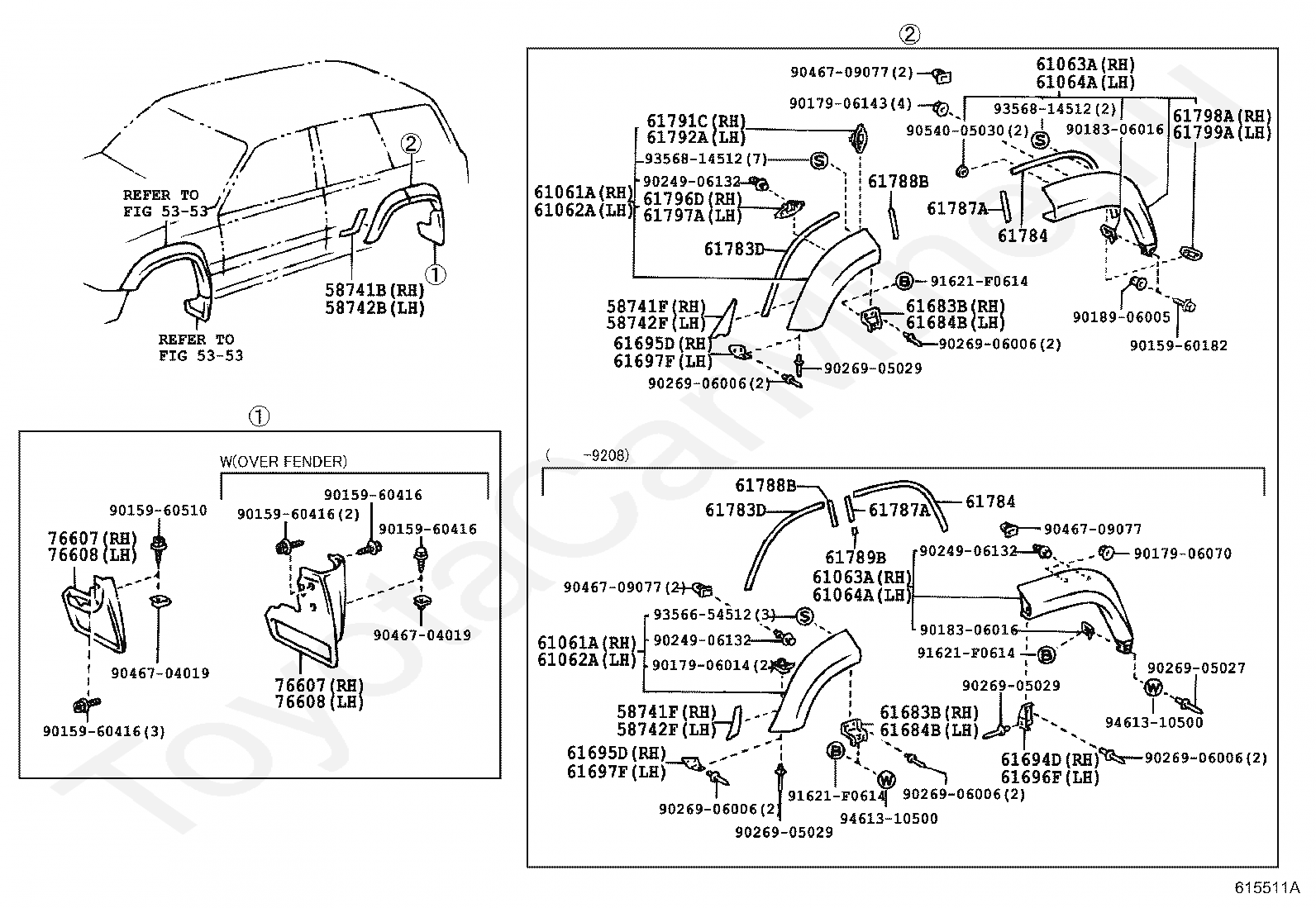

Боковая панель кузова TOYOTA LAND CRUISER VAN







Код

Описание

51909A

RETAINER SUB-ASSY, SPARE WHEEL, NO.1

60131

PILLAR SUB-ASSY, CENTER BODY, NO.2 RH

60132

PILLAR SUB-ASSY, CENTER BODY, NO.2 LH

61021C

PILLAR SUB-ASSY, FRONT BODY, RH

61022C

PILLAR SUB-ASSY, FRONT BODY, LH

61027A

PILLAR SUB-ASSY, FRONT BODY, OUTER RH

61028A

PILLAR SUB-ASSY, FRONT BODY, OUTER LH

61031

EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER RH

61032

EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER LH

61182A

PILLAR, FRONT BODY, INNER LH

61211

RAIL, ROOF SIDE, OUTER RH

61212

RAIL, ROOF SIDE, OUTER LH

61231

RAIL, ROOF SIDE, INNER RH

61232

RAIL, ROOF SIDE, INNER LH

61261

CHANNEL, ROOF DRIP, RH

61262

CHANNEL, ROOF DRIP, LH

61267A

CHANNEL, ROOF DRIP SIDE, REAR RH

61268

CHANNEL, ROOF DRIP SIDE, REAR LH

61301

PILLAR SUB-ASSY, CENTER BODY, RH

61302

PILLAR SUB-ASSY, CENTER BODY, LH

61411

PANEL, ROCKER, OUTER RH

61412

PANEL, ROCKER, OUTER LH

61605E

PANEL, QUARTER, RH

61606E

PANEL, QUARTER, LH

61611

PANEL, QUARTER, RH

61612

PANEL, QUARTER, LH

61633A

PANEL, QUARTER WHEEL HOUSE, INNER RH

61634A

PANEL, QUARTER WHEEL HOUSE, INNER LH

61645B

GUSSET, QUARTER WHEEL HOUSE, REAR RH

61646B

GUSSET, QUARTER WHEEL HOUSE, REAR LH

61659B

RETAINER, REAR DOOR OPEN SWITCH SET, RH

61659C

RETAINER, REAR DOOR OPEN SWITCH SET, LH

61665B

REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH

61666B

REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, LH

61703G

PANEL SUB-ASSY, QUARTER, INNER RH

61704H

PANEL SUB-ASSY, QUARTER, INNER LH

61711

PANEL, ROOF SIDE, OUTER RH

61712

PANEL, ROOF SIDE, OUTER LH

61733A

PANEL, ROOF SIDE, INNER FRONT RH

61734A

PANEL, ROOF SIDE, INNER FRONT LH

9011908093

Крепеж

9017908102

Крепеж

9033320001

Крепеж

9033320001

Крепеж

9095001027

Крепеж

9095001061

Крепеж

9095001336

Крепеж

9095001398

Крепеж

9095001398

Крепеж

9095001398

Крепеж

9095001398

Крепеж

9095001826

Крепеж

Код

Описание

5353

переход к группе запчастей

5353

переход к группе запчастей

58741B

PROTECTOR, QUARTER PANEL, RH

58741F

PROTECTOR, REAR WHEEL EXTENSION, RH

58741F

PROTECTOR, REAR WHEEL EXTENSION, RH

58742B

PROTECTOR, QUARTER PANEL, LH

58742F

PROTECTOR, REAR WHEEL EXTENSION, LH

58742F

PROTECTOR, REAR WHEEL EXTENSION, LH

61061A

EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.1 RH

61061A

EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.1 RH

61062A

EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.1 LH

61062A

EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.1 LH

61063A

EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 RH

61063A

EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 RH

61064A

EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 LH

61064A

EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 LH

61683B

BRACKET, REAR WHEEL OPENING, NO.1 RH

61683B

BRACKET, REAR WHEEL OPENING, NO.1 RH

61684B

BRACKET, REAR WHEEL OPENING, NO.1 LH

61684B

BRACKET, REAR WHEEL OPENING, NO.1 LH

61694D

BRACKET, REAR WHEEL OPENING, NO.2

61695D

BRACKET, REAR WHEEL OPENING, NO.3

61695D

BRACKET, REAR WHEEL OPENING, NO.3

61696F

BRACKET, REAR WHEEL OPENING, NO.2 LH

61697F

BRACKET, REAR WHEEL OPENING, NO.3 LH

61697F

BRACKET, REAR WHEEL OPENING, NO.3 LH

61783D

PAD, REAR WHEEL OPENING EXTENSION, NO.1

61783D

PAD, REAR WHEEL OPENING EXTENSION, NO.1

61784

PAD, REAR WHEEL OPENING EXTENSION, NO.2

61784

PAD, REAR WHEEL OPENING EXTENSION, NO.2

61787A

PAD, REAR WHEEL OPENING EXTENSION, NO.3 REAR

61787A

PAD, REAR WHEEL OPENING EXTENSION, NO.3 REAR

61788B

PAD, REAR WHEEL OPENING EXTENSION, NO.3

61788B

PAD, REAR WHEEL OPENING EXTENSION, NO.3

61789B

PAD, REAR WHEEL OPENING EXTENSION, NO.5

61791C

BRACKET, REAR WHEEL OPENING, CENTER RH

61792A

BRACKET, REAR WHEEL OPENING, CENTER LH

61796D

BRACKET, REAR WHEEL OPENING, FRONT RH

61797A

BRACKET, REAR WHEEL OPENING, FRONT LH

61798A

BRACKET, REAR WHEEL OPENING, REAR RH

61799A

BRACKET, REAR WHEEL OPENING, REAR LH

76607

MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

76607

MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

76608

MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

76608

MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

9015960182

Крепеж

9015960416

Крепеж

9015960416

Крепеж

9015960416

Крепеж

9015960416

Крепеж

9015960510

Крепеж

9017906014

Крепеж

9017906070

Крепеж

9017906143

Крепеж

9018306016

Крепеж

9018306016

Крепеж

9018906005

Крепеж

9024906132

Крепеж

9024906132

Крепеж

9024906132

Крепеж

9026905027

Крепеж

9026905029

Крепеж

9026905029

Крепеж

9026905029

Крепеж

9026906006

Крепеж

9026906006

Крепеж

9026906006

Крепеж

9026906006

Крепеж

9026906006

Крепеж

9046704019

Крепеж

9046704019

Крепеж

9046709077

Крепеж

9046709077

Крепеж

9046709077

Крепеж

9054005030

Крепеж

91621F0614

Крепеж

91621F0614

Крепеж

91621F0614

Крепеж

9356654512

Крепеж

9356814512

Крепеж

9356814512

Крепеж

9461310500

Крепеж

9461310500

Крепеж

Код

Описание

5353

переход к группе запчастей

5353

переход к группе запчастей

53853A

PAD, REAR WHEEL OPENING EXTENSION

53855A

PAD, REAR WHEEL OPENING EXTENSION, NO.3

53858D

BOLT, WHEEL OPENING

61061A

EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.1 RH

61062A

EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.1 LH

61063A

EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 RH

61064A

EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 LH

61683B

BRACKET, REAR WHEEL OPENING, NO.1 RH

61684B

BRACKET, REAR WHEEL OPENING, NO.1 LH

61695D

BRACKET, REAR WHEEL OPENING, NO.3

61697F

BRACKET, REAR WHEEL OPENING, NO.3 LH

61783D

PAD, REAR WHEEL OPENING EXTENSION, NO.1

61784

PAD, REAR WHEEL OPENING EXTENSION, NO.2

61787A

PAD, REAR WHEEL OPENING EXTENSION, NO.3 REAR

61788B

PAD, REAR WHEEL OPENING EXTENSION, NO.3

76607

MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

76607

MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

76608

MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

76608

MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

9011906595

Крепеж

9015960182

Крепеж

9015960416

Крепеж

9015960416

Крепеж

9015960416

Крепеж

9015960416

Крепеж

9015960416

Крепеж

9017906144

Крепеж

9017906157

Крепеж

9018906005

Крепеж

9018906196

Крепеж

9024906132

Крепеж

9024906132

Крепеж

9024906160

Крепеж

9026905027

Крепеж

9026905029

Крепеж

9026906006

Крепеж

9026906006

Крепеж

9046704019

Крепеж

9046709077

Крепеж

9046709077

Крепеж

9046709077

Крепеж

9356814512

Крепеж

9356814512

Крепеж
