Япония

Модель

LAND CRUISER S/T,H/T

VIN

Дата

1985/10

Двигатель

3,4 литра, турбо-дизель

Кузов

HARD TOP SERIES

Класс

LX SPECIFICATION

Фрейм

BJ74

КПП

автомат

Опции

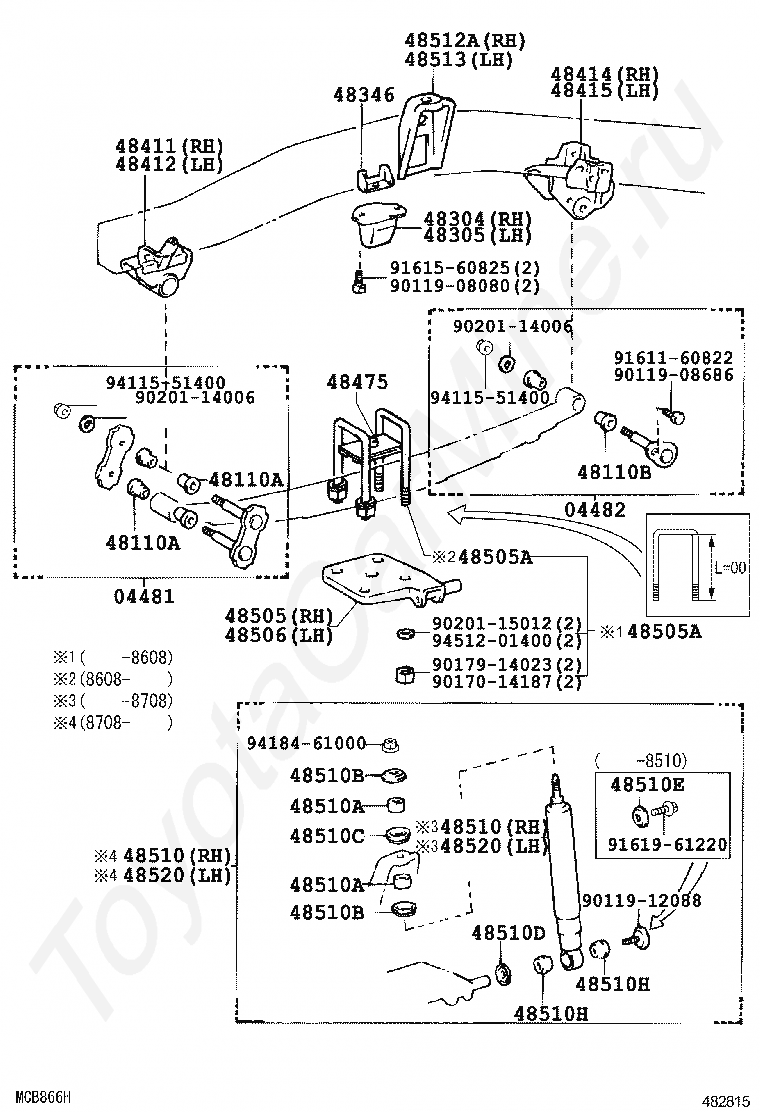

Передние амортизаторы TOYOTA LAND CRUISER S/T,H/T

Код

Описание

04481

SHACKLE KIT, FRONT SPRING

04482

PIN KIT, FRONT SPRING

48110A

BUSH(FOR FRONT SPRING SHACKLE)

48110A

BUSH(FOR FRONT SPRING SHACKLE)

48110B

BUSH(FOR FRONT SPRING PIN)

48304

BUMPER SUB-ASSY, FRONT SPRING, NO.1

48305

BUMPER SUB-ASSY, FRONT SPRING, NO.2

48346

STOPPER, BUMPER, FRONT

48411

BRACKET, FRONT SPRING(FOR FRONT RH)

48412

BRACKET, FRONT SPRING(FOR FRONT LH)

48414

BRACKET, FRONT SPRING(FOR REAR RH)

48415

BRACKET, FRONT SPRING(FOR REAR LH)

48475

PLATE, DISTANCE(FOR FRONT)

48505

SEAT, FRONT SPRING, RH

48505A

BOLT, U(FOR FRONT SPRING)

48505A

BOLT, U(FOR FRONT SPRING)

48506

SEAT, FRONT SPRING, LH

48510

ABSORBER ASSY, SHOCK, FRONT RH

48510

ABSORBER ASSY, SHOCK, FRONT RH

48510A

CUSHION, FRONT SHOCK ABSORBER

48510A

CUSHION, FRONT SHOCK ABSORBER

48510B

RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

48510B

RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

48510C

RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

48510D

WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1

48510E

WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

48510H

BUSH(FOR FRONT SHOCK ABSORBER)

48510H

BUSH(FOR FRONT SHOCK ABSORBER)

48512A

BRACKET, FRONT SHOCK ABSORBER, UPPER RH

48513

BRACKET, FRONT SHOCK ABSORBER, UPPER LH

48520

ABSORBER ASSY, SHOCK, FRONT LH

48520

ABSORBER ASSY, SHOCK, FRONT LH

9011908080

Крепеж

9011908686

Крепеж

9011912088

Крепеж

9017014187

Крепеж

9017914023

Крепеж

9020114006

Крепеж

9020114006

Крепеж

9020115012

Крепеж

9161160822

Крепеж

9161560825

Крепеж

9161961220

Крепеж

9411551400

Крепеж

9411551400

Крепеж

9418461000

Крепеж

9451201400

Крепеж

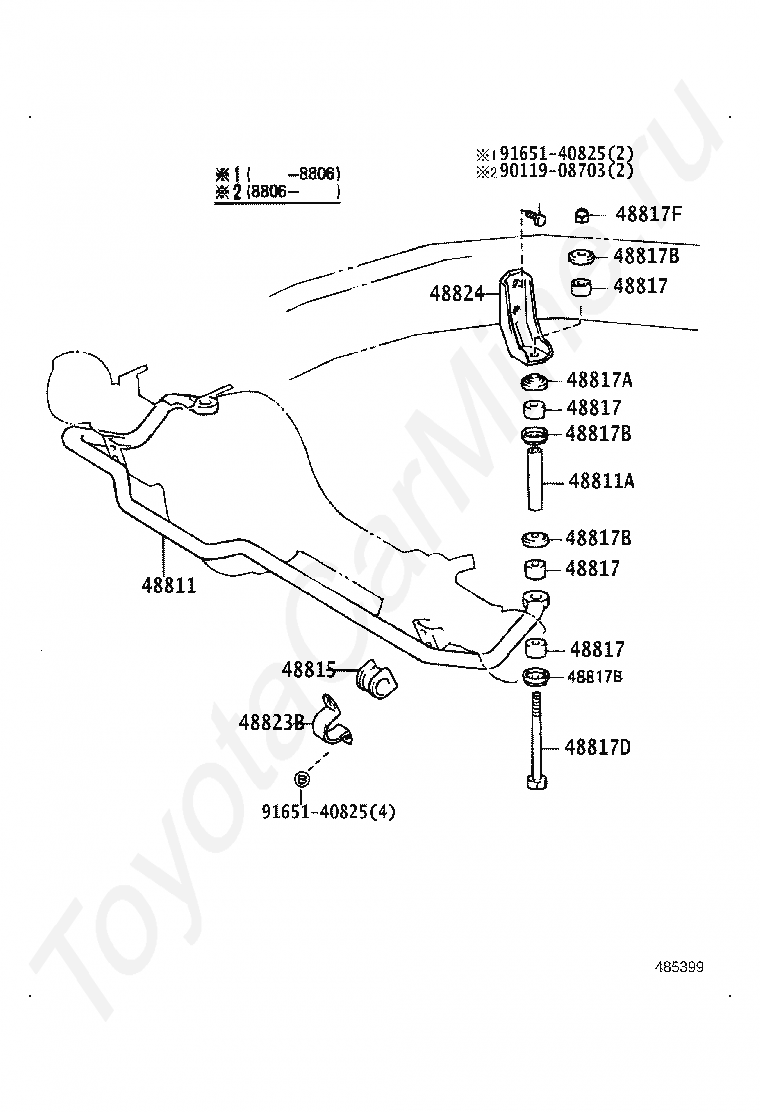

Код

Описание

48811

BAR, STABILIZER, FRONT

48811A

BUSH(FOR FRONT STABILIZER BAR)

48815

BUSH, FRONT STABILIZER BAR, NO.1

48817

CUSHION, FRONT STABILIZER

48817

CUSHION, FRONT STABILIZER

48817

CUSHION, FRONT STABILIZER

48817

CUSHION, FRONT STABILIZER

48817A

RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

48817B

RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

48817B

RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

48817B

RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

48817D

BOLT(FOR FRONT STABILIZER)

48817F

NUT(FOR FRONT STABILIZER BAR)

48823B

COVER, FRONT STABILIZER BRACKET

48824

BRACKET, STABILIZER, FRONT

9011908703

Крепеж

9165140825

Крепеж

9165140825

Крепеж

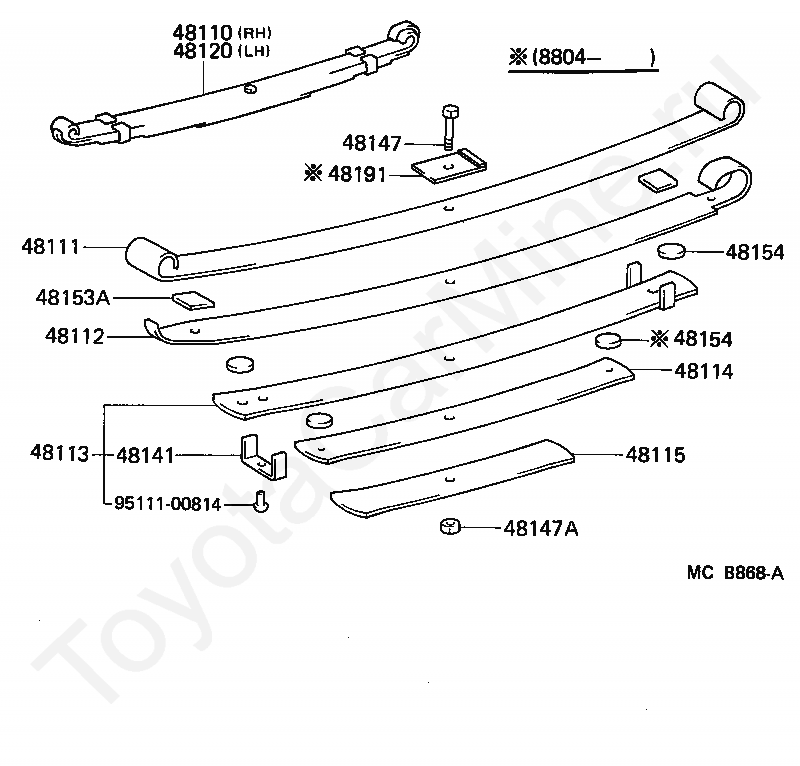

Код

Описание

48110

SPRING ASSY, FRONT, RH

48111

LEAF, FRONT SPRING, NO.1

48112

LEAF, FRONT SPRING, NO.2

48113

LEAF, FRONT SPRING, NO.3

48114

LEAF, FRONT SPRING, NO.4

48115

LEAF, FRONT SPRING, NO.5

48120

SPRING ASSY, FRONT, LH

48141

CLIP, FRONT SPRING, NO.1

48147

BOLT, FRONT SPRING, CENTER

48147A

NUT, FRONT SPRING CENTER BOLT

48153A

SILENCER, FRONT SPRING, NO.1

48154

SILENCER, FRONT SPRING, NO.2

48154

SILENCER, FRONT SPRING, NO.2

48191

WEDGE, CASTER(FOR FRONT LEAF SPRING)

9511100814

Крепеж
