Япония

Модель

LAND CRUISER S/T,H/T

VIN

Дата

1985/10

Двигатель

3,4 литра, турбо-дизель

Кузов

HARD TOP SERIES

Класс

LX SPECIFICATION

Фрейм

BJ74

КПП

автомат

Опции

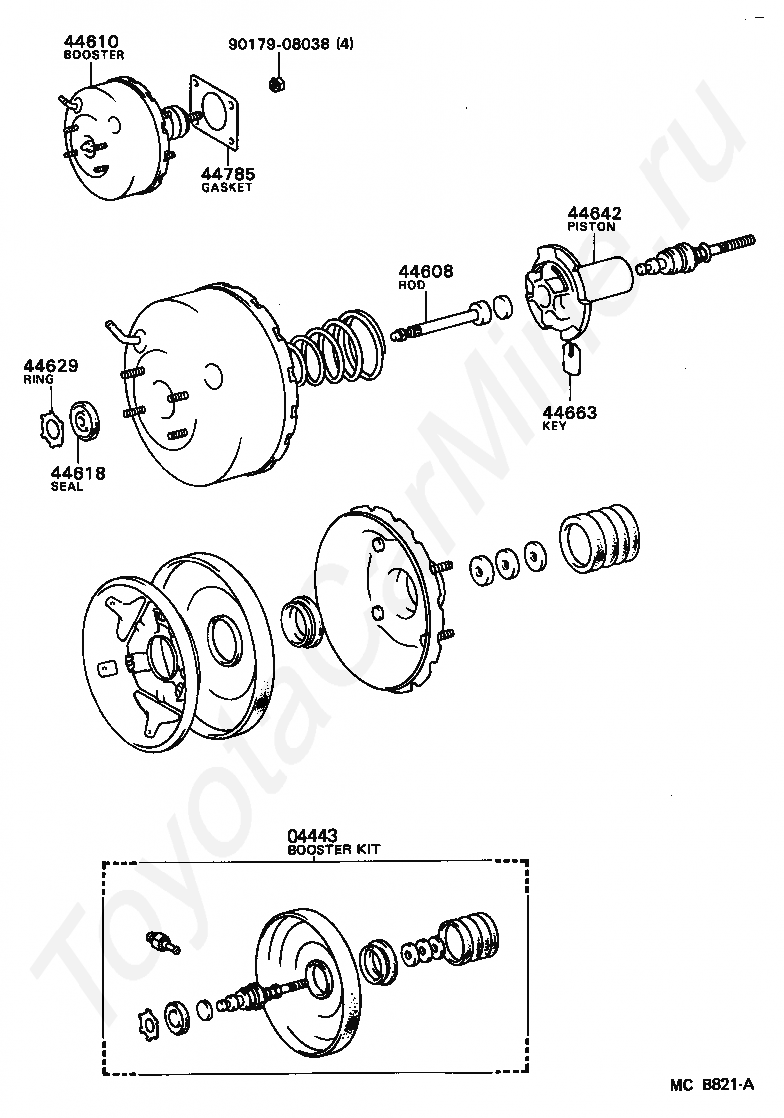

Вакуумный тормозной цилиндр TOYOTA LAND CRUISER S/T,H/T

Код

Описание

04443

BOOSTER KIT, BRAKE

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44618

SEAL, BOOSTER BODY

44629

RING, CIRCULAR INTERNAL

44642

PISTON, BRAKE BOOSTER

44663

KEY, VALVE STOPPER

44785

GASKET, BRAKE BOOSTER

9017908038

Крепеж

Код

Описание

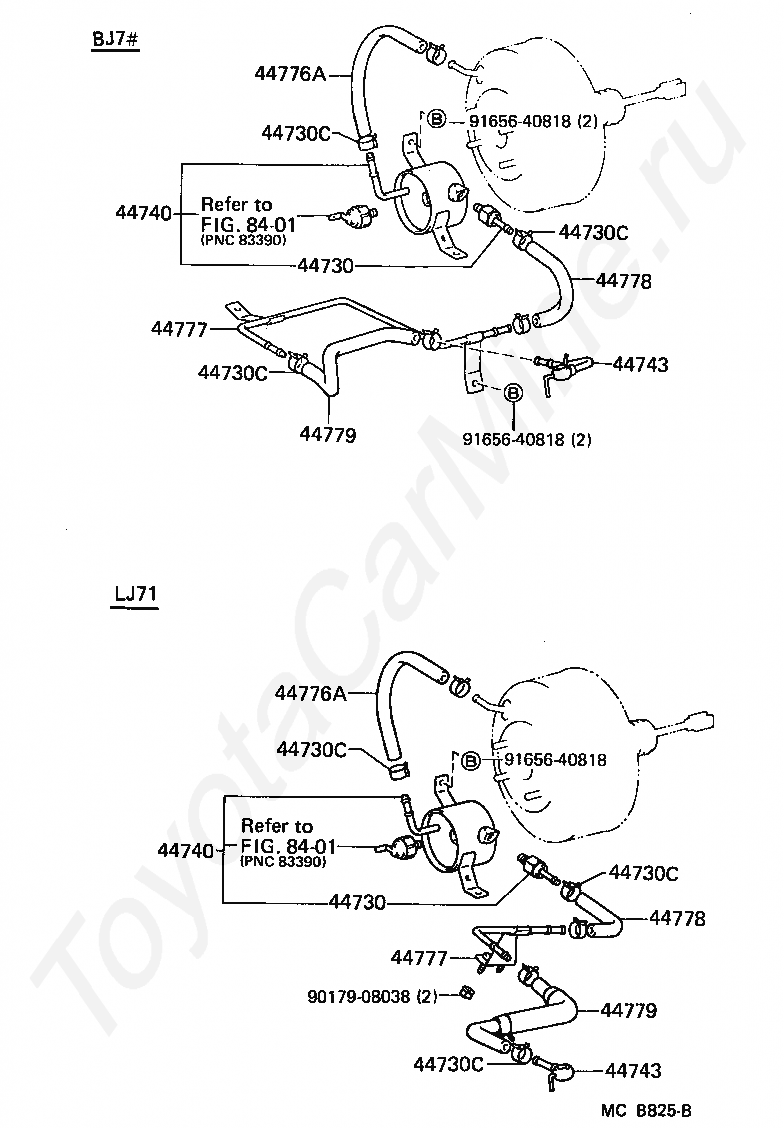

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44740

RESERVOIR ASSY, VACUUM

44740

RESERVOIR ASSY, VACUUM

44743

UNION(FOR VACUUM PUMP)

44743

UNION(FOR VACUUM PUMP)

44776A

HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER

44776A

HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER

44777

CONNECTOR, VACUUM HOSE, NO.1

44777

CONNECTOR, VACUUM HOSE, NO.1

44778

HOSE, CONNECTOR TO CHECK VALVE

44778

HOSE, CONNECTOR TO CHECK VALVE

44779

HOSE, UNION TO CONNECTOR

44779

HOSE, UNION TO CONNECTOR

8401

переход к группе запчастей

8401

переход к группе запчастей

9017908038

Крепеж

9165640818

Крепеж

9165640818

Крепеж

9165640818

Крепеж

Код

Описание

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44740

RESERVOIR ASSY, VACUUM

44740

RESERVOIR ASSY, VACUUM

44743

UNION(FOR VACUUM PUMP)

44743

UNION(FOR VACUUM PUMP)

44776A

HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER

44776A

HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER

44777

CONNECTOR, VACUUM HOSE, NO.1

44777

CONNECTOR, VACUUM HOSE, NO.1

44778

HOSE, CONNECTOR TO CHECK VALVE

44778

HOSE, CONNECTOR TO CHECK VALVE

44779

HOSE, UNION TO CONNECTOR

44779

HOSE, UNION TO CONNECTOR

8401

переход к группе запчастей

8401

переход к группе запчастей

9017908038

Крепеж

9165640818

Крепеж

9165640818

Крепеж

9165640818

Крепеж
