Япония

Модель

LAND CRUISER S/T,H/T

VIN

Дата

1985/10

Двигатель

3,4 литра, турбо-дизель

Кузов

HARD TOP SERIES

Класс

LX SPECIFICATION

Фрейм

BJ74

КПП

автомат

Опции

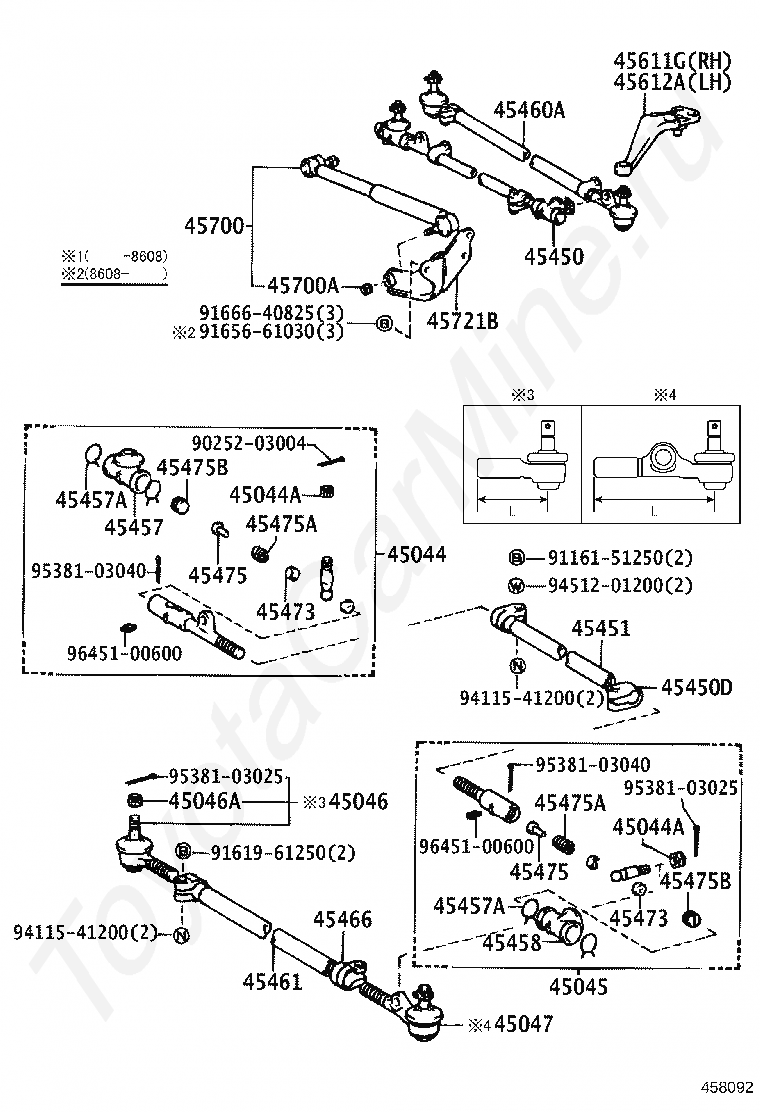

Рулевая рейка и наконечники TOYOTA LAND CRUISER S/T,H/T

Код

Описание

45044

END SUB-ASSY, STEERING RELAY ROD, RH

45044A

NUT, CASTLE(FOR RELAY ROD)

45044A

NUT, CASTLE(FOR RELAY ROD)

45045

END SUB-ASSY, STEERING RELAY ROD, LH

45046

END SUB-ASSY, TIE ROD, RH

45046A

NUT, CASTLE(FOR TIE ROD END)

45047

END SUB-ASSY, TIE ROD, LH

45450

ROD ASSY, STEERING RELAY

45450D

CLAMP, STEERING RELAY ROD END

45451

ROD, STEERING RELAY

45457

SEAL, STEERING LINK DUST, RH

45457A

CLIP(FOR STEERING LINK DUST SEAL)

45457A

CLIP(FOR STEERING LINK DUST SEAL)

45458

SEAL, STEERING LINK DUST, LH

45460A

ROD ASSY, TIE

45461

ROD, STEERING TIE

45466

CLAMP, TIE ROD END

45473

SEAT, BALL STUD

45473

SEAT, BALL STUD

45475

SEAT, STEERING LINK JOINT SPRING

45475

SEAT, STEERING LINK JOINT SPRING

45475A

SPRING, COMPRESSION(FOR STEERING LINK JOINT)

45475A

SPRING, COMPRESSION(FOR STEERING LINK JOINT)

45475B

PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT)

45475B

PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT)

45611G

ARM, STEERING KNUCKLE, NO.1

45612A

ARM, STEERING KNUCKLE, NO.2

45700

DAMPER ASSY, STEERING

45700A

NUT(FOR STEERING DAMPER)

45721B

BRACKET, STEERING DAMPER, NO.3

9025203004

Крепеж

9116151250

Крепеж

9161961250

Крепеж

9165661030

Крепеж

9166640825

Крепеж

9411541200

Крепеж

9411541200

Крепеж

9451201200

Крепеж

9538103025

Крепеж

9538103025

Крепеж

9538103040

Крепеж

9538103040

Крепеж

9645100600

Крепеж

9645100600

Крепеж

Код

Описание

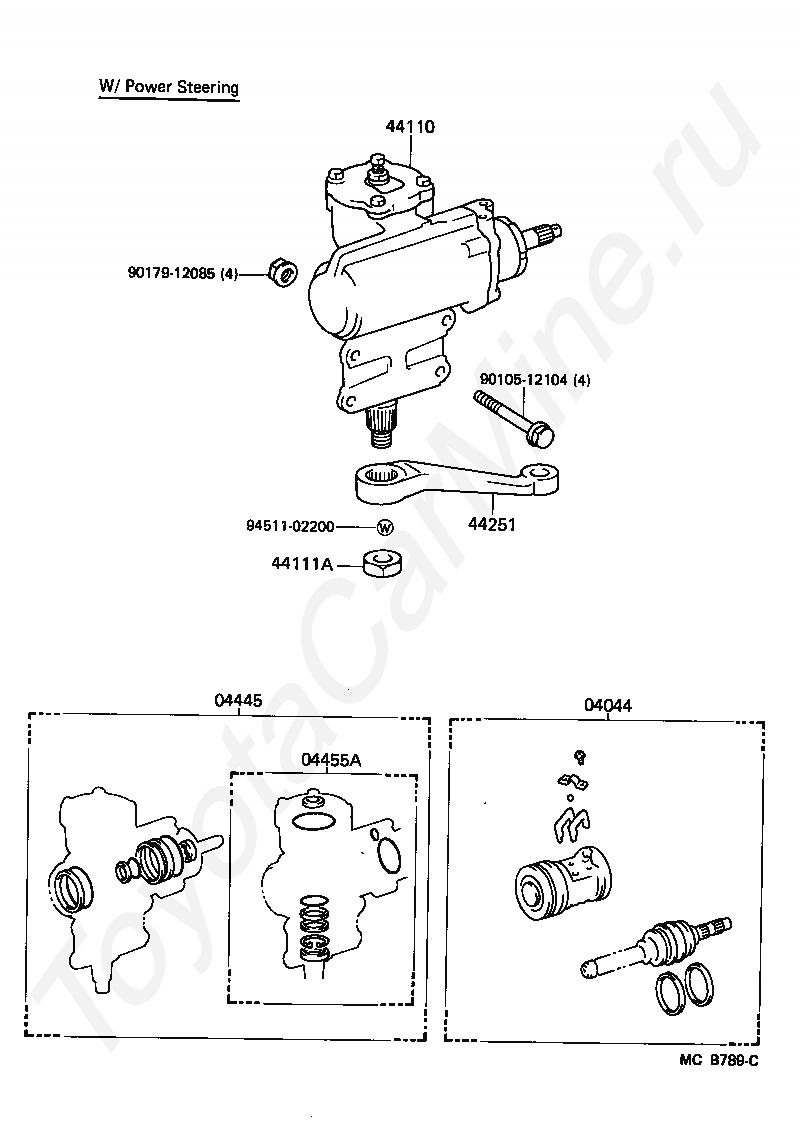

04044

WARM KIT, POWER STEERING

04445

GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

04455A

GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE

44110

GEAR ASSY, POWER STEERING

44111A

NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING)

44251

ARM, PITMAN

9010512104

Крепеж

9017912085

Крепеж

9451102200

Крепеж

Код

Описание

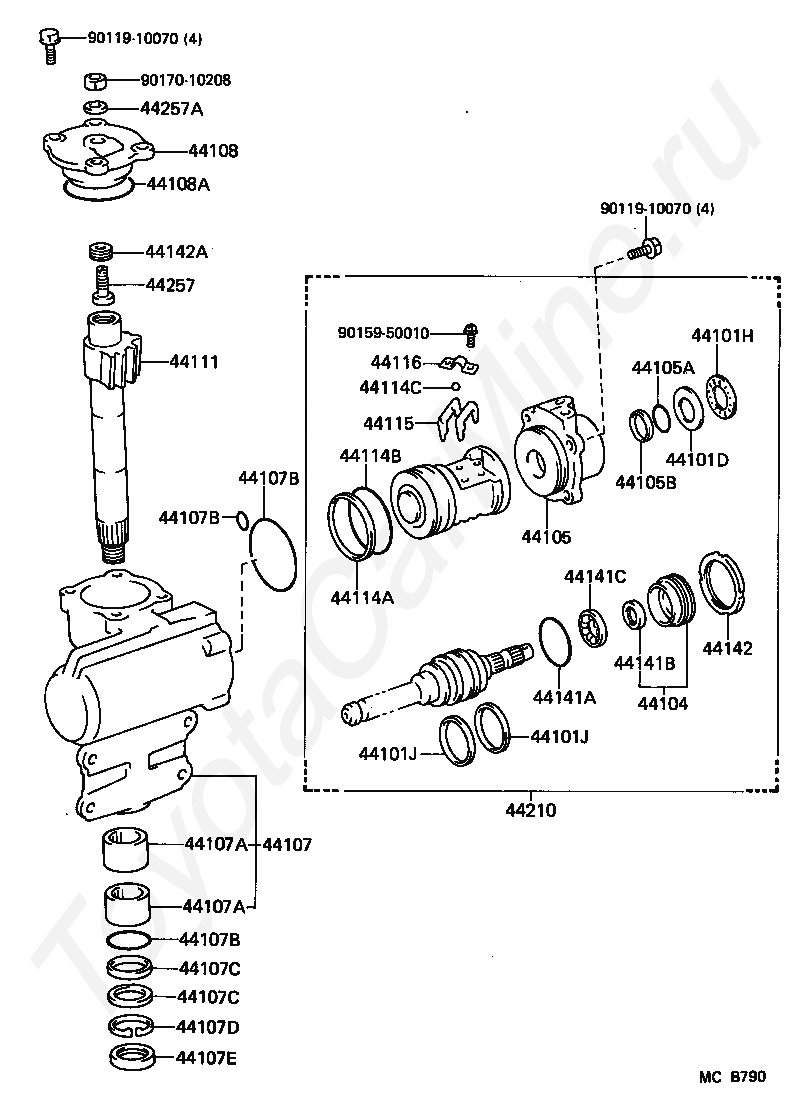

44101D

WASHER, PLATE(FOR STEERING WORM)

44101H

BEARING, THRUST NEEDLE ROLLER(FOR STEERING WORM)

44101J

RING(FOR STEERING WORM)

44101J

RING(FOR STEERING WORM)

44104

PLUG SUB-ASSY, ADJUSTER

44105

HOUSING SUB-ASSY, VALVE

44105A

RING, O(FOR VALVE HOUSING)

44105B

RING(FOR VALVE HOUSING)

44107

HOUSING SUB-ASSY, POWER STEERING GEAR

44107A

BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING)

44107A

BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107C

RING(FOR POWER STEERING GEAR HOUSING)

44107C

RING(FOR POWER STEERING GEAR HOUSING)

44107D

RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING)

44107E

SEAL, OIL(FOR POWER STEERING GEAR HOUSING)

44108

COVER SUB-ASSY, SIDE

44108A

RING, O(FOR SIDE COVER)

44111

SHAFT, CROSS

44114A

RING(FOR POWER PISTON NUT)

44114B

RING, O(FOR POWER PISTON NUT)

44114C

BALL(FOR POWER PISTON NUT)

44115

GUIDE, BALL

44116

CLAMP, BALL GUIDE

44141A

RING, O(FOR ADJUSTER PLUG)

44141B

SEAL, OIL(FOR ADJUSTER PLUG)

44141C

BEARING(FOR ADJUSTER PLUG)

44142

NUT, LOCK

44142A

NUT, LOCK, NO.1

44210

VALVE ASSY, POWER STEERING CONTROL

44257

SCREW, CROSS SHAFT ADJUSTING

44257A

WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW)

9011910070

Крепеж

9011910070

Крепеж

9015950010

Крепеж

9017010208

Крепеж

Рулевая рейка и наконечники TOYOTA LAND CRUISER S/T,H/T
