Япония

Модель

LAND CRUISER S/T,H/T

VIN

Дата

1985/10

Двигатель

3,4 литра, турбо-дизель

Кузов

HARD TOP SERIES

Класс

LX SPECIFICATION

Фрейм

BJ74

КПП

автомат

Опции

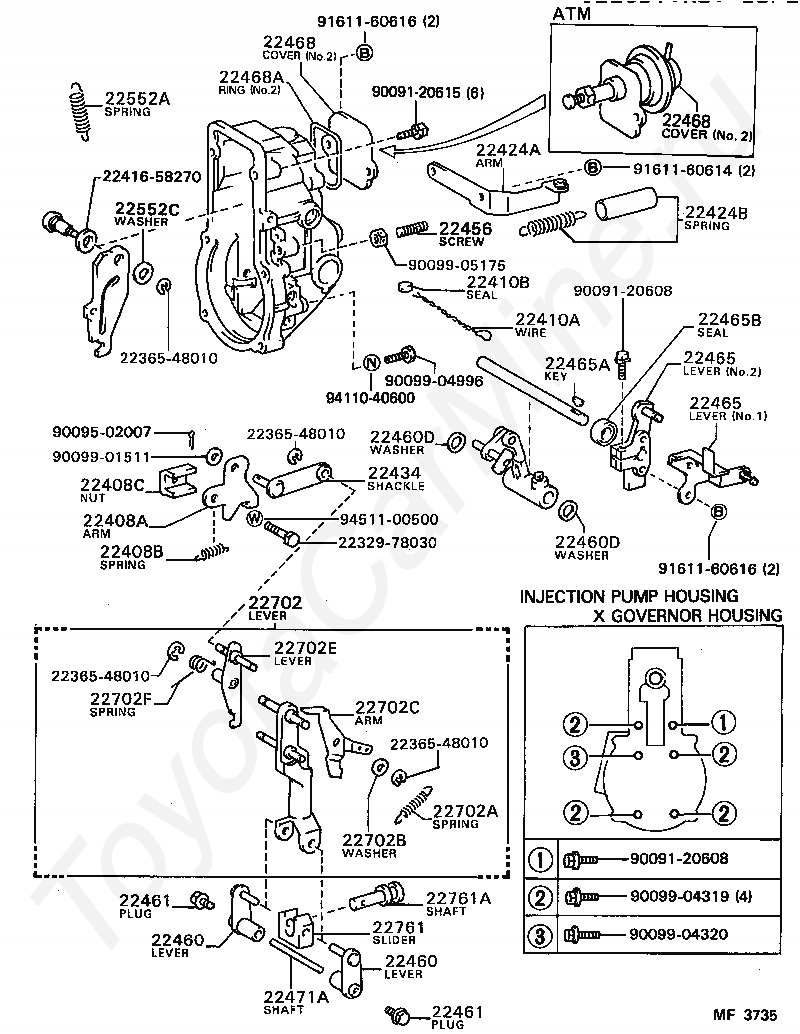

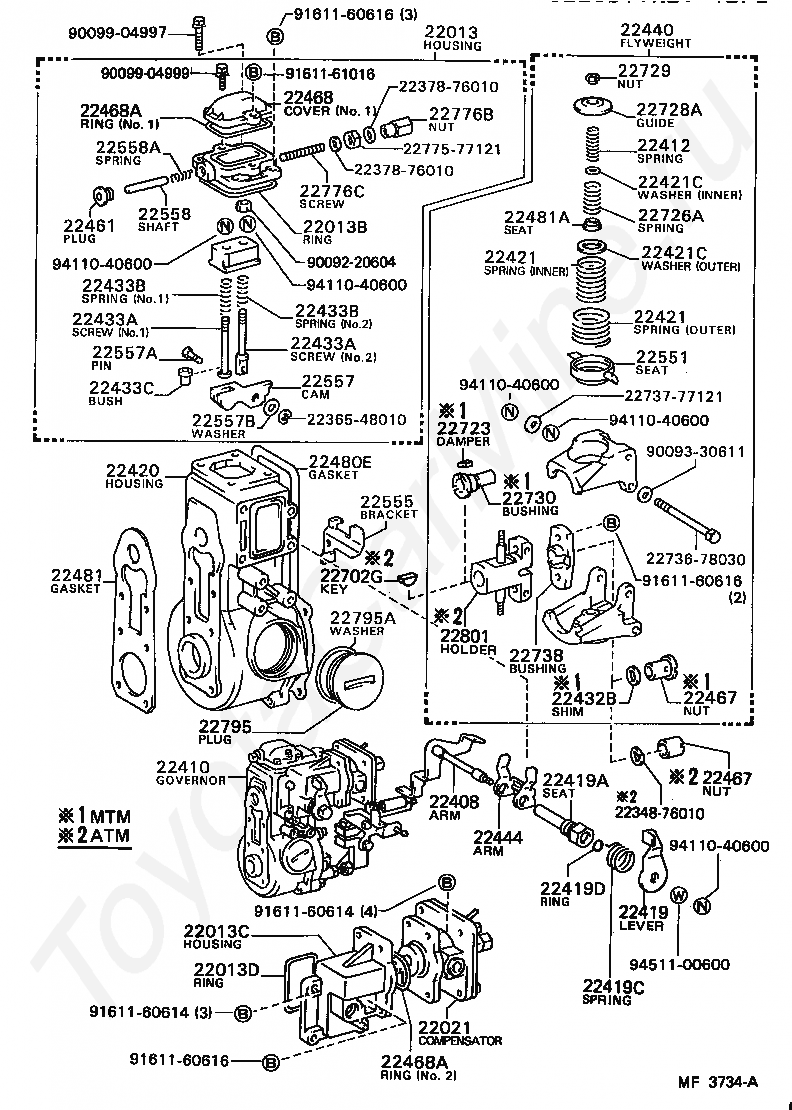

MECHANICAL GOVERNOR TOYOTA LAND CRUISER S/T,H/T

Код

Описание

22013

HOUSING SUB-ASSY, FULLROAD STOPPER

22013B

RING, O(FOR FULLROAD STOPPER HOUSING)

22013C

HOUSING, FULLROAD STOPPER, NO.2

22013D

RING, O(FOR FULLROAD STOPPER HOUSING, NO.2)

22021

COMPENSATOR SUB-ASSY, BOOST

2234876010

Крепеж

2236548010

Крепеж

2237876010

Крепеж

2237876010

Крепеж

22408

ARM, STOPPER

22410

GOVERNOR ASSY, INJECTION PUMP MECHANICAL

22412

SPRING, MECHANICAL GOVERNOR

22419

LEVER, STOP

22419A

SEAT, RETURN SPRING(FOR STOPPER ARM)

22419C

SPRING, RETURN(FOR STOPPER LEVER)

22419D

RING, O(FOR STOPPER LEVER)

22420

HOUSING SUB-ASSY, MECHANICAL GOVERNOR

22421

SPRING, IDLING

22421

SPRING, IDLING

22421C

WASHER, IDLING SPRING

22421C

WASHER, IDLING SPRING

22432B

SHIM

22433A

SCREW, ADAPTER(FOR SLIDING BLOCK)

22433A

SCREW, ADAPTER(FOR SLIDING BLOCK)

22433B

SPRING(FOR ADAPTER SCREW)

22433B

SPRING(FOR ADAPTER SCREW)

22433C

BUSH(FOR ADAPTER SCREW)

22440

FLYWEIGHT SUB-ASSY

22444

ARM

22461

PLUG, SCREW

22467

NUT, ROUND

22467

NUT, ROUND

22468

COVER, PLATE

22468A

O, RING

22468A

O, RING

22480E

GASKET, GOVERNOR COVER

22481

GASKET

22481A

SEAT, SPRING, INNER

22551

SEAT, SPRING(FOR FLYWEIGHT)

22555

BRACKET, STOPPER

22557

CAM, FULL STOP

22557A

PIN, CONNECTING(FOR FULL STOP CAM)

22557B

WASHER, PLATE(FOR CONNECTING PIN)

22558

SHAFT, SLIDING BLOCK

22558A

SPRING(FOR SLIDING BLOCK SHAFT)

22702G

KEY, WOODRUFF(FOR FROATING LEVER)

22723

DAMPER, FLYWEIGHT HOLDER

22726A

SPRING, SPEED CONTROL

22728A

GUIDE, SPRING

22729

NUT, ADJUSTING(FOR FLYWEIGHT)

22730

BUSHING ASSY, CAMSHAFT

2273678030

Крепеж

2273777121

Крепеж

22738

BUSHING, GUIDE(FOR FLYWEIGHT)

2277577121

Крепеж

22776B

NUT, CAP(FOR SCREW STOPPER)

22776C

SCREW, STOPPER

22795

PLUG, SCREW

22795A

WASHER, SCREW PLUG

22801

HOLDER SUB-ASSY, FLYWEIGHT

9009220604

Крепеж

9009330611

Крепеж

9009904997

Крепеж

9009904999

Крепеж

9161160614

Крепеж

9161160614

Крепеж

9161160616

Крепеж

9161160616

Крепеж

9161160616

Крепеж

9161161016

Крепеж

9411040600

Крепеж

9411040600

Крепеж

9411040600

Крепеж

9411040600

Крепеж

9411040600

Крепеж

9451100600

Крепеж

Код

Описание

2232978030

Крепеж

2236548010

Крепеж

2236548010

Крепеж

2236548010

Крепеж

2236548010

Крепеж

22408A

ARM SUB-ASSY(FOR CONTROL LACK)

22408B

SPRING, RETURN(FOR ARM)

22408C

NUT, ARM

22410A

WIRE, GOVERNOR HOUSING SEAL

22410B

SEAL, LEAD

2241658270

Крепеж

22424A

ARM, SPRING

22424B

SPRING, RETURN(FOR SPRING ARM)

22434

SHACKLE

22456

SCREW, STOP

22460

LEVER SUB-ASSY, SUPPORT

22460

LEVER SUB-ASSY, SUPPORT

22460D

WASHER, LOCK(FOR STEERING LEVER)

22460D

WASHER, LOCK(FOR STEERING LEVER)

22461

PLUG, SCREW

22461

PLUG, SCREW

22465

LEVER SUB-ASSY, ADJUSTING

22465

LEVER SUB-ASSY, ADJUSTING

22465A

KEY, WOODRUFF(FOR ADJUSTING LEVER)

22465B

SEAL, OIL(FOR ADJUSTING LEVER)

22468

COVER, PLATE

22468

COVER, PLATE

22468A

O, RING

22471A

SHAFT, LEVER SUPPORTING

22552A

SPRING, RETURN(FOR CAM PLATE)

22552C

WASHER(FOR CAM PLATE BUSH)

22702

LEVER ASSY, FLOATING

22702A

SPRING, FLOATING ARM

22702B

WASHER, PLATE(FOR FLOATING LEVER)

22702C

ARM, FLOATING

22702E

LEVER SUB-ASSY, CONTROL

22702F

SPRING, RETURN(FOR CONTROL LEVER)

22761

SLIDER(FOR SPEED CONTROL)

22761A

SHAFT, SLIDING WEIGHT

9009120608

Крепеж

9009120608

Крепеж

9009120615

Крепеж

9009502007

Крепеж

9009901511

Крепеж

9009904319

Крепеж

9009904320

Крепеж

9009904996

Крепеж

9009905175

Крепеж

9161160614

Крепеж

9161160616

Крепеж

9161160616

Крепеж

9411040600

Крепеж

9451100500

Крепеж

MECHANICAL GOVERNOR TOYOTA LAND CRUISER S/T,H/T
