Япония

Модель

LAND CRUISER VAN

VIN

Дата

1982/10

Двигатель

3,4 литра, дизель

Кузов

LAND CRUISER VAN

Фрейм

BJ61

КПП

механика МКПП, 4 ступени

Опции

VAN WITH DOUBLE-LEAFED HINGED DOOR STANDARD ROOF COMPLETED VEHICLE дизель

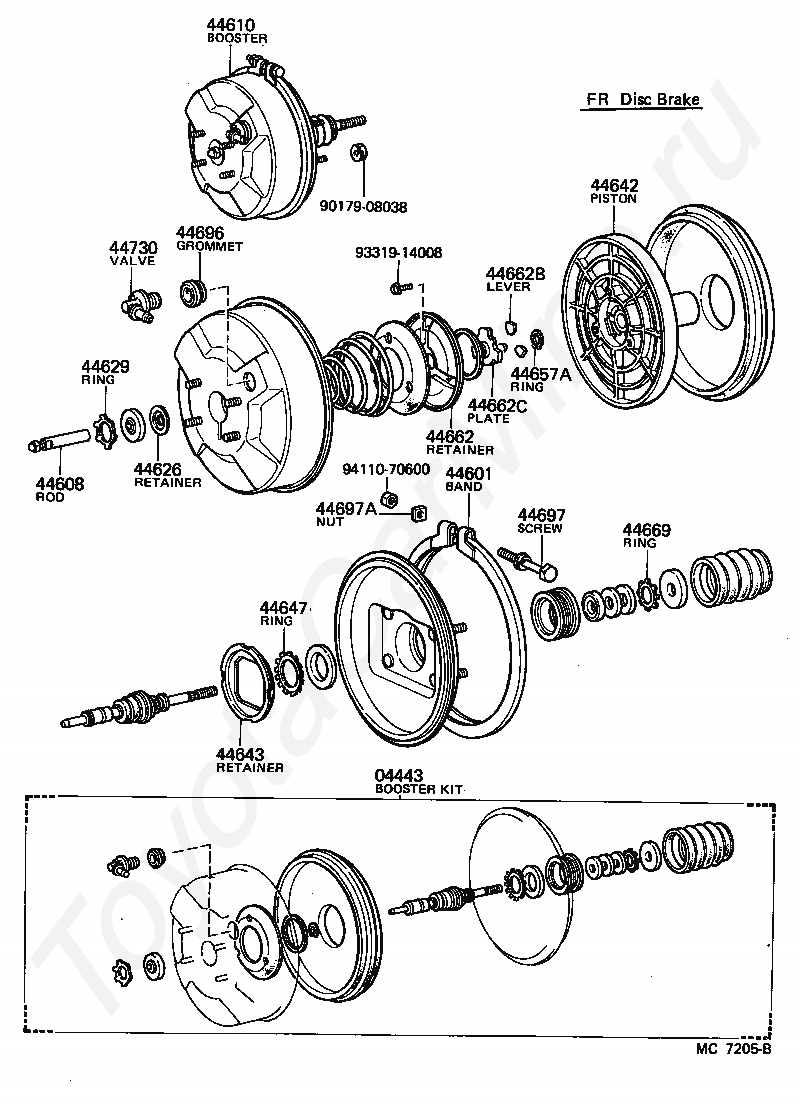

Вакуумный тормозной цилиндр TOYOTA LAND CRUISER VAN

Код

Описание

04443

BOOSTER KIT, BRAKE

44601

BAND SUB-ASSY, BOOSTER BODY

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44626

RETAINER, BOOSTER ROD CUP

44629

RING, CIRCULAR INTERNAL

44642

PISTON, BRAKE BOOSTER

44643

RETAINER, DIAPHRAGM

44647

RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)

44657A

RING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

44662

RETAINER, REACTION, NO.1

44662B

LEVER, REACTION

44662C

PLATE, REACTION, NO.1

44669

RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

44696

GROMMET, CHECK VALVE

44697

SCREW, BOOSTER BAND SET

44697A

NUT(FOR BOOSTER BAND SET)

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

9017908038

Крепеж

9331914008

Крепеж

9411070600

Крепеж

Код

Описание

04443

BOOSTER KIT, BRAKE

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44610

BOOSTER ASSY, BRAKE

44618

SEAL, BOOSTER BODY

44629

RING, CIRCULAR INTERNAL

44642

PISTON, BRAKE BOOSTER

44663

KEY, VALVE STOPPER

44696

GROMMET, CHECK VALVE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44758

BRACKET, VACUUM CHECK VALVE

44785

GASKET, BRAKE BOOSTER

44785

GASKET, BRAKE BOOSTER

9017908038

Крепеж

9017908038

Крепеж

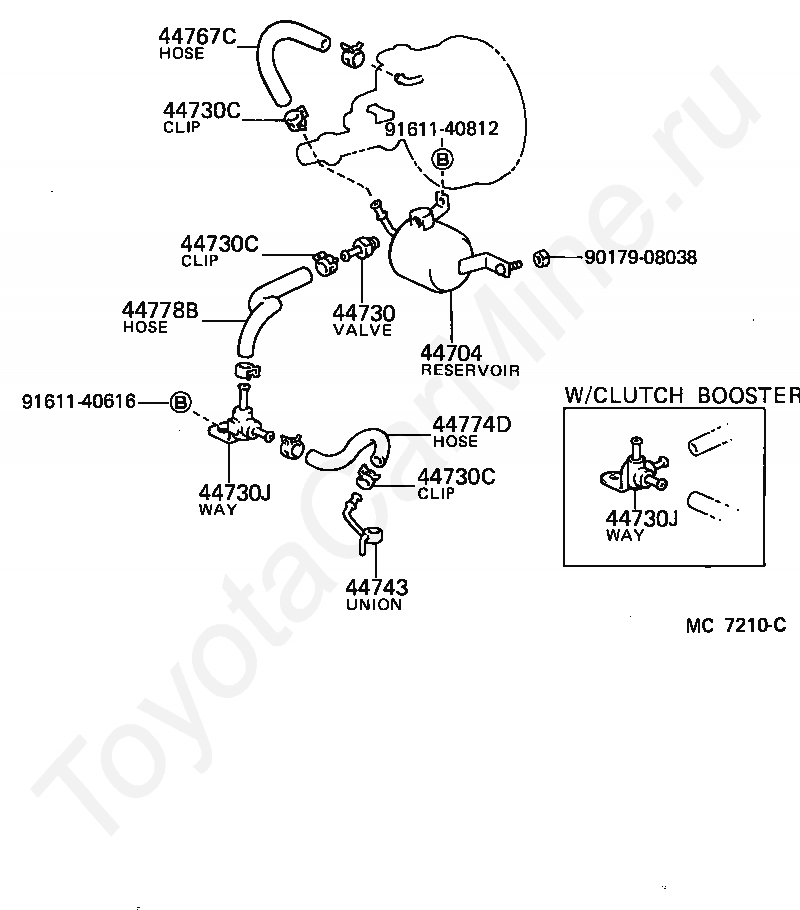

Код

Описание

44704

RESERVOIR SUB-ASSY, VACUUM

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730J

WAY(FOR BOOSTER VACUUM)

44730J

WAY(FOR BOOSTER VACUUM)

44743

UNION(FOR VACUUM PUMP)

44767C

HOSE(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)

44774D

HOSE, UNION TO WAY

44778B

HOSE, WAY TO CHECK VALVE

9017908038

Крепеж

9161140616

Крепеж

9161140812

Крепеж

Вакуумный тормозной цилиндр TOYOTA LAND CRUISER VAN
