Европа

Модель

LAND CRUISER

VIN

Дата

1986/08

Двигатель

2,4 литра, турбо-дизель

Кузов

HARD TOP SERIES

Класс

LX SPECIFICATION

Фрейм

LJ73

Опции

левый руль TURBO DIESEL COMPLETED VEHICLE

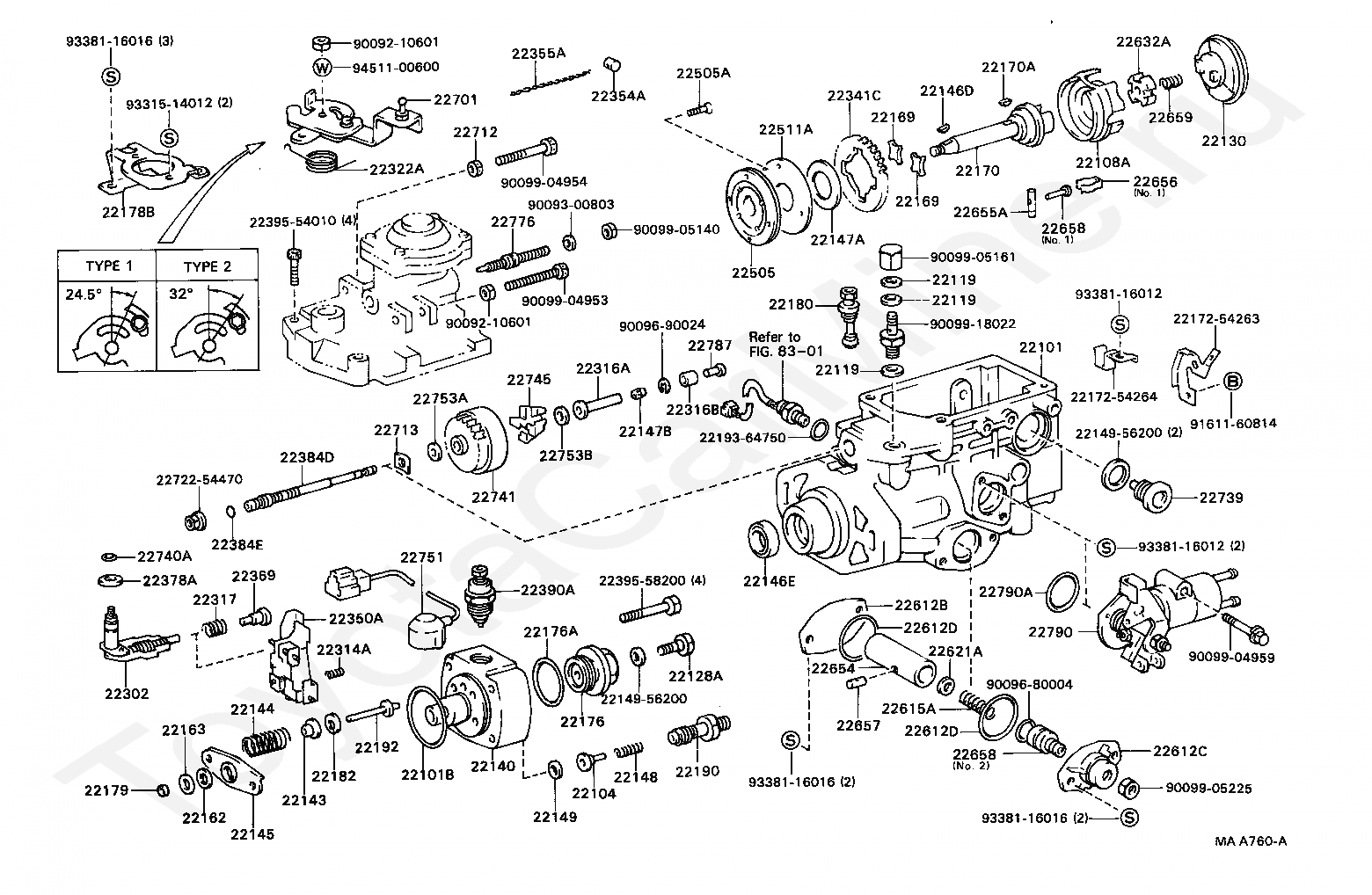

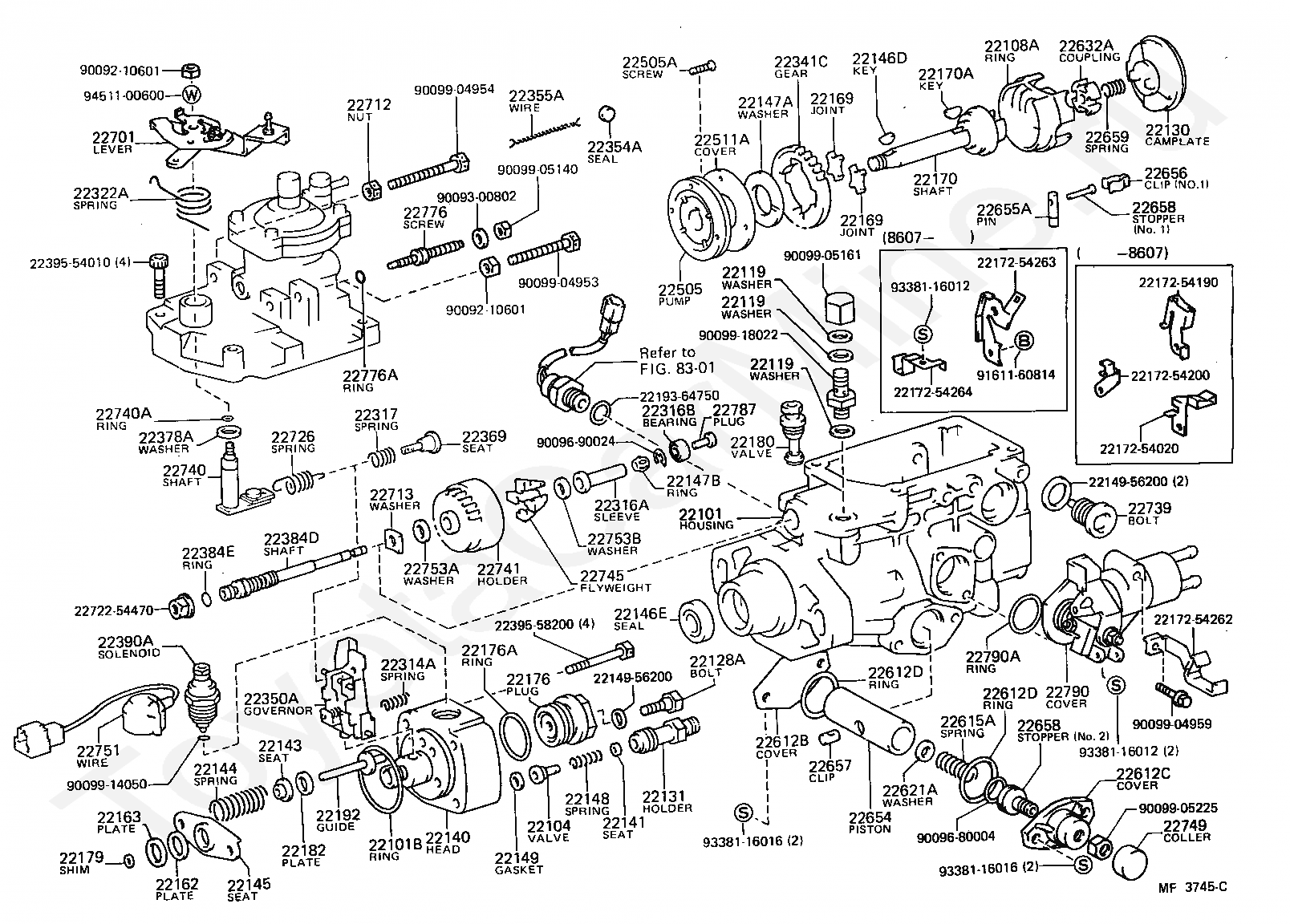

INJECTION PUMP BODY TOYOTA LAND CRUISER







Код

Описание

22101

HOUSING SUB-ASSY, INJECTION PUMP

22101B

RING, O(FOR INJECTION PUMP HOUSING)

22104

VALVE SUB-ASSY, INJECTION PUMP DELIVERY

22108A

RING SUB-ASSY, ROLLER

22119

WASHER, AIR BLEEDER NIPPLE

22119

WASHER, AIR BLEEDER NIPPLE

22119

WASHER, AIR BLEEDER NIPPLE

22128A

BOLT, DISTRIBUTIVE HEAD

22130

CAMPLATE SUB-ASSY, FACE

22131

HOLDER, DELIVERY VALVE

22140

HEAD SUB-ASSY, DISTRIBUTIVE PUMP

22141

SEAT, DELIVERY VALVE SPRING

22143

SEAT, SPRING UPPER

22144

SPRING, PUMP PLUNGER

22145

SEAT, SPRING, LOWER

22146D

KEY(FOR DRIVE GEAR)

22146E

SEAL(FOR DRIVE SHAFT)

22147A

WASHER, DRIVE SHAFT

22147B

RING, GOVERNOR SLEEVE

22148

SPRING, DELIVERY VALVE

22149

GASKET, DELIVERY VALVE

2214956200

Крепеж

2214956200

Крепеж

22162

PLATE, PLUNGER UPPER

22163

PLATE, PLUNGER LOWER

22169

JOINT, RUBBER

22169

JOINT, RUBBER

22170

SHAFT SUB-ASSY, DRIVE

22170A

KEY(FOR DRIVE SHAFT)

2217254020

Крепеж

2217254190

Крепеж

2217254200

Крепеж

2217254262

Крепеж

2217254263

Крепеж

2217254264

Крепеж

22176

PLUG, DISTRIBUTIVE HEAD

22176A

RING, O(FOR DISTRIBUTIVE HEAD PLUG)

22179

SHIM, PLUNGER ADJUSTING

22180

VALVE SUB-ASSY, REGULATOR

22182

PLATE, TAPPET ADJUSTING SHIM

22192

GUIDE SUB-ASSY, PLUNGER SPRING

2219364750

Крепеж

22314A

SPRING, LEVER SUPPORT

22316A

SLEEVE, GOVERNOR

22316B

BEARING, BALL(FOR GOVERNOR SLEEVE)

22317

SPRING, GOVERNOR DOMPER

22322A

SPRING, RETURN

22341C

GEAR, GOVERNOR DRIVE

22350A

GOVERNOR ASSY, TORQUE CONTROL

22354A

SEAL, ROD

22355A

WIRE, GOVERNOR HOUSING SEAL

22369

SEAT, GOVERNOR SPRING

22378A

WASHER, GOVERNOR THRUST

22384D

SHAFT, GOVERNOR

22384E

RING, O(FOR GOVERNOR MAIN SHAFT)

22390A

SOLENOID ASSY, FUEL CUT

2239554010

Крепеж

2239558200

Крепеж

22505

PUMP SUB-ASSY, FUEL FEED

22505A

SCREW(FOR FUEL FEED PUMP)

22511A

COVER, FEED PUMP

22612B

COVER, TIMER

22612C

COVER, TIMER

22612D

RING, O(FOR TIMER COVER)

22612D

RING, O(FOR TIMER COVER)

22615A

SPRING, TIMER OUTER

22621A

WASHER, TIMER ADJUSTING

22632A

COUPLING, INJECTION PUMP

22654

PISTON, TIMER

22655A

PIN, TIMER SLIDE

22656

CLIP, TIMER

22657

CLIP, TIMER

22658

STOPPER, TIMER

22658

STOPPER, TIMER

22659

SPRING, COUPLING

22701

LEVER SUB-ASSY, ADJUSTING

22712

NUT, ROCK

22713

WASHER, GOVERNOR GEAR ADJUSTING

2272254470

Крепеж

22726

SPRING, SPEED CONTROL

22739

BOLT, GOVERNOR LINK SUPPORT

22740

SHAFT SUB-ASSY, GOVERNOR ADJUSTING

22740A

RING, O(FOR GOVERNOR ADJUSTING SHAFT)

22741

HOLDER SUB-ASSY, FLYWEIGHT

22745

FLYWEIGHT, DISTRIBUTIVE PUMP

22749

COLLAR, SMOKE SET ADJUSTING

22751

WIRE SUB-ASSY, FUEL CUT SOLENOID

22753A

WASHER, FLYWEIGHT, NO.1

22753B

WASHER, FLYWEIGHT, NO.2

22776

SCREW, SMOKE SET ADJUSTING

22776A

RING, O(FOR SMOKE SET SCREW)

22787

PLUG, GOVERNOR SLEEVE

22790

COVER SUB-ASSY, TIMER

22790A

RING, O(FOR TIMER COVER)

8301

переход к группе запчастей

9009210601

Крепеж

9009210601

Крепеж

9009300802

Крепеж

9009680004

Крепеж

9009690024

Крепеж

9009904953

Крепеж

9009904954

Крепеж

9009904959

Крепеж

9009905140

Крепеж

9009905161

Крепеж

9009905225

Крепеж

9009914050

Крепеж

9009918022

Крепеж

9161160814

Крепеж

9338116012

Крепеж

9338116012

Крепеж

9338116016

Крепеж

9338116016

Крепеж

9451100600

Крепеж

Код

Описание

22119

WASHER, AIR BLEEDER NIPPLE

22119

WASHER, AIR BLEEDER NIPPLE

22129

PLUG, SCREW

22129A

WASHER, AIR BLEEDER NIPPLE(FOR SCREW PLUG)

22143A

SEAT, SPRING UPPER, NO.2

22143A

SEAT, SPRING UPPER, NO.2

22160

SCREW SUB-ASSY, OVERFLOW

22160A

SCREW SUB-ASSY, OVER FLOW, NO.2

22193

RING, O(FOR LEVER CONNECTING PIN)

22305A

IDLE-UP SUB-ASSY

22308B

LEVER SUB-ASSY, CONTROL

22321A

ROD, PUSH

22338A

PIN, LEVER CONNECTING

22348A

BUSHING, GUIDE

22348A

BUSHING, GUIDE

22348A

BUSHING, GUIDE

22348C

WASHER(FOR GUIDE BUSHING)

22526A

PIN, LEVER SUPPORT

22542

DIAPHRAGM(FOR BOOST COMPENSATOR)

22546

SPRING, BOOST COMPENSATOR

22547

SHIM, BOOST COMPENSATOR

22656

CLIP, TIMER

22658A

STOPPER, TIMER SLIDE

22703A

COVER SUB-ASSY, GOVERNOR

22703B

COVER, GOVERNOR

22722

NUT, GOVERNOR SHAFT ROCK

22739A

BOLT, GOVERNOR LINK SUPPORT NO.2

22739A

BOLT, GOVERNOR LINK SUPPORT NO.2

22739B

WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2)

22739B

WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2)

22774

GASKET, GOVERNOR COVER

2277754261

Крепеж

9009120610

Крепеж

9009210601

Крепеж

9009300803

Крепеж

9009905156

Крепеж

9009905181

Крепеж

9338116014

Крепеж

Код

Описание

22119

WASHER, AIR BLEEDER NIPPLE

22119

WASHER, AIR BLEEDER NIPPLE

22129

PLUG, SCREW

22129A

WASHER, AIR BLEEDER NIPPLE(FOR SCREW PLUG)

22143A

SEAT, SPRING UPPER, NO.2

22143A

SEAT, SPRING UPPER, NO.2

22160

SCREW SUB-ASSY, OVERFLOW

22160A

SCREW SUB-ASSY, OVER FLOW, NO.2

22193

RING, O(FOR LEVER CONNECTING PIN)

22305A

IDLE-UP SUB-ASSY

22308B

LEVER SUB-ASSY, CONTROL

22321A

ROD, PUSH

22338A

PIN, LEVER CONNECTING

22348A

BUSHING, GUIDE

22348A

BUSHING, GUIDE

22348A

BUSHING, GUIDE

22526A

PIN, LEVER SUPPORT

22542

DIAPHRAGM(FOR BOOST COMPENSATOR)

22546

SPRING, BOOST COMPENSATOR

22547

SHIM, BOOST COMPENSATOR

22656

CLIP, TIMER

22703A

COVER SUB-ASSY, GOVERNOR

22703B

COVER, GOVERNOR

2272254120

Крепеж

22739A

BOLT, GOVERNOR LINK SUPPORT NO.2

22739A

BOLT, GOVERNOR LINK SUPPORT NO.2

22739B

WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2)

22739B

WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2)

22774

GASKET, GOVERNOR COVER

22777

CAP, RUBBER(FOR BELLOWS)

9009120610

Крепеж

9009210601

Крепеж

9009901473

Крепеж

9009905156

Крепеж

9338116014

Крепеж

Код

Описание

22101

HOUSING SUB-ASSY, INJECTION PUMP

22101B

RING, O(FOR INJECTION PUMP HOUSING)

22104

VALVE SUB-ASSY, INJECTION PUMP DELIVERY

22108A

RING SUB-ASSY, ROLLER

22119

WASHER, AIR BLEEDER NIPPLE

22119

WASHER, AIR BLEEDER NIPPLE

22119

WASHER, AIR BLEEDER NIPPLE

22128A

BOLT, DISTRIBUTIVE HEAD

22130

CAMPLATE SUB-ASSY, FACE

22140

HEAD SUB-ASSY, DISTRIBUTIVE PUMP

22143

SEAT, SPRING UPPER

22144

SPRING, PUMP PLUNGER

22145

SEAT, SPRING, LOWER

22146D

KEY(FOR DRIVE GEAR)

22146E

SEAL(FOR DRIVE SHAFT)

22147A

WASHER, DRIVE SHAFT

22147B

RING, GOVERNOR SLEEVE

22148

SPRING, DELIVERY VALVE

22149

GASKET, DELIVERY VALVE

2214956200

Крепеж

2214956200

Крепеж

22162

PLATE, PLUNGER UPPER

22163

PLATE, PLUNGER LOWER

22169

JOINT, RUBBER

22169

JOINT, RUBBER

22170

SHAFT SUB-ASSY, DRIVE

22170A

KEY(FOR DRIVE SHAFT)

2217254263

Крепеж

2217254264

Крепеж

22176

PLUG, DISTRIBUTIVE HEAD

22176A

RING, O(FOR DISTRIBUTIVE HEAD PLUG)

22178B

BRACKET(FOR INJECTION PUMP ASSY)

22179

SHIM, PLUNGER ADJUSTING

22180

VALVE SUB-ASSY, REGULATOR

22182

PLATE, TAPPET ADJUSTING SHIM

22190

VALVE SUB-ASSY, SNUBBER

22192

GUIDE SUB-ASSY, PLUNGER SPRING

2219364750

Крепеж

22302

SHAFT SUB-ASSY, SPEED CONTROL

22314A

SPRING, LEVER SUPPORT

22316A

SLEEVE, GOVERNOR

22316B

BEARING, BALL(FOR GOVERNOR SLEEVE)

22317

SPRING, GOVERNOR DOMPER

22322A

SPRING, RETURN

22341C

GEAR, GOVERNOR DRIVE

22350A

GOVERNOR ASSY, TORQUE CONTROL

22354A

SEAL, ROD

22355A

WIRE, GOVERNOR HOUSING SEAL

22369

SEAT, GOVERNOR SPRING

22378A

WASHER, GOVERNOR THRUST

22384D

SHAFT, GOVERNOR

22384E

RING, O(FOR GOVERNOR MAIN SHAFT)

22390A

SOLENOID ASSY, FUEL CUT

2239554010

Крепеж

2239558200

Крепеж

22505

PUMP SUB-ASSY, FUEL FEED

22505A

SCREW(FOR FUEL FEED PUMP)

22511A

COVER, FEED PUMP

22612B

COVER, TIMER

22612C

COVER, TIMER

22612D

RING, O(FOR TIMER COVER)

22612D

RING, O(FOR TIMER COVER)

22615A

SPRING, TIMER OUTER

22621A

WASHER, TIMER ADJUSTING

22632A

COUPLING, INJECTION PUMP

22654

PISTON, TIMER

22655A

PIN, TIMER SLIDE

22656

CLIP, TIMER

22657

CLIP, TIMER

22658

STOPPER, TIMER

22658

STOPPER, TIMER

22659

SPRING, COUPLING

22701

LEVER SUB-ASSY, ADJUSTING

22712

NUT, ROCK

22713

WASHER, GOVERNOR GEAR ADJUSTING

2272254470

Крепеж

22739

BOLT, GOVERNOR LINK SUPPORT

22740A

RING, O(FOR GOVERNOR ADJUSTING SHAFT)

22741

HOLDER SUB-ASSY, FLYWEIGHT

22745

FLYWEIGHT, DISTRIBUTIVE PUMP

22751

WIRE SUB-ASSY, FUEL CUT SOLENOID

22753A

WASHER, FLYWEIGHT, NO.1

22753B

WASHER, FLYWEIGHT, NO.2

22776

SCREW, SMOKE SET ADJUSTING

22787

PLUG, GOVERNOR SLEEVE

22790

COVER SUB-ASSY, TIMER

22790A

RING, O(FOR TIMER COVER)

8301

переход к группе запчастей

9009210601

Крепеж

9009210601

Крепеж

9009300803

Крепеж

9009680004

Крепеж

9009690024

Крепеж

9009904953

Крепеж

9009904954

Крепеж

9009904959

Крепеж

9009905140

Крепеж

9009905161

Крепеж

9009905225

Крепеж

9009918022

Крепеж

9161160814

Крепеж

9331514012

Крепеж

9338116012

Крепеж

9338116012

Крепеж

9338116016

Крепеж

9338116016

Крепеж

9338116016

Крепеж

9451100600

Крепеж
