Каталог

Европа

Модель

LAND CRUISER 90

VIN

Дата

1996/04

Двигатель

3 литра, турбо-дизель

Фрейм

KZJ95

КПП

автомат

Опции

левый руль 5 дверей

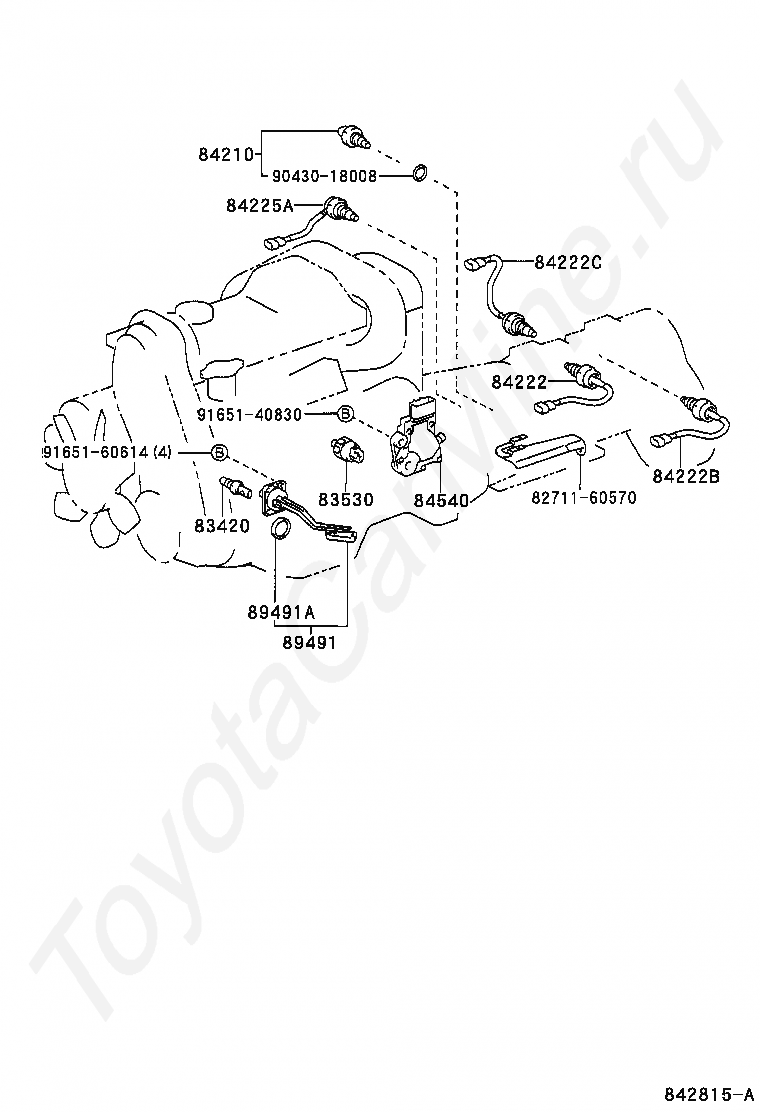

Реле и кнопки TOYOTA LAND CRUISER 90







Код

Описание

8271160570

Крепеж

83420

GAGE ASSY, WATER TEMPERATURE SENDER

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

84210

SWITCH ASSY, BACK-UP LAMP

84222

SWITCH, TRANSFER INDICATOR, NO.1

84222B

SWITCH, TRANSFER INDICATOR, NO.2

84222C

SWITCH, TRANSFER INDICATOR, NO.3

84225A

SWITCH, SHIFT POSITION

84540

SWITCH ASSY, NEUTRAL START

89491

SENSOR, ENGINE OIL LEVEL

89491A

GASKET, ENGINE OIL LEVEL SENSOR

9043018008

Крепеж

9165140830

Крепеж

9165160614

Крепеж

Код

Описание

2302

переход к группе запчастей

2302

переход к группе запчастей

28300

RELAY ASSY, STARTER

28300

RELAY ASSY, STARTER

28610A

RELAY ASSY, GLOW PLUG(SUB)

8202

переход к группе запчастей

8202

переход к группе запчастей

82241H

BOX, WIRE RELAY

82600F

FUSE, FUSE BLOCK

82602

BLOCK SUB-ASSY, RELAY

82616

PULLER, FUSE

82661

COVER, RELAY BLOCK, NO.1

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82663

COVER, RELAY BLOCK, LOWER

82663A

COVER, RELAY BLOCK, LOWER, NO.2

82670A

BLOCK ASSY, JUNCTION, NO.1

82741

BLOCK, ENGINE ROOM RELAY

82742

BLOCK, ENGINE ROOM RELAY, NO.2

82742A

BLOCK, ENGINE ROOM RELAY, NO.5

83390

SWITCH ASSY, VACUUM WARNING

83482

SENSOR, OUTER AMBIENT TEMPERATURE

8404

переход к группе запчастей

8405

переход к группе запчастей

85530A

RELAY, POWER OUTLET SOCKET

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85910X

RELAY, HEATER MIRROR

85916D

RELAY, FOG LAMP

85916N

RELAY, TAIL LAMP

85916P

RELAY, HEADLAMP

85926

RELAY, HEADLAMP DIMMER

85934

RELAY, MAGNET-CLUTCH

85942

RELAY, HEADLAMP CLEANER CONTROL

85999C

BRACKET, RELAY, NO.3

88630G

RELAY ASSY, COOLER

89438

SWITCH, POWER STEERING OIL PRESSURE

89620

IGNITER ASSY

89629

BRACKET, IGNITER ASSY

9007505002

Крепеж

9007510014

Крепеж

9011906005

Крепеж

9162660818

Крепеж

9163560618

Крепеж

9163560618

Крепеж

9163560618

Крепеж

9163560618

Крепеж

91651B0620

Крепеж

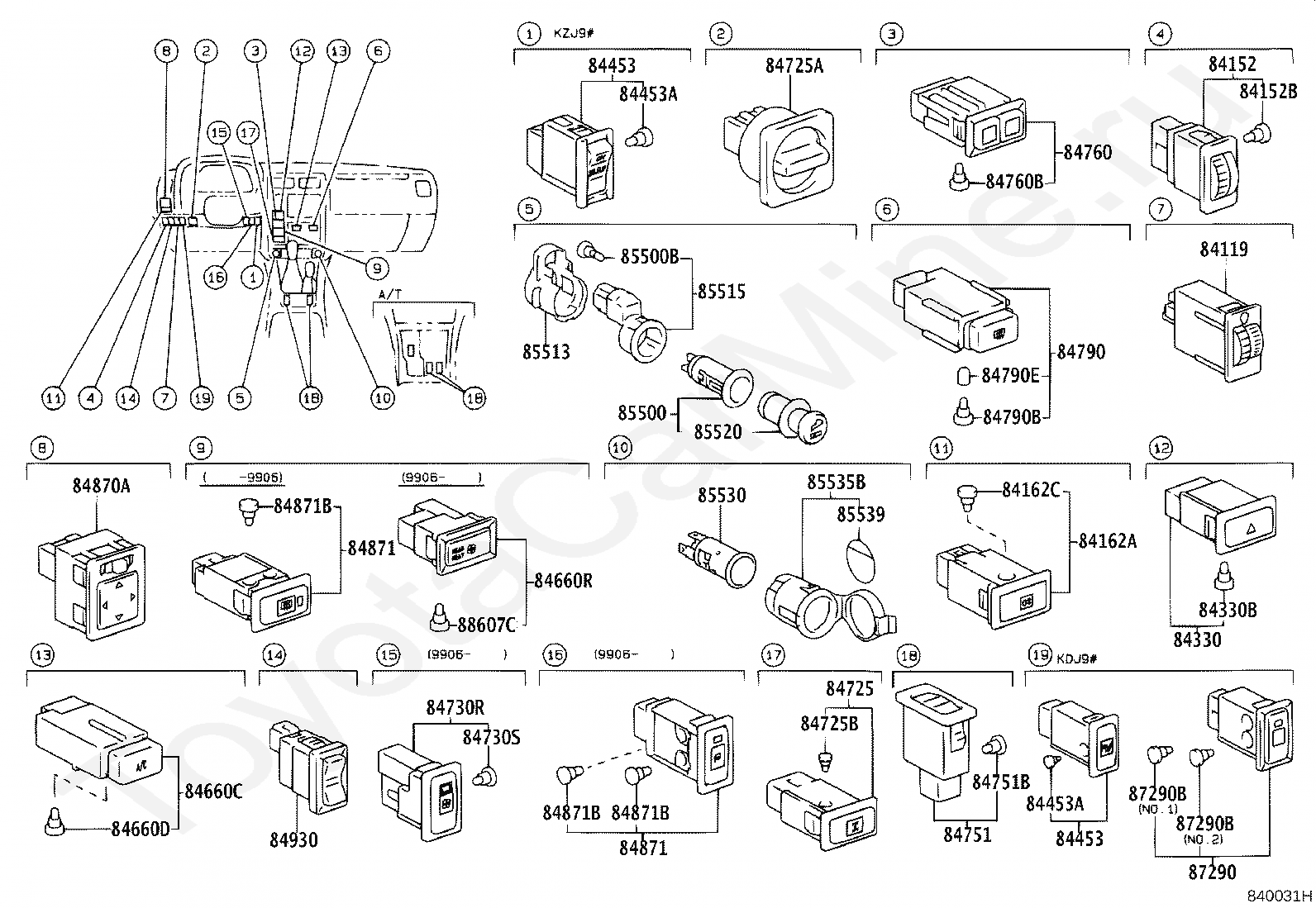

Код

Описание

84119

RHEOSTAT, LIGHT CONTROL

84152

SWITCH, HEADLAMP LEVELING

84152B

BULB (FOR HEADLAMP LEVELING SWITCH)

84162A

SWITCH, REAR FOG LAMP

84162C

BULB (FOR REAR FOG LAMP SWITCH)

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84330B

BULB, HAZARD WARNING SIGNAL SWITCH

84453

SWITCH, IDLE UP

84453

SWITCH, IDLE UP

84453A

BULB, IDLE UP SWITCH

84453A

BULB, IDLE UP SWITCH

84660C

SWITCH, COOLER

84660D

BULB(FOR COOLER SWITCH)

84660R

SWITCH, COOLER(REAR)

84725

SWITCH, CENTER DIFFERENTIAL LOCK

84725A

SWITCH, DIFFERENTIAL LOCK

84725B

BLUB, DIFFERENTIAL LOCK SWITCH

84730R

SWITCH ASSY, HEATER BLOWER

84730S

BULB, HEATER BLOWER SWITCH

84751

SWITCH, SEAT HEATER

84751B

BULB, SEAT HEATER SWITCH

84760

SWITCH ASSY, ANTENNA

84760B

BULB, ANTENNA SWITCH

84790

SWITCH ASSY, REAR WINDOW DEFOGGER

84790B

BULB(FOR REAR WINDOW DEFOGGER SWITCH)

84790E

CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH)

84870A

SWITCH ASSY, OUTER MIRROR

84871

SWITCH ASSY, OUTER MIRROR HEATER

84871

SWITCH ASSY, OUTER MIRROR HEATER

84871B

BULB, OUTER MIRROR HEATER SWITCH

84871B

BULB, OUTER MIRROR HEATER SWITCH

84871B

BULB, OUTER MIRROR HEATER SWITCH

84930

SWITCH ASSY, DOOR CONTROL

85500

LIGHTER ASSY, CIGARETTE

85500B

BULB, CIGARETTE LIGHTER

85513

COVER, CIGARETTE LIGHTER

85515

STAY, CIGARETTE LIGHTER BEZEL

85520

KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER

85530

SOCKET ASSY, POWER OUTLET, NO.1

85535B

COVER, POWER OUTLET SOCKET, NO.1

85539

LABEL, POWER OUTLET NOTICE

87290

SWITCH ASSY, HEATER

87290B

BULB (FOR HEATER SWITCH)

87290B

BULB (FOR HEATER SWITCH)

88607C

LAMP SUB-ASSY, INDICATOR

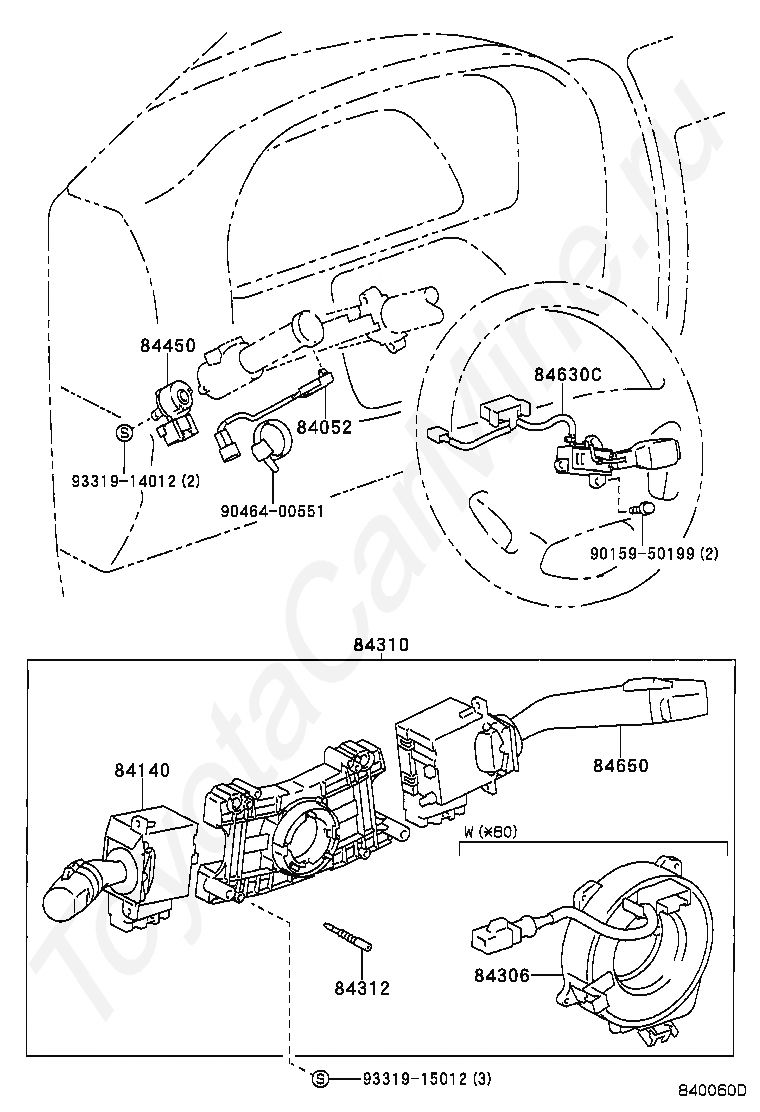

Код

Описание

84052

SWITCH ASSY, UN-LOCK WARNING

84140

SWITCH ASSY, HEADLAMP DIMMER

84306

CABLE SUB-ASSY, SPIRAL

84310

SWITCH ASSY, TURN SIGNAL

84312

PLATE, HORN CONTACT

84450

SWITCH ASSY, IGNITION OR STARTER

84630C

SWITCH ASSY, SPEED CONTROL MAIN

84650

SWITCH ASSY, WINDSHIELD WIPER

9015950199

Крепеж

9046400551

Крепеж

9331914012

Крепеж

9331915012

Крепеж

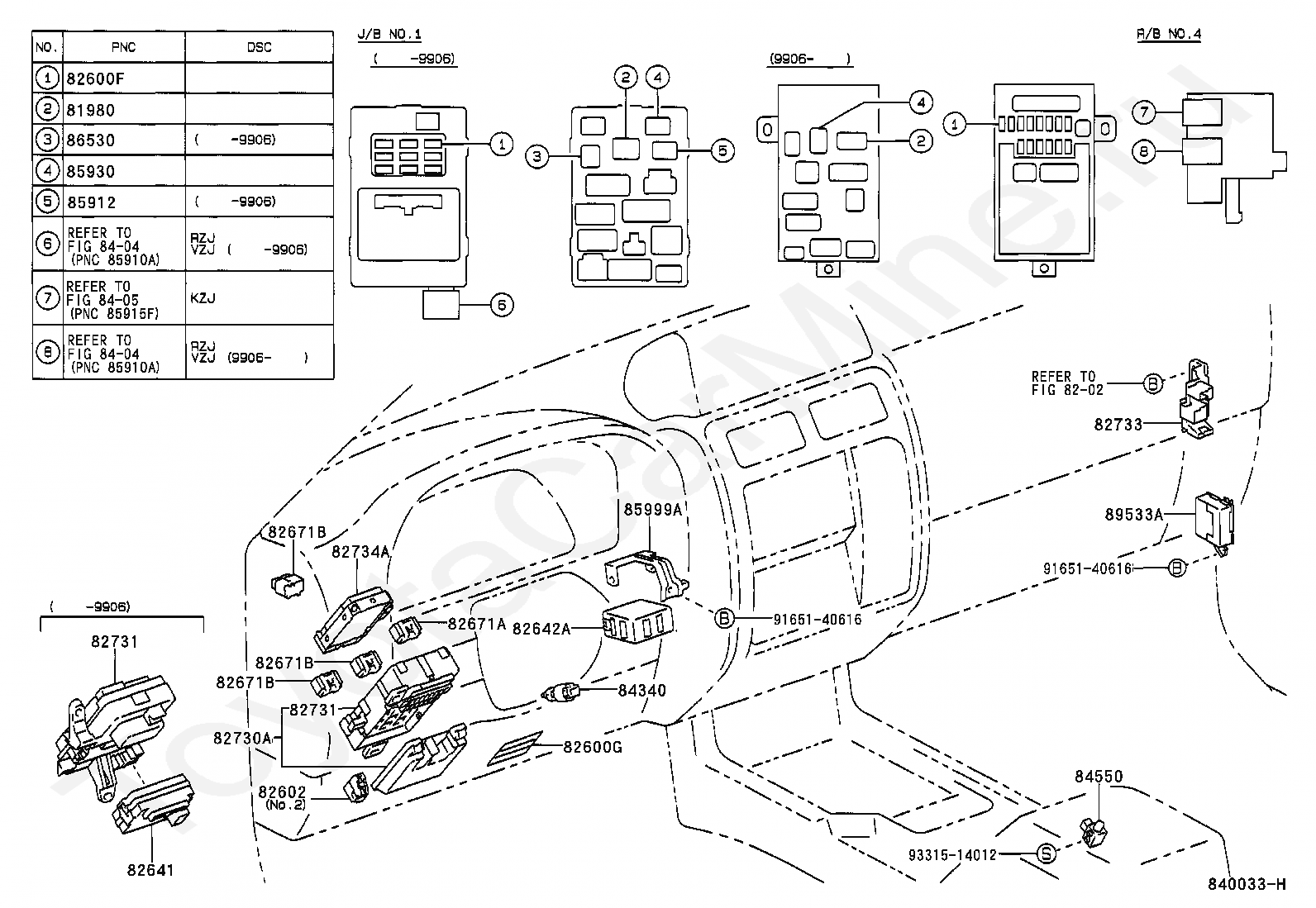

Код

Описание

81980

FLASHER ASSY, TURN SIGNAL

8202

переход к группе запчастей

82600F

FUSE, FUSE BLOCK

82600G

PLATE, CAUTION(FOR FUSE)

82602

BLOCK SUB-ASSY, RELAY

82641

RELAY, INTEGRATION NO.1

82642A

RELAY, RUNNING LIGHT

82671A

BLOCK, JUNCTION

82671B

BLOCK, JUNCTION

82671B

BLOCK, JUNCTION

82671B

BLOCK, JUNCTION

82730A

BLOCK ASSY, DRIVER SIDE JUNCTION

82731

BLOCK, DRIVER SIDE JUNCTION

82731

BLOCK, DRIVER SIDE JUNCTION

82733

BLOCK, PASSENGER SIDE JUNCTION

82734A

BLOCK, CENTER JUNCTION

8404

переход к группе запчастей

8404

переход к группе запчастей

8405

переход к группе запчастей

84340

SWITCH ASSY, STOP LAMP

84550

SWITCH ASSY, PARKING BRAKE

85912

RELAY, DEFOGGER

85930

RELAY ASSY, POWER WINDOW

85999A

BRACKET, RELAY, NO.2

86530

RELAY ASSY, HORN

89533A

COMPUTER, 4 WHEEL DRIVE CONTROL, NO.2

9165140616

Крепеж

9165140616

Крепеж

9331514012

Крепеж

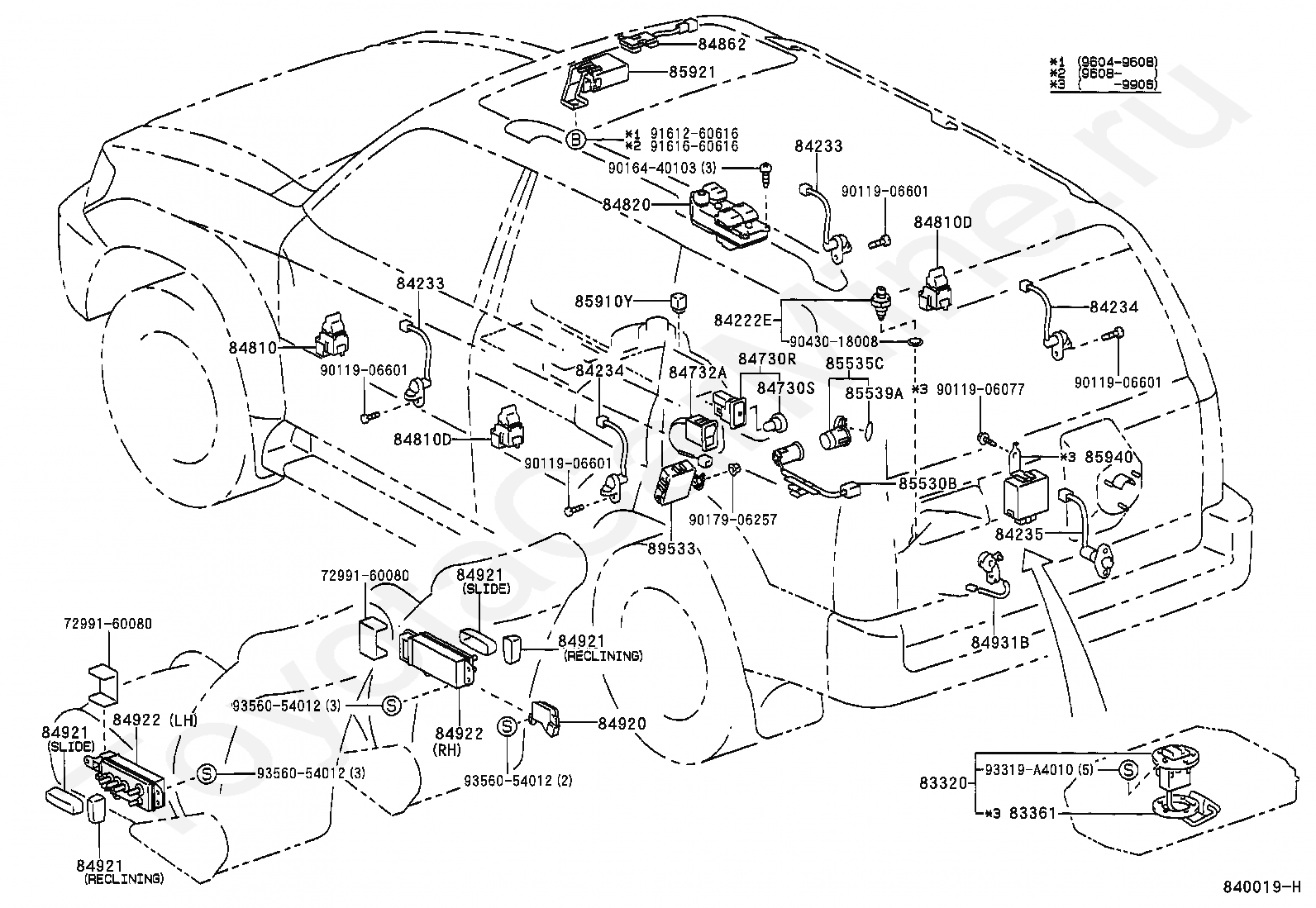

Код

Описание

7299160080

Крепеж

7299160080

Крепеж

83320

GAGE ASSY, FUEL SENDER

83361

GASKET, FUEL SENDER GAGE

84222E

SWITCH, DIFFERENTIAL LOCK INDICATOR

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84235

SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)

84730R

SWITCH ASSY, HEATER BLOWER

84730S

BULB, HEATER BLOWER SWITCH

84732A

SWITCH, REAR HEATER BLOWER

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84820

MASTER SWITCH ASSY, POWER WINDOW REGULATOR

84862

SWITCH, SLIDE ROOF MOTOR

84920

SWITCH ASSY, POWER SEAT

84921

KNOB, POWER SEAT SWITCH

84921

KNOB, POWER SEAT SWITCH

84921

KNOB, POWER SEAT SWITCH

84921

KNOB, POWER SEAT SWITCH

84922

SWITCH, FRONT POWER SEAT

84922

SWITCH, FRONT POWER SEAT

84931B

SWITCH, DOOR CONTROL

85530B

SOCKET ASSY, POWER OUTLET, REAR NO.1

85535C

COVER, POWER OUTLET SOCKET, REAR

85539A

LABEL, POWER OUTLET NOTICE, REAR

85910Y

RELAY, REAR HEATER

85921

RELAY, SLIDING ROOF CONTROL

85940

RELAY ASSY, WINDSHIELD WIPER

89533

COMPUTER, 4 WHEEL DRIVE CONTROL

9011906077

Крепеж

9011906601

Крепеж

9011906601

Крепеж

9011906601

Крепеж

9011906601

Крепеж

9016440103

Крепеж

9017906257

Крепеж

9043018008

Крепеж

9161260616

Крепеж

9161660616

Крепеж

93319A4010

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9356054012

Крепеж
