Каталог

Европа

Модель

LAND CRUISER 90

VIN

Дата

1996/04

Двигатель

3 литра, турбо-дизель

Фрейм

KZJ95

КПП

автомат

Опции

левый руль 5 дверей

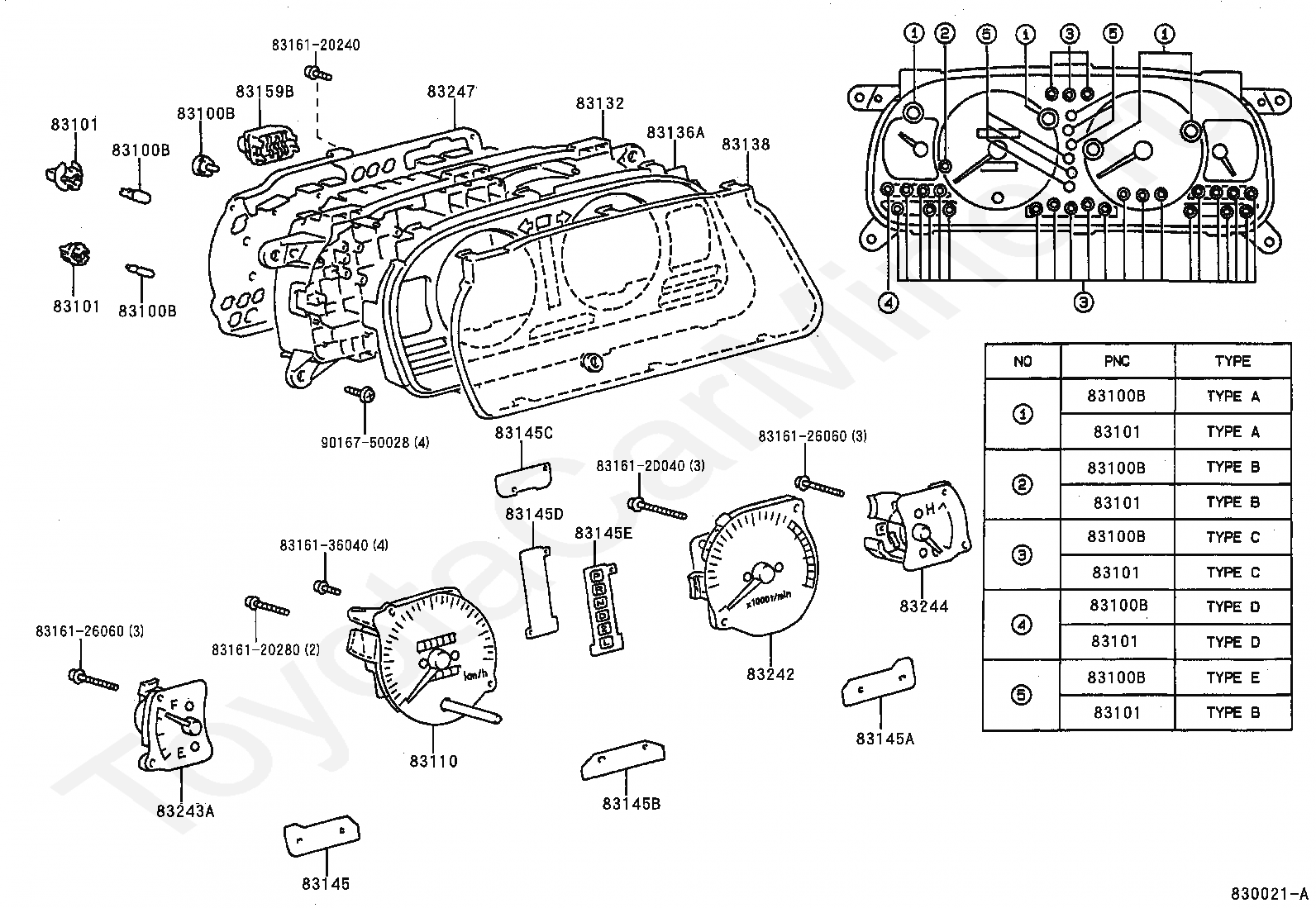

Спидометр TOYOTA LAND CRUISER 90

Код

Описание

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83110

SPEEDOMETER ASSY

83132

CASE, COMBINATION METER

83136A

COVER, COMBINATION METER

83138

GLASS, SPEEDOMETER

83145

LENS, METER, NO.1

83145A

LENS, METER, NO.2

83145B

LENS, METER, NO.3

83145C

LENS, METER, NO.4

83145D

LENS, METER, NO.5

83145E

LENS, METER, NO.6

83159B

RELAY ASSY, METER

8316120240

Крепеж

8316120280

Крепеж

8316126060

Крепеж

8316126060

Крепеж

831612D040

Крепеж

8316136040

Крепеж

83242

TACHOMETER ASSY, ENGINE

83243A

GAUGE SUB-ASSY, FUEL RECEIVER

83244

GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

83247

PLATE, METER CIRCUIT

9016750028

Крепеж

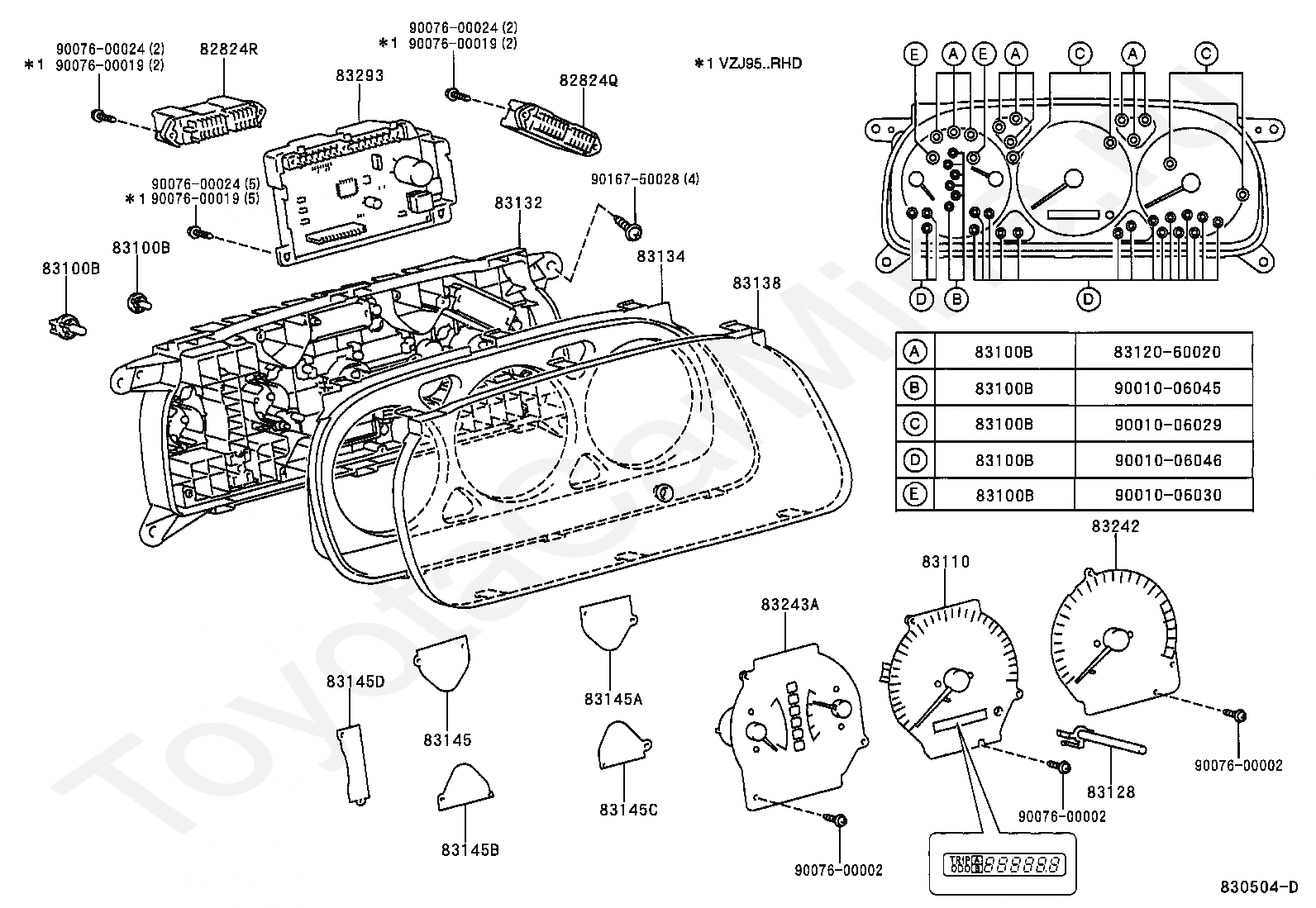

Код

Описание

82824Q

CONNECTOR, WIRING HARNESS, NO.1(FOR SPEEDOMETER)

82824R

CONNECTOR, WIRING HARNESS, NO.2(FOR SPEEDOMETER)

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83110

SPEEDOMETER ASSY

83128

KNOB, TRIP COUNTER

83132

CASE, COMBINATION METER

83134

COVER, COMBINATION METER, NO.1

83138

GLASS, SPEEDOMETER

83145

LENS, METER, NO.1

83145A

LENS, METER, NO.2

83145B

LENS, METER, NO.3

83145C

LENS, METER, NO.4

83145D

LENS, METER, NO.5

83242

TACHOMETER ASSY, ENGINE

83243A

GAUGE SUB-ASSY, FUEL RECEIVER

83293

COMPUTER, TOTAL COUNTER MODULE

9007600002

Крепеж

9007600002

Крепеж

9007600002

Крепеж

9007600019

Крепеж

9007600019

Крепеж

9007600019

Крепеж

9007600024

Крепеж

9007600024

Крепеж

9007600024

Крепеж

9016750028

Крепеж

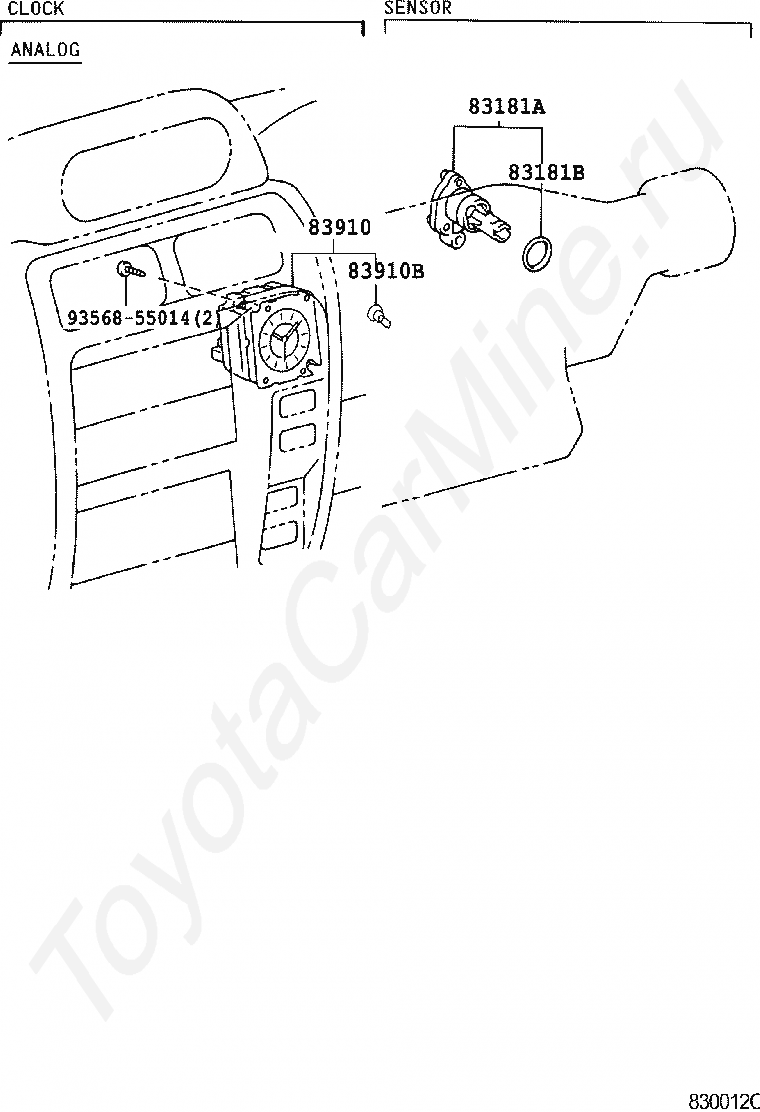

Код

Описание

83181A

SENSOR, SPEEDOMETER

83181B

RING, O (FOR SPEEDOMETER SENSOR)

83910

CLOCK ASSY

83910B

BULB, CLOCK INDICATOR

9356855014

Крепеж

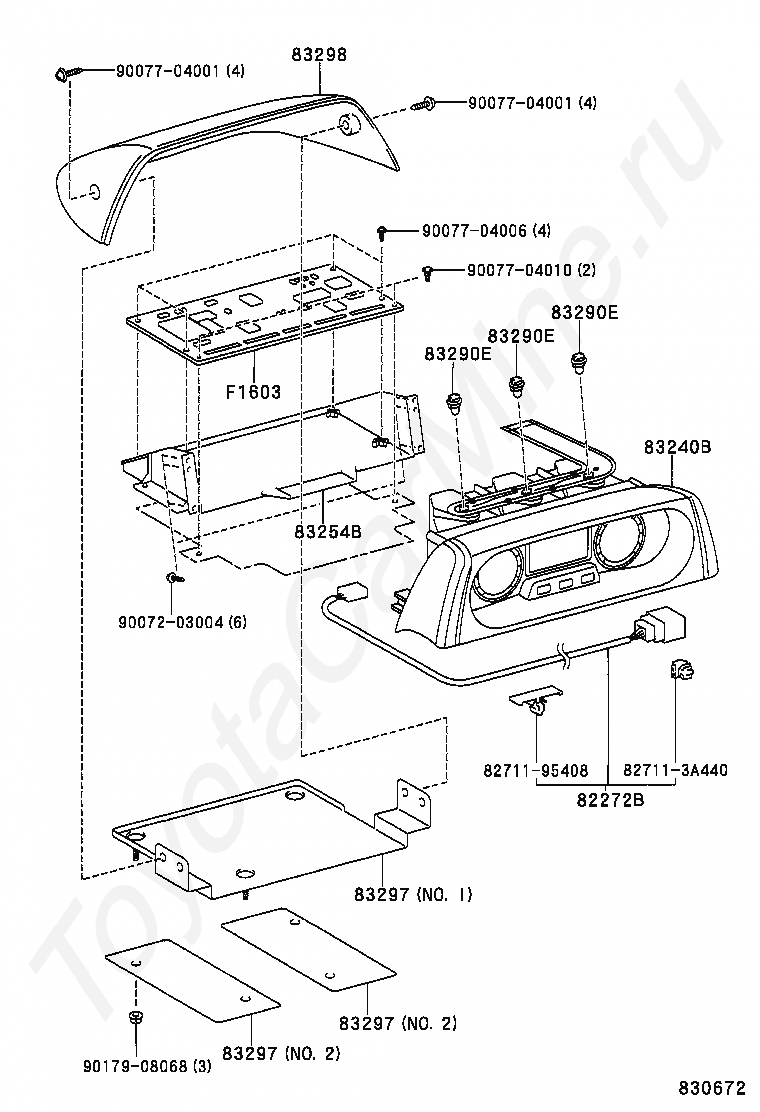

Код

Описание

82272B

WIRE, AMMETER

827113A440

Крепеж

8271195408

Крепеж

83240B

CASE ASSY, ACCESSORY METER

83254B

PLATE, ACCESSORY METER

83290E

BULB, ACCESSORY METER

83290E

BULB, ACCESSORY METER

83290E

BULB, ACCESSORY METER

83297

BRACKET, ACCESSORY METER

83297

BRACKET, ACCESSORY METER

83297

BRACKET, ACCESSORY METER

83298

HOUSING,ACCESSORY METER COMPUTER

9007203004

Крепеж

9007704001

Крепеж

9007704001

Крепеж

9007704006

Крепеж

9007704010

Крепеж

9017908068

Крепеж

F1603

BOARD SUB-ASSY, ACCESSORY METER

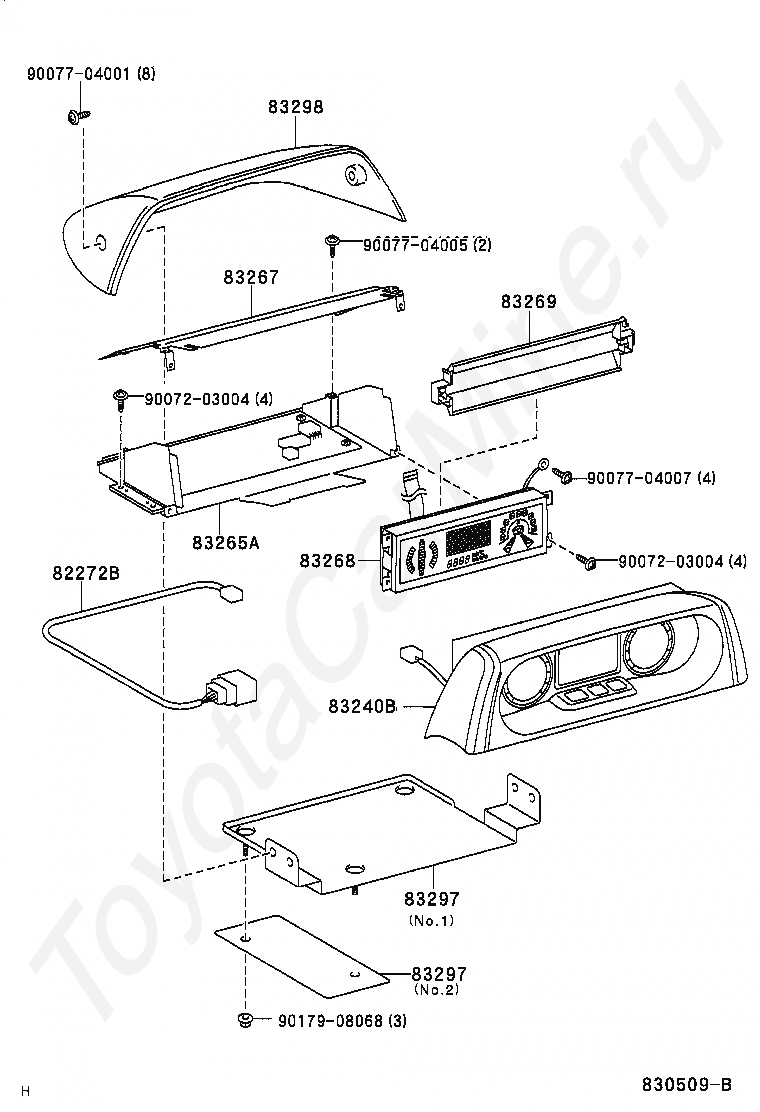

Код

Описание

82272B

WIRE, AMMETER

83240B

CASE ASSY, ACCESSORY METER

83265A

COMPUTER, ACCESSORY METER

83267

COVER, ACCESSORY METER

83268

PANEL, ACCESSORY METER

83269

LAMP, ACCESSORY METER

83297

BRACKET, ACCESSORY METER

83297

BRACKET, ACCESSORY METER

83298

HOUSING,ACCESSORY METER COMPUTER

9007203004

Крепеж

9007203004

Крепеж

9007704001

Крепеж

9007704005

Крепеж

9007704007

Крепеж

9017908068

Крепеж
