Европа

Модель

LAND CRUISER

VIN

Дата

1980/08

Двигатель

4 литра, дизель

Кузов

STATION WAGON G TYPE

Фрейм

HJ60

КПП

механика МКПП, 4 ступени

Опции

правый руль STANDARD ROOF LIFT UP BACK DOOR дизель GENERAL COUNTRIES

Вакуумный тормозной цилиндр TOYOTA LAND CRUISER

Код

Описание

04443

BOOSTER KIT, BRAKE

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44626

RETAINER, BOOSTER ROD CUP

44629

RING, CIRCULAR INTERNAL

44642

PISTON, BRAKE BOOSTER

44643

RETAINER, DIAPHRAGM

44647

RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)

44657A

RING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

44657B

WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)

44662

RETAINER, REACTION, NO.1

44662B

LEVER, REACTION

44662C

PLATE, REACTION, NO.1

44669

RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

44683

CONNECTOR, BOOSTER BODY

44683A

LOCK, CONNECTOR

44696

GROMMET, CHECK VALVE

44708

INSULATOR SUB-ASSY, BRAKE BOOSTER HEAT

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

9017908038

Крепеж

9331914008

Крепеж

Код

Описание

04443

BOOSTER KIT, BRAKE

44601

BAND SUB-ASSY, BOOSTER BODY

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44626

RETAINER, BOOSTER ROD CUP

44629

RING, CIRCULAR INTERNAL

44642

PISTON, BRAKE BOOSTER

44643

RETAINER, DIAPHRAGM

44647

RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)

44657A

RING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

44662

RETAINER, REACTION, NO.1

44662B

LEVER, REACTION

44662C

PLATE, REACTION, NO.1

44669

RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

44696

GROMMET, CHECK VALVE

44697

SCREW, BOOSTER BAND SET

44697A

NUT(FOR BOOSTER BAND SET)

44708

INSULATOR SUB-ASSY, BRAKE BOOSTER HEAT

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

9017908038

Крепеж

9331914008

Крепеж

9411070600

Крепеж

Код

Описание

04443

BOOSTER KIT, BRAKE

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44618

SEAL, BOOSTER BODY

44629

RING, CIRCULAR INTERNAL

44642

PISTON, BRAKE BOOSTER

44663

KEY, VALVE STOPPER

44696

GROMMET, CHECK VALVE

44708

INSULATOR SUB-ASSY, BRAKE BOOSTER HEAT

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44785

GASKET, BRAKE BOOSTER

44798

BRACKET, HEAT INSULATOR, NO.3

9010110076

Крепеж

9017908038

Крепеж

9165141016

Крепеж

9453101000

Крепеж

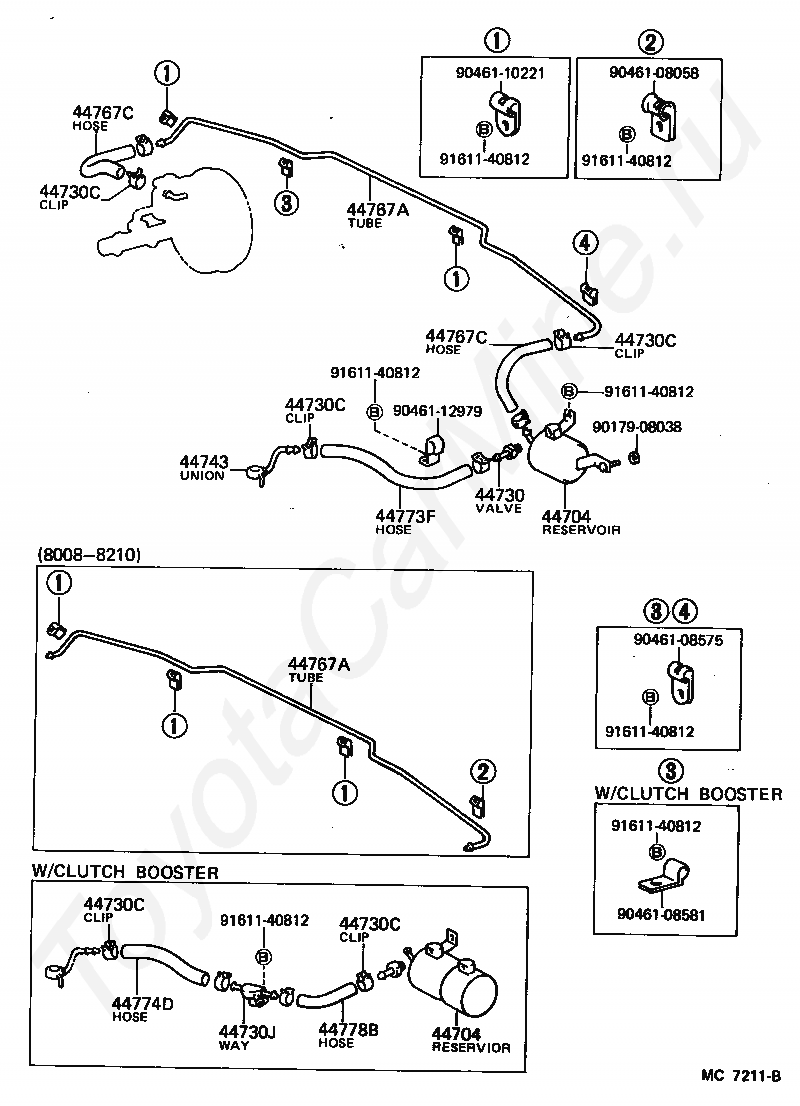

Код

Описание

44704

RESERVOIR SUB-ASSY, VACUUM

44704

RESERVOIR SUB-ASSY, VACUUM

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730J

WAY(FOR BOOSTER VACUUM)

44743

UNION(FOR VACUUM PUMP)

44767A

TUBE, VACUUM RESERVOIR TO BRAKE BOOSTER

44767A

TUBE, VACUUM RESERVOIR TO BRAKE BOOSTER

44767C

HOSE(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)

44767C

HOSE(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)

44773F

HOSE, UNION TO CHECK VALVE

44774D

HOSE, UNION TO WAY

44778B

HOSE, WAY TO CHECK VALVE

9017908038

Крепеж

9046108058

Крепеж

9046108575

Крепеж

9046108581

Крепеж

9046110221

Крепеж

9046112979

Крепеж

9161140812

Крепеж

9161140812

Крепеж

9161140812

Крепеж

9161140812

Крепеж

9161140812

Крепеж

9161140812

Крепеж

9161140812

Крепеж

Код

Описание

44704

RESERVOIR SUB-ASSY, VACUUM

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730J

WAY(FOR BOOSTER VACUUM)

44767A

TUBE, VACUUM RESERVOIR TO BRAKE BOOSTER

44767C

HOSE(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)

44767C

HOSE(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)

44774D

HOSE, UNION TO WAY

44778B

HOSE, WAY TO CHECK VALVE

9046108050

Крепеж

9046108642

Крепеж

9046108643

Крепеж

9161160812

Крепеж

9161160812

Крепеж

9161160812

Крепеж

9161160812

Крепеж

9161160812

Крепеж

Вакуумный тормозной цилиндр TOYOTA LAND CRUISER
