Европа

Модель

LAND CRUISER

VIN

Дата

1980/08

Двигатель

4 литра, дизель

Кузов

PICKUP

Фрейм

HJ47

КПП

МКПП, 4 ступени

Опции

правый руль WITHOUT ROLL BAR GENERAL COUNTRIES INCOMPLETE VEHICLES (CHASSIS & CAB)

Вакуумный тормозной цилиндр TOYOTA LAND CRUISER

Код

Описание

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44610K

BOOSTER KIT, BRAKE

44626

RETAINER, BOOSTER ROD CUP

44629

RING, CIRCULAR INTERNAL

44642

PISTON, BRAKE BOOSTER

44643

RETAINER, DIAPHRAGM

44647

RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)

44657A

RING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

44657B

WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)

44662

RETAINER, REACTION, NO.1

44662B

LEVER, REACTION

44662C

PLATE, REACTION, NO.1

44669

RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

44683

CONNECTOR, BOOSTER BODY

44683A

LOCK, CONNECTOR

44696

GROMMET, CHECK VALVE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

9017908038

Крепеж

9331914008

Крепеж

Код

Описание

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44610K

BOOSTER KIT, BRAKE

44626

RETAINER, BOOSTER ROD CUP

44629

RING, CIRCULAR INTERNAL

44642

PISTON, BRAKE BOOSTER

44643

RETAINER, DIAPHRAGM

44647

RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)

44657A

RING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

44657B

WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)

44662

RETAINER, REACTION, NO.1

44662B

LEVER, REACTION

44662C

PLATE, REACTION, NO.1

44669

RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

44683

CONNECTOR, BOOSTER BODY

44683A

LOCK, CONNECTOR

44696

GROMMET, CHECK VALVE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

9017908038

Крепеж

9331914008

Крепеж

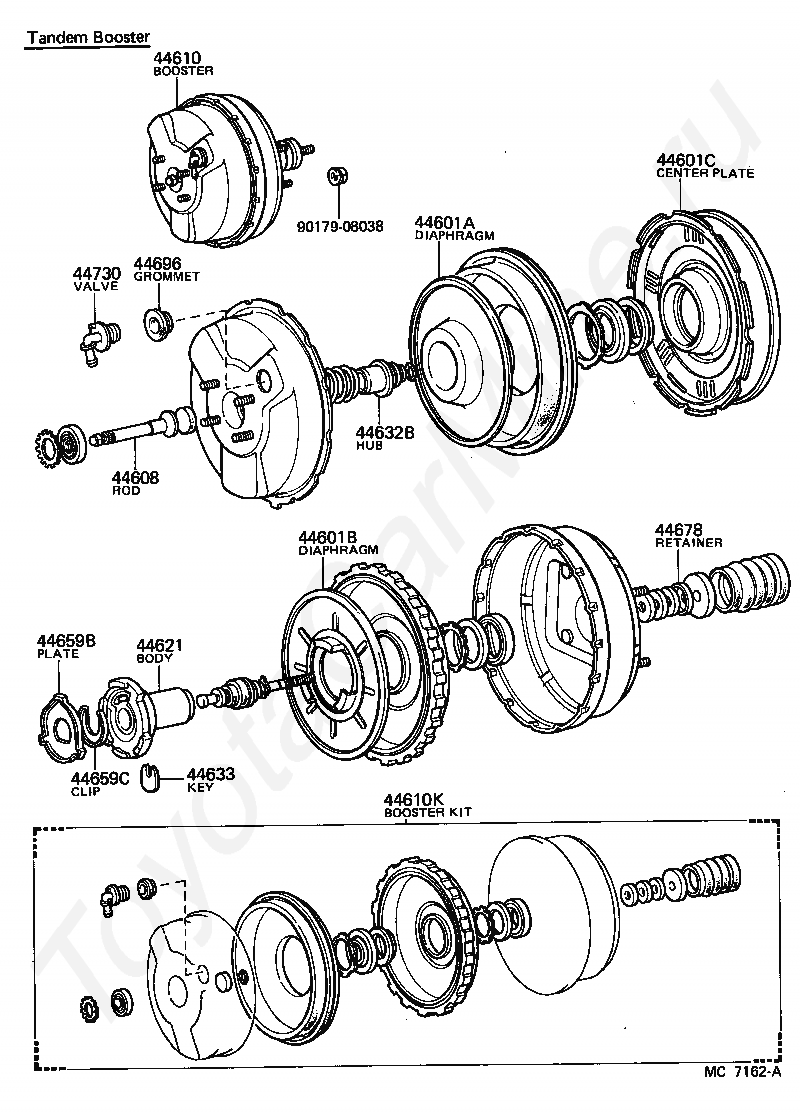

Код

Описание

44601A

DIAPHRAGM PLATE SUB-ASSY, BOOSTER, FRONT

44601B

DIAPHRAGM PLATE SUB-ASSY, BOOSTER, REAR

44601C

CENTER PLATE SUB-ASSY, BOOSTER

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44610K

BOOSTER KIT, BRAKE

44621

BODY, BOOSTER VALVE

44632B

HUB, BOOSTER REACTION DISK

44633

KEY, BOOSTER VALVE PLUNGER

44659B

PLATE, BOOSTER RETAINER

44659C

CLIP, BOOSTER

44678

RETAINER, BOOSTER AIR CLEANER

44696

GROMMET, CHECK VALVE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

9017908038

Крепеж

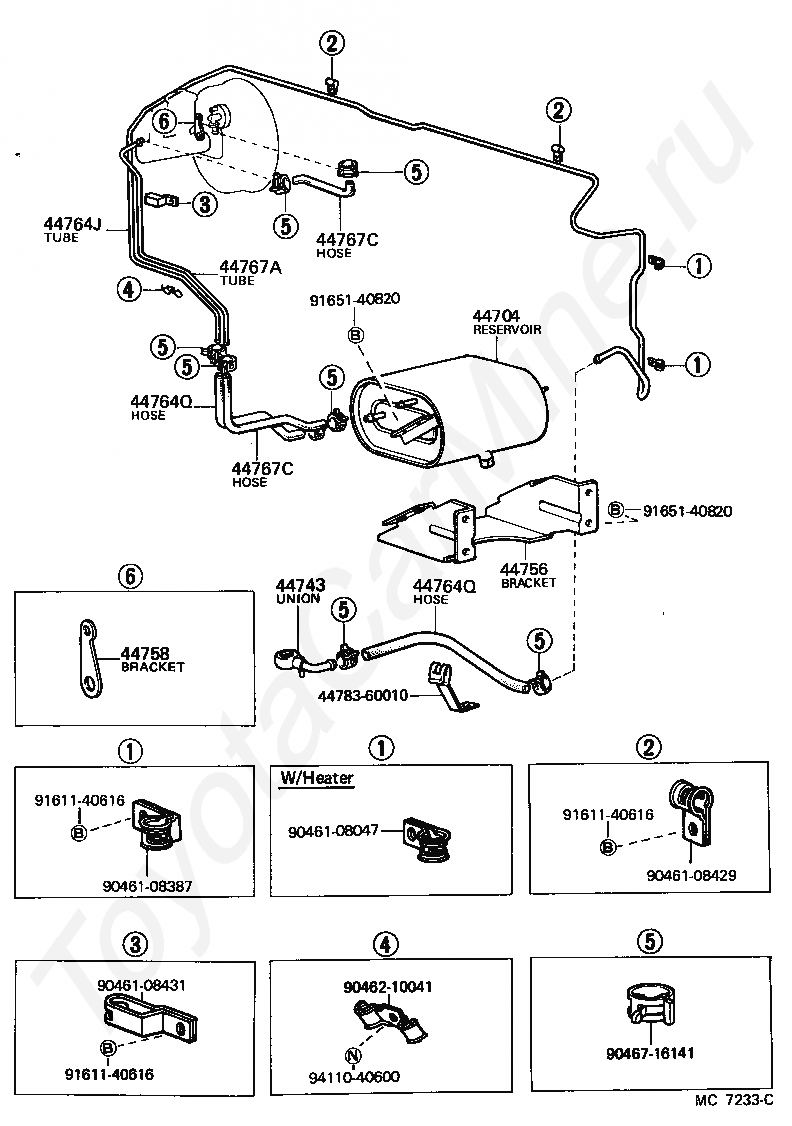

Код

Описание

44704

RESERVOIR SUB-ASSY, VACUUM

44743

UNION(FOR VACUUM PUMP)

44756

BRACKET, VACUUM RESERVOIR

44758

BRACKET, VACUUM CHECK VALVE

44764J

TUBE, CONNECTOR TO VACUUM RESERVOIR

44764Q

HOSE(FOR CONNECTOR TO VACUUM RESERVOIR TUBE)

44764Q

HOSE(FOR CONNECTOR TO VACUUM RESERVOIR TUBE)

44767A

TUBE, VACUUM RESERVOIR TO BRAKE BOOSTER

44767C

HOSE(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)

44767C

HOSE(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)

4478360010

Крепеж

9046108047

Крепеж

9046108387

Крепеж

9046108429

Крепеж

9046108431

Крепеж

9046210041

Крепеж

9046716141

Крепеж

9161140616

Крепеж

9161140616

Крепеж

9161140616

Крепеж

9165140820

Крепеж

9165140820

Крепеж

9411040600

Крепеж

Вакуумный тормозной цилиндр TOYOTA LAND CRUISER
