Европа

Модель

LAND CRUISER

VIN

Дата

1975/01

Двигатель

CUT HOSE TO LENGTH AS SPECIFIED IN REMARKS

Кузов

PICKUP

Фрейм

HJ45

КПП

МКПП, 4 ступени

Опции

левый руль WITHOUT ROLL BAR GENERAL COUNTRIES INCOMPLETE VEHICLES (CHASSIS & CAB)

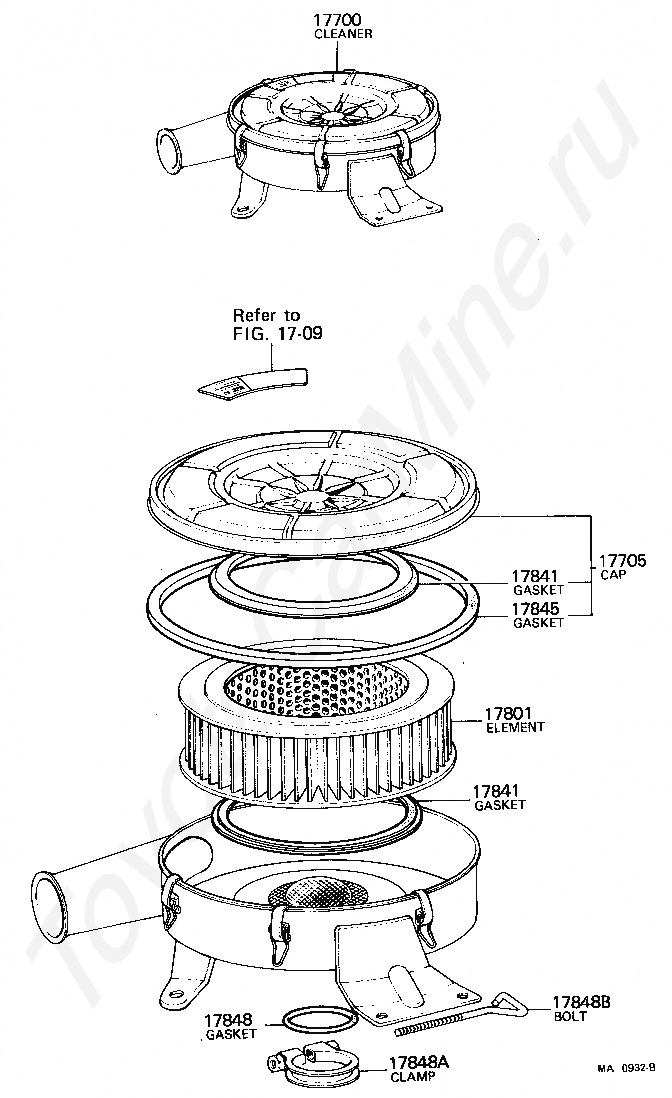

Воздушный фильтр TOYOTA LAND CRUISER

Код

Описание

1709

переход к группе запчастей

17700

CLEANER ASSY, AIR

17705

CAP SUB-ASSY, AIR CLEANER

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17841

GASKET, FILTER ELEMENT

17841

GASKET, FILTER ELEMENT

17845

GASKET, AIR CLEANER CAP

17848

GASKET, AIR CLEANER TO CARBURETOR

17848A

CLAMP(FOR AIR CLEANER TO CARBURETOR GASKET)

17848B

BOLT, CLAMP(FOR AIR CLEANER TO CARBURETOR GASKET)

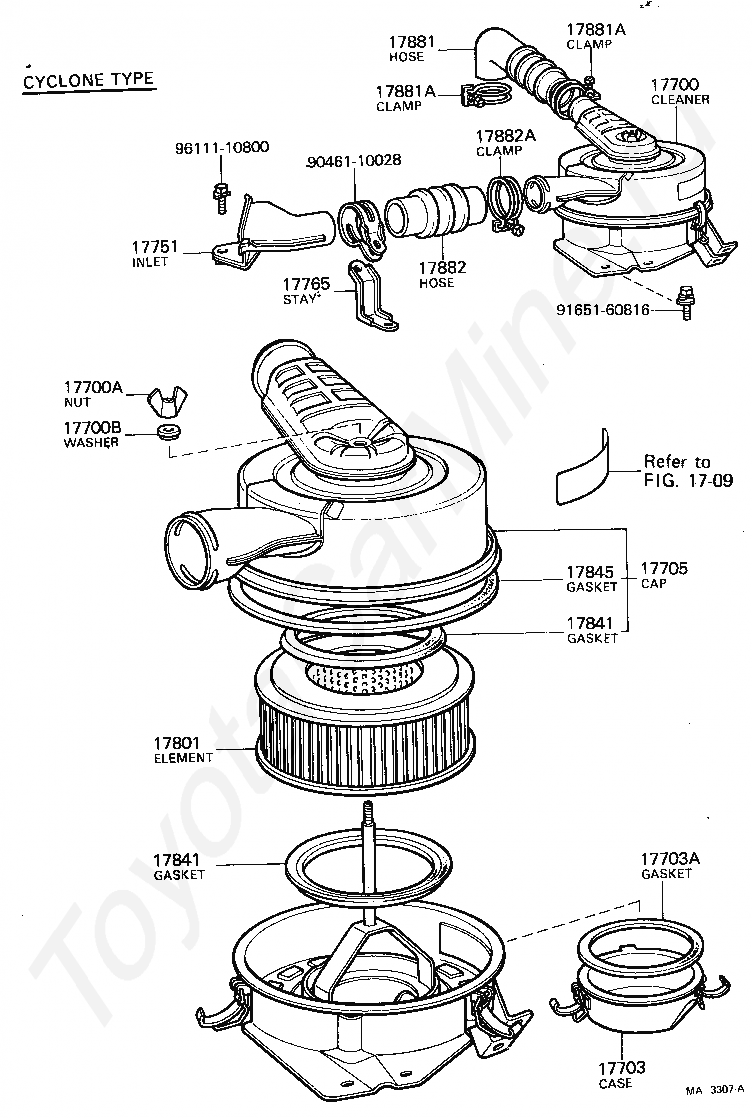

Код

Описание

1709

переход к группе запчастей

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700B

WASHER, SEAL(FOR AIR CLEANER)

17705

CAP SUB-ASSY, AIR CLEANER

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17841

GASKET, FILTER ELEMENT

17841

GASKET, FILTER ELEMENT

17845

GASKET, AIR CLEANER CAP

17881

HOSE, AIR CLEANER, NO.1

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

9165160816

Крепеж

Код

Описание

1709

переход к группе запчастей

1709

переход к группе запчастей

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700A

NUT, WING(FOR AIR CLEANER)

17700B

WASHER, SEAL(FOR AIR CLEANER)

17700B

WASHER, SEAL(FOR AIR CLEANER)

17705

CAP SUB-ASSY, AIR CLEANER

17705

CAP SUB-ASSY, AIR CLEANER

17751

INLET, AIR CLEANER, NO.1

17765

STAY, AIR CLEANER, NO.1

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17841

GASKET, FILTER ELEMENT

17841

GASKET, FILTER ELEMENT

17841

GASKET, FILTER ELEMENT

17845

GASKET, AIR CLEANER CAP

17845

GASKET, AIR CLEANER CAP

17881

HOSE, AIR CLEANER, NO.1

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17882

HOSE, AIR CLEANER, NO.2

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

9046110028

Крепеж

9165160816

Крепеж

9611110800

Крепеж

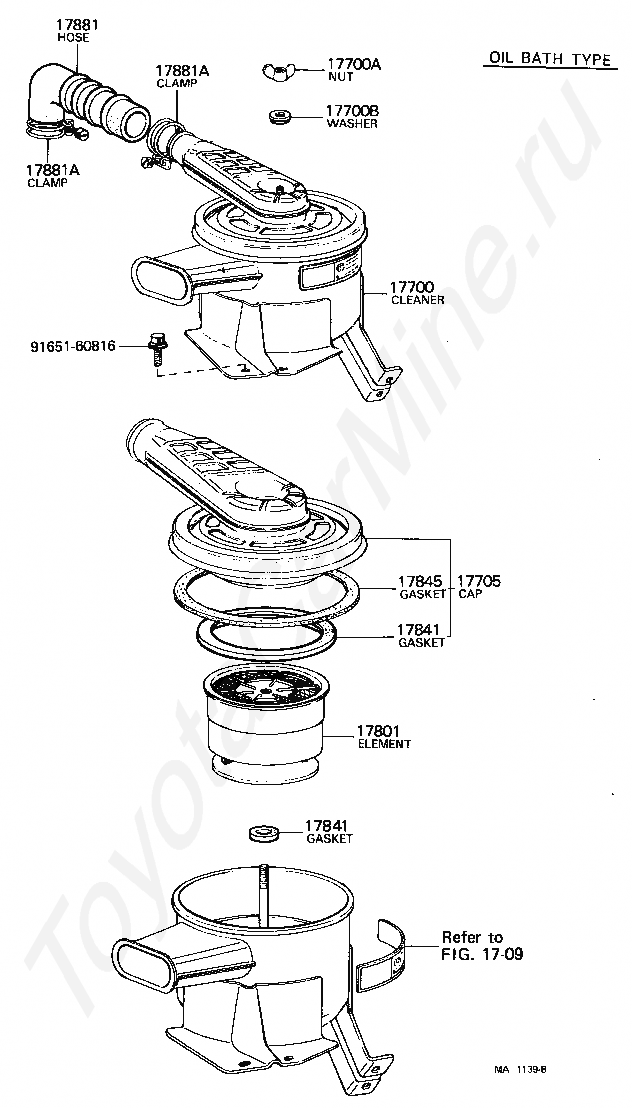

Код

Описание

1709

переход к группе запчастей

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700B

WASHER, SEAL(FOR AIR CLEANER)

17703

CASE SUB-ASSY, BOTTOM AIR CLEANER FILTER

17703A

GASKET(FOR BOTTOM AIR CLEANER FILTER CASE)

17705

CAP SUB-ASSY, AIR CLEANER

17751

INLET, AIR CLEANER, NO.1

17765

STAY, AIR CLEANER, NO.1

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17841

GASKET, FILTER ELEMENT

17841

GASKET, FILTER ELEMENT

17845

GASKET, AIR CLEANER CAP

17881

HOSE, AIR CLEANER, NO.1

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17882

HOSE, AIR CLEANER, NO.2

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

9046110028

Крепеж

9165160816

Крепеж

9611110800

Крепеж
