Европа

Модель

LAND CRUISER

VIN

Дата

1992/08

Двигатель

4,5 литра, EFI

Класс

VX TYPE

Фрейм

FZJ80

КПП

автомат

Опции

левый руль LIFT UP BACK DOOR электронная система впрыска топлива

Реле и кнопки TOYOTA LAND CRUISER

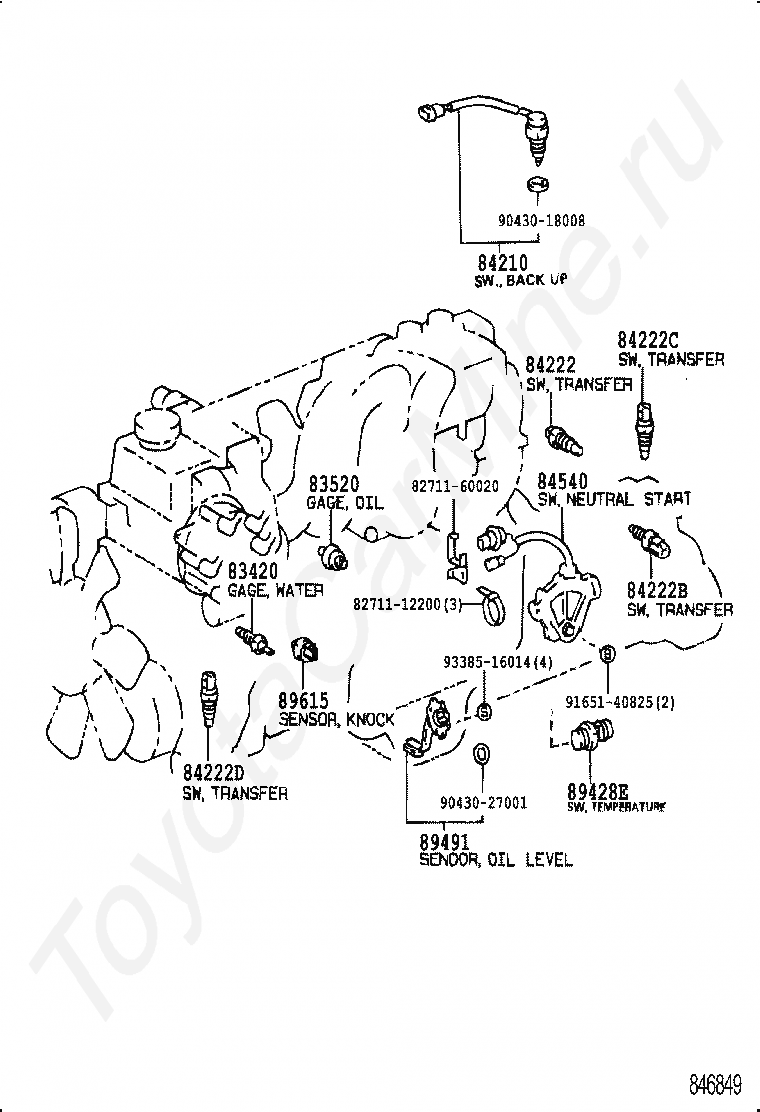

Код

Описание

8271112200

Крепеж

8271160020

Крепеж

83420

GAGE ASSY, WATER TEMPERATURE SENDER

83520

GAGE ASSY,OIL PRESSURE SENDER

84210

SWITCH ASSY, BACK-UP LAMP

84222

SWITCH, TRANSFER INDICATOR, NO.1

84222B

SWITCH, TRANSFER INDICATOR, NO.2

84222C

SWITCH, TRANSFER INDICATOR, NO.3

84222D

SWITCH, TRANSFER INDICATOR, NO.4

84540

SWITCH ASSY, NEUTRAL START

89428E

SWITCH, TEMPERATURE, NO.2 (FOR TRANSMISSION)

89491

SENSOR, ENGINE OIL LEVEL

89615

SENSOR, KNOCK CONTROL

9043018008

Крепеж

9043027001

Крепеж

9165140825

Крепеж

9338516014

Крепеж

Код

Описание

2302

переход к группе запчастей

27790

RELAY ASSY, CHARGE LAMP

28300

RELAY ASSY, STARTER

28380A

RESISTER, FUEL PUMP

28420

RELAY ASSY, VOLTAGE CONVERTER

28425

COVER, VOLTAGE CONVERTER RELAY

28610

RELAY ASSY, INTAKE HEATER OR GLOW PLUG

28610

RELAY ASSY, INTAKE HEATER OR GLOW PLUG

28610A

RELAY ASSY, GLOW PLUG(SUB)

28611

COVER, GLOW PLUG RELAY

28611

COVER, GLOW PLUG RELAY

28891

COVER, BATTERY TERMINAL

28892

PLATE, BATTERY TERMINAL COVER

4738360020

Крепеж

8202

переход к группе запчастей

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82610A

BLOCK ASSY, FUSE

82611

COVER, FUSE BLOCK

82615

BRACKET, FUSE

82615B

BRACKET, FUSE NO.2

82661

COVER, RELAY BLOCK, NO.1

82661

COVER, RELAY BLOCK, NO.1

82670A

BLOCK ASSY, JUNCTION, NO.1

82670A

BLOCK ASSY, JUNCTION, NO.1

82670B

BLOCK ASSY, JUNCTION, NO.2

83390

SWITCH ASSY, VACUUM WARNING

8404

переход к группе запчастей

84461

SWITCH, LEVEL WARNING

85916P

RELAY, HEADLAMP

85926

RELAY, HEADLAMP DIMMER

85931B

RELAY, FUEL HEATER

85959A

HOLDER, RELAY

86530

RELAY ASSY, HORN

88630H

RELAY ASSY, COOLER

89421D

SENSOR, TURBO PRESSURE

89452A

SENSOR, THROTTLE POSITION

89620

IGNITER ASSY

89620

IGNITER ASSY

89629

BRACKET, IGNITER ASSY

9011906171

Крепеж

9011906171

Крепеж

9011908063

Крепеж

9011908063

Крепеж

9011908197

Крепеж

9015950262

Крепеж

9017906158

Крепеж

9017906158

Крепеж

9017906158

Крепеж

9017906158

Крепеж

9017906158

Крепеж

9017906231

Крепеж

9017908041

Крепеж

9017908066

Крепеж

9017908146

Крепеж

9017908146

Крепеж

9046400190

Крепеж

91632G0614

Крепеж

9165140616

Крепеж

9165140616

Крепеж

9165140814

Крепеж

9165140814

Крепеж

9166540625

Крепеж

9331615016

Крепеж

9331616016

Крепеж

9461410600

Крепеж

Код

Описание

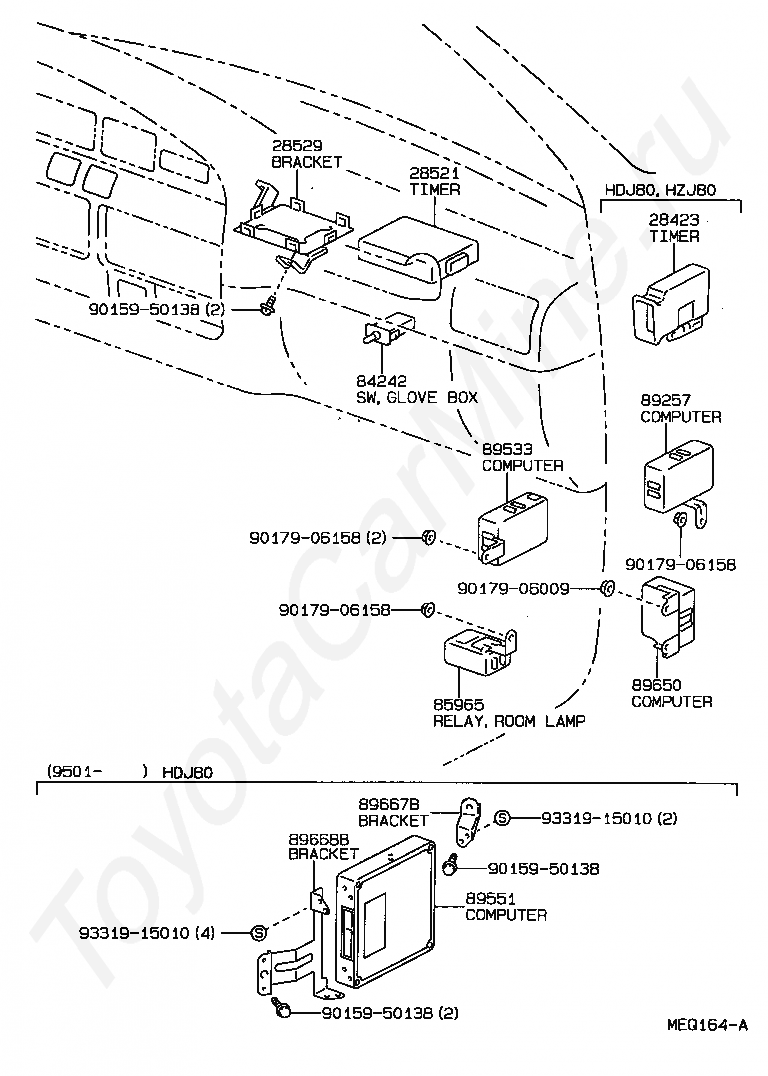

28423

TIMER, VOLTAGE CONVERTER

28521

TIMER, PREHEATING

28529

BRACKET, PREHEATING TIMER, NO.1

84242

SWITCH, GLOVE BOX LAMP

85965

RELAY, ROOM LAMP CONTROL

89257

COMPUTER, COOLING FAN

89533

COMPUTER, 4 WHEEL DRIVE CONTROL

89551

COMPUTER, EMISSION CONTROL

89650

COMPUTER ASSY, POWER STEERING

89667B

BRACKET, ENGINE CONTROL COMPUTER, NO.1

89668B

BRACKET, ENGINE CONTROL COMPUTER, NO.2

9015950138

Крепеж

9015950138

Крепеж

9015950138

Крепеж

9017906009

Крепеж

9017906158

Крепеж

9017906158

Крепеж

9017906158

Крепеж

9331915010

Крепеж

9331915010

Крепеж

Код

Описание

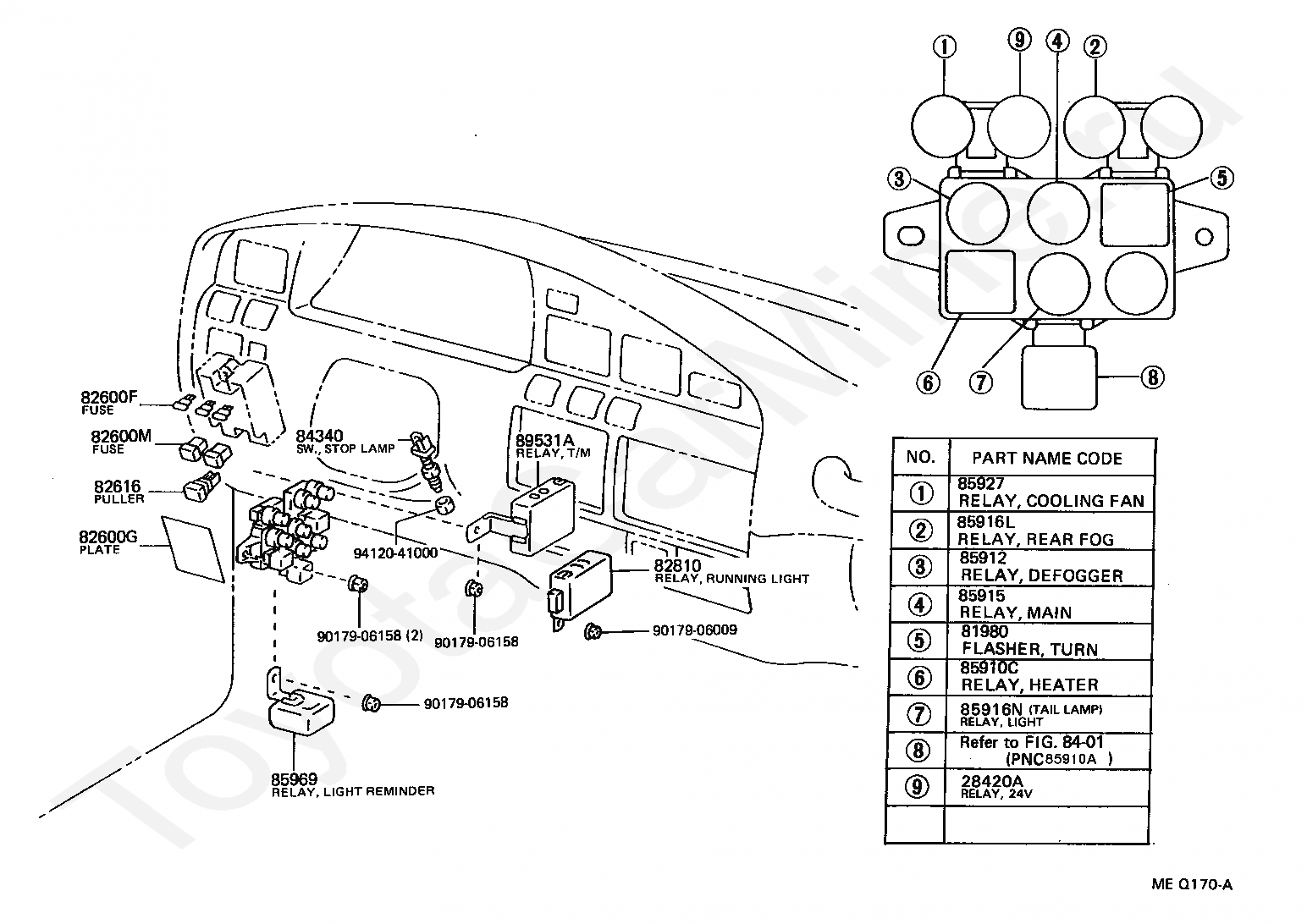

28420A

RELAY, 24V HOLD WARNING

81980

FLASHER ASSY, TURN SIGNAL

82600F

FUSE, FUSE BLOCK

82600G

PLATE, CAUTION(FOR FUSE)

82600M

FUSE, MEDIUM CURRENT

82616

PULLER, FUSE

82810

RELAY ASSY, RUNNING LIGHT

8401

переход к группе запчастей

84340

SWITCH ASSY, STOP LAMP

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85912

RELAY, DEFOGGER

85915

RELAY, MAIN

85916L

RELAY, REAR FOG LAMP

85916N

RELAY, TAIL LAMP

85927

RELAY, COOLING FAN

85969

RELAY, LIGHT REMINDER

89531A

RELAY, TRANSMISSION CONTROL

9017906009

Крепеж

9017906158

Крепеж

9017906158

Крепеж

9017906158

Крепеж

9412041000

Крепеж

Код

Описание

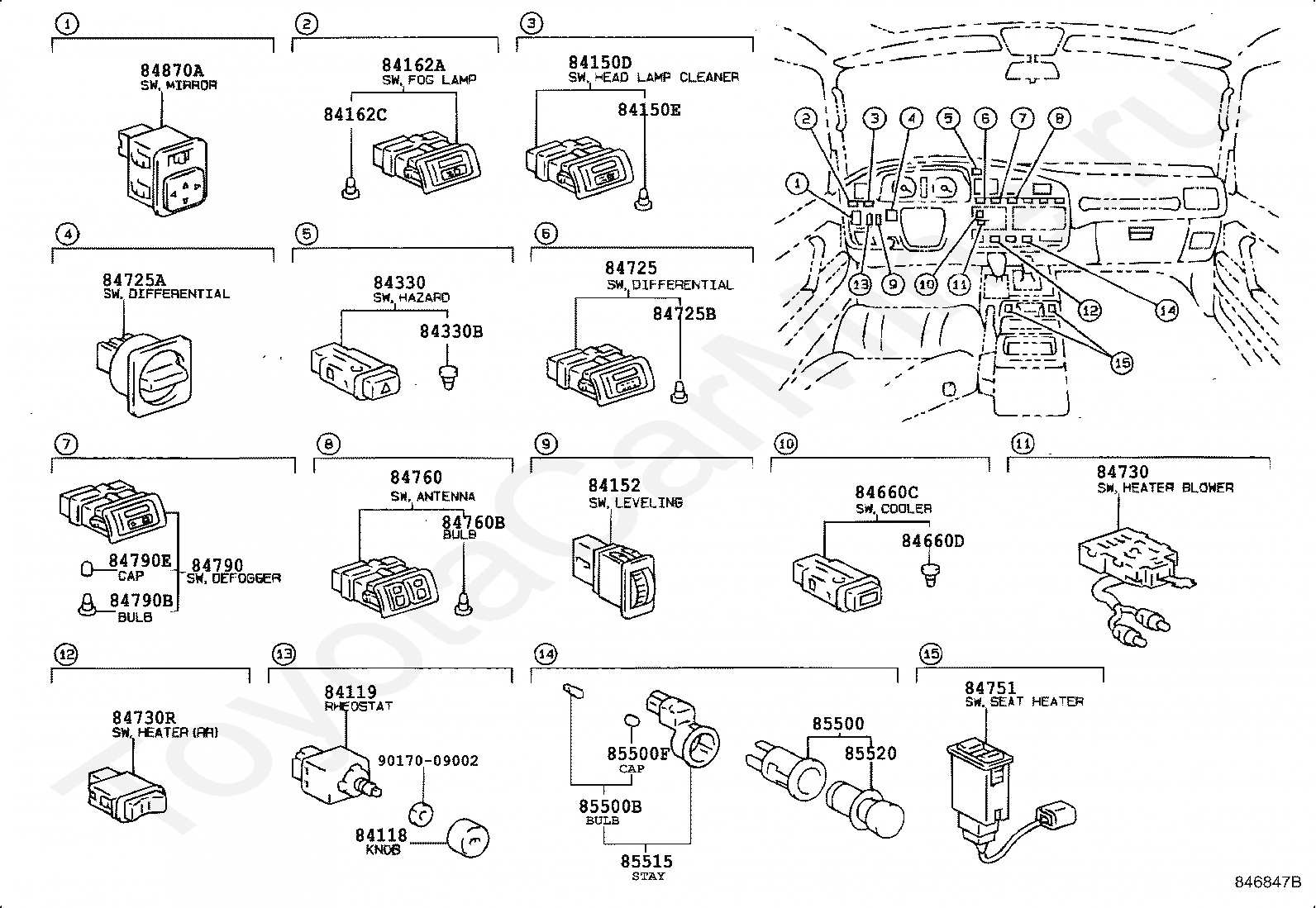

84118

KNOB, LIGHT CONTROL RHEOSTAT

84119

RHEOSTAT, LIGHT CONTROL

84150D

SWITCH ASSY, HEADLAMP CLEANER

84150E

BULB, HEADLAMP CLEANER SWITCH

84152

SWITCH, HEADLAMP LEVELING

84162A

SWITCH, REAR FOG LAMP

84162C

BULB (FOR REAR FOG LAMP SWITCH)

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84330B

BULB, HAZARD WARNING SIGNAL SWITCH

84660C

SWITCH, COOLER

84660D

BULB(FOR COOLER SWITCH)

84725

SWITCH, CENTER DIFFERENTIAL LOCK

84725A

SWITCH, DIFFERENTIAL LOCK

84725B

BLUB, DIFFERENTIAL LOCK SWITCH

84730

SWITCH ASSY, HEATER BLOWER

84730R

SWITCH ASSY, HEATER BLOWER

84751

SWITCH, SEAT HEATER

84760

SWITCH ASSY, ANTENNA

84760B

BULB, ANTENNA SWITCH

84790

SWITCH ASSY, REAR WINDOW DEFOGGER

84790B

BULB(FOR REAR WINDOW DEFOGGER SWITCH)

84790E

CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH)

84870A

SWITCH ASSY, OUTER MIRROR

85500

LIGHTER ASSY, CIGARETTE

85500B

BULB, CIGARETTE LIGHTER

85500F

CAP, CIGARETTE LIGHTER BULB

85515

STAY, CIGARETTE LIGHTER BEZEL

85520

KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER

9017009002

Крепеж

Код

Описание

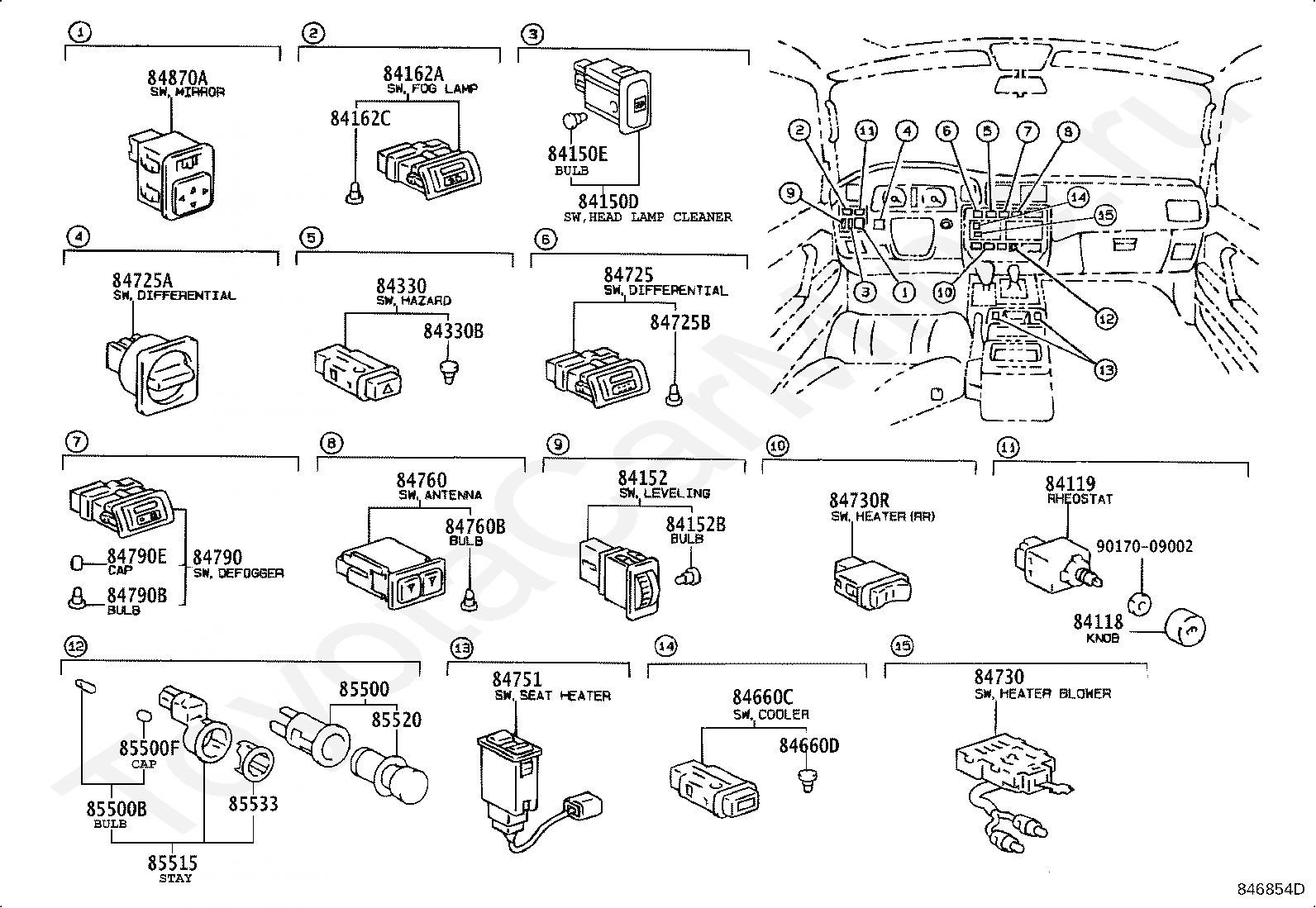

84118

KNOB, LIGHT CONTROL RHEOSTAT

84119

RHEOSTAT, LIGHT CONTROL

84150D

SWITCH ASSY, HEADLAMP CLEANER

84150E

BULB, HEADLAMP CLEANER SWITCH

84152

SWITCH, HEADLAMP LEVELING

84152B

BULB (FOR HEADLAMP LEVELING SWITCH)

84162A

SWITCH, REAR FOG LAMP

84162C

BULB (FOR REAR FOG LAMP SWITCH)

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84330B

BULB, HAZARD WARNING SIGNAL SWITCH

84660C

SWITCH, COOLER

84660D

BULB(FOR COOLER SWITCH)

84725

SWITCH, CENTER DIFFERENTIAL LOCK

84725A

SWITCH, DIFFERENTIAL LOCK

84725B

BLUB, DIFFERENTIAL LOCK SWITCH

84730

SWITCH ASSY, HEATER BLOWER

84730R

SWITCH ASSY, HEATER BLOWER

84751

SWITCH, SEAT HEATER

84760

SWITCH ASSY, ANTENNA

84760B

BULB, ANTENNA SWITCH

84790

SWITCH ASSY, REAR WINDOW DEFOGGER

84790B

BULB(FOR REAR WINDOW DEFOGGER SWITCH)

84790E

CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH)

84870A

SWITCH ASSY, OUTER MIRROR

85500

LIGHTER ASSY, CIGARETTE

85500B

BULB, CIGARETTE LIGHTER

85500F

CAP, CIGARETTE LIGHTER BULB

85515

STAY, CIGARETTE LIGHTER BEZEL

85520

KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER

85533

LENS, CIGARETTE LIGHTER INDICATOR

9017009002

Крепеж

Код

Описание

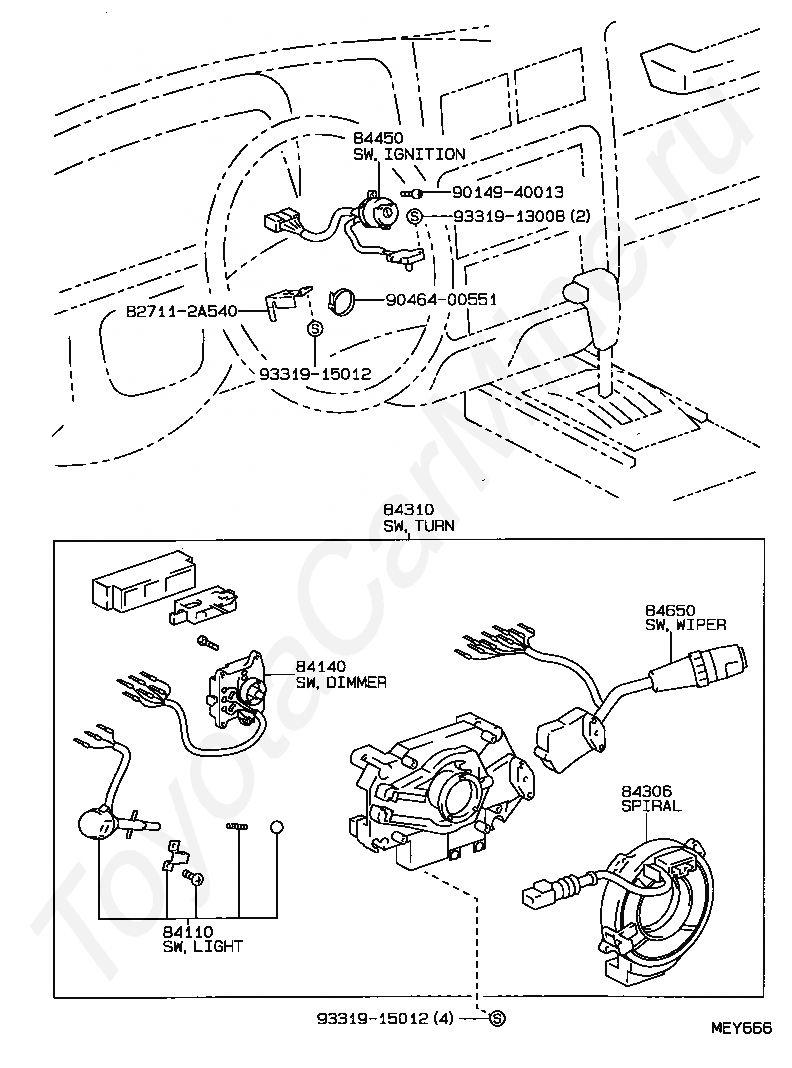

827112A540

Крепеж

84110

SWITCH ASSY, LIGHT CONTROL, NO.1

84140

SWITCH ASSY, HEADLAMP DIMMER

84310

SWITCH ASSY, TURN SIGNAL

84312

PLATE, HORN CONTACT

84450

SWITCH ASSY, IGNITION OR STARTER

84650

SWITCH ASSY, WINDSHIELD WIPER

9014940013

Крепеж

9046400551

Крепеж

9331913008

Крепеж

9331915012

Крепеж

9331915012

Крепеж

Код

Описание

827112A540

Крепеж

84110

SWITCH ASSY, LIGHT CONTROL, NO.1

84140

SWITCH ASSY, HEADLAMP DIMMER

84306

CABLE SUB-ASSY, SPIRAL

84310

SWITCH ASSY, TURN SIGNAL

84450

SWITCH ASSY, IGNITION OR STARTER

84650

SWITCH ASSY, WINDSHIELD WIPER

9014940013

Крепеж

9046400551

Крепеж

9331913008

Крепеж

9331915012

Крепеж

9331915012

Крепеж

Код

Описание

8271160090

Крепеж

83320

GAGE ASSY, FUEL SENDER

84113A

BRACKET, SWITCH, NO.1

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84550

SWITCH ASSY, PARKING BRAKE

84656A

BEZEL, SWITCH

84656A

BEZEL, SWITCH

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84820

MASTER SWITCH ASSY, POWER WINDOW REGULATOR

84920

SWITCH ASSY, POWER SEAT

84921

KNOB, POWER SEAT SWITCH

84921

KNOB, POWER SEAT SWITCH

84921

KNOB, POWER SEAT SWITCH

84921

KNOB, POWER SEAT SWITCH

84922

SWITCH, FRONT POWER SEAT

84922

SWITCH, FRONT POWER SEAT

84931B

SWITCH, DOOR CONTROL

85910Y

RELAY, REAR HEATER

85921

RELAY, SLIDING ROOF CONTROL

85980

RELAY ASSY, DOOR CONTROL

89437

COVER, SENSOR

89465

SENSOR, OXYGEN

89465

SENSOR, OXYGEN

89466

GASKET, OXYGEN SENSOR

89466

GASKET, OXYGEN SENSOR

9011906092

Крепеж

9011906390

Крепеж

9011906390

Крепеж

9011906390

Крепеж

9011906390

Крепеж

9015960081

Крепеж

9017906178

Крепеж

9017908059

Крепеж

9018906125

Крепеж

9095001356

Крепеж

9161160612

Крепеж

9331514014

Крепеж

9331913006

Крепеж

9331914008

Крепеж

9338616016

Крепеж

9354014012

Крепеж

9356055010

Крепеж

9356055010

Крепеж

Код

Описание

84222D

SWITCH, TRANSFER INDICATOR, NO.4

84235

SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)

84235

SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)

85940B

RELAY ASSY, REAR WIPER

85940B

RELAY ASSY, REAR WIPER

9015960081

Крепеж

9018906125

Крепеж

9046709043

Крепеж

9165140616

Крепеж
