Европа

Модель

LAND CRUISER

VIN

Дата

1980/08

Двигатель

4,2 литра

Кузов

STATION WAGON G TYPE

Фрейм

FJ60

КПП

механика МКПП, 4 ступени

Опции

правый руль STANDARD ROOF LIFT UP BACK DOOR STANDARD CARBURETOR SPECIFICATION GENERAL COUNTRIES

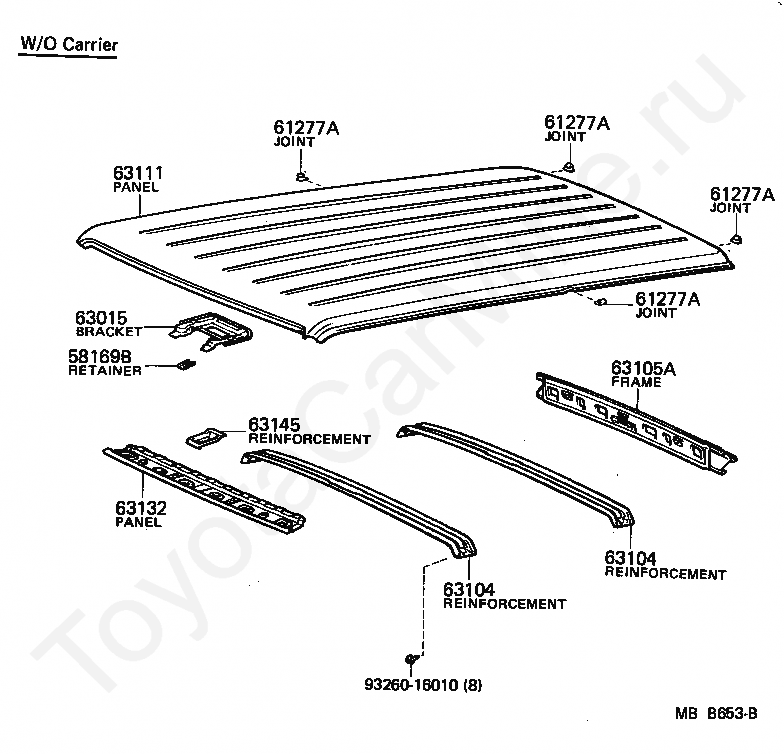

ROOF PANEL & BACK PANEL TOYOTA LAND CRUISER







Код

Описание

58169B

RETAINER, REAR HEATER MOUNTING

61277A

JOINT, ROOF DRIP CHANNEL

61277A

JOINT, ROOF DRIP CHANNEL

61277A

JOINT, ROOF DRIP CHANNEL

61277A

JOINT, ROOF DRIP CHANNEL

63015

BRACKET SUB-ASSY, ROOF CONSOLE

63104

REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

63104

REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

63105A

FRAME SUB-ASSY, BACK DOOR OPENING

63111

PANEL, ROOF

63132

PANEL, WINDSHIELD HEADER, INNER

63145

REINFORCEMENT, WINDSHIELD HEADER INNER PANEL

9326016010

Крепеж

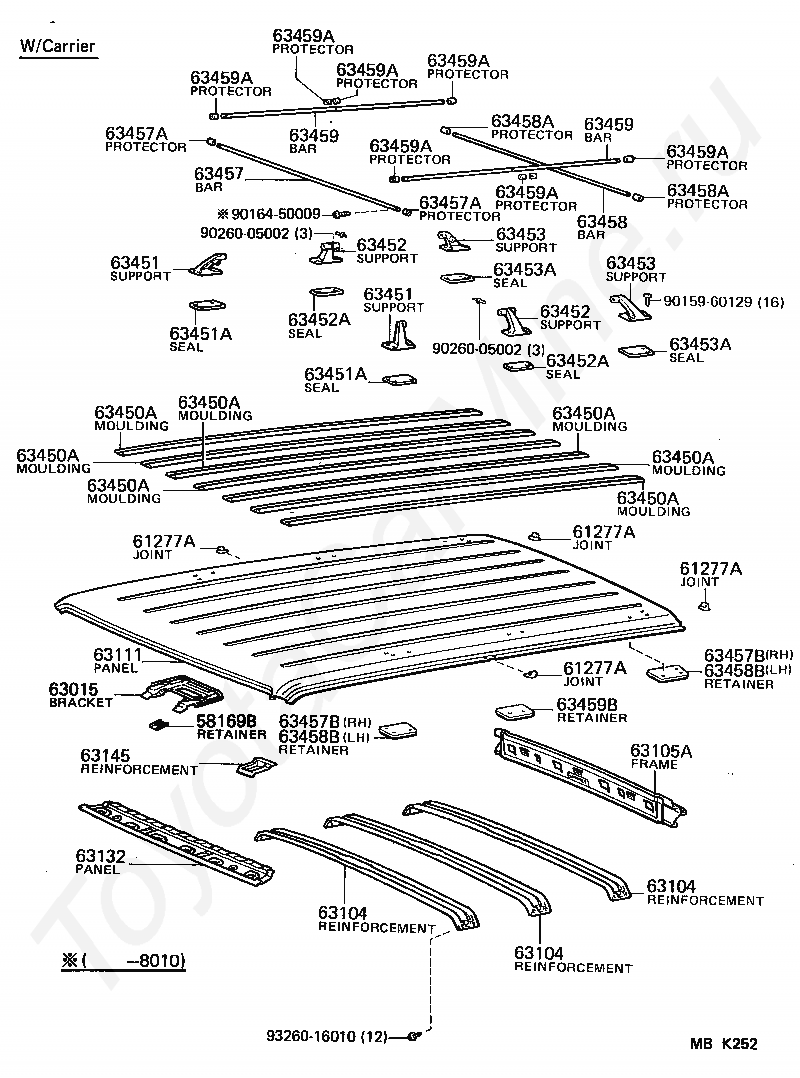

Код

Описание

58169B

RETAINER, REAR HEATER MOUNTING

61277A

JOINT, ROOF DRIP CHANNEL

61277A

JOINT, ROOF DRIP CHANNEL

61277A

JOINT, ROOF DRIP CHANNEL

61277A

JOINT, ROOF DRIP CHANNEL

63015

BRACKET SUB-ASSY, ROOF CONSOLE

63104

REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

63104

REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

63104

REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

63105A

FRAME SUB-ASSY, BACK DOOR OPENING

63111

PANEL, ROOF

63132

PANEL, WINDSHIELD HEADER, INNER

63145

REINFORCEMENT, WINDSHIELD HEADER INNER PANEL

63450A

MOULDING, ROOF CARRIER

63450A

MOULDING, ROOF CARRIER

63450A

MOULDING, ROOF CARRIER

63450A

MOULDING, ROOF CARRIER

63450A

MOULDING, ROOF CARRIER

63450A

MOULDING, ROOF CARRIER

63450A

MOULDING, ROOF CARRIER

63451

SUPPORT, ROOF CARRIER, NO.1

63451

SUPPORT, ROOF CARRIER, NO.1

63451A

SEAL, ROOF CARRIER, NO.1 SUPPORT

63451A

SEAL, ROOF CARRIER, NO.1 SUPPORT

63452

SUPPORT, ROOF CARRIER, NO.2

63452

SUPPORT, ROOF CARRIER, NO.2

63452A

SEAL, ROOF CARRIER, NO.2 SUPPORT

63452A

SEAL, ROOF CARRIER, NO.2 SUPPORT

63453

SUPPORT, ROOF CARRIER, NO.3

63453

SUPPORT, ROOF CARRIER, NO.3

63453A

SEAL, ROOF CARRIER, NO.3 SUPPORT

63453A

SEAL, ROOF CARRIER, NO.3 SUPPORT

63457

BAR, ROOF CARRIER, FRONT

63457A

PROTECTOR, ROOF CARRIER, FRONT BAR

63457A

PROTECTOR, ROOF CARRIER, FRONT BAR

63457B

RETAINER, ROOF CARRIER, NO.1 RH

63457B

RETAINER, ROOF CARRIER, NO.1 RH

63458

BAR, ROOF CARRIER, REAR

63458A

PROTECTOR, ROOF CARRIER, REAR BAR

63458A

PROTECTOR, ROOF CARRIER, REAR BAR

63458B

RETAINER, ROOF CARRIER, NO.1 LH

63458B

RETAINER, ROOF CARRIER, NO.1 LH

63459

BAR, ROOF CARRIER, SIDE

63459

BAR, ROOF CARRIER, SIDE

63459A

PROTECTOR, ROOF CARRIER, SIDE BAR

63459A

PROTECTOR, ROOF CARRIER, SIDE BAR

63459A

PROTECTOR, ROOF CARRIER, SIDE BAR

63459A

PROTECTOR, ROOF CARRIER, SIDE BAR

63459A

PROTECTOR, ROOF CARRIER, SIDE BAR

63459A

PROTECTOR, ROOF CARRIER, SIDE BAR

63459A

PROTECTOR, ROOF CARRIER, SIDE BAR

63459B

RETAINER, ROOF CARRIER, NO.2

9015960129

Крепеж

9016450009

Крепеж

9026005002

Крепеж

9026005002

Крепеж

9326016010

Крепеж

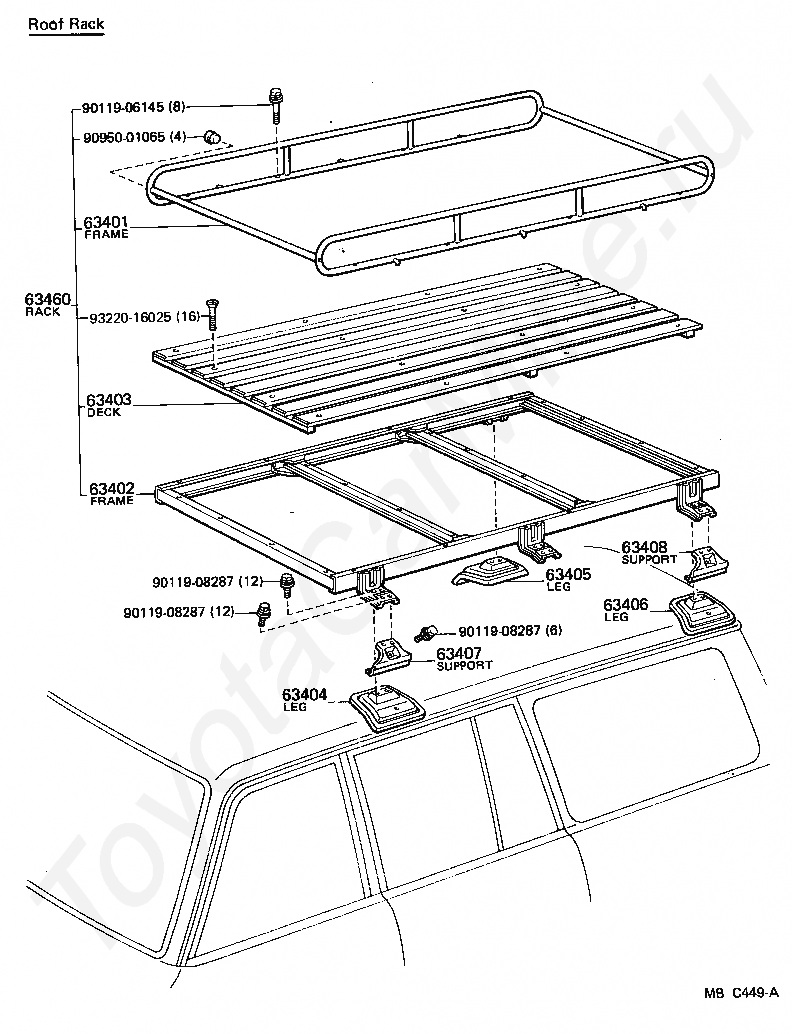

Код

Описание

63401

FRAME SUB-ASSY, ROOF RACK, UPPER

63402

FRAME SUB-ASSY, ROOF RACK, LOWER

63403

DECK SUB-ASSY, ROOF RACK

63404

LEG SUB-ASSY, ROOF RACK, FRONT

63405

LEG SUB-ASSY, ROOF RACK, REAR RH

63406

LEG SUB-ASSY, ROOF RACK, REAR LH

63407

SUPPORT SUB-ASSY, ROOF RACK LEG, FRONT

63408

SUPPORT SUB-ASSY, ROOF RACK LEG, REAR

63460

RACK ASSY, ROOF

9011906145

Крепеж

9011908287

Крепеж

9011908287

Крепеж

9011908287

Крепеж

9095001065

Крепеж

9322016025

Крепеж

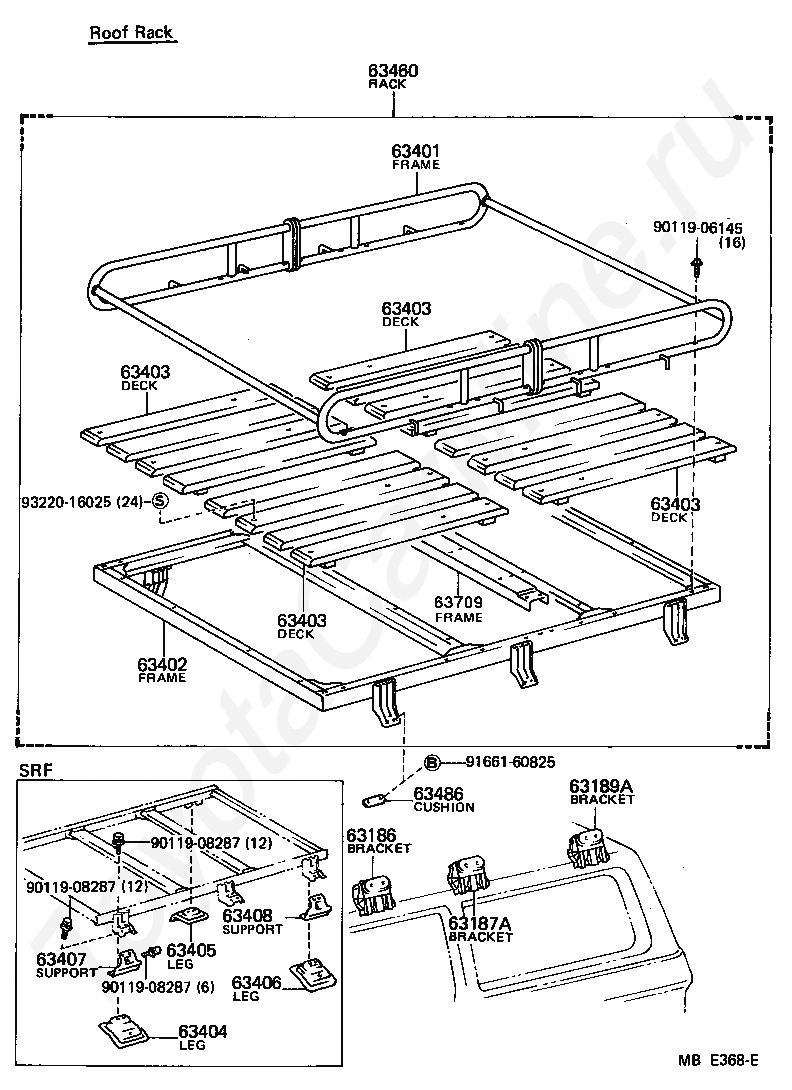

Код

Описание

63186

BRACKET, ROOF RACK, FRONT

63187A

BRACKET, ROOF RACK, REAR

63189A

BRACKET, ROOF RACK, CENTER

63401

FRAME SUB-ASSY, ROOF RACK, UPPER

63402

FRAME SUB-ASSY, ROOF RACK, LOWER

63403

DECK SUB-ASSY, ROOF RACK

63403

DECK SUB-ASSY, ROOF RACK

63403

DECK SUB-ASSY, ROOF RACK

63403

DECK SUB-ASSY, ROOF RACK

63404

LEG SUB-ASSY, ROOF RACK, FRONT

63405

LEG SUB-ASSY, ROOF RACK, REAR RH

63406

LEG SUB-ASSY, ROOF RACK, REAR LH

63407

SUPPORT SUB-ASSY, ROOF RACK LEG, FRONT

63408

SUPPORT SUB-ASSY, ROOF RACK LEG, REAR

63460

RACK ASSY, ROOF

63486

CUSHION, ROOF RACK LEG

63709

FRAME SUB-ASSY, ROOF RACK, LOWER NO.3

9011906145

Крепеж

9011908287

Крепеж

9011908287

Крепеж

9011908287

Крепеж

9166160825

Крепеж

9322016025

Крепеж

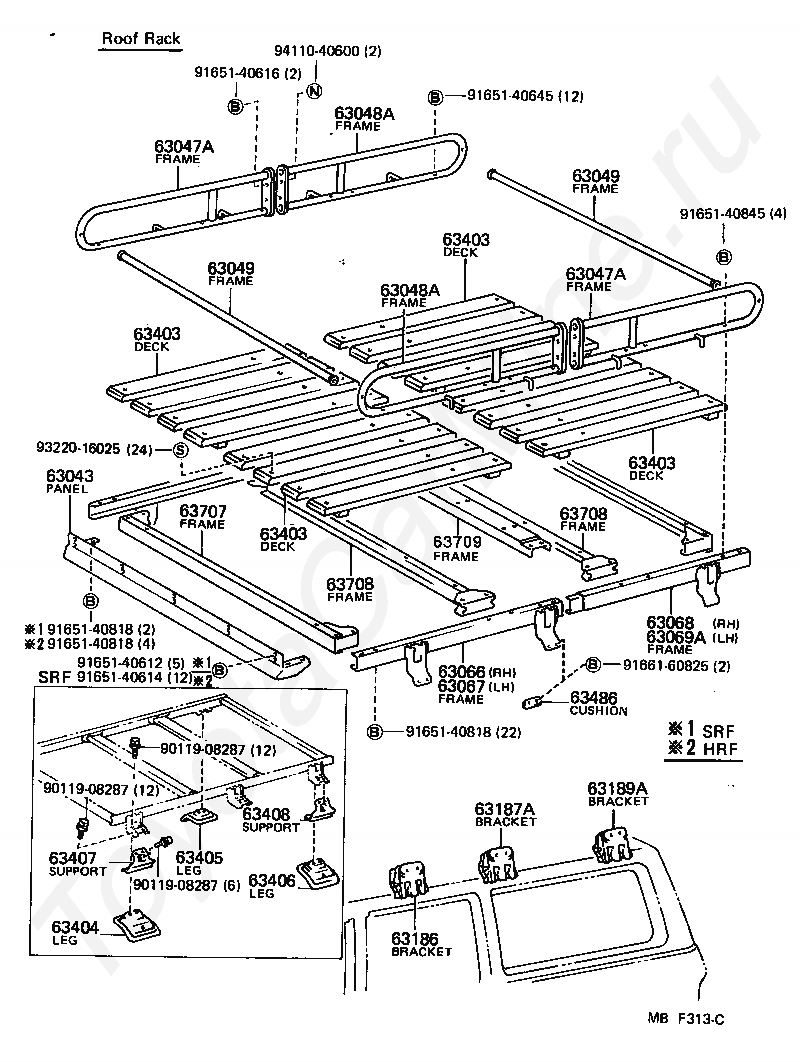

Код

Описание

63043

PANEL SUB-ASSY, ROOF RACK WIND DEFLECTOR

63047A

FRAME SUB-ASSY, ROOF RACK RAIL, UPPER NO.1

63047A

FRAME SUB-ASSY, ROOF RACK RAIL, UPPER NO.1

63048A

FRAME SUB-ASSY, ROOF RACK RAIL, UPPER NO.2

63048A

FRAME SUB-ASSY, ROOF RACK RAIL, UPPER NO.2

63049

FRAME SUB-ASSY, ROOF RACK, UPPER END

63049

FRAME SUB-ASSY, ROOF RACK, UPPER END

63066

FRAME SUB-ASSY, ROOF RACK, LOWER FRONT RH

63067

FRAME SUB-ASSY, ROOF RACK, LOWER FRONT LH

63068

FRAME SUB-ASSY, ROOF RACK, LOWER REAR RH

63069A

FRAME SUB-ASSY, ROOF RACK, LOWER REAR LH

63186

BRACKET, ROOF RACK, FRONT

63187A

BRACKET, ROOF RACK, REAR

63189A

BRACKET, ROOF RACK, CENTER

63403

DECK SUB-ASSY, ROOF RACK

63403

DECK SUB-ASSY, ROOF RACK

63403

DECK SUB-ASSY, ROOF RACK

63403

DECK SUB-ASSY, ROOF RACK

63404

LEG SUB-ASSY, ROOF RACK, FRONT

63405

LEG SUB-ASSY, ROOF RACK, REAR RH

63406

LEG SUB-ASSY, ROOF RACK, REAR LH

63407

SUPPORT SUB-ASSY, ROOF RACK LEG, FRONT

63408

SUPPORT SUB-ASSY, ROOF RACK LEG, REAR

63486

CUSHION, ROOF RACK LEG

63707

FRAME SUB-ASSY, ROOF RACK, LOWER NO.1

63708

FRAME SUB-ASSY, ROOF RACK, LOWER NO.2

63708

FRAME SUB-ASSY, ROOF RACK, LOWER NO.2

63709

FRAME SUB-ASSY, ROOF RACK, LOWER NO.3

9011908287

Крепеж

9011908287

Крепеж

9011908287

Крепеж

9165140612

Крепеж

9165140614

Крепеж

9165140616

Крепеж

9165140645

Крепеж

9165140818

Крепеж

9165140818

Крепеж

9165140818

Крепеж

9165140845

Крепеж

9166160825

Крепеж

9322016025

Крепеж

9411040600

Крепеж
